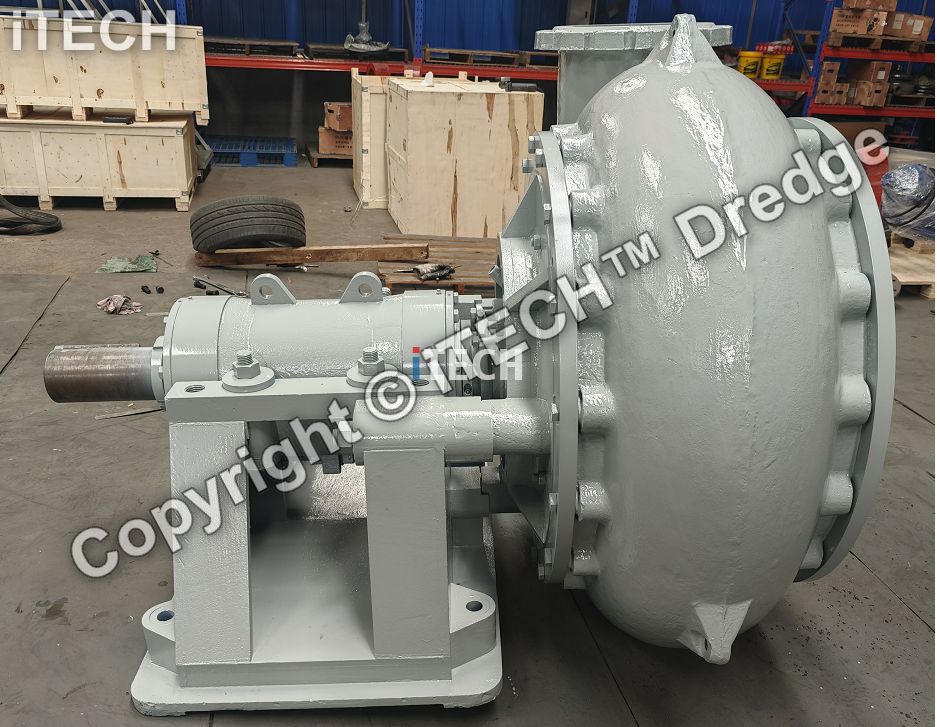

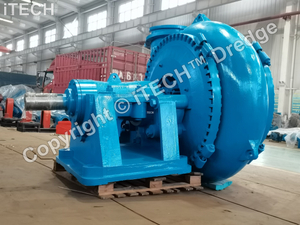

The 16/14 Gravel Sand Pump is an ultra-heavy-duty centrifugal slurry pump designed for extreme-duty material handling in large-scale dredging, mining, and industrial applications. With a 16-inch (400mm) suction inlet and 14-inch (350mm) discharge outlet, this pump delivers unmatched slurry transport capacity, making it ideal for high-volume sand, gravel, and mining operations.
Engineered for maximum durability, it features premium wear-resistant materials (Cr30, ceramic lining, or rubber-coated) to withstand highly abrasive slurries while maintaining high efficiency and low maintenance costs.
✅ Mega-Capacity Performance
Flow rate: 2,500–6,000 m³/h (up to 26,400 GPM)
Max head: 80m (262 ft) for long-distance slurry transport
Handles particles up to 150mm (6 inches)
✅ Ultra-Durable Construction
Cr30 high-chrome alloy (30% chromium) or ceramic-lined for extreme wear resistance
Reinforced double-wall casing for structural integrity
Replaceable wear parts (impeller, liner, shaft sleeve) for easy maintenance
✅ Heavy-Duty Engineering
Extra-large bearings with oil lubrication for continuous operation

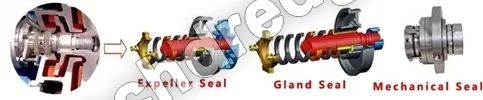

Multiple sealing options (mechanical seal, expeller, or gland packing)
Robust shaft design to prevent deflection under extreme loads
✅ Customizable Configurations
Horizontal, vertical, or submersible models
Diesel, electric, or hydraulic drive (up to 1,200 HP/900 kW)
Explosion-proof & corrosion-resistant variants available
| Parameter | Specification |
|---|---|
| Inlet/Outlet Size | 16" / 14" (400mm / 350mm) |
| Flow Capacity | 2,500–6,000 m³/h |
| Max Head | 80m (262 ft) |
| Max Particle Size | 120–150mm (6 inches) |
| Operating Speed | 300–750 RPM |
| Power Requirement | 300–900 kW (400–1,200 HP) |
| Efficiency | Up to 82% (optimized impeller design) |
| Material Options | Cr30, Rubber-Lined, Ceramic, Stainless Steel |
Marine & Large-Scale Dredging
Deep-sea sand mining & offshore dredging
Harbor deepening & channel maintenance
Land reclamation & coastal protection
Mining & Heavy Industry
High-capacity sand & gravel extraction
Mineral sands, iron ore, and coal slurry transport
Tailings management in mega-mining operations
⚙ Major Infrastructure Projects
Tunnel boring spoil removal
Dam construction & sediment control
Large-scale flood prevention systems
Specialized Uses
Sand bypass systems for major ports
High-density slurry pipelines
Environmental remediation dredging
✔ Unmatched Throughput – Highest flow capacity in its class for mega-scale operations.
✔ Extended Lifespan – 3–5x longer wear life than standard pumps.
✔ Low Maintenance – Modular design allows quick replacement of wear parts.
✔ Energy Efficient – Optimized hydraulic design reduces power consumption.
✔ Global Support – Available from leading manufacturers with worldwide service.
