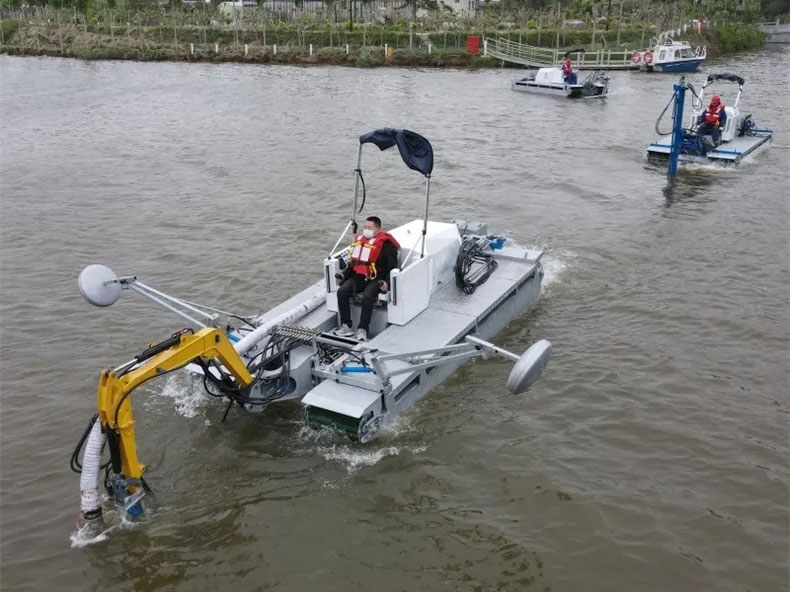

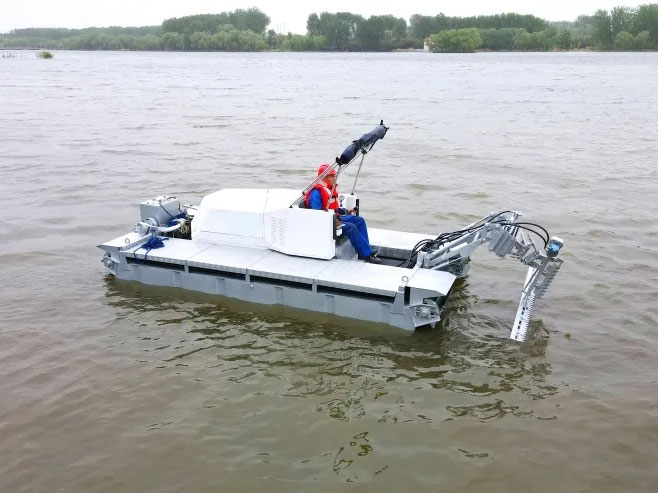

Amphibious multi-function dredger made by aluminium alloy, adopts the design of buoyancy tank and crawler, which can walk on land and work in water. It is equipped with replaceable working units such as excavating bucket, cutter, dredge pump, collecting rake and collecting fork, which can complete the operation like excavating, harvesting, mud suction & discharge, and weeds & garbage cleaning etc.
We build customized amphibious dredger which is most suitable,efficient and sustainable and for your project, with our experience and knowledge, we will always find the best choice for you.
Technical Specifications
AMV2100 Amphibious Multifunctional Dredger | |
(1) Transport Dimensions(L×W×H) | 4.85mx2.2m×1.9m |
(2) Transport Weight | 2.1 tons |
(3) Supporting Arms | 2 pieces |
(4) Engine Power | 35kw |
(5) Optional Working Units | Cutter Pump, Excavating Bucket, Collecting Rake, Mowing Bucket, T-Cutter, Piler Driver etc. |
Feature & Advantage
(1) Made by aluminium alloy material, suitable for shallow water work and keep good buoyancy.
(2) Hydraulic track driven through hydraulic motors.
(3) Front crane arm ready for many attachments.
(4) Optimal configuration of power requirements and hydraulic unit (less operating costs)
(5) Low ground pressure and good clearance on terrain, marches and swamps during on-land drives
(6) Shallow vessel draft with low center of gravity for safe on-water maneuvering
(7) High working range and wide swing radius of the hydraulic crane arm, ready for many attachments
(8) Operating controls conveniently placed and adjustable to suit operator’s seat position
