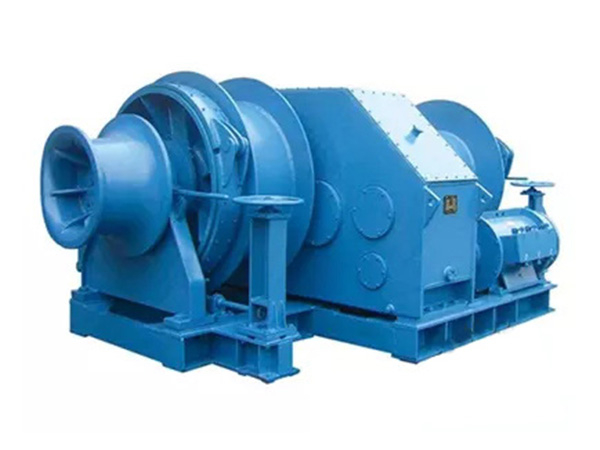

Marine Electric Mooring Winch is also name as marine hydraulic mooring winch, which is driven by hydraulic power pack, this mooring winch is very popular use on seagoing vessels, working load can be small and big can meet all customers different capacity requirements, with compact desgin and steady structures make our marine mooring winches work more effectively.
The electric mooring winch with dual drum mainly include below parts as a unit: two drums, warping ends, main shaft, frame, clutch device, electric motor, pedestal, brake, gearwheel and gearwheel cover etc.. Electric motor drives the main shaft so that mooring drum and warping end work, different speed can be design as per cutsomer required.
More mooring winches can be offer, mainly marine certificate can be offer, such as CCS,ABS,DNV,BV,RINA,BKI etc. Welcome contact with me if you want any winches!
Model | Working Load | Rope Speed | Electric Motor Power |
(kN) | (m/min) | (kW) | |
5kN | 5 | 15 | 2.2/3 |
10kN | 10 | 15 | 4/5.5 |
15kN | 15 | 15 | 6.3/7.5 |
20kN | 20 | 12 | 8.5/11 |
30kN | 30 | 12 | 11/15 |
50kN | 50 | 12 | 15/22 |
70kN | 70 | 12 | 22/30 |
100kN | 100 | 12 | 30/45 |
125kN | 125 | 12 | 45/55 |
150kN | 150 | 9 | 30/45 |
180kN | 180 | 9 | 45/55 |
200kN | 200 | 9 | 60/75 |
250kN | 250 | 9 | 60/75 |
280kN | 280 | 9 | 75/90 |
300kN | 300 | 9 | 75/90 |
350kN | 350 | 9 | 90/110 |
400kN | 400 | 9 | 90/120 |
450kN | 450 | 9 | 90/135 |
500kN | 500 | 9 | 120/150 |
550kN | 550 | 9 | 120/165 |
600kN | 600 | 9 | 132/180 |
700kN | 700 | 9 | 160/210 |
800kN | 800 | 9 | 200/240 |
900kN | 900 | 9 | 200/270 |
1000kN | 1000 | 9 | 250/300 |
1100kN | 1100 | 9 | 250/330 |
1200kN | 1200 | 9 | 315/360 |
1300kN | 1300 | 9 | 315/390 |
1400kN | 1400 | 9 | 400/420 |
1500kN | 1500 | 9 | 400/450 |
1600kN | 1600 | 9 | 400/480 |
1700kN | 1700 | 9 | 400/510 |
1800kN | 1800 | 9 | 500/540 |
1900kN | 1900 | 9 | 500/570 |
2000kN | 2000 | 9 | 500/600 |
