Application

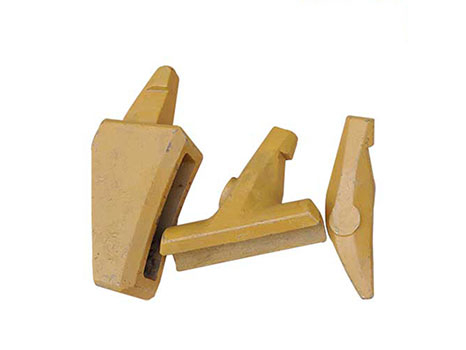

Our cutter teeth are replaceable without damaging the dredge cutter head blades. The blades are fitted with adapters for easy mounting and dismounting of the cutter teeth. Dredge Cutter Teeth provides a wide range of tooth systems for any application in dredging. Whether it is for a cutter head, cutting wheel, drag head or for sand, clay or rock, we have the solution for any size dredger.
Features
Flared chisels are used for peat, sand and soft clay.
Narrow chisels are applied in packed sand and firm clay.
Teeth with pick points are used for rock.
Self-sharpening of the tooth, better ground penetration, and increased production.
Increased lifetime, decreased frequency and duration of maintenance.
Advance investment casting technology for producing with low cost.
Can be customized according to your requirements or can provide OEM services.
Specification
| ■ T4 Serial | |||||
| No. | P/No. | Length（mm） | Width (mm) | Weight（Kg） | Remark |
| 1 | T4.01 | 350 | 145 | 12.8 | Flare Type |
| 2 | T4.02-60 | 345 | 60 | 11.5 | Chisel Type, tooth tip width 60mm |
| 3 | T4.02-80 | 345 | 80 | 11.5 | Chisel Type, tooth tip width 80mm |
| 4 | T4.03 | 280 | 31 | 9.7 | Pick Type |
| 5 | T4.04 | 280 | 25 | 8.9 | Pick Type |
| No. | P/No. | Width (mm) | Weight（Kg） | Remark | |
| 6 | T4.31 | 290 | 48.6 | T4.31 Tube Adapter | |
| 7 | T4.33 | 310 | 35.6 | T4.33 Wing Adapter | |
| 8 | T4.36 | 275 | 33.0 | T4.36 Ring Adapter | |
| 9 | T4.50 | 105 | 0.4 | Pin | |
