Application

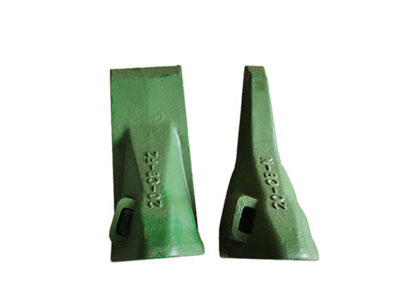

Dredging dredger reamer teeth are mainly used on dredgers for dredging construction in rivers, rivers, ports, etc., and are primarily responsible for the excavation of silt and gravel. Under the conditions of complex abrasive wear conditions, the annual consumption of wear parts is quite impressive. Because the reamer teeth work underwater, the working conditions are quite complex, requiring that the reamer teeth have high tensile strength and service strength, high hardness and sufficient toughness.
Features
The unique male teeth design and easy locking system.
The unique alloy, in which a composite insert is placed to reinforce the working tip of the tooth.
Self-sharpening of the tooth, better ground penetration, and increased production.
Increased lifetime, decreased frequency and duration of maintenance.
Advance investment casting technology for producing with low cost.
Our dedicated heat treatment process finally extracts the maximum mechanical performance out of the carefully cast and forged complex alloys.
Can be customized according to your requirements or can provide OEM services.
Specification
| No. | P/No. | Length（mm） | Width (mm) | Weight （Kg） | Remark | |
| 1 | 20-CB-F2 | 295 | 118 | 8.4 | Flare Teeth | |
| 2 | 20-CB-F3 | 295 | 118 | 8.4 | Trailing suction Teeth | |
| 3 | 20-CB-N | 295 | 32 | 6.2 | Chisel Teeth | |
| 4 | 20-CB-P | 300 | 12 | 6.9 | Pick Teeth | |
| 5 | 20-LP x3 | 82 | 36 | 0.2 | Pin | |
| No. | P/No. | Length (mm) | Weight （Kg） | Remark | ||
| 6 | 20-CB-AL2 | 296 | 7.9 | AL2 Adapter | ||
| 7 | 20-CB-ACR | 268 | 8.2 | ACR Adapter | ||
| 8 | 20-CB-AWN2 | 165 | 6.3 | AWN2 Ring Seat | ||
| 9 | 20-CB-AWN3 | 165 | 6.0 | AWN3 Trailing Suction Seat | ||
| 10 | 20-CB-AE | 107 | 1.2 | Wear Block | ||
