Dredge cutter head types:
1.Rock cutter heads
2.Sand cutter heads
3.Slurry cutter heads
4.Mud cutter heads
5.Gravel cutter head
6.Multi-service cutter heads
Dredge cutter head features:
1.The superiority of the Rock Cutter Head is the result of unmatched design and metallurgical capabilities.
2.The dredge cutter head have many applications,can be used for rock,mud,slurry,sand and gravel.
3.The cutter head have replaceable dredge teeth.
4.Number of blade:5 or 6.
5.Refined tooth and cutting edge design.
6.Competitive maintenance cost,easy to maintenance.
7.Exceptional wear resistance,high quality.
8.The cutter head can be supplied with shaft,bearing and gearbox.
9.The cutter head has low spill.

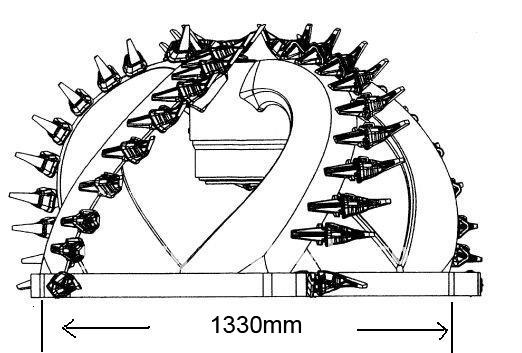

16-18 inch dredge cutter head specifications:
| Inner ring dia.(mm) | No. Of blade | Speed (rpm) | Output torque(KN-m) | Max shaftpower(Kw) | Suction dia.(mm) | Capacity(m3/h) | Water overflow of pump(m3/h) |
| 1330 | 5 | 0-30 | 32 | 101 | 400-450 | 650 | 2000-2500 |
Dredge cutter head types:
1.Rock cutter heads
2.Sand cutter heads
3.Slurry cutter heads
4.Mud cutter heads
5.Gravel cutter head
6.Multi-service cutter heads
Dredge cutter head features:
1.The superiority of the Rock Cutter Head is the result of unmatched design and metallurgical capabilities.
2.The dredge cutter head have many applications,can be used for rock,mud,slurry,sand and gravel.
3.The cutter head have replaceable dredge teeth.
4.Number of blade:5 or 6.
5.Refined tooth and cutting edge design.
6.Competitive maintenance cost,easy to maintenance.
7.Exceptional wear resistance,high quality.
8.The cutter head can be supplied with shaft,bearing and gearbox.
9.The cutter head has low spill.
16-18 inch dredge cutter head specifications:
| Inner ring dia.(mm) | No. Of blade | Speed (rpm) | Output torque(KN-m) | Max shaftpower(Kw) | Suction dia.(mm) | Capacity(m3/h) | Water overflow of pump(m3/h) |
| 1330 | 5 | 0-30 | 32 | 101 | 400-450 | 650 | 2000-2500 |
