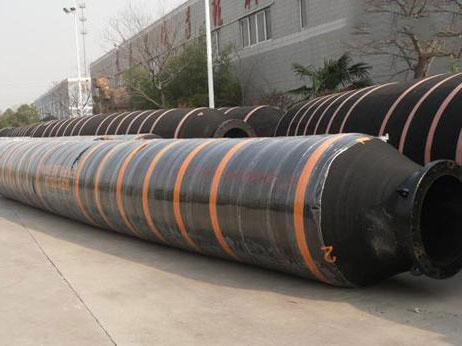

DN500 Dredge Self Floating Discharge Hose

Suitable be used in water with high wave and narrow water area.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Technical features:

1.Outer cover with excellent abrasion resistance and UV protection.

2.Inner cover with excellent abrasion resistance and high quality.

3.Single foam flotation casing to prevent water absorption.

4.Wearing colored indicator layers.

5.Bending angle: in working condition, the bending angle is from 0° to 45°.

6.Low center of gravity, good stability, anti-corrosions.

7.Suitable be used in water with high wave and narrow water area.

Structure and Material:

1.Inner rubber layer: high-quality NR, SBR or BR.

2.Reinforcement layer: strong tire cord and Floating material layer.

3.Floating layer: PE.

4.External rubber layer: SBR and CR blend

Applications:

Dredge Self floating discharge hoses widely used in dredging project,connected with the dredger,transport the slurry, clay, fine sand, sand, etc.

Technical specifications:

DN(mm)	Flange OD(mm)	Flange thickness(mm)	Bolt hole			Length(mm)	Inner rubber thickness(mm)
			P.C.D.(mm)	No.	Hole dia.(mm)
500±5	660±3	35±2	612±1	20	22±1	5800/11800	20

NOTE: The specifications for reference,the dredge self floating discharge hoses can be customized according to client’s requests.
