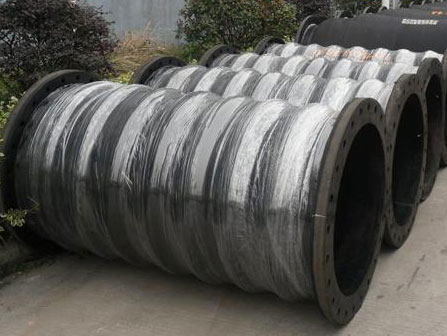

DN800 Dredge Suction Hose

Excellent performance of abrasion-resistant and bending resistant.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Technical features:

1.Working temperature: -20℃ to +50℃.

2.Convenient to install, flexible and safe to use.

3.Excellent performance of abrasion-resistant and bending resistant.

Structure and Material:

1.Inner rubber:Black abrasion resistant Natural Rubber.

2.Reinforcement layer:Multiple plies of polyester fabric with a spring steel helix wire.

3.Cover rubber:Neoprene or composed of natural rubber and synthetic rubber.

Application: Dredge suction hose is used with dredger for transport slurry and gravels.

Technical specifications:

DN (mm)	Flange OD (mm)	Flange thickness (mm)	Bolt hole			Length (mm)	Wall thickness (mm)
			P.C.D. (mm)	No.	Hole dia. (mm)
800±5	1120±3	60±2	950±1	24	33±1	1000-3000	45-47

NOTE: The specifications for reference,the dredge suction hoses can be customized according to client’s requests.
