Technical features:
1.Working temperature: -20℃ to +50℃.
2.Convenient to install, flexible and safe to use.
3.Excellent performance of abrasion-resistant and bending resistant.
Structure and Material:
1.Inner rubber:Black abrasion resistant Natural Rubber.
2.Reinforcement layer:Multiple plies of polyester fabric with a spring steel helix wire.
3.Cover rubber:Neoprene or composed of natural rubber and synthetic rubber.

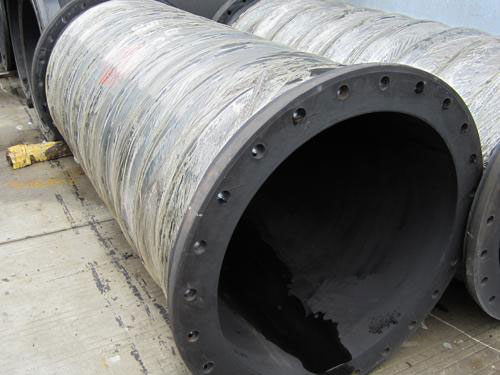

Application: Dredge suction hose is used with dredger for transport slurry and gravels.
Technical specifications:
| DN (mm) | Flange OD (mm) | Flange thickness (mm) | Bolt hole | Length (mm) | Wall thickness (mm) | ||
| P.C.D. (mm) | No. | Hole dia. (mm) | |||||
| 900±5 | 1250±3 | 60±2 | 1130±1 | 28 | 39±1 | 1000-3000 | 50-52 |
NOTE: The specifications for reference,the dredge suction hoses can be customized according to client’s requests.
