Submersible Slurry Dredge also called submersible slurry pump dredger, is designed and manufactured with optimized hydrodynamics technology for sand dredging and silt clearing.
Product Parameter
| No | Model | Unit | SPD311 | SPD5811 | SPD58115 | SPD8115 |
| 1 | Dredger body size (L*W*H) | m | 3.0×1.0x1.0 (2 PCS) | 5.8×1.0x1.0(2 PCS) | 5.8×1.0x1.0(2 PCS) | 8.0×1.0x1.0(2 PCS) |
| 2 | Pump power | KW | 11~15 | 22~37 | 45~75 | 90~132 |
| 3 | Pump size | inch | 4/6 | 4/6 | 4/6/8 | 6/8/10 |
| 4 | Pump flow capacity | cbm/hr | 50~150 | 75~300 | 100~600 | 200~1250 |
| 5 | Max. passing gravel diameter | mm | 21 | 45 | 36 | 56 |
| 6 | Max. dredging depth | m | 25 | 25 | 25 | 25 |
| 7 | Max.Discharge distance | m | 300 | 600 | 900 | 1100 |
| 8 | Discharge pipe diameter | inch | 4/6 | 4/6 | 4/6/8 | 6/8/10 |
| 9 | General control Box (optional) | KW | 15-22 | 30-45 | 55-90 | 110-160 |
| 10 | Generator (optional) | KW | 30 | 45-75 | 90-150 | 120-320 |
| 11 | Other configuration | Operation room, Electric hoist, cable roller, winder, anchor, shelter, etc | ||||
| 12 | Cable length | m | 10 | |||
| 13 | Power Supply | 380V, 50Hz（60HZ as your requirement）, 3 phrase | ||||
| 12 | Remark | 1. Hydraulic system pump is available. | ||||
| 2. Generator power is affected by control box start way. | ||||||
| 3. Max 3 pieces of extra agitator can be added. | ||||||
| 4. Above data could be adjusted and customized according to your specific requirements. | ||||||
Advantage
1. Easy Operation

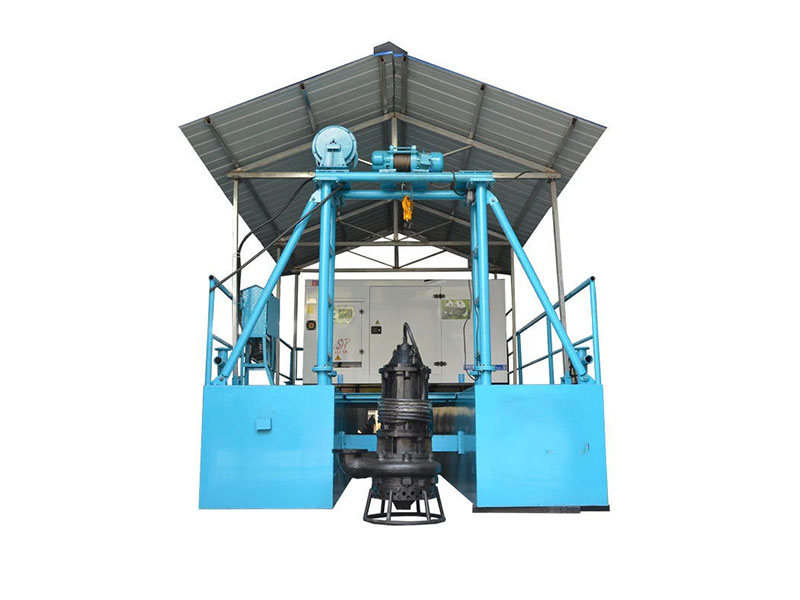

The submersible slurry dredge is composed of a submersible slurry pump, pontoon, soundproof generator, discharge pipe. All of these are easy to operate, when arriving at the working site, the customer just needs to make assembly and operate it.
2. Low Noise
The generator with soundproof can make the submersible slurry pump dredger with low noise.
3. Small Space Occupy
The submersible slurry dredge is a small pontoon, which can be moved by remote control in the small river or canal.
4. High Efficient with Bottom Agitator
The submersible dredger pump can be equipped with a bottom agitator which can mix the bottom slurry up and then pump the slurry out and if you want to finish the project in a short time, suggest this sand suction dredger.
5. Environmentally Friendly
6. Low Fuel Consumption
Our submersible dredge pump and the suitable pontoon, especially the remote control made everything easily
