The working principle of an electric submersible pump dredger integrates electrical drive, hydraulic transmission, and fluid mechanics to achieve efficient underwater sediment extraction and transportation. Below is a detailed breakdown of its operational mechanism, supported by technical principles and process flow:
The electric submersible pump dredger relies on a submerged electric motor to drive the pump impeller, creating a pressure difference to suck in sediment-laden water and transport it through pipelines. The key lies in the coordination of three systems:
Electrical System: The submersible motor (usually a waterproof, high-power motor) is directly submerged in water, connected to the power supply via a waterproof cable. It converts electrical energy into mechanical energy to drive the pump.

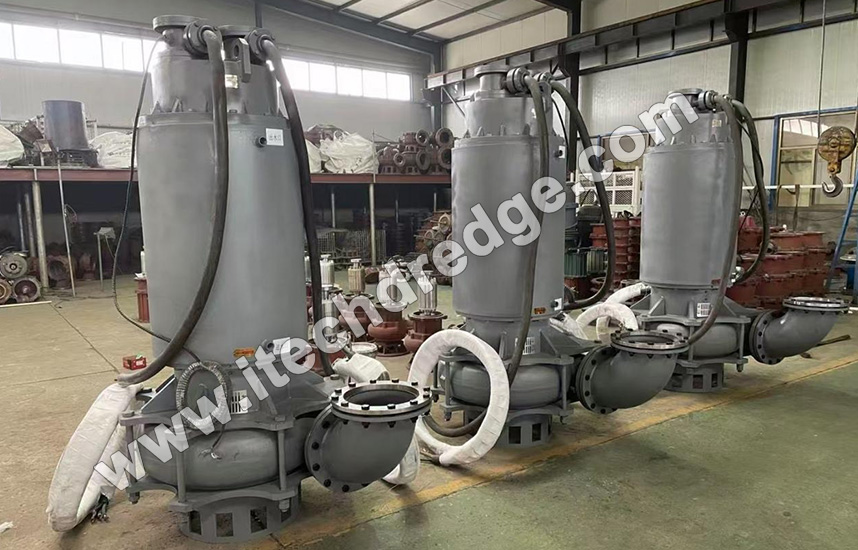

Pump System: The high-chrome sand slurry pump (resistant to wear and corrosion) is the core component. The impeller rotates at high speed, generating centrifugal force to form a vacuum at the suction port, drawing in sediment-water mixtures.

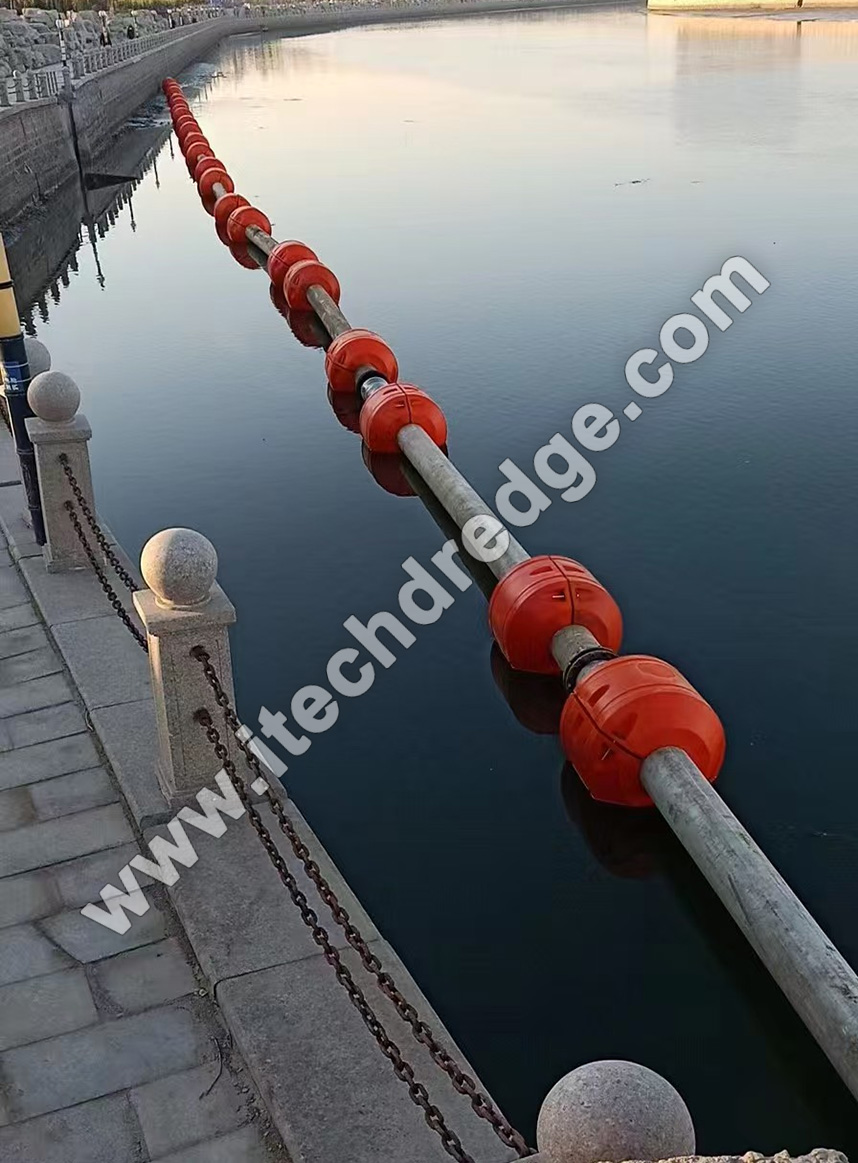

Pipeline System: The suction pipe extends to the underwater sediment layer, while the discharge pipe transports the mixture to the target area (e.g., sedimentation tanks or disposal sites).

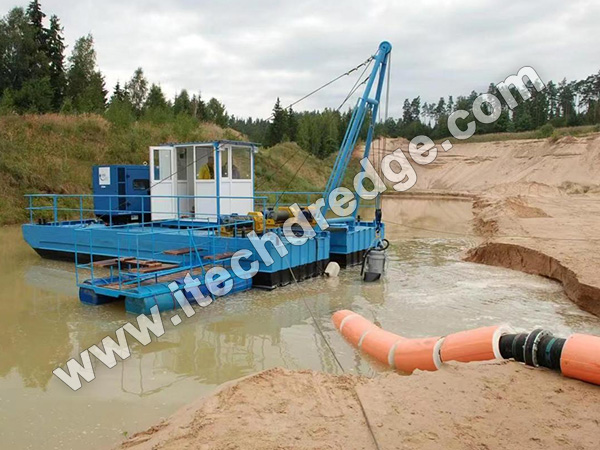

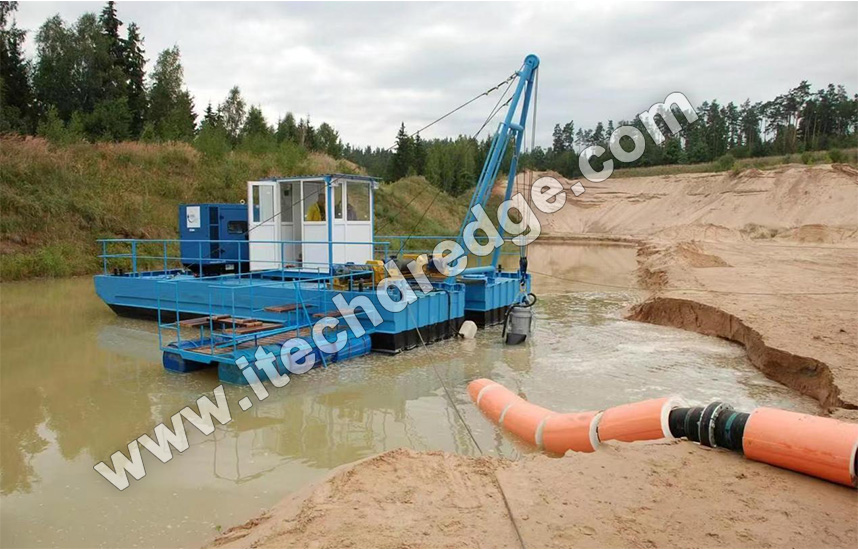

The portable design allows the dredger to be easily deployed in shallow water areas (e.g., rivers, lakes, reservoirs). It can be manually or mechanically lowered into the water, with the suction port aligned with the sediment layer.
For mini dredgers, buoyancy structures or anchoring systems ensure stability during operation.
Parameter | Value/Description |
Model | IT-ESPD 300 |
Power Source | 3-phase AC, 380V/50Hz (customizable to 460V/60Hz) |
Motor Power | 110-280 kW |
Max Flow Rate | 1000-1500 m³/h (adjustable via VFD) |
Max Head | 20-90 meters (115 ft) |
Submersible Depth | Up to 20 meters (66 ft) |
Solid Handling | Up to 50% solids by weight; Max particle size: 50 mm |
Impeller Type | Closed-type, high-chrome alloy (Cr26) with 3–6 vanes |
Discharge Connection | Flanged 300 mm (DIN/ANSI standard) |
When the electric motor starts, the impeller rotates at high speed (e.g., 1,450–2,900 rpm), pushing water outward and creating low pressure at the suction port.
The external water pressure forces the sediment-water mixture (with sediment concentration typically 10–30%) into the suction pipe. For dense sediments, a water jet system (if equipped) pre-loosens the sediment, improving suction efficiency.
Example: A 250mm diameter pump can handle up to 500–800 m³/h of mixture, depending on sediment viscosity.
The impeller's rotation imparts kinetic energy to the mixture, converting it into pressure energy to overcome pipeline resistance.
High-chrome pump components (impeller, casing, wear plates) resist abrasion from sand particles, maintaining long-term efficiency.
For long-distance transportation (over 1 km), booster pumps may be installed in series to maintain pressure, similar to the “Junlan” dredger’s “underwater pump + cabin pump” relay mode.
The control system (e.g., PLC or remote interface) regulates motor speed, suction depth, and discharge pressure in real time.
Sensors monitor parameters like water level, sediment concentration, and motor temperature to prevent overload or blockages.
In unmanned or remote operation scenarios (e.g., environmental dredging), GPS and sonar systems assist in precise positioning and depth control.
The submersible motor uses a hermetically sealed casing (IP68 protection level) with oil-filled or water-cooled designs to prevent water ingress.
Electrical connections adopt waterproof cables and connectors, while the motor winding uses anti-corrosion insulation materials (e.g., epoxy resin) to withstand long-term submersion.
High-chrome alloy (e.g., ASTM A532 Grade III) components have a hardness of HRC 55–65, resisting abrasion from sand (SiO₂ particles).
The impeller’s blade design (backward-curved blades) optimizes fluid flow, reducing erosion and improving efficiency by 10–15% compared to ordinary pumps.
The mixture’s flow state depends on its concentration and velocity:
Low concentration (<15%): Newtonian fluid behavior, transported like clear water.
High concentration (>20%): Non-Newtonian fluid behavior, requiring higher flow velocity (≥2.5 m/s) to prevent sediment deposition in pipelines.
Pipeline diameter and slope are calculated based on the mixture’s rheological properties to avoid blockages.
Aspect | Electric Submersible Pump Dredger | Traditional Diesel-Driven Dredger |
Power Source | Electric motor (connected to grid or generator) | Diesel engine |
Energy Efficiency | 85–90% (direct drive, less energy loss) | 60–75% (mechanical transmission losses) |
Emissions | Zero direct emissions (if grid-powered) | CO₂, NOx, and particulate matter emissions |
Noise Level | 70–85 dB (lower due to submerged motor) | 90–110 dB (diesel engine and mechanical noise) |
Maintenance | Less frequent (fewer moving parts, no engine upkeep) | More frequent (engine oil, filters, etc.) |
Challenge: Avoid disturbing water quality during sediment extraction.
Solution: The submersible pump operates at low speed (1,000–1,200 rpm), and the suction port uses a hood to limit sediment diffusion.
Example: In Lake Tai's blue-green algae treatment, electric dredgers extract algal-laden sediment without stirring up bottom pollutants.
Challenge: High-concentration (30–40%) tailings transportation over long distances.
Solution: Increase impeller power (e.g., 200–300 kW) and use thick-walled high-chrome pipes. Booster pumps are installed every 500 meters to maintain pressure.
Effect: Brazil's Vale project transports tailings 3 km away with a 35% concentration, achieving 5 Mt/year recycling.
Challenge: Variable sediment types (sand, clay, gravel).
Solution: Adjust motor speed via frequency conversion (50–60 Hz) to adapt to different sediments. Water jets pre-loosen compacted clay.
Efficiency: A 250mm dredger can desilt 1,500–2,000 m³/day in a river channel.
Blockage in Suction Pipe: Caused by large debris (logs, stones).
○ Solution: Install a grille at the suction port and use a reversible impeller to reverse flow for blockage removal.
Motor Overheating: Due to prolonged high-load operation or water ingress.
○ Solution: Integrate temperature sensors and a water-cooling system; automatically shut down when overheating is detected.
Reduced Pump Efficiency: Caused by wear or sediment adhesion.
○ Solution: Use anti-adhesion coatings (e.g., Teflon) on pump surfaces and schedule regular maintenance (replace wear parts every 1,000 hours).
