A potable suction dredger is a specialized pump system designed for safely extracting and transferring sand, sludge, water liquid from sources like wells, rivers, or reservoirs. Unlike standard dredgers that handle abrasive slurries, potable suction dredgers prioritize hygiene, contamination prevention.
Material Compatibility:
○ High chrome material for sand dredging.
○ Stainless steel (e.g., 316L) or NSF-approved polymers to prevent leaching of harmful substances.
Sealing Systems:
○ Double mechanical seals.
Filtration:
○ Large particle pass depends on the dredging material.
Low Shear Design:
○ Gentle pumping action to minimize agitation and preserve water quality.
Note: The IT-ESPD 200 is not designed for potable water applications. It is optimized for abrasive slurries and industrial dredging.

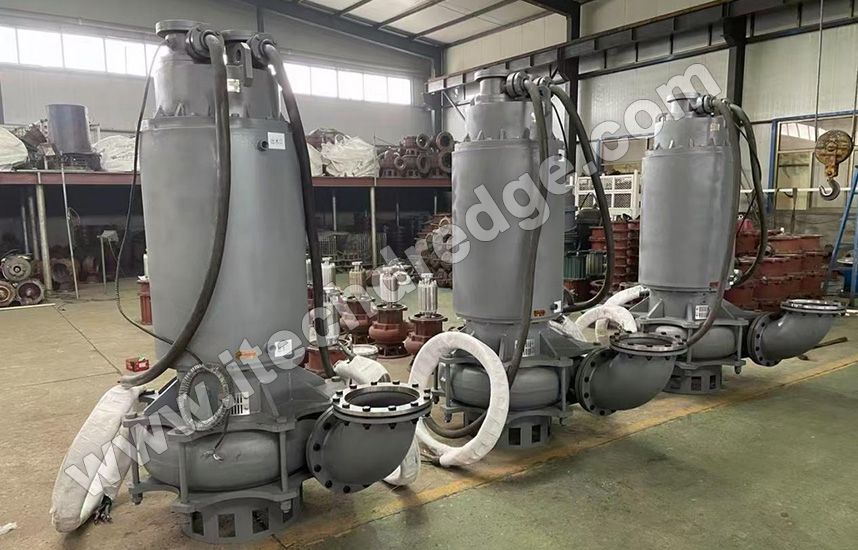

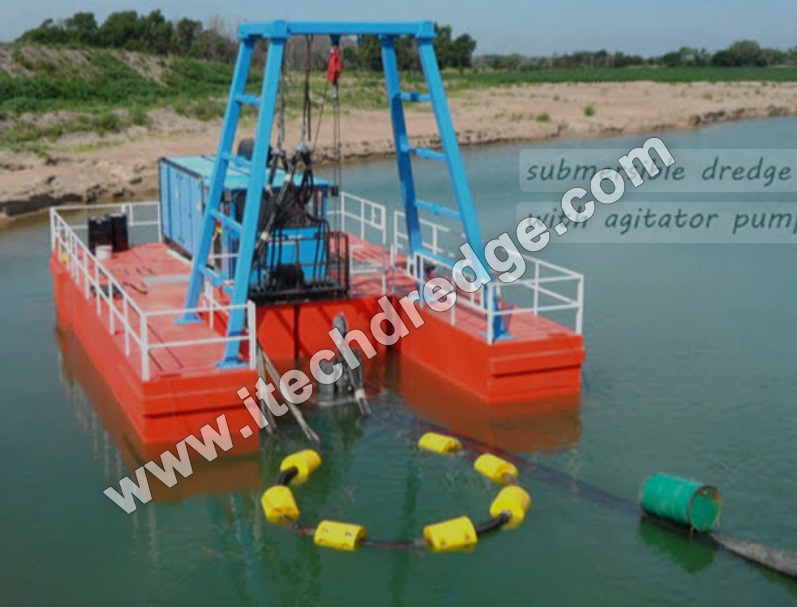

An electric submersible pump dredger is a heavy-duty pumping system designed to operate underwater (fully submerged) to extract sediment, sludge, sand, or debris from water bodies or industrial settings.
Submersible Pump:
○ Electric motor enclosed in a watertight casing, directly coupled to an impeller.
Abrasion-Resistant Materials:
○ High-chrome alloy impellers (e.g., Cr26) and casings for handling abrasive solids.
Suction Inlet:
○ Equipped with cutters or agitators to loosen compacted materials.

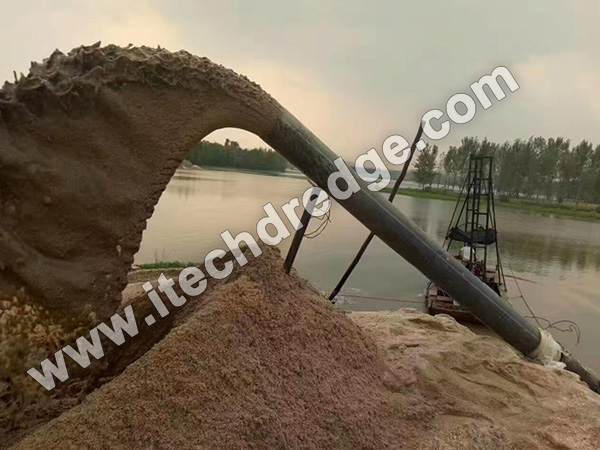

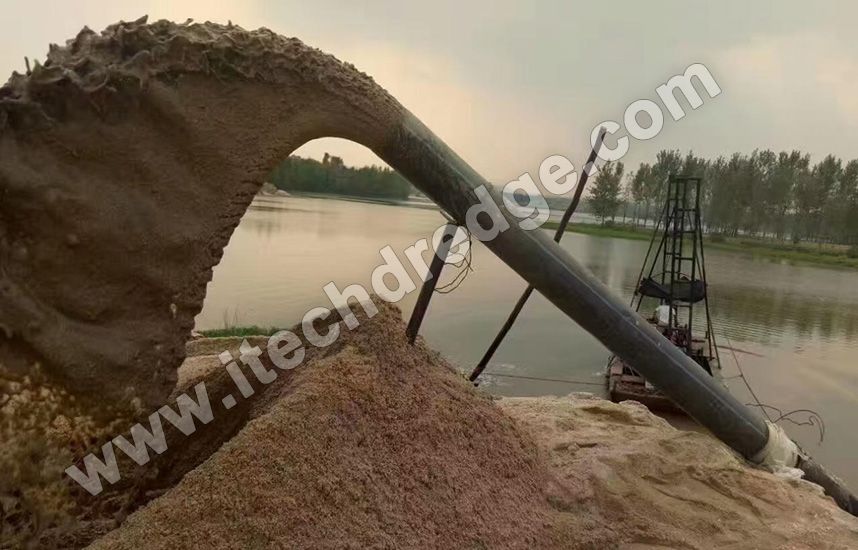

Discharge System:
○ High-pressure hoses or pipes to transport slurries to disposal sites.
1. The pump is submerged in the fluid to be dredged.
2. The motor drives the impeller, creating a vacuum that sucks in water and solids.
3. Solids are suspended in the fluid and pumped through the discharge outlet.
Submersible Design: Eliminates priming requirements and allows direct access to underwater deposits.
Robust Construction: Built to withstand harsh environments (corrosion, abrasion).

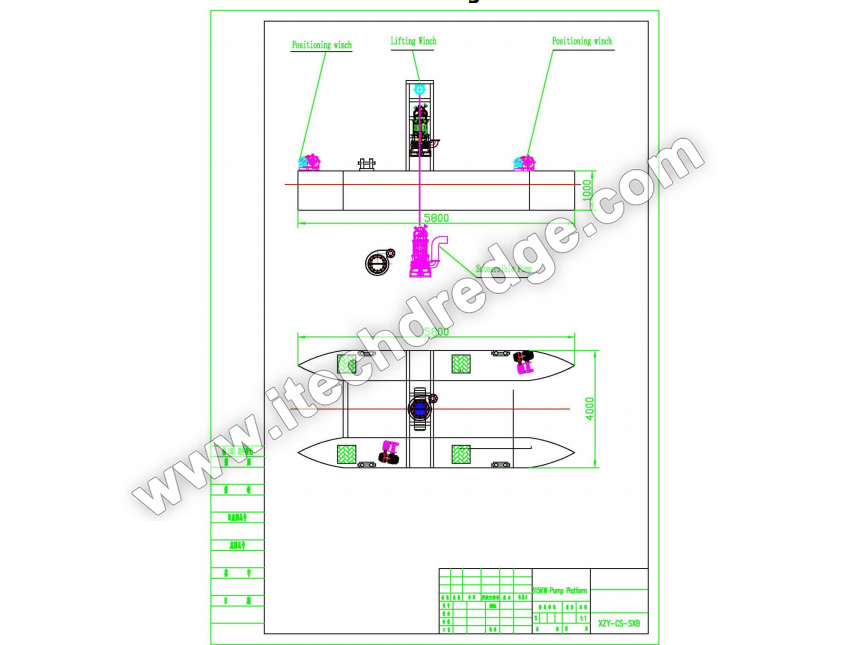

The IT-ESPD 200 is a high-capacity electric submersible pump dredger with a 200 mm (8") discharge diameter, optimized for heavy-duty industrial applications.
Parameter | Value/Description |
Model | IT-ESPD 200 |
Power Source | 3-phase AC, 380V/50Hz (customizable to 460V/60Hz) |
Motor Power | 55-185 kW |
Max Flow Rate | 300-500 m³/h (adjustable via VFD) |
Max Head | 15-60 meters (115 ft) |
Submersible Depth | Up to 20 meters (66 ft) |
Solid Handling | Up to 50% solids by weight; Max particle size: 50 mm |
Impeller Type | Closed-type, high-chrome alloy (Cr26) with 4–6 vanes |
Discharge Connection | Flanged 200 mm (DIN/ANSI standard) |
Dual Volute Casing: Reduces radial forces on the shaft, extending bearing life.
Oil-Lubricated Seals: Prevents water ingress into the motor.
Thermal Protection: Automatic shutdown if motor temperature exceeds 95°C.
Mining:
○ Extracting mineral-rich slurries (e.g., coal, gold, copper).
○ Dewatering open-pit mines and tailings ponds.
Construction:
○ Clearing sediment from excavation sites, basements, or bridge foundations.
○ Dredging ponds or lakes for real estate development.
Contaminated Sediment Removal:
○ Cleaning up industrial waste sites or oil spills in water bodies.
Waterway Restoration:
○ Maintaining navigable channels in rivers, ports, and harbors.
Sewage Treatment:
○ Handling grit, sludge, and solids in wastewater treatment plants.
Stormwater Management:
○ Clearing debris from drainage systems to prevent flooding.
Beach Nourishment:
Pumping sand from offshore sources to replenish eroded shorelines.
Underwater Construction:
Supporting pile driving, tunnel boring, or offshore platform installation.
Irrigation System Maintenance:
Removing sediment from canals, ditches, or reservoirs.
Pond Cleaning:
Maintaining fish ponds by removing accumulated sludge.
Direct Suction: Eliminates the need for priming, reducing downtime.
High Solids Handling: Capable of pumping mixtures with up to 60% solids by weight.
Energy Efficiency:
○ Electric motors (IE3/IE4-rated) consume up to 20% less power than diesel equivalents.
○ VFD control optimizes energy use by adjusting pump speed to demand.
Zero Emissions: Electric operation reduces carbon footprint and air pollution.
Low Noise: Ideal for urban or noise-sensitive areas (e.g., residential zones, wildlife habitats).
Compliance: Meets strict environmental regulations (e.g., EPA, CE) for wastewater and dredging operations.
Abrasion Resistance: High-chrome components withstand wear from abrasive particles.
Sealed Design: Prevents water ingress, extending motor life.
Long Service Intervals: Reduced maintenance downtime compared to diesel pumps.
Lower Operational Costs: Electricity is cheaper than diesel fuel in most regions.
Reduced Infrastructure: No need for fuel storage or exhaust systems.
Submerged Operation: Minimizes risks associated with above-ground pumps (e.g., tripping hazards).
Integrated Protection: Overload, overheat, and leak sensors prevent equipment damage and accidents.
1. Inspect Components:
Check for physical damage to the pump, hoses, and cables.
Ensure all fasteners are tightened.
2. Electrical Safety:
Verify proper grounding and insulation resistance (min. 1 MΩ).

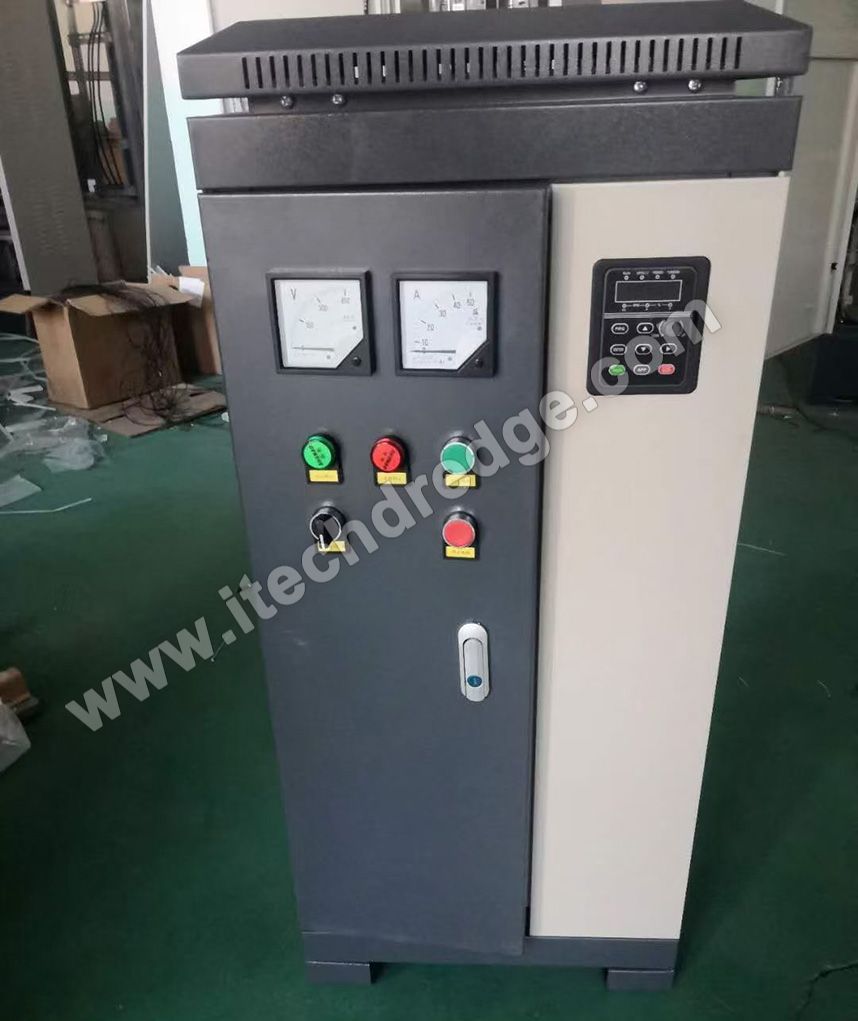

Test control panel functions (e.g., start/stop, VFD settings).
3. Environmental Assessment:
Measure fluid depth and solids concentration.
Identify potential hazards (e.g., debris, underwater obstacles).
1. Positioning:
Use cranes or hoists to lower the pump into the fluid.
Ensure the suction inlet is submerged but not buried in sediment.
2. Hose Connection:
Attach discharge hoses securely using quick-connect couplings.
Support hoses to prevent kinking or sagging.
1. Prime the System (if required):
Some models may need initial priming with water.
2. Power On:
Start the pump via the control panel, monitoring current and voltage.
3. Adjust Parameters:
Use VFD to set optimal flow rate and speed based on solids content.
1. Performance Metrics:
Track flow rate, head pressure, and motor temperature.
2. Visual Inspection:
Check for leaks, vibrations, or unusual noises.
3. Solids Handling:
Adjust pump speed if clogging is detected (e.g., reduced flow).
1. Power Off:
Stop the pump and disconnect power.
2. Flush the System:
Run clean water through the pump to remove residual solids.
3. Inspect Wear Parts:
Check impeller, casing, and seals for wear; replace if necessary.
4. Storage:
Store the pump in a dry, ventilated area to prevent corrosion.
The IT-ESPD 200 and electric submersible pump dredgers offer a versatile, efficient, and environmentally friendly solution for heavy-duty dredging applications. Their ability to handle abrasive materials, operate underwater, and minimize emissions makes them indispensable across industries from mining to environmental cleanup. Proper operation and maintenance ensure optimal performance and longevity, maximizing return on investment while meeting strict safety and regulatory standards.
