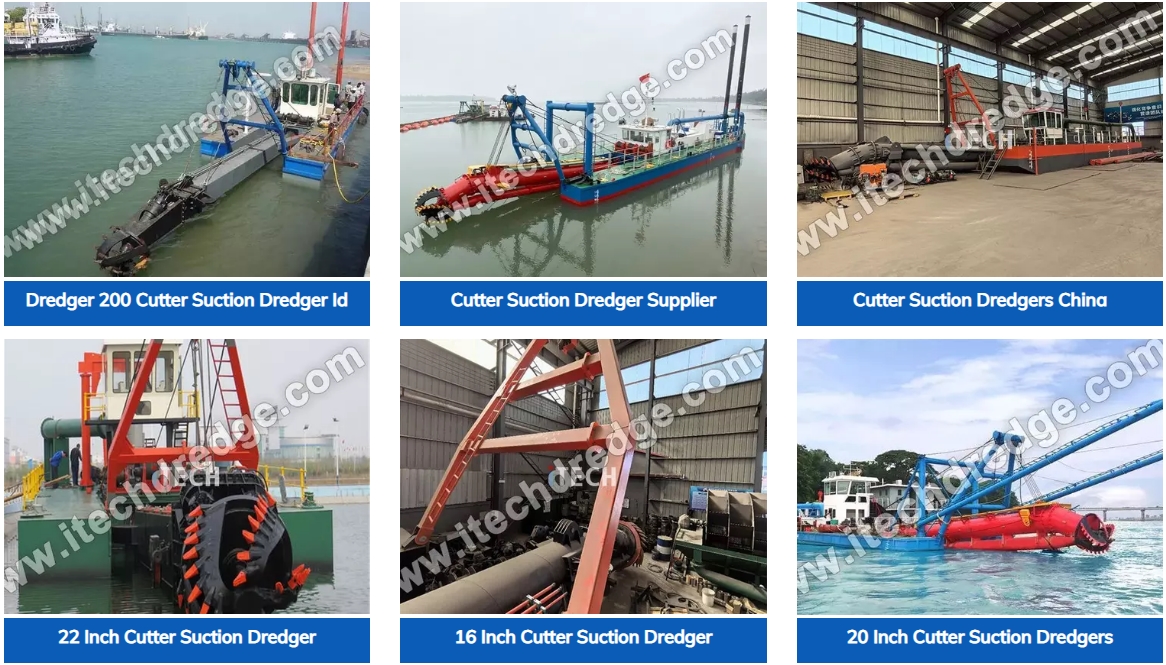

A portable cutter suction dredger (CSD) is a versatile piece of equipment designed for dredging operations in rivers, lakes, reservoirs, ports, and coastal areas. Its portability and modular design allow for easy transportation and assembly, which makes it suitable for both inland and offshore dredging projects. ITECH provides high-quality portable cutter suction dredgers that meet the operational needs of contractors, municipalities, and mining companies.
A portable cutter suction dredger typically consists of:
1. Hull and pontoons – Modular sections that can be disassembled and transported by trucks or containers.
2. Cutter head – A rotating mechanism that loosens compact soil, clay, or sand.
3. Suction pipe and pump system – The loosened material is suctioned by a dredge pump and transported through pipelines.
4. Winches and spuds – These provide stability and allow the dredger to move accurately during operations.
The combination of mechanical cutting and hydraulic suction makes CSDs efficient in removing sediments of varying densities, from soft silt to compact sand and clay.
Industry data indicates that portable cutter suction dredgers are widely used because of their balance between efficiency and cost.
1. Dredging depth: Portable models generally operate between 4 – 15 meters, depending on configuration.
2. Discharge distance: Can reach 500 – 1500 meters, extendable with booster pumps.
3. Pump capacity: Ranges from 500 m³/h to 3000 m³/h, suitable for small- and medium-scale projects.
4. Transportability: Units can be shipped in 40-foot containers, significantly reducing mobilization time.
According to a 2023 market report by Dredging Today, cutter suction dredgers account for nearly 60% of global dredger demand, with portable models increasingly favored for inland waterway maintenance.
1. River and Lake Maintenance – Removing silt and debris to restore water depth and flow capacity.
2. Port and Harbor Dredging – Maintaining navigable waterways for cargo and passenger vessels.
3. Sand Mining – Extracting construction-grade sand from riverbeds and coastal zones.
4. Land Reclamation – Pumping sand to reclaim new land areas for development.
5. Flood Control Projects – Enhancing water retention and flow management.
1. Mobility: Modular pontoons enable quick transport to remote areas.
2. Operational Flexibility: Suitable for various soil conditions, including sand, clay, and silt.
3. Cost Efficiency: Reduced setup time lowers project costs.
4. Scalability: Additional booster pumps and longer discharge pipelines can extend performance range.
For contractors or municipalities seeking a balance between efficiency and operational flexibility, investing in a portable cutter suction dredger is a practical choice. When selecting a unit, we recommend evaluating:
1. Required dredging depth based on the project site.
2. Discharge distance relative to disposal or reclamation area.
3. Pump capacity and fuel efficiency to align with operational costs.
4. After-sales support and spare parts availability.
ITECH provides customized solutions with technical consultation, ensuring that clients receive dredgers tailored to their operational requirements.
The demand for portable cutter suction dredgers is growing due to their adaptability, transportability, and proven efficiency in small- to medium-scale dredging projects. With the right equipment, project owners can achieve reliable performance while maintaining cost control.
Dredging Today (2023). Global Cutter Suction Dredger Market Report.
International Association of Dredging Companies (IADC). Dredging Equipment Technical Papers.
U.S. Army Corps of Engineers (2022). Engineering and Design: Dredging and Dredged Material Disposal.
