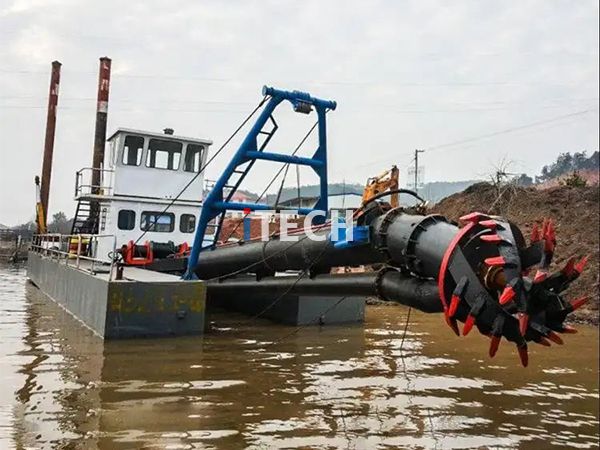

A 10 Inch Cutter Suction Dredger is a compact and versatile dredging system designed to excavate underwater sand, silt, clay, and other sediments and transport the dredged slurry through a pipeline.
The "10 inch" designation generally refers to the nominal size of the dredge suction or discharge pipeline, with 10 inches equivalent to approximately 250 mm. However, the pipe diameter alone does not determine the actual dredging capacity. Pump performance, cutter power, dredging depth, sediment type, pipeline length, and operating conditions all affect the final production rate.
For river maintenance, lake dredging, sand recovery, canal cleaning, environmental projects, and selected reclamation applications, a 10 Inch Cutter Suction Dredger can provide a practical balance between equipment size, production capability, transportation, and operating flexibility.
ITECH Co., Ltd. designs and manufactures cutter suction dredgers in different sizes and configurations, including 10-inch models for projects requiring compact dredging equipment.
A 10 Inch Cutter Suction Dredger is a stationary dredging vessel equipped with a rotating cutter head, suction system, dredge pump, and discharge pipeline.
The basic operating process is:
Cutter Head → Suction Pipe → Dredge Pump → Discharge Pipeline → Disposal or Reclamation Area
The cutter head loosens underwater material before the dredge pump transports the resulting slurry.
A typical 10-inch CSD may include:
Cutter head
Suction pipe
Dredge pump
Cutter drive
Hydraulic system
Diesel engine or electric power system
Spud poles
Winches
Dredging ladder
Floating pipeline
Control system
Modular pontoon hull
The exact configuration depends on the project requirements.
The term 10 Inch Cutter Suction Dredger can sometimes cause confusion because "10 inch" does not simply represent the overall size of the dredger.
In dredging equipment terminology, it generally refers to the nominal diameter of the suction or discharge pipeline.
10 inches = approximately 250 mm.
ITECH's product information identifies its 10-inch CSD with a 250 mm-class suction/discharge pipe, while its CSD model range includes different sizes such as CSD200, CSD250, CSD300, and larger models.
Therefore, a 10-inch dredger is commonly associated with the CSD250 class.
However, buyers should always confirm the manufacturer's technical specification because pipeline diameter, pump configuration, and production capacity can vary between dredger designs.
The dredging process involves several coordinated systems.
The rotating cutter head is positioned at the seabed or riverbed.
Its teeth or blades loosen the sediment before it enters the suction system.
Different cutter configurations can be selected for:
Silt
Sand
Clay
Gravel
More compact sediments
The cutter should be matched to the actual material rather than selected solely according to dredger size.
Once the cutter loosens the material, the mixture of water and sediment enters the suction pipe.
The dredge pump creates the required suction and transports the slurry through the dredging system.
The dredged material is discharged through a floating or submerged pipeline.
The pipeline may lead to:
A reclamation area
Sediment disposal area
Dewatering facility
Processing plant
Stockpile
Sand recovery system
The total discharge distance is an important factor when selecting pump capacity.
A cutter suction dredger generally works as a stationary dredger.
Spud poles and winches help position the dredger and move the cutter head across the working area.
This controlled movement allows the cutter to excavate a defined area progressively.
A 10 Inch Cutter Suction Dredger can be used for a wide range of small and medium-scale dredging projects.
Riverbeds can gradually accumulate sand, silt, and other sediments.
A 10-inch CSD can be used for:
River channel deepening
Sediment removal
Navigation maintenance
Waterway restoration
Flood-control-related dredging
Localized channel improvement
For river projects, the dredger should be selected according to the river width, water depth, sediment characteristics, and required discharge distance.
Canals often have restricted working areas.
A compact 10 inch cutter suction dredger can be suitable where a larger dredger would have difficulty maneuvering.
Typical projects include:
Irrigation canal cleaning
Navigation canal maintenance
Drainage channel dredging
Sediment removal
Canal deepening
Sediment accumulation can gradually reduce the effective capacity of lakes and reservoirs.
A 10-inch dredger can remove:
Silt
Fine sand
Mud
Organic sediment
Other accumulated materials
The dredger's compact configuration can be useful where access and maneuverability are more important than very high production capacity.
A 10 Inch Sand Dredger can be configured for sand excavation and hydraulic transportation.
The rotating cutter loosens the sand, while the dredge pump transports the slurry through the discharge pipeline.
For sand dredging, important factors include:
Sand particle size
Sand concentration
Required output
Dredging depth
Pipeline length
Pump head
Cutter configuration
A 10-inch CSD can be used for selected maintenance dredging projects in smaller ports, marinas, jetties, and shallow-water areas.
For larger commercial ports or deeper navigation channels, a larger CSD may be more appropriate.
The correct choice depends on the required production and dredging depth rather than the project name alone.
A cutter suction dredger can also be used for controlled sediment removal in lakes, rivers, and other waterways.
For environmental projects, equipment selection may focus on:
Controlled excavation
Pipeline transportation
Sediment handling
Turbidity management
Accurate dredging depth
The dredging method should be designed according to the environmental requirements of the project.
A 10 Inch Cutter Suction Dredger can be used for smaller reclamation projects where sand or suitable fill material needs to be excavated and transported hydraulically.
However, large-scale coastal reclamation projects generally require larger dredgers and higher-capacity pumping systems.
There is no single specification that applies to every 10-inch cutter suction dredger.
ITECH publishes different 10-inch configurations, and its product pages show different production and depth specifications depending on the model and configuration. One ITECH page lists a typical 10-inch model with a 250 mm suction pipe, up to 8 m dredging depth, and 200–400 m³/h production capacity. Another ITECH page gives a broader representative configuration with different depth, engine, and discharge-distance ranges.
For this reason, the following table should be used as a technical reference framework, not as a universal fixed specification.
Specification | Typical Consideration |
|---|---|
Dredger Type | Cutter Suction Dredger |
Nominal Pipe Size | 10 inch / approximately 250 mm |
Production Capacity | Project-dependent |
Dredging Depth | Model and ladder dependent |
Cutter Type | Selected according to sediment |
Pump Type | Centrifugal dredge pump |
Power | Diesel or electric configuration |
Discharge Distance | Depends on pump and pipeline system |
Hull | Steel modular or semi-modular pontoon |
Positioning | Spud poles and/or winches |
Control | Manual, hydraulic, or PLC-assisted |
Pipeline | Floating and shore pipeline sections |
This approach is more useful when comparing dredgers because the actual project conditions determine the final specifications.
Production capacity is one of the most important specifications when selecting dredging equipment.
However, 10 Inch Cutter Suction Dredger production capacity should not be calculated from pipe diameter alone.
Actual output depends on:
Sediment type
Sediment concentration
Cutter efficiency
Pump flow
Pump head
Dredging depth
Pipeline length
Pipeline diameter
Elevation difference
Operator experience
For example, loose sand may allow a different production rate from compact clay even when the same dredger is used.
Therefore, manufacturers should evaluate the complete slurry transportation system rather than quoting production based only on the 10-inch pipeline.
Dredging depth is another critical factor.
A compact 10-inch CSD may be configured for relatively shallow projects, while specialized versions can be designed for greater depths.
ITECH's published information includes different depth ranges for its 10-inch configurations, demonstrating that dredging depth is configuration-dependent rather than fixed by the 10-inch designation.
Before purchasing, provide:
Average depth:
The normal working depth of the project.
Maximum depth:
The deepest point that needs to be dredged.
Water level variation:
Changes in water level can affect the actual operating depth.
This information helps determine the appropriate ladder length and dredging system.
The cutter head is responsible for loosening underwater sediment.
Different materials require different cutter configurations.
A standard cutter can often provide sufficient excavation performance.
The cutter should provide continuous and stable material loosening without unnecessary power consumption.
A stronger cutter configuration may be required.
Specialized cutter teeth and higher cutter power may be necessary.
ITECH describes cutter suction dredgers as being configurable for materials ranging from softer sediments to more compact materials, with cutter teeth selected according to the working conditions.
The dredge pump determines how effectively the slurry can be transported.
Three parameters are particularly important:
Flow determines how much slurry can pass through the pipeline.
Head determines how much resistance the pump can overcome.
Sand and other abrasive particles can cause significant wear inside the pump.
For this reason, pump selection should consider both production and material characteristics.
A common mistake is to select a 10-inch dredger based only on dredging capacity.
The dredged material must also reach its final destination.
The total pipeline system may include:
Dredger → Floating Pipeline → Shore Pipeline → Disposal/Reclamation Area
The longer the pipeline, the greater the hydraulic resistance.
Pipeline design should consider:
Total length
Pipe diameter
Number of bends
Elevation difference
Slurry concentration
Sediment particle size
Pump head
ITECH's published 10-inch information includes discharge-distance figures of up to approximately 800–1,000 m for representative configurations, but actual performance must be calculated for the complete project.
The choice between an 8-inch and 10-inch dredger should be based on production requirements.
Factor | 8 Inch CSD | 10 Inch CSD |
|---|---|---|
Pipeline size | Smaller | Larger |
Potential slurry flow | Lower | Higher |
Typical project scale | Smaller | Small to medium |
Transportation | Easier | Still relatively manageable |
Pipeline capacity | Lower | Higher |
Equipment size | More compact | Larger |
Production potential | Lower | Higher |
If the project requires greater slurry transportation capacity, the 10-inch model may provide a better balance.
A 12-inch CSD generally offers greater pumping capacity than a 10-inch configuration, but it can also require more power and larger supporting equipment.
Factor | 10 Inch CSD | 12 Inch CSD |
|---|---|---|
Pipeline size | Approx. 250 mm | Approx. 300 mm |
Production potential | Moderate | Higher |
Equipment size | Compact | Larger |
Power demand | Lower | Higher |
Transport | Easier | More demanding |
Suitable projects | River, canal, lake, sand | Higher-output dredging |
ITECH's published model range includes 10-inch, 12-inch, 14-inch, 16-inch, 18-inch and larger cutter suction dredgers, allowing equipment size to be matched to project requirements.
Before ordering, prepare the following information.
Provide the river, lake, canal, port, mining area, or other working environment.
Specify both average and maximum depth.
Identify whether the material is:
Silt / Sand / Clay / Gravel / Mixed Sediment
Estimate the required volume per hour or per day.
Measure the distance from the dredger to the disposal or reclamation location.
If the discharge point is significantly higher than the dredger, additional pump head may be required.
Determine whether the dredger needs to move between multiple project locations.
Choose between diesel and electric configurations according to the project environment.
Many compact cutter suction dredgers use modular pontoons.
The dredger can be divided into components for transportation and assembled at the working site.
This can reduce transportation difficulties when the equipment needs to move between inland projects.
For a transport-focused project, ask the manufacturer about:
Maximum component dimensions
Maximum component weight
Number of transport units
Assembly time
Launching method
Required assembly equipment
These factors can have a significant influence on overall project mobilization.
Regular maintenance is important because dredging equipment operates in abrasive environments.
Inspect:
Cutter teeth
Pump condition
Hydraulic oil
Engine condition
Pipeline connections
Winches
Spud system
Pay particular attention to:
Cutter teeth
Pump impeller
Pump casing
Wear plates
Seals
Bearings
Inspect floating and shore pipelines for:
Leakage
Joint wear
Flange condition
Floating buoyancy
Abrasion
Proper maintenance helps reduce unexpected downtime and extends the service life of major components.
A 10-inch configuration can be considered for:
Project | Suitability |
|---|---|
River maintenance | High |
Canal dredging | High |
Lake dredging | High |
Fishpond cleaning | High |
Small sand mining | High |
Small harbor maintenance | Suitable |
Environmental dredging | Suitable with proper configuration |
Large-scale reclamation | Usually requires larger CSD |
Major port expansion | Usually requires larger CSD |
The final choice should always be based on the project's actual production and depth requirements.
ITECH Co., Ltd. designs and manufactures cutter suction dredgers and dredging equipment for different project conditions.
The company's cutter suction dredger range includes compact 10 Inch Cutter Suction Dredgers as well as larger models. ITECH states that its CSD equipment can be customized according to soil type, dredging depth, production requirements, discharge distance, and other project conditions.
For a 10-inch project, ITECH can evaluate the relationship between:
Cutter → Pump → Pipeline → Production → Dredging Depth
rather than treating the 10-inch pipe diameter as the only selection criterion.
This is particularly important when the project involves long-distance slurry transportation, compact sediment, variable water depth, or customized transportation requirements.
It generally refers to the nominal size of the dredge suction or discharge pipeline. 10 inches is approximately 250 mm.
Production varies according to the pump, sediment, dredging depth, slurry concentration, pipeline length, and other conditions. ITECH publishes different configurations, including one typical model with a stated production range of 200–400 m³/h.
There is no single depth applicable to every 10-inch dredger. ITECH's published configurations show different maximum depths, so the ladder and dredging system should be selected according to the project.
Yes. A properly configured 10-inch CSD can be used for sand dredging, with cutter, pump, and pipeline specifications matched to the sand characteristics.
Yes. The cutter head and teeth should be selected according to clay hardness and the required production rate.
Yes. Its compact size and moderate production range can make it suitable for many river maintenance and channel dredging projects.
The discharge distance depends on pump head, pipeline diameter, slurry concentration, elevation, and pipeline configuration. ITECH lists representative 10-inch configurations with discharge distances up to approximately 800–1,000 m, but project-specific hydraulic calculations are required.
Yes. Cutter configuration, pump system, dredging depth, hull arrangement, power system, pipeline configuration, and other components can be adapted to project requirements.
A 10 Inch Cutter Suction Dredger can provide a practical solution for river dredging, canal maintenance, lake and reservoir cleaning, sand dredging, selected harbor projects, and other small to medium-scale hydraulic dredging applications.
The 10-inch designation generally indicates a 250 mm-class dredge pipeline, but the actual performance of the dredger depends on much more than pipe diameter.
When selecting a 10-inch CSD, evaluate production capacity, dredging depth, sediment type, cutter power, pump head, pipeline distance, hull configuration, transportation, and power system as one complete solution.
ITECH Co., Ltd. provides 10 Inch Cutter Suction Dredgers and customized dredging equipment for different project requirements.
Company: ITECH Co., Ltd.
Website: https://www.itechdredge.com/
Email: info@itechdredge.com
10 Inch Cutter Suction Dredger | 10 Inch Cutter Suction Dredger for Sale | 10 Inch CSD | 10 Inch Dredger | 250mm Cutter Suction Dredger | 10 Inch Sand Dredger | 10 Inch River Dredger | Small Cutter Suction Dredger | Compact Cutter Suction Dredger | Cutter Suction Dredger Manufacturer | Cutter Suction Dredger China | 10 Inch Dredging Machine | 10 Inch Sand Dredging Machine | 10 Inch River Dredging Machine | Small Sand Dredger | CSD250 Cutter Suction Dredger
