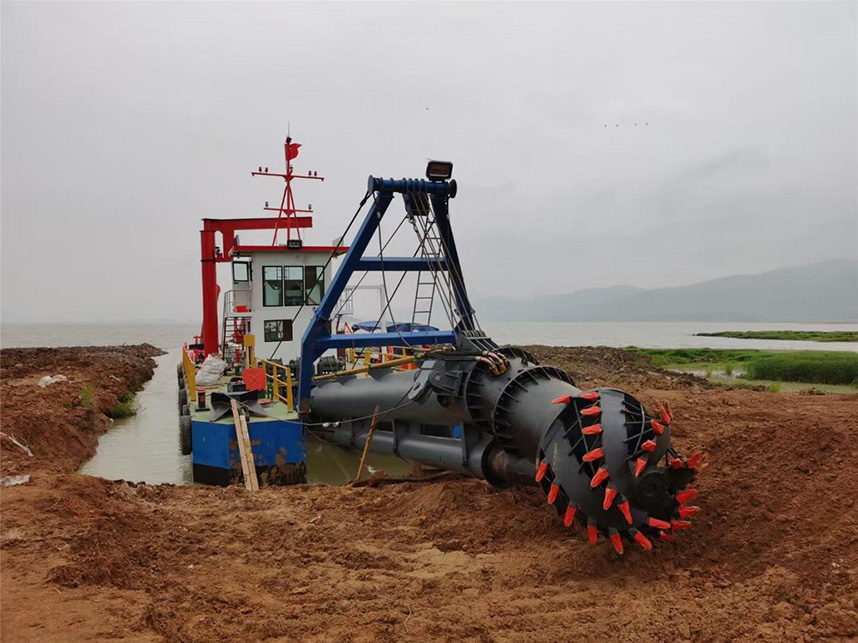

A Cutter Suction Dredger (CSD) is a complex machine designed for efficient dredging operations. Its performance and reliability depend on the proper integration of several key components. Each component plays a crucial role in cutting, lifting, and transporting sediments.
The cutter head is located at the front of the dredger and mounted on a ladder. It is equipped with replaceable teeth that rotate to loosen and cut through soil, clay, sand, or compacted sediment. The design and size of the cutter head are tailored to handle different seabed conditions. For harder soils, specialized teeth or stronger cutter heads may be used.
The ladder is a heavy steel structure that supports the cutter head. It can be lowered or raised to adjust the dredging depth. The ladder also allows the cutter head to swing sideways for precise excavation along a designated path. The ladder winch system controls its movement and stability during operation.
The suction pipe carries the loosened sediment from the cutter head to the dredge pump. The dredge pump generates the necessary suction to lift the slurry and transport it through the discharge pipeline. Pumps are designed for high flow rates and wear resistance because they handle abrasive sediment continuously.
Spuds are vertical poles that anchor the dredger to the seabed, providing stability during dredging. The spud carriage allows the dredger to pivot around the spuds, enabling precise positioning. Some CSDs have retractable spuds for easier relocation or transportation.
The dredged material, in slurry form, is transported through the discharge pipeline to the desired location, such as land reclamation sites, sediment basins, or ports. Pipelines may be floating or shore-based and can be equipped with booster pumps to increase transport distance and maintain pressure.
Deck machinery includes winches, hoists, and hydraulic systems that operate the ladder, spuds, and other movable parts. Winches also control mooring lines, dredge anchor lines, and assist in positioning the dredger accurately during operation.
CSDs are powered by diesel or electric engines, which provide energy for the cutter head, dredge pump, winches, and auxiliary equipment. The engine system is designed for high reliability and fuel efficiency, supporting continuous dredging operations.
Modern CSDs are equipped with a control cabin that allows operators to monitor and control all dredging processes. Automation systems can manage cutter head speed, suction pressure, ladder angle, and dredging path, improving efficiency and safety.
The hull or pontoon provides buoyancy and stability for the dredger. Larger dredgers may have a wide pontoon base for stability in open water, while smaller CSDs designed for rivers or canals have shallow drafts for easier maneuverability.
The combination of these components allows a CSD to operate effectively in various dredging projects, including channel deepening, land reclamation, river restoration, and coastal protection. The integration of high-strength cutter heads, powerful dredge pumps, and precise positioning systems ensures high productivity and continuous operation.
Understanding the key components of a Cutter Suction Dredger (CSD) is essential for anyone involved in dredging operations. The following Q&A explains each main part and its function.
Q: What is the cutter head and what does it do?
A: The cutter head is located at the front of the dredger and mounted on a ladder. It has rotating teeth designed to cut and loosen soil, sand, clay, or compacted sediment. The cutter head allows the dredger to handle different types of seabed conditions efficiently.
Q: How does the ladder system work?
A: The ladder supports the cutter head and can be raised or lowered to adjust dredging depth. The ladder can swing sideways, controlled by a winch system, which allows for precise excavation along the desired dredging path.
Q: What is the role of the suction pipe and dredge pump?
A: The suction pipe transports the loosened material from the cutter head to the dredge pump. The dredge pump generates the vacuum needed to lift the sediment-water mixture, known as slurry, and push it through the discharge pipeline to the disposal or reclamation site.
Q: How do spuds and the spud carriage help dredging?
A: Spuds are vertical poles that anchor the dredger to the seabed, providing stability during operation. The spud carriage allows the dredger to pivot around the spuds, enabling precise positioning and controlled dredging movement.
Q: What is the discharge pipeline system?
A: The discharge pipeline carries the dredged slurry to its final destination, such as reclamation areas or sediment basins. Pipelines can be floating or shore-based and may include booster pumps to increase the distance and pressure of slurry transport.
Q: What functions do deck machinery and winches serve?
A: Deck machinery, including winches and hydraulic systems, operates the ladder, spuds, and other movable parts. They also control mooring lines and dredge anchor lines, ensuring the dredger is correctly positioned during dredging.
Q: How is the dredger powered?
A: CSDs use diesel or electric engines to provide power for the cutter head, dredge pump, winches, and auxiliary systems. The engines are designed for continuous operation, high reliability, and fuel efficiency.
Q: What is the purpose of the control cabin and automation system?
A: The control cabin allows operators to monitor and control all dredging processes. Modern automation systems manage cutter head speed, suction pressure, ladder angle, and dredging path, improving efficiency, accuracy, and safety.
Q: Why is the hull or pontoon structure important?
A: The hull or pontoon provides stability and buoyancy for the dredger. Larger CSDs use wide pontoons for open water stability, while smaller dredgers are designed with shallow drafts for maneuvering in rivers and canals.
