Cutter Suction Dredgers (CSDs) represent a significant category of marine vessels designed for continuous excavation in a wide range of soil conditions, from soft silt and sand to hard clay and even weathered rock. Their operational principle involves a mechanically driven cutting head, a suction system for transporting the dredged material, and a system of spuds and winches for controlled positioning. iTECH specializes in the engineering and integration of key mechanical and control systems for such dredgers, focusing on reliability and operational efficiency.

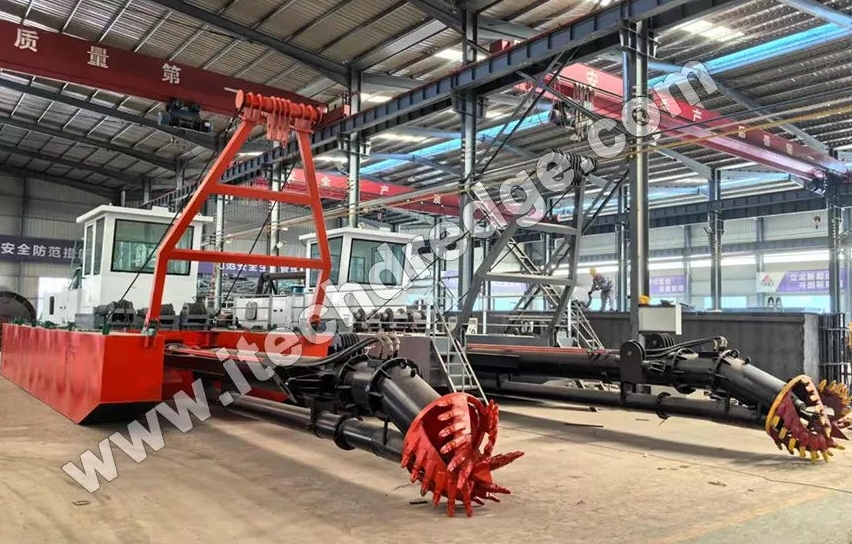

The core of a CSD is its cutter head, located at the end of a ladder that is lowered to the working depth. The cutter head's function is to fragment the in-situ material, making it mixable with water to form a slurry. Cutter heads are designed with specific tool configurations—such as chisel teeth, ripper teeth, or carbide cutters—selected based on the material's compressive strength and abrasiveness. For instance, a standard dredge might employ teeth with a base hardness of 400-500 HB for sandy soils, while advanced alloys with hardness exceeding 600 HB are used for more abrasive or rocky applications. The rotational speed of the cutter is another critical parameter; lower speeds (10-20 rpm) with high torque are typical for hard materials, while higher speeds (25-40 rpm) are used for softer soils to achieve optimal production.
The dredge pump is the heart of the slurry transport system. It is a heavy-duty centrifugal pump designed to handle a mixture of water, solids, and abrasive particles. Pump performance is measured by its capacity to generate flow (in cubic meters per hour) and pressure (in bar or meters of head) to overcome the total dynamic head in the pipeline. iTECH's pump selection process involves detailed analysis of the specific gravity of the slurry (typically ranging from 1.05 to 1.30), particle size distribution, and transport distance. For long-distance pipelines, booster stations, which are intermediary pumps installed along the discharge line, are often required to maintain slurry velocity and prevent settling. A common industry benchmark is that a single dredge pump can effectively transport slurry for distances up to 2-4 kilometers, depending on the discharge elevation and soil type.
The swing system enables the dredger to cut in an arc.
This is typically achieved through a combination of a stern spud and swing winches connected to anchors. The stern spud acts as a pivot point. While the cutter head excavates the material, the winches pull the vessel around this pivot. The alternative "spud carriage" system allows the entire vessel to move forward on a track, offering advantages in deeper water and more precise control. The choice between these systems involves a trade-off between capital cost and operational flexibility.
Modern CSDs are increasingly reliant on integrated control and monitoring systems. iTECH's approach involves the implementation of sensors that provide real-time data on parameters such as cutter head torque, dredge pump vacuum and discharge pressure, slurry density, and vessel position. This data is processed by a central control system, often allowing for automated control of the swing speed and ladder depth to maximize production while preventing equipment overload. The use of GPS and depth sounders enables precision dredging, allowing operators to work to target bathymetries with tolerances often within ±0.10 to 0.25 meters.
The application of CSDs is extensive, covering land reclamation, navigational channel deepening, mining operations, and environmental remediation. Their key advantage is their ability to work continuously in a stationary position, making them highly efficient for large-scale, defined-area projects. The selection and configuration of a CSD's components—from the cutter head to the discharge pipeline—are determined by a detailed project analysis, ensuring that the equipment is matched to the specific geotechnical and operational requirements.
About us
Founded in 1994, iTECH began as a family-owned enterprise focused on marine engineering. Our early breakthroughs in hydraulic systems and sediment management laid the groundwork for our flagship cutter suction dredgers (CSDs).
Reference
Bray, R. N. (Ed.). (2008). Environmental Aspects of Dredging. Taylor & Francis.
Turner, T. M. (1996). Fundamentals of Hydraulic Dredging. American Society of Civil Engineers.
Vlasblom, W. J. (2003). Dredging Equipment and Technology. Delft University of Technology.
