Cutter Suction Dredger (CSD) 350 is a type of dredging vessel specifically designed to remove underwater sediments, sand, and other materials from the seabed, rivers, or other water bodies. It uses a rotating cutter head to loosen the material, which is then sucked up through a suction pipe and pumped to a disposal site or to land for reclamation projects. The "350" refers to the size of the dredger, typically indicating the diameter of the suction pipe, which is 350mm (14 inches), making it suitable for medium-sized dredging projects.
The Cutter Suction Dredger operates in several stages:
Cutter Head Operation: The dredger is equipped with a large, rotating cutter head at the front. The cutter head is mounted on a dredging ladder, and it breaks up or loosens hard soil, clay, sand, or rock on the seabed.
Suction Pipe: Once the material is broken up by the cutter head, it is immediately sucked into a suction pipe connected to the cutter head. The powerful suction pump draws the material mixed with water (slurry) into the pipeline.
Pumping: The slurry is transported via pipelines to a designated disposal site. In some cases, the material is pumped directly to shore for land reclamation projects or other uses. The dredger can be fitted with additional booster pumps to transport material over longer distances.
Spud System: The Cutter Suction Dredger is anchored using large spuds, which are vertical piles that can be raised and lowered. The spuds keep the dredger in place during operation, allowing the cutter head to work precisely on a given area.
Swing Wires: The dredger uses swing wires attached to winches to move the cutter head from side to side, allowing it to dredge across a wide area.
Key Features of the Cutter Suction Dredger 350

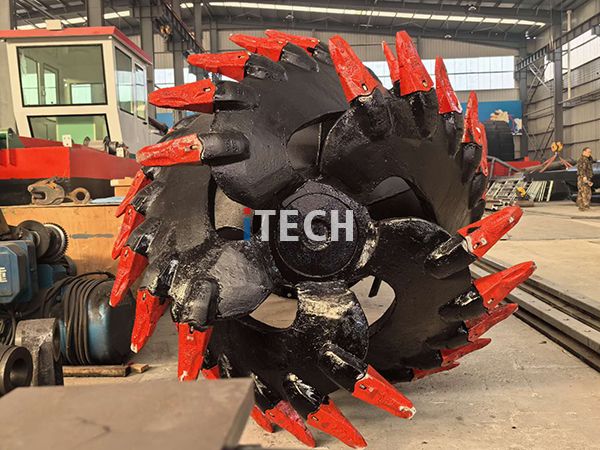

Cutter Head: The cutter head is the heart of the dredger and is designed to cut through various types of materials, from soft clay to hard rock. It is equipped with replaceable cutting teeth for enhanced durability.
Suction and Discharge Pipelines: The 350mm suction pipe allows for efficient removal of material. The discharge pipeline can be adjusted in length based on the distance between the dredging site and the disposal area.
Powerful Pumps: The dredger is equipped with high-capacity pumps to ensure a continuous flow of slurry through the pipeline. This enables the dredger to operate efficiently even in challenging conditions.
Spud and Winch System: The spud system keeps the vessel stable, while the winches allow for precise control of the dredging area. This combination ensures the cutter head can work methodically across the seabed.
Automation and Control: Modern CSDs often feature advanced control systems that allow the operator to monitor and adjust various parameters such as cutting speed, swing angle, and suction power. This enhances precision and efficiency.
Versatility: The Cutter Suction Dredger 350 can be used in various environments, from coastal areas and river channels to ports and harbors. It is versatile enough to handle projects involving soft mud, sand, gravel, or harder materials like rock and clay.
