A cutter suction dredger (CSD) is a stationary dredging vessel that excavates soil, sand, and rock underwater using a rotating cutter head mounted on a ladder. Key components include:
Cutter Head: Equipped with hardened teeth to fragment compacted materials.
Dredging Pump: A centrifugal pump creating vacuum pressure to suck slurry (water + solids).
Hydraulic System: Powers the cutter rotation, ladder movements, and winches.
Spud Poles: Steel piles anchoring the vessel while allowing swing movements.
Diesel Engines: Prime movers generating power for pumps, hydraulics, and onboard systems.
CSDs excel in hard-material dredging (clay, rock, coral) where suction-only dredgers fail. By cutting material before suction, they achieve unmatched efficiency in port construction, mining, and land reclamation.
Key Features of Cutter Suction Dredgers
Modern CSDs like the CSD350 integrate advanced engineering for superior performance:
High Efficiency:
Cutter heads optimize material fragmentation, reducing dredging time by 40% vs. plain suction dredgers.
Heavy-Duty Construction:
Reinforced steel ladder, abrasion-resistant pumps, and wear-protected cutter teeth ensure longevity in harsh conditions.
Advanced Technology:
GPS positioning, automated swing control, and real-time production monitoring maximize precision.
Large Capacity:
Discharge rates up to 3,500 m³/hr handle large-scale projects.
Extended Transfer Distance:
Booster pumps enable slurry transport over 3–5 km via floating pipelines.
Deep Dredging Capability:
Operating depths to 30 meters (adjustable via ladder length).
How a Cutter Suction Dredger Works？
Positioning: The CSD anchors using spud poles and swing winches.
Cutting: The hydraulic cutter head shreds seabed material.
Suction: The dredge pump creates vacuum, drawing slurry into the pipeline.
Discharge: Slurry is transported via pipelines to disposal sites or reclamation areas.
Swinging: The vessel pivots around the spud, methodically covering dredging areas.
Cutting Production: Optimized by cutter RPM, tooth design, and ladder angle.
Pump Power: Diesel engines drive high-pressure pumps for suction/discharge.
Pipeline Transport: Floating HDPE pipes transfer slurry efficiently over long distances.

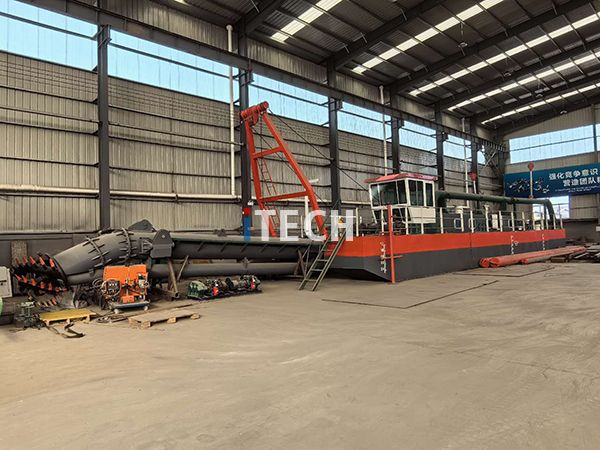

The CSD350 is a medium-sized cutter suction dredger engineered for versatility and power. The "350" denotes its 350mm discharge pipe diameter.
Cutter Power: 70-110 kW hydraulic motor for rock/gravel excavation.
Dredging Depth: 12-15 meters (customizable).
Total Installed Power: ~500-700 kW (diesel engines).
Pump System: 350mm discharge diameter with optional booster pumps.
Spud System: Dual spuds with hydraulic cylinder control for smooth swinging.
Control System: Integrated PLC with remote monitoring.
Ideal for: River maintenance, sand mining, and coastal protection projects.
| Model | Dredging Capacity | Dredging Depth | Suction/Discharge Pipe Dia. | Engine(s) Power |
| CSD-200 | 500 m3 /hr | 1-5 m | 200/200 mm | 160-300 kw |
| CSD-250 | 800 m3 /hr | 1-8 m | 250/250 mm | 200-400 kw |
| CSD-300 | 1200 m3 /hr | 1-12 m | 300/300 mm | 400-600 kw |
| CSD-400 | 2200 m3 /hr | 1.5-14 m | 400/400 mm | 700-1200 kw |
| CSD-500 | 3500 m3 /hr | 1.5-15 m | 600/500 mm | 1100-1600 kw |
| CSD-650 | 5000 m3 /hr | 1.5-18 m | 650/650 mm | 2200-2500 kw |
| CSD-700 | 7000 m3 /hr | 1.5-20m | 750/700 mm | 2800-3500 kw |
China dominates global dredger manufacturing due to:
Cost-Effectiveness:
Competitive pricing (20–30% lower than European equivalents) without compromising quality.
Rapid Production:
Established shipyards deliver turnkey CSDs in 1-3 months.
Customization:
Tailored designs for depth, power, or material type (e.g., rock-cutters for CSD350).
Technological Innovation:
Integration of AI-driven automation, hybrid power systems, and eco-friendly designs.
Supply Chain Strength:
Local access to steel, machinery, and skilled labor streamlines construction.
Global Support:
Chinese manufacturers offer worldwide commissioning, training, and spare parts networks.
The CSD350 cutter suction dredger represents the pinnacle of dredging equipment: blending robust engineering, high productivity, and low operational costs. With its ability to handle dense materials, transfer slurry over kilometers, and operate in depths unreachable by standard dredgers, it’s the optimal solution for challenging marine projects.
