Technical features:
1.Working temperature: -20℃ to +50℃.
2.Convenient to install, flexible and safe to use.
3.Excellent performance of abrasion-resistant and bending resistant.
Structure and Material:
1.Cover: composed of natural rubber and synthetic rubber.
2.Reinforcement layer: composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3.Inner rubber liner: composed of wear-proof natural rubber and synthetic rubber.
Technical specifications:
DN (mm) | Flange OD (mm) | Flange thickness (mm) | Bolt hole | Length (mm) | Working pressure (Mpa) | Burst pressure (Mpa) | Wall thickness (mm) | ||
P.C.D. (mm) | No. | Hole dia. (mm) | |||||||
300±5 | 460±3 | 18±2 | 410±1 | 12 | 22±1 | 1000-3000 | 0.4-1.2 | 3.6 | 35-37 |

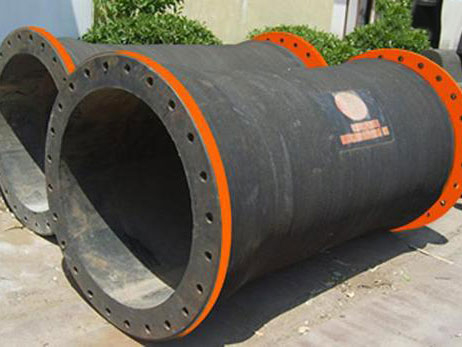

NOTE: The specifications for reference,the dredge discharge hoses can be customized according to client’s requests.
Technical features:
1.Working temperature: -20℃ to +50℃.
2.Convenient to install, flexible and safe to use.
3.Excellent performance of abrasion-resistant and bending resistant.
Structure and Material:
1.Cover: composed of natural rubber and synthetic rubber.
2.Reinforcement layer: composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3.Inner rubber liner: composed of wear-proof natural rubber and synthetic rubber.
Technical specifications:
DN (mm) | Flange OD (mm) | Flange thickness (mm) | Bolt hole | Length (mm) | Working pressure (Mpa) | Burst pressure (Mpa) | Wall thickness (mm) | ||
P.C.D. (mm) | No. | Hole dia. (mm) | |||||||
300±5 | 460±3 | 18±2 | 410±1 | 12 | 22±1 | 1000-3000 | 0.4-1.2 | 3.6 | 35-37 |
NOTE: The specifications for reference,the dredge discharge hoses can be customized according to client’s requests.
iTech presents our specialized cutter suction dredgers designed specifically for precision pipeline trenching operations. Our advanced dredging technology enables efficient subsea trench excavation with millimeter-level accuracy, making us the preferred partner for offshore and nearshore pipeline projects worldwide.
At iTech, we understand the critical importance of maintaining navigable waterways and preventing flood risks through efficient river dredging. Our cutter suction dredgers (CSDs) are specifically engineered to address the unique challenges of river environments, combining maneuverability with exceptional sediment removal capabilities.
In the rapidly growing sand dredging industry, efficiency and reliability are paramount. iTech's cutter suction dredgers (CSDs) represent the pinnacle of sand extraction technology, combining advanced engineering with operational excellence to deliver productivity.
Cutter Suction Dredgers (CSDs) play a vital role in extracting minerals, clearing waterways, and maintaining operational efficiency. At iTech, we specialize in manufacturing high-performance cutter suction dredgers for mining, backed by world-class production facilities, global logistics, and unwavering reliability.
Small portable suction dredger is an essential tool for efficient and cost-effective dredging in shallow waters and confined spaces. Whether for aquaculture, environmental restoration, or small-scale mining, these dredgers provide a reliable, easy-to-use, and budget-friendly solution.
Advantages of a Small Portable Suction Dredger✅ Compact and Lightweight – Easy to transport and operate.✅ Cost-Effective – Lower investment compared to larger dredgers.✅ User-Friendly – Simple operation and minimal training required.✅ Versatile Applications – Suitable for multiple dredging tasks.
