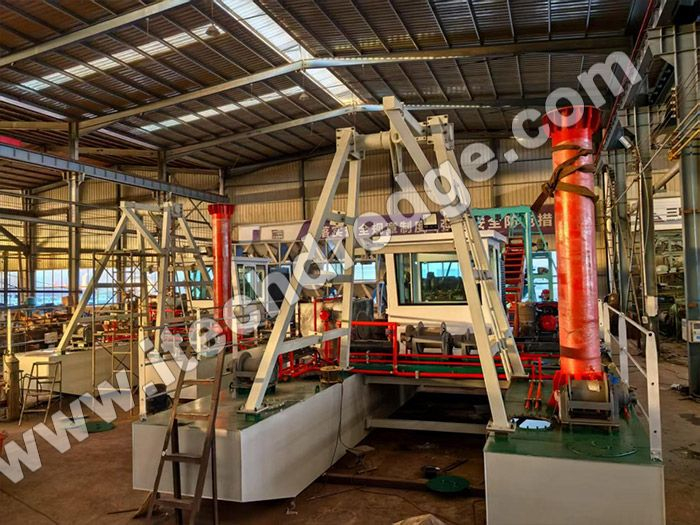

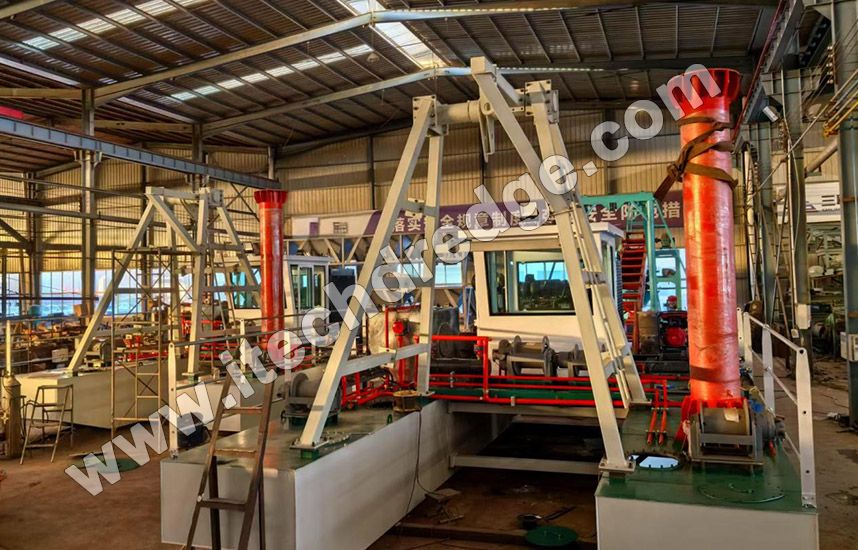

Hydraulic Submersible Pump Dredger IT-HSPD 200

Introduction to Hydraulic Submersible Pump Dredger

Hydraulic submersible pump dredgers like the IT-HSPD 200 operate by submerging a high-power hydraulic pump underwater to suction sediments, gravel, or slurry. The hydraulic system provides robust power for handling abrasive materials and deep-water applications. Key applications include:

• Mining: Extracting minerals, sand, and gravel from riverbeds or underwater deposits 110.

• Waterway Maintenance: Clearing harbors, rivers, and reservoirs to maintain navigability and prevent siltation 18.

• Environmental Remediation: Removing contaminated sediments while minimizing ecological disruption 89.

• Land Reclamation: Creating new land by pumping sand and silt onto designated areas 129.

Key Components

While specific details for the IT-HSPD 200 are limited, typical hydraulic submersible pump dredgers include these critical components:

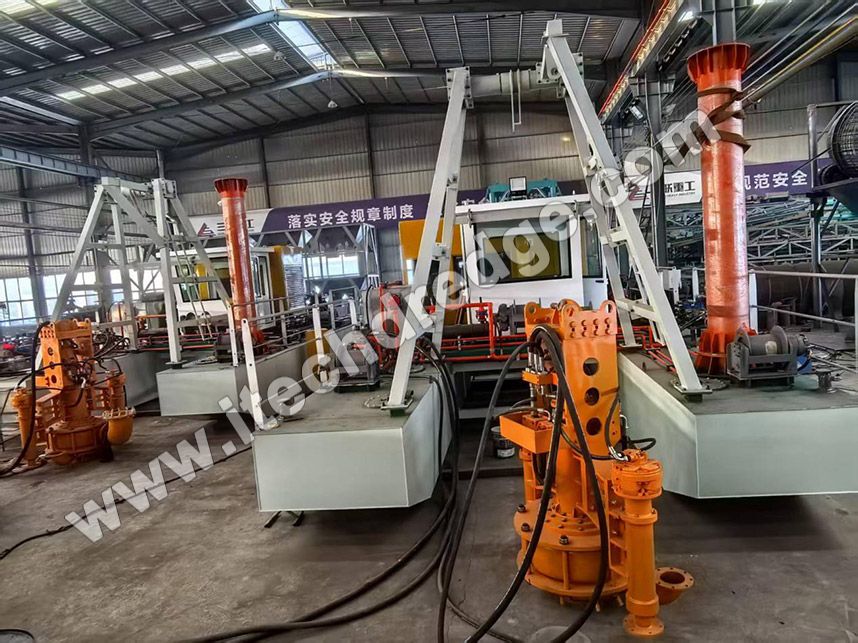

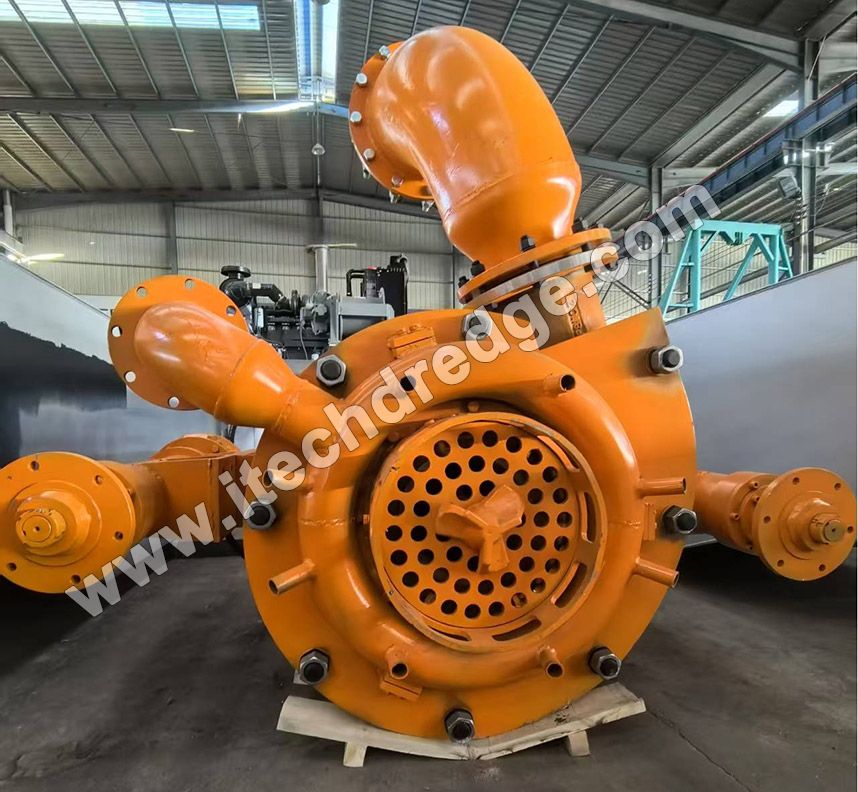

• Hydraulic Pump: A high-pressure pump driven by a diesel or electric motor, designed to handle abrasive slurries. The pump’s impeller and casing are often made of wear-resistant materials like hardened steel or rubber-lined composites 16.

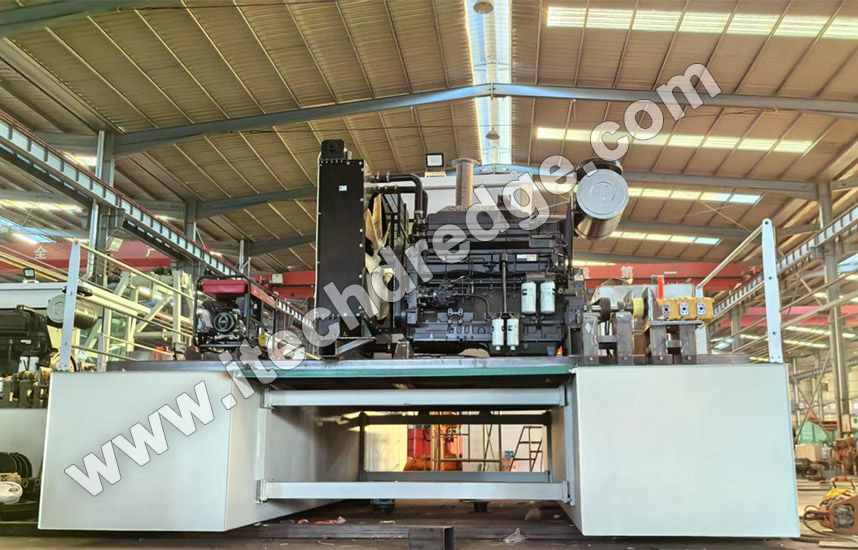

• Submersible Motor: A waterproof motor integrated with the pump to provide power underwater. Hydraulic systems often use external power units (e.g., diesel engines) for greater torque and reliability in remote locations 120.

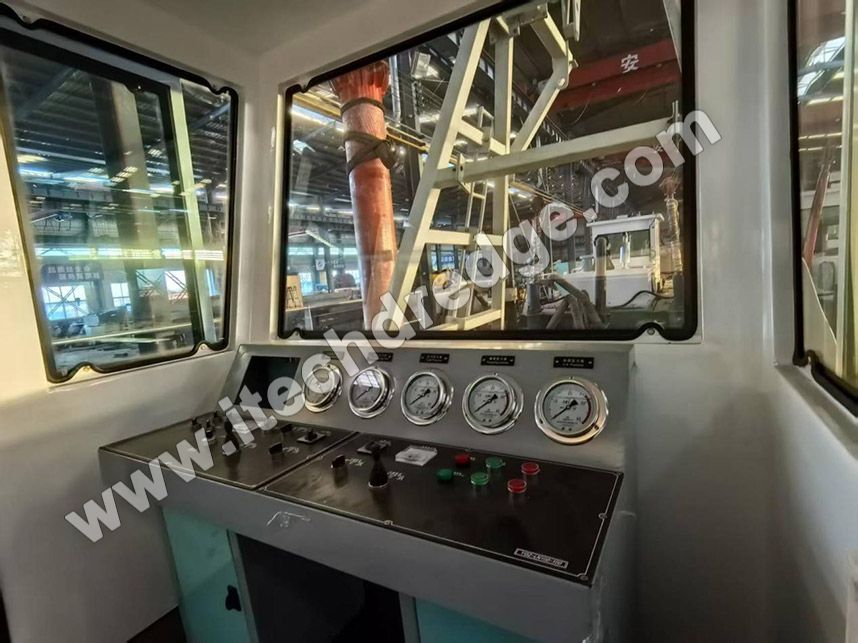

• Control System: Hydraulic valves and sensors regulate pressure, flow, and motor speed. Modern dredgers may include PLC (Programmable Logic Controller) systems for automated operation 620.

• Dredge Head/Cutter: A rotating cutterhead (optional) breaks up compacted sediments, while suction nozzles or hoppers collect loose materials. The IT-HSPD 200 may feature adjustable cutter teeth for different soil types 128.

• Pipeline System: Heavy-duty hoses or pipes transport the slurry mixture to the discharge site. These pipelines often include wear-resistant liners and couplings for durability 19.

• Floating Platform: A pontoon or barge stabilizes the dredger and houses auxiliary equipment like power units, control panels, and storage tanks 128.

Operation Guide

Operating a hydraulic submersible pump dredger involves several stages:

Deployment:

• Position the dredger over the work area using a barge or crane. Ensure the pump and cutterhead are submerged to the required depth 620.

• Connect the hydraulic hoses and power supply (diesel engine or electric generator) 620.

Startup:

• Prime the pump to remove air and ensure proper suction.

• Activate the hydraulic motor and adjust the cutterhead speed based on sediment density 628.

Excavation:

• Lower the cutterhead to the seabed and begin dredging. The hydraulic system generates high pressure to break up hard materials and create a slurry mixture 128.

• Monitor slurry consistency (water-to-sediment ratio) to optimize pumping efficiency and prevent pipeline blockages 69.

Transport and Discharge:

• Pump the slurry through pipelines to a disposal site or processing plant. Adjust flow rates based on distance and material type 19.

• Use dewatering equipment (e.g., centrifuges or settling ponds) to separate water from sediments if needed 1011.

Maintenance:

• Regularly inspect the pump, cutter head, and pipelines for wear. Replace damaged components to avoid performance loss 621.

• Check hydraulic fluid levels and filters to prevent contamination and ensure system efficiency 620.

Advantages of Hydraulic vs. Electric Dredgers

Hydraulic dredgers like the IT-HSPD 200 offer distinct benefits over electric models:

Power and Torque:

• Hydraulic systems deliver higher torque, making them ideal for breaking up compacted sediments, clay, or rocky materials 828.

• Electric dredgers struggle with hard soils and may require additional mechanical tools for excavation 820.

• Durability and Reliability:

• Hydraulic components are less prone to electrical failures in wet or corrosive environments. They also handle abrasive slurries better than electric motors 620.

• Electric motors risk damage from water ingress and may require frequent repairs in submerged conditions 620.

Mobility and Flexibility:

• Hydraulic dredgers can operate remotely without relying on fixed power sources (e.g., diesel-driven units). This is critical for offshore or remote-site projects 120.

• Electric dredgers depend on nearby power grids or generators, limiting their mobility 20.

Safety:

• Hydraulic systems are inherently explosion-proof, making them suitable for dredging in hazardous environments (e.g., near flammable materials) 820.

• Electric systems pose risks of sparking or short circuits in volatile conditions 20.

Maintenance:

• Hydraulic systems require periodic oil changes and filter replacements but have fewer moving parts compared to electric motors, reducing long-term maintenance costs 620.

• Electric motors often need more frequent inspections and repairs due to wear on brushes, bearings, and electrical connections 620.




The IT-HSPD 200 hydraulic submersible pump dredger combines high power, durability, and versatility for challenging dredging tasks. Its hydraulic design excels in handling abrasive materials, deep-water operations, and remote environments, outperforming electric dredgers in torque, reliability, and safety. For detailed specifications or operational manuals specific to the IT-HSPD 200, consult the manufacturer’s documentation or technical support

General Performance

The HSPD 200 is designed with a compact yet robust structure. Its overall dimensions are carefully optimized to ensure ease of transportation and maneuverability in various water bodies.
