The Hydraulic Submersible Pump Dredger IT-HSPD 300 is a state-of-the-art piece of equipment designed to revolutionize dredging operations. Dredging is the process of removing sediment, sand, gravel, and other materials from the bottom of water bodies such as rivers, lakes, ports, and canals. This is crucial for maintaining waterway depth, preventing siltation, and facilitating various construction and environmental projects.
The IT-HSPD 300 is engineered to operate efficiently underwater, making it an ideal solution for a wide range of applications. Its submersible design allows it to access areas that are difficult to reach with traditional dredging equipment. By being fully submerged, it can directly extract materials from the waterbed, reducing the need for complex surface - mounted machinery and minimizing the impact on the surrounding environment.
Pump Casing: The pump casing of the IT-HSPD 300 serves as the outer protective shell for all the internal components. It is constructed from high - strength materials such as cast iron, steel, or specialized alloys that are highly resistant to corrosion and abrasion. Given that the dredger operates in harsh environments, where it constantly comes into contact with abrasive materials like sand and gravel, the durability of the pump casing is of utmost importance. A well - designed casing not only protects the internal parts but also helps in minimizing wear and tear, thus extending the overall lifespan of the dredger.
Impeller: At the heart of the hydraulic submersible pump is the impeller. This rotating component is responsible for generating the force required to move the sediment and slurry through the pump. The IT-HSPD 300 offers different types of impellers, including open, semi - open, and closed designs. Closed impellers are typically used when handling fine sediments, as they provide better efficiency in such scenarios. On the other hand, open and semi - open impellers are more suitable for larger or more abrasive materials, as they can better withstand the impact and wear caused by these materials. The design of the impeller significantly influences the pump's performance in terms of flow rate and the ability to handle different types of materials.
Suction Pipe and Inlet: The suction pipe and inlet are crucial for drawing the slurry or sediment into the dredger. The efficiency of this process depends on several factors, such as the length, diameter, and depth of the suction pipe. A larger diameter and shorter length generally result in improved suction efficiency, allowing for a faster intake of sediment. However, the suction system is also prone to certain challenges, such as blockages, cavitation, or air ingress. To prevent these issues, the IT-HSPD 300 is equipped with features that facilitate regular inspections and maintenance of the suction pipe and inlet, ensuring smooth operation.

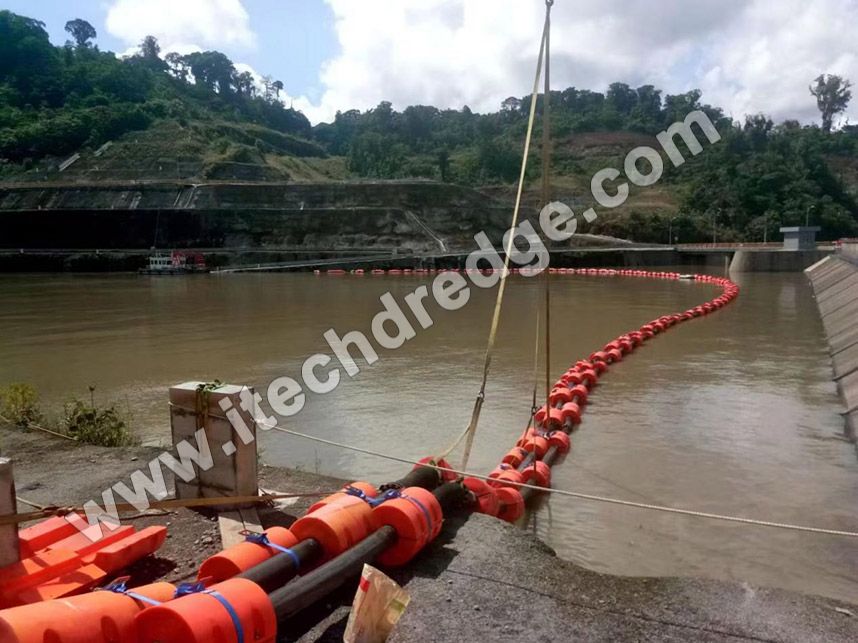

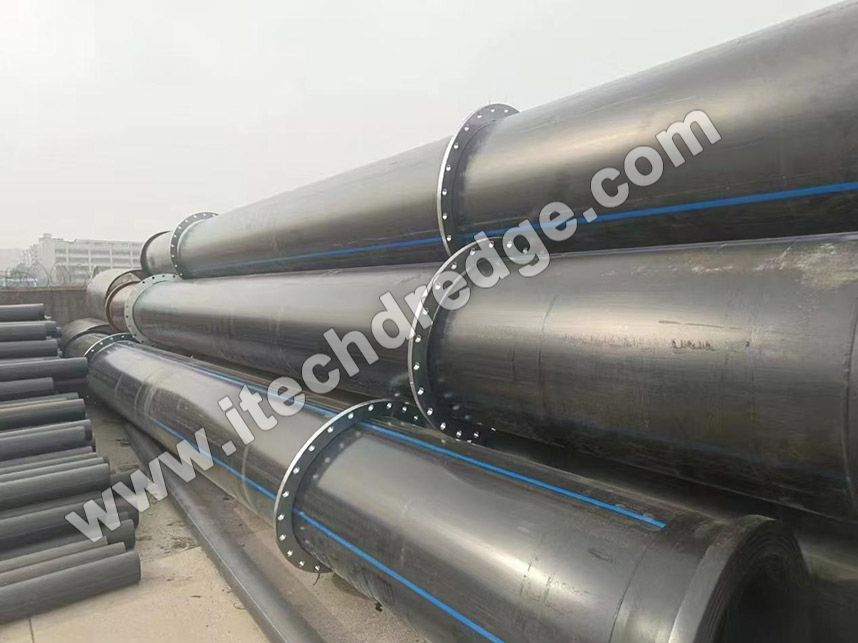

Discharge Pipe: Once the slurry is inside the pump, the discharge pipe is responsible for transporting it to the desired destination. The discharge pipe of the IT-HSPD 300 is made from materials like high - density polyethylene (HDPE) or steel, chosen for their durability in handling abrasive and heavy slurries. The sizing of the discharge pipe is carefully calibrated to ensure optimal flow and prevent blockages. Regular maintenance, including checking for cracks and leaks, is essential to maintain the integrity of the discharge process and extend the lifespan of the pipe.

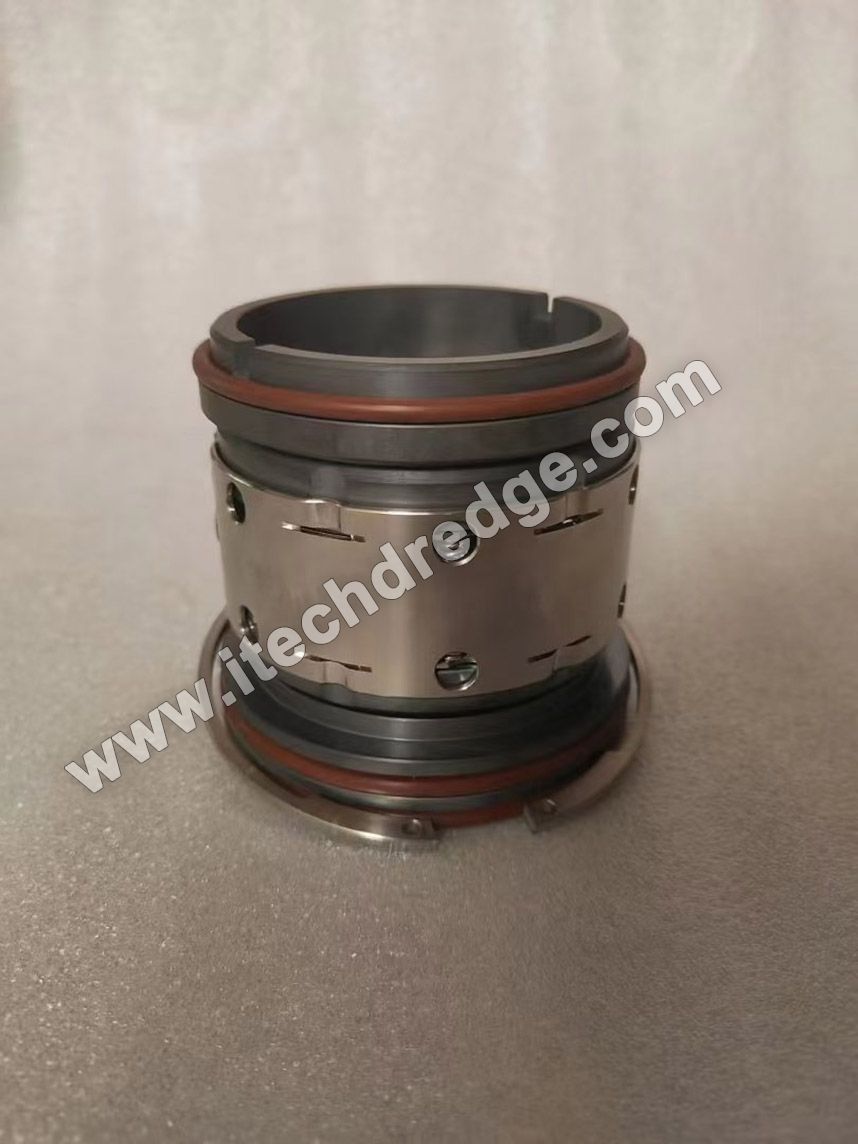

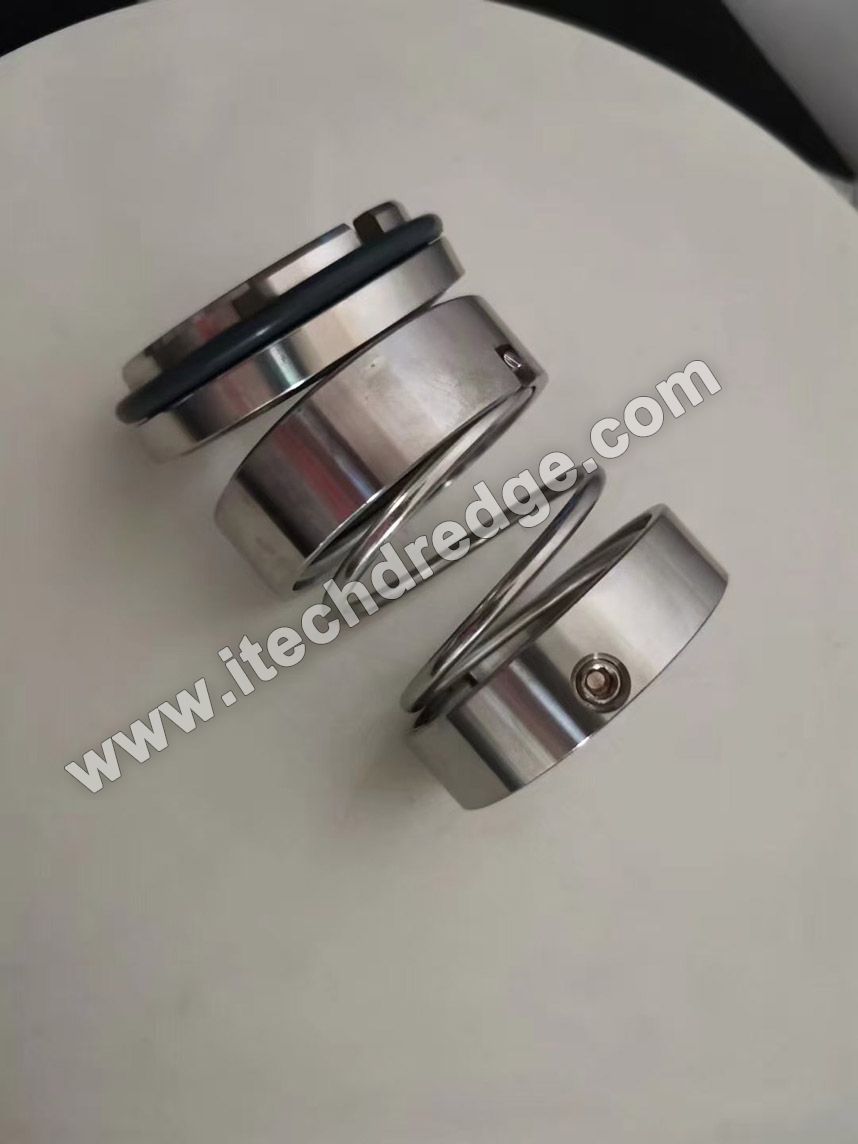

Seals and Bearings: Seals and bearings play a vital role in ensuring the smooth operation of the hydraulic submersible pump dredger. Mechanical seals are used to prevent the leakage of slurry, maintaining the integrity of the system. Different types of seals, such as packing seals and mechanical seals, are available, and the choice depends on the specific operational requirements of the IT-HSPD 300. Bearings, on the other hand, support the rotating parts of the pump, reducing friction and ensuring that the impeller and shaft operate efficiently. Regular lubrication and maintenance of seals and bearings are crucial to extend their lifespan and prevent mechanical failures.
Shaft: The shaft is a critical component that transmits power from the pump's motor to the impeller, driving the slurry through the system. In the IT-HSPD 300, the shaft is typically made from stainless steel or hardened alloys to resist corrosion and abrasion. Common issues with pump shafts, such as misalignment and corrosion, can be mitigated through proper alignment procedures and regular inspections. Ensuring the proper functioning of the shaft is essential for the overall efficiency and reliability of the dredger.

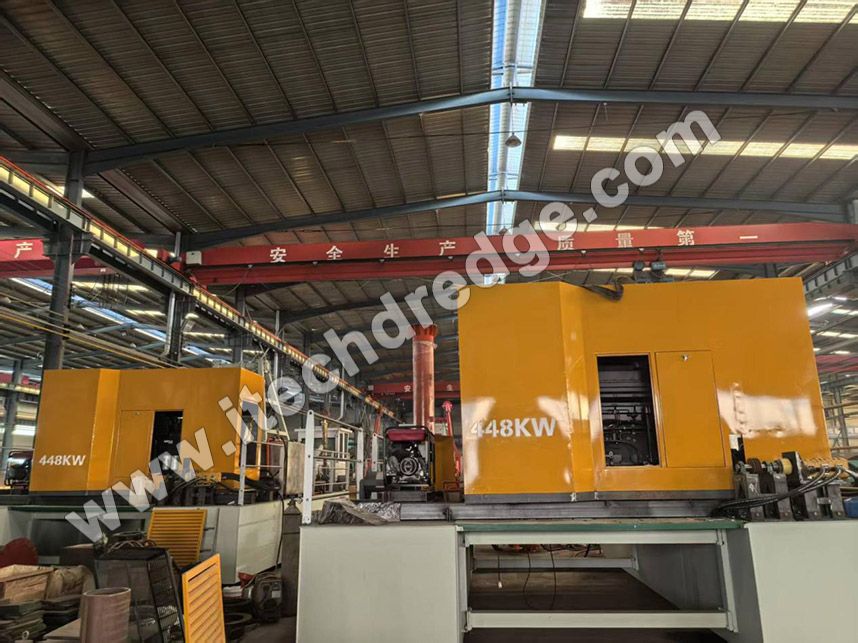

Pump Motor and Power Source: The IT-HSPD 300 can be powered by either electric or diesel motors, depending on the specific application and operating conditions. Electric motors offer the advantage of quiet operation and precise control, while diesel motors provide high power output and are suitable for remote locations where access to electricity is limited. The choice of power source is carefully considered based on factors such as the location of the dredging project, the required power output, and environmental considerations.
Marine and Harbour Maintenance: In ports and harbors, the IT-HSPD 300 is used to remove accumulated sediment, silt, and debris. This helps in maintaining the required depth for ships to navigate safely. By preventing siltation, it also reduces the risk of ships running aground and ensures smooth operations in busy ports. Additionally, it can be used to clean up areas around docks and piers, improving the overall functionality and safety of the marine infrastructure.
River and Canal Dredging: Rivers and canals often experience sedimentation over time, which can affect water flow, flood control, and navigation. The IT-HSPD 300 is an effective tool for dredging these water bodies, restoring their original depth and flow capacity. It can also be used to remove vegetation and other obstructions from the waterway, enhancing the overall health and functionality of the river or canal ecosystem.
Mining and Mineral Extraction: In the mining industry, the hydraulic submersible pump dredger is used to extract valuable minerals from underwater deposits. It can efficiently remove sand, gravel, and other materials to access the minerals beneath. For example, in gold mining, the IT-HSPD 300 can be used to dredge riverbeds where gold particles are often found in the sediment. It can also be used in the extraction of other minerals such as tin, diamond, and iron ore from underwater mines.
Environmental Remediation: The IT-HSPD 300 plays a crucial role in environmental remediation projects. It can be used to remove contaminated sediment from lakes, rivers, and estuaries. Contaminated sediment may contain heavy metals, pollutants, or other harmful substances that can pose a threat to aquatic life and human health. By removing this sediment, the dredger helps in restoring the ecological balance of the water body and improving water quality.
Land Reclamation: In coastal areas, land reclamation projects are often carried out to create new land for various purposes such as housing, infrastructure development, and industrial use. The IT-HSPD 300 is used to dredge sand and other materials from the seabed and transport them to the area where land is being reclaimed. This process helps in building up the land to the desired elevation and shape.
Site Preparation: Before using the IT-HSPD 300, the site needs to be properly prepared. This includes assessing the depth of the water, the type of sediment or material to be dredged, and any potential obstacles in the area. The location of the discharge point should also be determined, and a suitable pipeline should be laid to transport the dredged material.
Installation and Setup: The hydraulic submersible pump dredger is then installed and set up. If it is to be used with an excavator, it is attached to the excavator's boom. The suction and discharge pipes are connected, and the power source (either electric or diesel) is hooked up. The pump's controls are calibrated, and all safety features are checked to ensure proper operation.
Operation: Once the setup is complete, the dredger is lowered into the water. The impeller is started, and the suction process begins. The operator monitors the flow rate, pressure, and other parameters to ensure that the dredger is operating efficiently. As the dredger moves along the waterbed, it sucks up the sediment and pumps it through the discharge pipe to the designated location.
Maintenance and Monitoring: During operation, regular maintenance and monitoring are essential. The operator checks for any signs of wear and tear on the components, such as the impeller, seals, and bearings. The suction and discharge pipes are inspected for blockages or leaks. The power source is also monitored to ensure that it is providing the required power without any issues. If any problems are detected, the dredger is stopped, and the necessary repairs or maintenance are carried out.
High Efficiency: The IT-HSPD 300 is designed to operate with high efficiency, ensuring that it can quickly and effectively remove sediment and other materials. Its powerful pump and well - designed impeller allow for high flow rates, reducing the time required to complete dredging projects.
Abrasion Resistance: Given the abrasive nature of the materials it handles, the IT-HSPD 300 is built with components that are highly resistant to wear. The pump casing, impeller, and other parts are made from materials such as high - chrome alloys, which can withstand the constant impact and friction of sand, gravel, and other abrasive materials.
Versatility: This hydraulic submersible pump dredger is highly versatile and can be used in a wide range of applications and environments. Whether it's dredging in a shallow river, a deep - water port, or a contaminated lake, the IT-HSPD 300 can be adapted to meet the specific requirements of the project.
Easy to Operate: The IT-HSPD 300 is designed with user - friendly controls and features, making it easy for operators to use. The setup and operation procedures are straightforward, and the dredger can be quickly deployed and put into action.
Reliability: Built with high - quality components and advanced engineering, the IT-HSPD 300 is a reliable piece of equipment. It is designed to operate continuously for long periods without experiencing major mechanical failures, reducing downtime and ensuring that dredging projects can be completed on schedule.
Customizability: The IT-HSPD 300 can be customized to meet the specific needs of different projects. For example, different types of impellers, suction and discharge pipes, and power sources can be selected based on the type of material to be dredged, the depth of the water, and the location of the project.
In conclusion, the Hydraulic Submersible Pump Dredger IT-HSPD 300 is a powerful, efficient, and versatile piece of equipment that offers a wide range of benefits for various industries and applications. Its advanced design, high - quality components, and ease of use make it an ideal choice for anyone looking to carry out dredging operations effectively and efficiently.
The HSPD 300 is designed with a compact yet robust structure. Its overall dimensions are carefully optimized to ensure ease of transportation and maneuverability in various water bodies.
Parameter | Value/Description |
Model | IT-HSPD 300 |
Power Source | Hydraulic |
Power | 110-440 kW |
Max Flow Rate | 1100-1800m³/h |
Max Head | 15-50 meters |
Max Submersible Depth | 60 meters |
Solid Handling | Up to 45% solids by weight; Max particle size: 30-60 mm |
Pump Type | Centrifugal slurry pump with high-chrome alloy impeller and casing |
Discharge Diameter | 300 mm (12") |
