Hydraulic submersible pump dredgers represent a pinnacle of modern underwater excavation technology, designed to tackle challenging dredging tasks in marine, industrial, and environmental sectors. The IT-HSPD 250 is a compact yet robust model engineered for precision and efficiency, combining hydraulic power with submersible design to handle sediments, sludge, and abrasive materials in depths up to 30-60 meters.
The evolution of hydraulic dredging technology traces back to the early 20th century, with manual and steam-powered systems gradually replaced by hydraulics in the mid-20th century. China’s rapid advancements, exemplified by the Tian Kun Hao and Tian Jing dredgers, showcase how hydraulic systems now dominate large-scale projects like port expansion and land reclamation 13. The IT-HSPD 250 builds on this legacy, offering a scalable solution for smaller-scale applications while incorporating cutting-edge materials and controls.
Submersible Design: Fully submerged operation eliminates priming needs and enables direct deployment in water bodies.
Hydraulic Power: High-pressure systems (up to 200 bar) ensure robust suction and discharge, even for dense materials like gravel or clay 4.

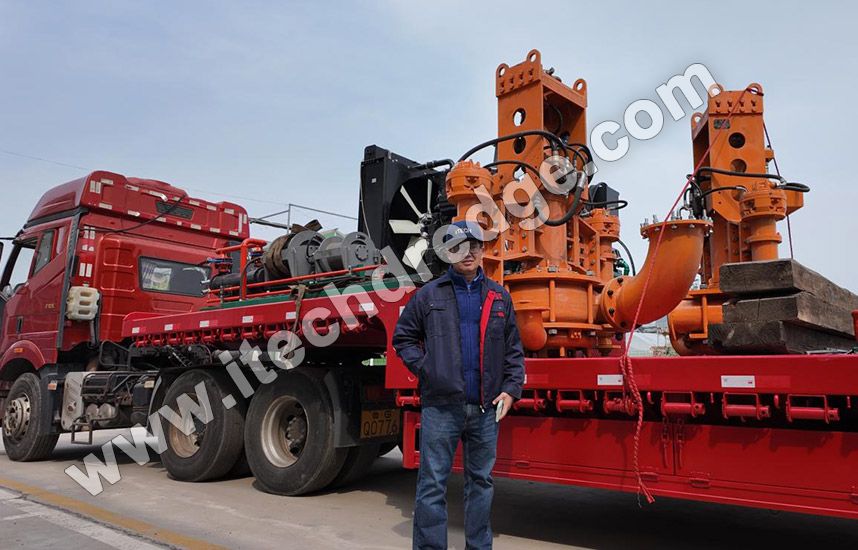

Portability: Compact dimensions (typically 3–5 meters in length) and modular components allow easy transport and assembly in confined spaces.
Energy Efficiency: Modern models integrate variable frequency drives (VFDs) and IoT sensors to optimize power consumption and monitor performance in real time 910.
The IT-HSPD 250 adheres to international standards for safety and environmental compliance. Its design prioritizes corrosion resistance (e.g., stainless steel alloys and epoxy coatings) to withstand harsh marine environments 911.

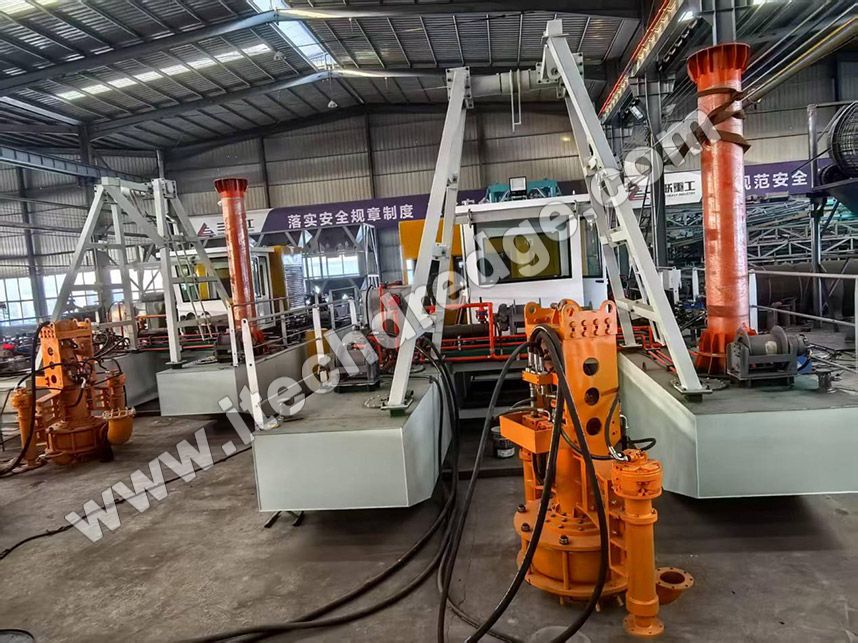

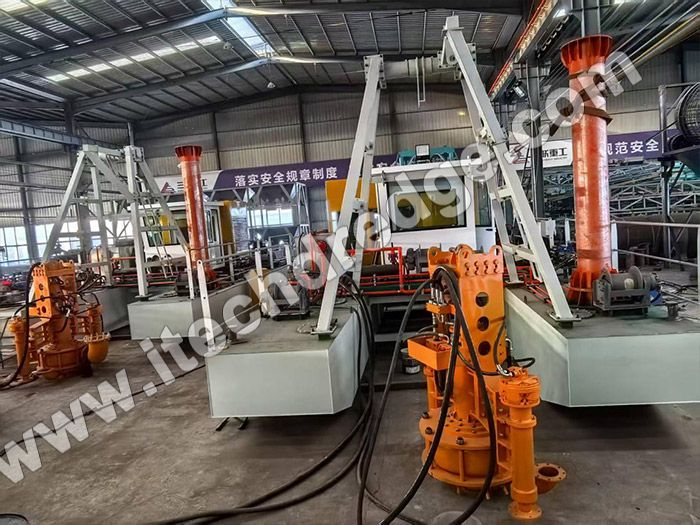

The IT-HSPD 250’s performance hinges on its sophisticated components, each engineered for durability and precision.
Impeller & Volute: Constructed from high-chrome alloy (≥26% chromium) or tungsten carbide, these components resist abrasion from sediments. The open-impeller design handles particles up to 220 mm in diameter.
Sealing System: Double mechanical seals with silicon carbide faces prevent water ingress, while a patented oil-lubricated chamber ensures longevity under high pressure 9.
Motor: A hydraulic-driven motor (typically 50–200 kW) provides torque density, with options for explosion-proof variants in hazardous environments 12.
Pump & Valves: A variable-displacement piston pump delivers up to 200 bar pressure, controlled by proportional valves for precise flow regulation.

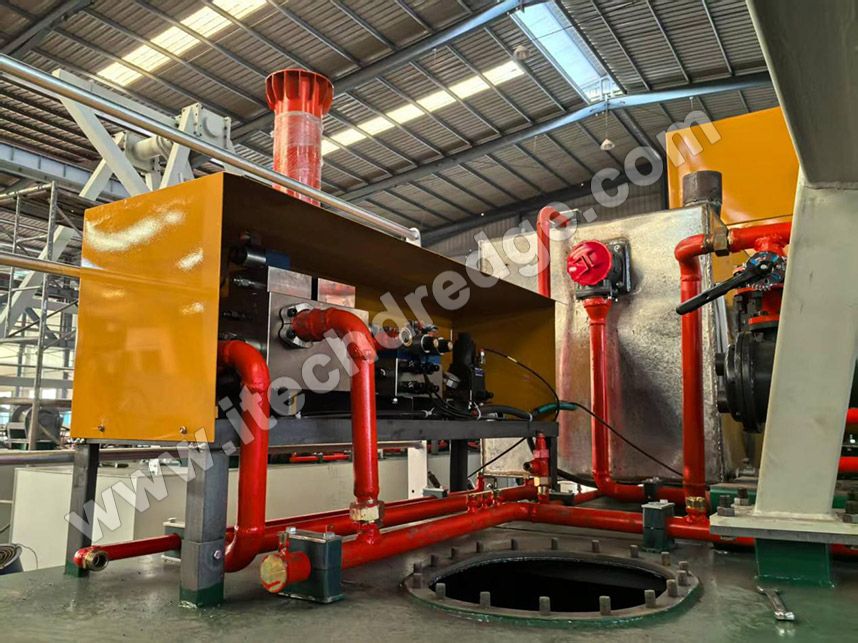

Cooling System: An integrated heat exchanger maintains oil temperature below 60°C, critical for preventing viscosity loss and component wear 9.
Filtration: High-efficiency filters (≤10-micron rating) remove contaminants, extending the HPU’s lifespan by 30% compared to conventional systems 10.
PLC-Based Automation: A Siemens or Allen-Bradley PLC manages parameters like flow rate, pressure, and motor speed, with pre-programmed modes for different materials (e.g., sludge vs. gravel).

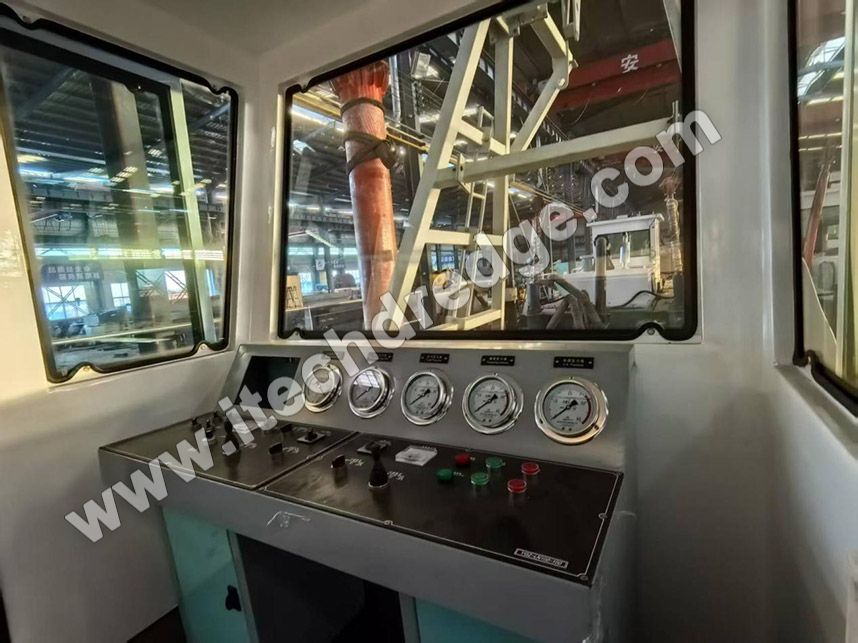

Human-Machine Interface (HMI): A touchscreen display provides real-time data on power consumption, temperature, and operational status, enabling remote monitoring via Bluetooth or Wi-Fi 39.
Hoses: Heavy-duty rubber hoses (DN 200–300) with steel wire reinforcement withstand pressures up to 250 bar. Quick-connect couplings facilitate rapid deployment.
Cutter Head (Optional): A hydraulic-driven cutter (15–30 kW) with tungsten carbide teeth breaks up compacted sediments, increasing suction efficiency by 40% in hard clay or rock 10.
Buoyancy Modules: High-density polyethylene (HDPE) floats distribute weight evenly, ensuring stability in currents up to 2 knots.
Anchor System: Four hydraulic anchors secure the dredger during operation, with adjustable depth sensors to maintain positioning accuracy within ±0.1 meters 3.
The IT-HSPD 250’s versatility makes it indispensable across industries:
Contaminated Sediment Removal: Used in lakes and rivers to extract heavy metals or industrial sludge, often paired with geotextile tubes for dewatering 11.
Wetland Restoration: Clears invasive vegetation and sediments to restore natural water flow, as demonstrated in the Lianyungang Port project in China.
Dewatering: Efficiently removes water from construction pits, enabling foundation work in flood-prone areas.
Mining: Extracts minerals from underwater deposits (e.g., diamond mining in South Africa) and transports tailings to disposal sites.

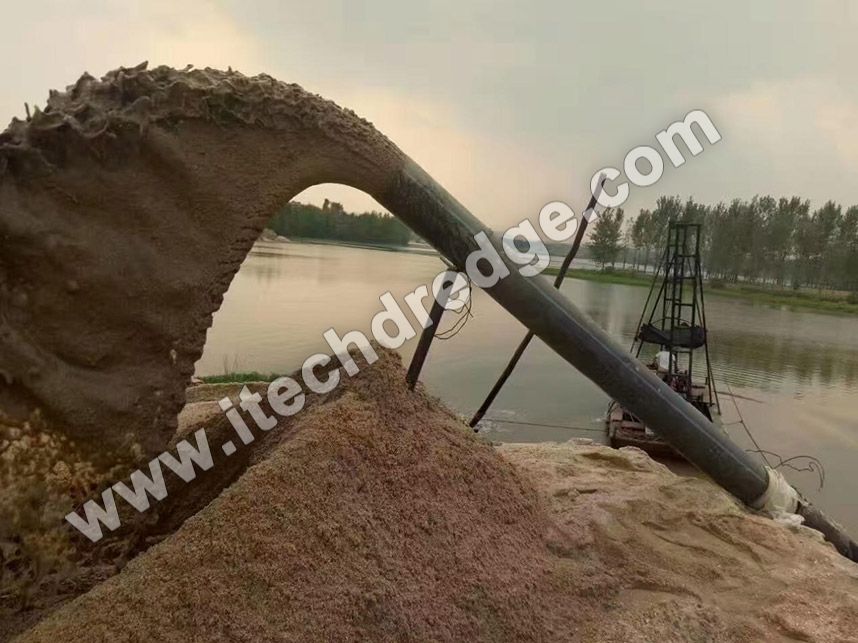

Port Maintenance: Deepens shipping channels (e.g., Huizhou Port in China) by removing silt, with the IT-HSPD 250 achieving flow rates up to 1,500 m³/h 5.
Offshore Energy: Supports installation of wind farms by dredging seabeds for turbine foundations, using the cutter head to excavate hard substrates.
Slurry Transport: Conveys abrasive materials like coal ash or mining waste over distances up to 5 km, with wear-resistant hoses reducing downtime by 20%.
Pond Cleaning: Clears silt from industrial ponds, improving water quality for recirculation in manufacturing processes.
1. Site Assessment: Conduct a bathymetric survey to map sediment depth and composition. Use sonar or LiDAR to identify obstacles like rocks or debris.
2. Equipment Assembly:

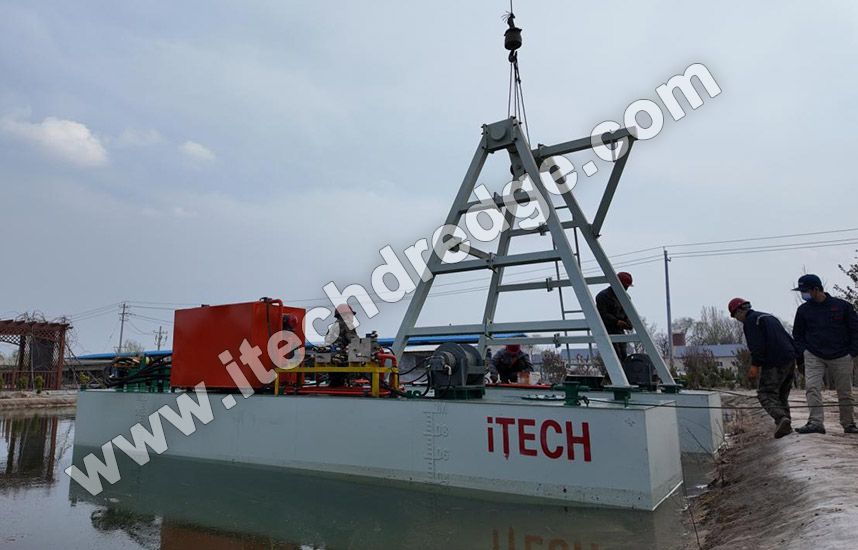

Deploy the dredger using a crane or barge, ensuring floats are securely attached.
Connect the HPU to a power source (diesel generator or electric grid) and prime the hydraulic system.
3. Hose Installation: Lay discharge hoses along the planned route, securing them with anchors or stakes to prevent movement.
1. Startup Sequence:
Power on the HPU and gradually increase pressure to 50% of rated capacity.
Activate the cutter head (if required) and adjust its rotation speed based on material hardness.
2. Dredging Parameters:
Monitor suction pressure (ideally 80–120 bar) and adjust the pump speed via the HMI to maintain optimal flow.
Use the anchor system to move the dredger in a grid pattern, ensuring uniform sediment removal 3.
3. Safety Protocols:
Equip operators with personal flotation devices and hazard detection sensors for gas or oxygen levels.
Implement a “no-go” zone around the dredger to prevent collisions with boats or equipment .
1. Daily Checks:
Inspect hoses for leaks and replace worn sections.
Clean the suction filter to prevent clogs, which can reduce efficiency by 30% 9.
2. Routine Maintenance:
Change hydraulic oil every 500 hours and inspect seals for wear.
Lubricate moving parts (e.g., cutter head bearings) with high-temperature grease.
3. Common Issues & Solutions:
Clogged Impeller: Reverse flow briefly to dislodge debris or manually clean the pump.
Reduced Pressure: Check for leaks in the hydraulic system or worn pump components.
Variable Frequency Drives (VFDs): Optimize motor speed based on load, reducing energy consumption by 15–20% compared to fixed-speed systems 9.
Intelligent Control: The PLC system integrates real-time data from pressure and flow sensors to adjust parameters automatically, minimizing operator input.
Wear Resistance: High-chrome alloys and ceramic coatings extend component lifespan by 50% in abrasive environments 10.
Corrosion Protection: Sacrificial anodes and epoxy coatings guard against saltwater degradation, ensuring 10+ years of service in marine settings.
Low Emissions: Diesel-powered HPUs meet EU Stage V or EPA Tier 4 Final standards, while electric models eliminate exhaust entirely.
Minimal Disturbance: The submersible design reduces noise pollution compared to surface-mounted dredgers, making it suitable for sensitive ecosystems.
Modular Design: Replaceable components (e.g., impellers, seals) lower maintenance costs by 25% compared to non-modular systems.
High Productivity: The IT-HSPD 250’s 1,500 m³/h flow rate and 30-meter depth capability outperform manual methods by 10–15 times.
The IT-HSPD 250 is poised to integrate emerging technologies:
AI-Powered Predictive Maintenance: Machine learning algorithms analyze sensor data to forecast component failures, reducing downtime by 40% 9.
Wireless IoT Integration: Remote monitoring via cloud platforms allows real-time adjustments and diagnostics from anywhere in the world 3.
Alternative Energy: Hybrid models combining diesel and solar power are under development to further reduce carbon footprints.
The Hydraulic Submersible Pump Dredger IT-HSPD 250 exemplifies the fusion of precision engineering and environmental responsibility. With its robust design, intelligent controls, and versatile applications, it remains a cornerstone in modern dredging operations. By adhering to international standards and embracing technological advancements, the IT-HSPD 250 continues to set benchmarks for efficiency, durability, and sustainability in underwater excavation.
For detailed technical specifications or customized solutions, contact the manufacturer directly or visit their official website for downloadable datasheets and case studies.

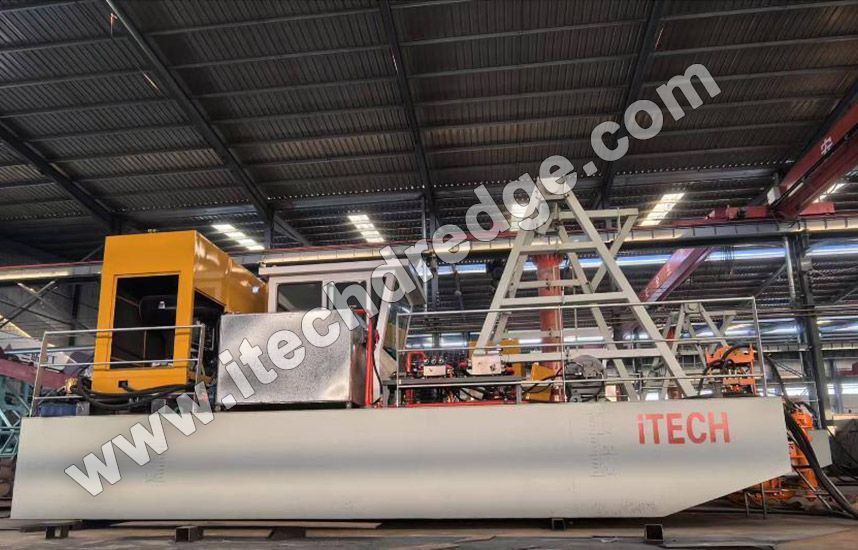

The HSPD 250 is designed with a compact yet robust structure. Its overall dimensions are carefully optimized to ensure ease of transportation and maneuverability in various water bodies.
Parameter | Value/Description |
Model | IT-HSPD 250 |
Power Source | Hydraulic |
Power | 75-220 kW |
Max Flow Rate | 800-1200mm³/h |
Max Head | 15-50 meters |
Max Submersible Depth | 60 meters |
Solid Handling | Up to 45% solids by weight; Max particle size: 30-60 mm |
Pump Type | Centrifugal slurry pump with high-chrome alloy impeller and casing |
Discharge Diameter | 250 mm (10") |
