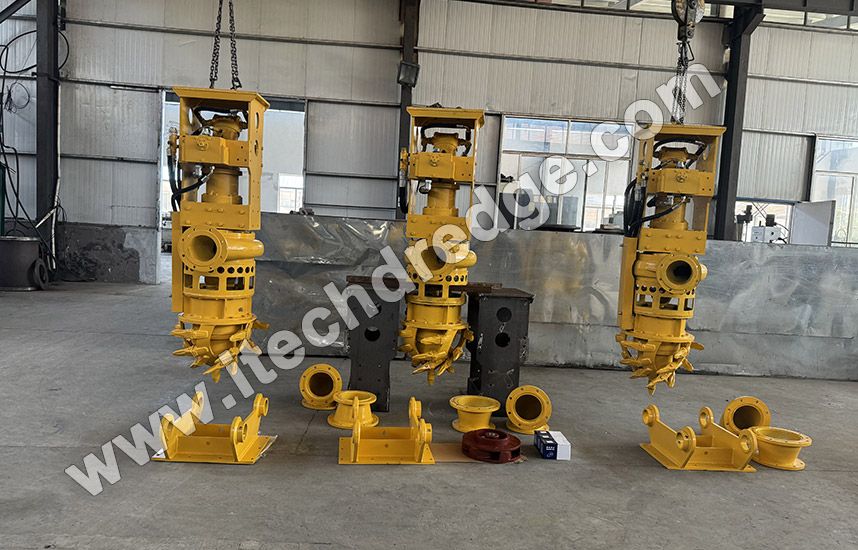

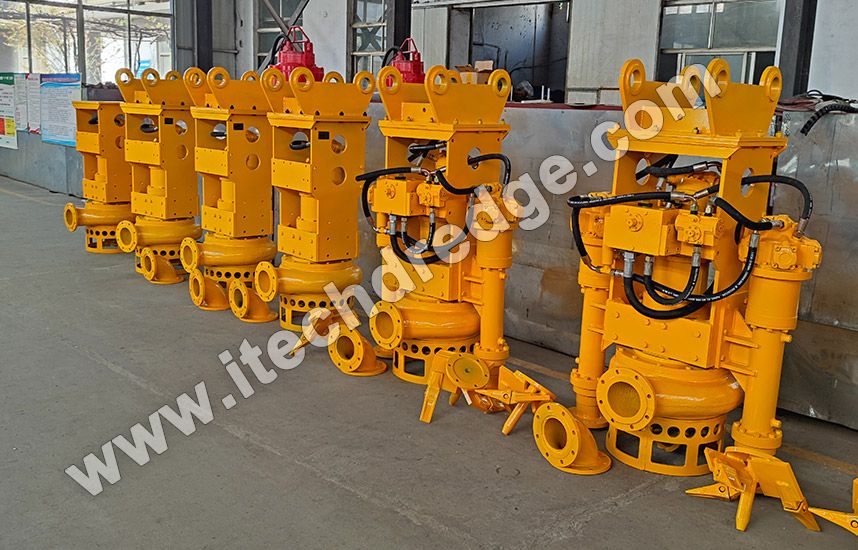

At its essence, the IT-HSPD 150 features a hydraulic submersible pump as its core component. This pump is designed to operate directly underwater, eliminating the need for complex and often cumbersome surface-based suction systems. By submerging the pump, the dredger can access deep water areas and navigate through complex underwater terrains with ease, significantly expanding its operational range compared to traditional dredging equipment.
The hydraulic system of the IT-HSPD 150 is a marvel of engineering. It provides high torque at low speeds, enabling the pump to handle high-concentration slurries efficiently. Whether it's extracting thick sediment from riverbeds, moving gravel from underwater quarries, or clearing debris from ports, the dredger's hydraulic power ensures smooth and continuous operation. The hydraulic fluid, a specialized oil, is pressurized by a surface-mounted pump unit and then channeled through robust hoses or pipes to the submersible pump. This setup not only allows for precise control over the pump's performance but also ensures reliable power transmission over long distances.
The submersible pump dredger excels in terms of efficiency, largely due to its unique operational design. By directly immersing the pump in the water, it eliminates the need for long suction pipes that are often required in traditional dredging methods. This direct underwater operation significantly reduces energy loss during the pumping process. Without the extended pipes, there is less friction and resistance, allowing the pump to operate more smoothly and consume less power to achieve the same level of material transfer. As a result, it can extract and transport sediments at a faster rate, completing dredging projects in a shorter time frame compared to some other types of dredgers.
One of the most notable advantages of the submersible pump dredger is its ability to operate effectively in deep water. Unlike many other dredging equipment that may face limitations in terms of suction depth, the submersible pump can be deployed directly to the desired depth without the need for additional complex suction apparatus. This makes it an ideal choice for dredging operations in deep channels, harbors, and oceanic areas. For example, in the maintenance of deep-sea ports where vessels with large drafts require sufficient water depth, the submersible pump dredger can reach the necessary depths to remove accumulated sediment and ensure safe navigation for these massive ships.
The submersible structure of the dredger offers the benefit of a compact design. Since the main pumping unit is submerged underwater, it occupies minimal surface space. This is a significant advantage in areas where space is at a premium, such as narrow waterways, small canals, or near-shore construction sites with limited room for large equipment. The compact nature of the submersible pump dredger allows it to maneuver easily in tight spaces, accessing areas that might be inaccessible to larger, bulkier dredging vessels. It can work in close proximity to existing structures, such as bridges or docks, without causing disruption or damage, making it a versatile option for a wide range of dredging and excavation tasks.
The submersible pump dredger's design also contributes to its relatively low maintenance requirements. With the pump operating underwater, it is less exposed to the elements on the surface, such as harsh weather conditions, UV radiation, and airborne contaminants. This reduced exposure helps to minimize wear and tear on the pump's components, extending their lifespan and decreasing the frequency of maintenance tasks. Additionally, the use of high-quality, durable materials in its construction further enhances its reliability. Fewer breakdowns and less frequent component replacements translate into lower maintenance costs over the long term, making the submersible pump dredger a cost-effective choice for many dredging operations.
In an era where environmental protection is of utmost importance, the submersible pump dredger stands out for its relatively low environmental impact. Compared to traditional dredgers, it produces lower levels of noise and vibration during operation. This is crucial in sensitive ecological areas, such as marine habitats with fragile ecosystems or residential areas near water bodies. The reduced noise and vibration help to minimize disturbance to aquatic life, preventing stress and potential harm to fish, marine mammals, and other organisms. Moreover, the efficient operation of the submersible pump dredger often results in less energy consumption, which in turn reduces greenhouse gas emissions, contributing to a more sustainable approach to dredging and underwater material handling.
Cutter suction dredgers are a commonly used type of dredging equipment, especially for large-scale projects. They operate by using a rotating cutter head to break up hard sediments, such as compacted clay or rock, before suctioning the loosened material. This method is highly effective for excavating large volumes of sediment in relatively shallow to medium-depth waters. However, cutter suction dredgers have some limitations when compared to submersible pump dredgers. They typically require a larger surface area for operation, as they consist of a large floating vessel with the cutter head and suction system. This makes them less suitable for narrow or congested areas. Additionally, their complexity and size often result in higher initial investment costs and longer setup times. In terms of mobility, cutter suction dredgers are relatively cumbersome and may face challenges in navigating through complex waterways, whereas submersible pump dredgers can easily access more confined spaces.
Bucket chain dredgers rely on a continuous chain of buckets that scoop up sediments from the bottom of the water body. This type of dredger is well-suited for working in shallow water and handling hard substrates. The buckets are effective at extracting materials that are difficult to break up with other methods. However, bucket chain dredgers have a lower efficiency compared to submersible pump dredgers when it comes to pumping large volumes of sediment over long distances. Their operation is more labor-intensive, as the buckets need to be emptied and repositioned continuously. Moreover, the bucket chain mechanism is more prone to mechanical failures, requiring more frequent maintenance and repairs. In contrast, the submersible pump dredger's streamlined hydraulic operation offers greater reliability and higher productivity.
Grab dredgers use a claw-like grab mechanism to pick up and lift sediments from the underwater surface. They are particularly useful in deep water and for handling scattered debris or large, irregular objects. However, grab dredgers have a relatively low throughput compared to submersible pump dredgers. Each grab cycle involves lowering the grab to the bottom, closing it around the material, lifting it to the surface, and emptying it, which is a time-consuming process. This makes them less suitable for large-scale, continuous dredging operations. Additionally, grab dredgers often require more precise maneuvering and operator skill, and their effectiveness can be limited by the type and consistency of the sediment. Submersible pump dredgers, on the other hand, can handle a wider variety of materials and operate more efficiently in different environmental conditions.
Dredger Type | Working Principle | Suitable Environment | Efficiency | Cost | Mobility |
Submersible Pump | Underwater pump directly sucks sediments | Deep water, complex terrain, narrow areas | High | Medium | High |
Cutter Suction | Cutter head breaks sediments, pump transports | Shallow to medium water, large-scale projects | Very high | High | Medium |
Bucket Chain | Mechanical buckets scoop sediments | Shallow water, hard substrates | Medium | Medium-High | Low |
Grab Dredger | Claw-like grab picks up sediments | Deep water, scattered debris | Low | Medium | High |

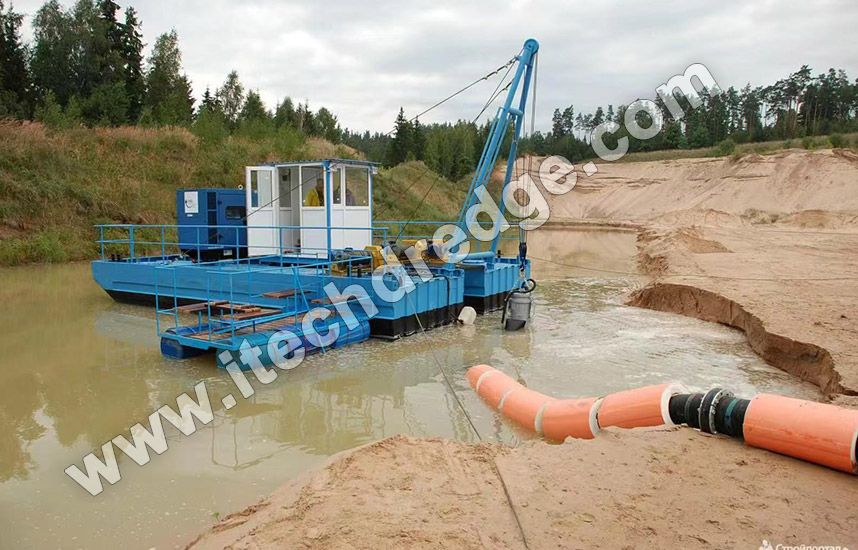

River and canal dredging is one of the primary applications of the hydraulic submersible sand pump dredger. Over time, rivers and canals accumulate sediment due to natural processes such as erosion and runoff. This sedimentation can reduce water depth, impede navigation, and increase the risk of flooding. The submersible sand pump dredger can be deployed to remove the silt and debris efficiently. It can reach areas that are difficult to access with traditional dredging methods, such as narrow bends or sections with low bridges. By restoring the waterway to its optimal depth, the dredger ensures smooth passage for boats, barges, and other vessels, facilitating transportation and commerce. Additionally, maintaining clear waterways helps to preserve the ecological balance of the river or canal ecosystem, supporting aquatic life and preventing the degradation of water quality.
Ports and harbors are vital hubs of maritime activity, and their proper maintenance is essential for the safe and efficient operation of ships. Sedimentation in ports can occur due to a variety of factors, including tidal movements, wave action, and river inflows. The hydraulic submersible sand pump dredger plays a crucial role in keeping ports and harbors navigable. It can be used to deepen berths, channels, and turning basins, ensuring that vessels of different sizes can enter and dock safely. By removing accumulated sediment, the dredger helps to prevent grounding incidents, which can cause significant damage to ships and disrupt port operations. Moreover, regular dredging with the submersible pump dredger helps to maintain the capacity of the port, allowing it to accommodate larger and more numerous vessels as trade demands grow.
In the mining industry, the hydraulic submersible sand pump dredger is employed for the extraction of valuable minerals and materials from underwater deposits. This includes the mining of sand, gravel, and other aggregates, as well as the extraction of minerals such as diamonds, gold, and tin from riverbeds and coastal areas. The dredger's ability to handle high-concentration slurries makes it ideal for this application, as it can efficiently pump large volumes of sediment-laden material to the surface for further processing. By accessing underwater mining sites that were previously difficult or impossible to reach, the submersible sand pump dredger has opened up new opportunities for the mining industry, contributing to the discovery and extraction of valuable resources.
The hydraulic submersible sand pump dredger is also widely used in construction projects, particularly those involving land reclamation and underwater infrastructure development. In land reclamation, the dredger is used to excavate sediment from the seabed or riverbed and transport it to the desired location, where it is used to build up new land. This process is essential for creating space for new ports, airports, residential areas, and industrial facilities. Additionally, in the construction of underwater tunnels, bridges, and pipelines, the submersible sand pump dredger can be used to clear the construction site of sediment and debris, ensuring a stable foundation for the structures. Its ability to work in close proximity to existing structures and in challenging underwater conditions makes it an invaluable asset in the construction industry.
Environmental remediation is another important application of the hydraulic submersible sand pump dredger. In lakes, reservoirs, and other water bodies, polluted sediments can accumulate over time, posing a threat to the environment and human health. The submersible sand pump dredger can be used to remove these contaminated sediments, helping to restore the ecological health of the water body. By carefully selecting the appropriate dredging method and disposal options, the dredger can minimize the release of pollutants during the extraction process. Once the contaminated sediment is removed, it can be treated or disposed of in an environmentally responsible manner, reducing the long-term impact of pollution on the ecosystem and surrounding communities.
In conclusion, the Hydraulic Submersible Pump Dredger IT-HSPD 150 offers a comprehensive solution for a wide range of underwater material handling tasks. Its unique design, numerous advantages, and diverse applications make it a valuable asset in industries such as dredging, mining, construction, and environmental remediation. As technology continues to advance, the capabilities of this remarkable piece of equipment are likely to expand further, opening up new possibilities for efficient and sustainable underwater operations.
The HSPD 150 is designed with a compact yet robust structure. Its overall dimensions are carefully optimized to ensure ease of transportation and maneuverability in various water bodies.
Parameter | Value/Description |
Model | IT-HSPD 150 |
Power Source | Hydraulic |
Power | 45-110 kW |
Max Flow Rate | 150-300m³/h |
Max Head | 15-50 meters |
Max Submersible Depth | 15 meters |
Solid Handling | Up to 45% solids by weight; Max particle size: 30-60 mm |
Pump Type | Centrifugal slurry pump with high-chrome alloy impeller and casing |
Discharge Diameter | 150 mm (6") |
