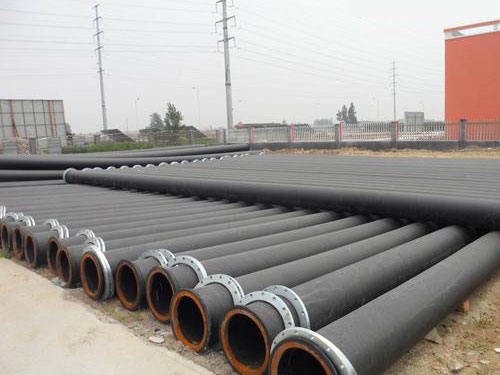

Dredge HDPE pipes usually used for the dredgers as discharge dredge pipelines with dredge floaters.HDPE pipes suitable for transport mud,sand and slurry.
Dredge HDPE pipe is made from wear resistant HDPE mixed with anti-UV material by extrusion molding technology.

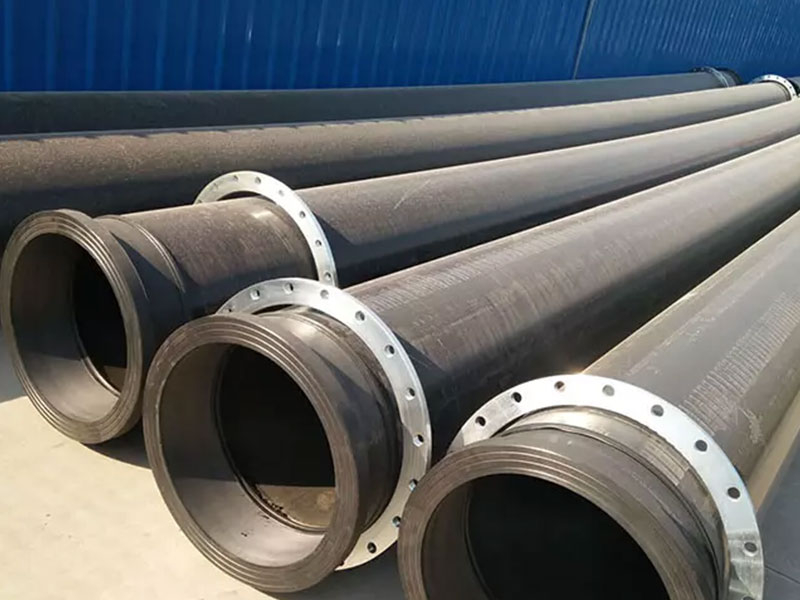

ITECH DREDGE dredge HDPE pipes enjoys good reputation for its perfect structure. The enlarged pipe end is lined with steel ring. It equips with loose flanges at both ends. When two pipes are connected by flanges, there is a rubber gasket in between.
Material: High density polythene (PE80, PE100, mostly PE100)
Technical features:
1.Light weight, 1/8 weight of steel pipe, easy for transportation.
2.Flexibale metal flange for connection, easy for installation and disassembly.
3.Smooth inner wall, easy for pipeline transportation.
4.Excellent flexibility,good wear-resistance,long service life.
Technical specifications:
O.D. of Pipe(mm) | SDR33 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
(Working Pressure—Mpa) | ||||||
0.4 | 0.6 | 0.8 | 1 | 1.25 | 1.6 | |
(Thickness of Pipe—mm) | ||||||
140 | 5 | 6 | 7 | 8 | 10 | 13 |
160 | 7 | 7.5 | 8 | 10 | 12 | 15 |
180 | 7 | 7.5 | 9 | 11 | 13 | 17 |
200 | 7.5 | 8 | 10 | 12 | 15 | 18 |
225 | 7.5 | 9 | 11 | 13 | 17 | 21 |
250 | 8 | 10 | 12 | 15 | 18 | 23 |
280 | 9 | 11 | 13 | 17 | 21 | 25 |
315 | 10 | 12 | 15 | 19 | 23 | 29 |
350 | 12 | 14 | 17 | 21 | 26 | 32 |
400 | 12 | 15 | 19 | 24 | 29 | 36 |
425 | 13 | 15 | 20 | 25 | 33 | 42 |
450 | 14 | 17 | 21 | 27 | 34 | 45 |
500 | 15 | 19 | 23 | 30 | 37 | 48 |
560 | 17 | 21 | 26 | 33 | 41 | 51 |
630 | 19 | 24 | 30 | 37 | 46 | 57 |
710 | 21 | 27 | 33 | 42 | 52 | |
800 | 24 | 30 | 38 | 47 | 58 | |
850 | 26 | 32 | 40 | 50 | ||
900 | 28 | 34 | 42 | 53 | ||
950 | 30 | 36 | 45 | 56 | ||
1000 | 31 | 38 | 47 | 59 | ||
1050 | 32 | 40 | 49 | 61 | ||
1100 | 33 | 42 | 51 | 63 | ||
1150 | 35 | 44 | 53 | 66 |
NOTE:
1. O.D.(mm): 140-1150, PN(Mpa): 0.4-1.6, dredge HDPE pipe can be customized.
2. Color: white,black.
