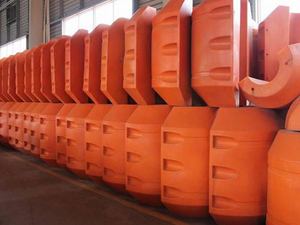

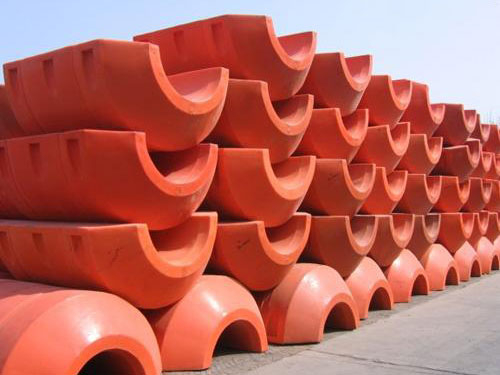

Dredge floaters is the important part for dredge discharge pipelines,widely used in dredging industry.
Dredge floaters are made from wear resistance MDPE by rotational molding technology. A floater consists of two MDPE shells filled with PU foam and connected by galvanized bolts, nuts and washers. The reasonable structure makes it perform well in tough dredging condition.
Dredge floater features:
1.Good Flexibility, excellent impact resistance, particularly suitable for con-structions in open sea.
2.Light weight, easy to install and handle, lower costs for moving.
3.Higher corrosive resistance, longer working life.
4.Lower costs, the cost performance is better than steel floaters.
5.With good floating performance.
Dredge floater performance:
Item | Technical Index of Hull | Item | Inside Technical Index |
Tensile Strength | ≥13.1MPa | Water Absorption | 1-2g/100cm2 |
Break Elongation | ≥11.1% | Breaking Strength | 0.08-0.1MPa |
Impact Strength | ≥32.4KJ/m2 | Breaking Elongation | 4-6% |
Bending Strength | ≥15.7MPa | Compressive Strength | 0.1-0.24MPa |
Weather Resistance | Break Elongation %≥ | 10 | |
After total aging energy≥3.5GJ/m2 | Oxidative Induction Time 200°Cmm≥ | 10 |
Dredge floaters technical specifications:
Pipe I.D. | Thickness of Pipe | Floater I.D. | Floater O.D. | Floater Length | Thickness of Plastic | Net Buoyancy |
mm | mm | mm | mm | mm | mm | KGS/Floater |
200 | 6 | 220 | 500 | 800 | 7 | 200 |
285 | 6 | 300 | 700 | 1200 | 7 | 420 |
350 | 6 | 375 | 1100 | 1100 | 7 | 920 |
400 | 8 | 414 | 1100 | 1200 | 8 | 1020 |
414 | 8 | 430 | 1200 | 1200 | 8 | 1200 |
450 | 8 | 480 | 1300 | 1300 | 8 | 1500 |
500 | 10 | 580 | 1400 | 1500 | 9 | 2219 |
550 | 10 | 580 | 1400 | 1600 | 10 | 2310 |
600 | 10 | 630 | 1400 | 1700 | 11 | 2400 |
650 | 10 | 680 | 1480 | 1800 | 11.5 | 2930 |
700 | 12 | 730 | 1600 | 1900 | 12 | 3593 |
750 | 12 | 780 | 1600 | 2000 | 13 | 3800 |
800 | 15 | 830 | 1800 | 2000 | 14 | 4800 |
850 | 15 | 880 | 1800 | 2200 | 15 | 5140 |
900 | 18 | 940 | 2200 | 2500 | 16 | 8180 |
