Technical features:
1.Working temperature: -20℃ to +50℃.
2.Convenient to install, flexible and safe to use.
3.Excellent performance of abrasion-resistant and bending resistant.
Structure and Material:
1.Cover: composed of natural rubber and synthetic rubber.
2.Reinforcement layer: composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3.Inner rubber liner: composed of wear-proof natural rubber and synthetic rubber.
Technical specifications:
DN (mm) | Flange OD (mm) | Flange thickness (mm) | Bolt hole | Length (mm) | Working pressure (Mpa) | Burst pressure (Mpa) | Wall thickness (mm) | ||
P.C.D. (mm) | No. | Hole dia. (mm) | |||||||
1100±5 | 1400±3 | 45±2 | 1310±1 | 28 | 45±1 | 1000-3000 | 1.5-2.5 | 7.5 | 65-67 |

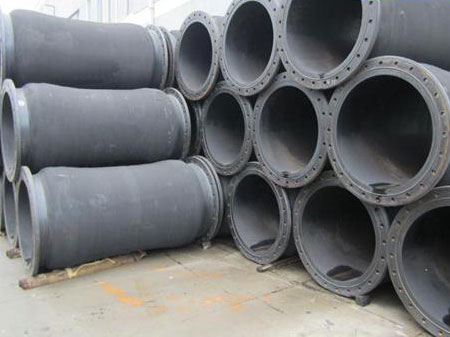

NOTE: The specifications for reference,the dredge discharge hoses can be customized according to client’s requests.
Technical features:
1.Working temperature: -20℃ to +50℃.
2.Convenient to install, flexible and safe to use.
3.Excellent performance of abrasion-resistant and bending resistant.
Structure and Material:
1.Cover: composed of natural rubber and synthetic rubber.
2.Reinforcement layer: composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3.Inner rubber liner: composed of wear-proof natural rubber and synthetic rubber.
Technical specifications:
DN (mm) | Flange OD (mm) | Flange thickness (mm) | Bolt hole | Length (mm) | Working pressure (Mpa) | Burst pressure (Mpa) | Wall thickness (mm) | ||
P.C.D. (mm) | No. | Hole dia. (mm) | |||||||
1100±5 | 1400±3 | 45±2 | 1310±1 | 28 | 45±1 | 1000-3000 | 1.5-2.5 | 7.5 | 65-67 |
NOTE: The specifications for reference,the dredge discharge hoses can be customized according to client’s requests.
When selecting among dredge equipment manufacturers in China, ITECH offers a balanced combination of quality, affordability, and technical expertise. Our focus on innovation and customer satisfaction makes us a dependable partner for dredging projects.
For dependable dredge equipment components, ITECH combines quality materials, engineering expertise, and responsive service. Whether you need standard parts or custom solutions, we support your dredging operations with reliable products.
Portable suction dredger is a valuable investment for mining operations, providing an efficient and flexible solution for extracting minerals from water bodies. With ITECH’s expertise in dredging technology, businesses in the Philippines, Indonesia, and Vietnam can improve productivity and streamline mining operations.
ITECH provides portable suction dredgers designed for efficiency and reliability in river dredging. With a focus on user-friendly operation and durable construction, ITECH’s dredging equipment helps businesses and municipalities manage waterway maintenance effectively.
Features and Benefits of Portable Sand Dredgers1. Compact and Mobile DesignEasy transportation: Compact size allows for road, rail, or sea transport.Quick assembly and deployment at the dredging site.Ideal for remote or hard-to-access areas.2. High Efficiency and Productivity.Powerful suction and pumping capacity for efficient sand removal.Capable of dredging large volumes of sand per hour.Suitable for continuous operation with minimal downtime.
Portable sand dredger is a compact and mobile machine used to excavate and transport sand, sediment, or slurry from rivers, lakes, reservoirs, ponds, or coastal areas. It is designed for small to medium-scale dredging operations and is ideal for projects that require easy transportation, quick deployment, and efficient material removal.
