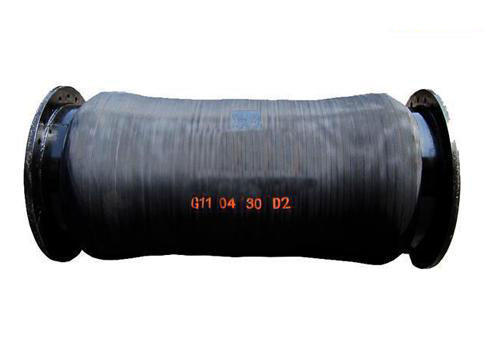

DN200 Dredge discharge hose

Convenient to install, flexible and safe to use.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Technical features:

1.Working temperature: -20℃ to +50℃.

2.Convenient to install, flexible and safe to use.

3.Excellent performance of abrasion-resistant and bending resistant.

Structure and Material:

1.Cover: composed of natural rubber and synthetic rubber.

2.Reinforcement layer: composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.

3.Inner rubber liner: composed of wear-proof natural rubber and synthetic rubber.

Technical specifications:

DN (mm)	Flange OD (mm)	Flange thickness (mm)	Bolt hole			Length (mm)	Working pressure (Mpa)	Burst pressure (Mpa)	Wall thickness (mm)
			P.C.D. (mm)	No.	Hole dia. (mm)
200±5	340±3	18±2	295±1	8	22±1	1000-3000	0.4-1.2	3.6	34-37

NOTE: The specifications for reference,the dredge discharge hoses can be customized according to client’s requests.
