Technical features:
1.Working temperature: -20℃ to +50℃.
2.Convenient to install, flexible and safe to use.
3.Excellent performance of abrasion-resistant and bending resistant.
Structure and Material:
1.Cover: composed of natural rubber and synthetic rubber.
2.Reinforcement layer: composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3.Inner rubber liner: composed of wear-proof natural rubber and synthetic rubber.
Technical specifications:
DN (mm) | Flange OD (mm) | Flange thickness (mm) | Bolt hole | Length (mm) | Working pressure (Mpa) | Burst pressure (Mpa) | Wall thickness (mm) | ||
P.C.D. (mm) | No. | Hole dia. (mm) | |||||||
900±5 | 1168±3 | 35±2 | 1086±1 | 28 | 39±1 | 1000-3000 | 1.5-2.5 | 7.5 | 55-58 |

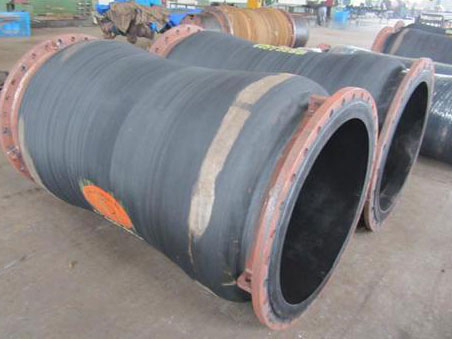

NOTE: The specifications for reference,the dredge discharge hoses can be customized according to client’s requests.
Technical features:
1.Working temperature: -20℃ to +50℃.
2.Convenient to install, flexible and safe to use.
3.Excellent performance of abrasion-resistant and bending resistant.
Structure and Material:
1.Cover: composed of natural rubber and synthetic rubber.
2.Reinforcement layer: composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3.Inner rubber liner: composed of wear-proof natural rubber and synthetic rubber.
Technical specifications:
DN (mm) | Flange OD (mm) | Flange thickness (mm) | Bolt hole | Length (mm) | Working pressure (Mpa) | Burst pressure (Mpa) | Wall thickness (mm) | ||
P.C.D. (mm) | No. | Hole dia. (mm) | |||||||
900±5 | 1168±3 | 35±2 | 1086±1 | 28 | 39±1 | 1000-3000 | 1.5-2.5 | 7.5 | 55-58 |
NOTE: The specifications for reference,the dredge discharge hoses can be customized according to client’s requests.
