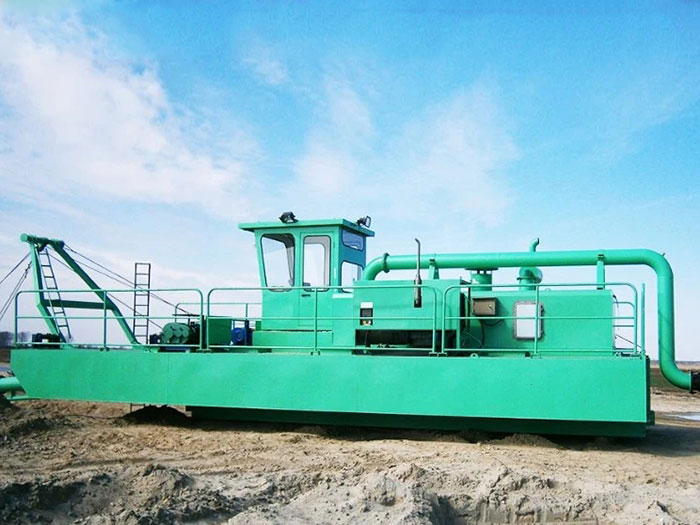

Jet suction dredger is widely used to recover materials from great depths and can also extract sand from below a clay overburden which is also called jet sand suction dredger. Jet suction dredger is equipped with high pressure water pump and powerful sand suction pump. The water pump can produce high pressure high speed water jet to impact the bottom of sand layer and splashing the mixed sand around the suction head, and the sand suction pump conveys the sand to the destination through the discharge pipe.
Jet Suction Dredger Features
Novel design, High efficient, large output, long discharge distance
High quality wear resistance and long serve life sand pump
Pumping depth reaches up to 20-30 meters underwater
Dredge hull consists of multiple pontoons connected by proven coupling system
Highly efficient fuel consumption and minimum overall operational costs
Control box and instrument are mounted in ergonomic dash board
Low investment and good operating performance
Simple and fast assembly and disassembly, easy to operate
OEM, ODM, customization are available
| No | Item | JSD200 | JSD250 | JSD300 | JSD350 | JSD400 | |
| 1 | Dredge performance | Sand capacity (cbm/hr) | 80-110 | 130-260 | 300-360 | 360-390 | 440-520 |
| 2 | Max. Discharge distance (m) | 200-600 | 200-1000 | 200-1500 | 200-1800 | 200-2000 | |
| 3 | Max. gravel diameter passing through (mm) | 50-60 | 60-70 | 60-70 | 60-70 | 60-80 | |
| 4 | Max. dreding depth (m) | 15 | 15 | 15 | 20 | 20 | |
| 5 | Dredge body | Size (LxWxH) (mm) | 8x1x1.5, 2 PCS 6×2.25×1.5, 1PCS | 8x1x1.5, 2 PCS 6×2.25×1.5, 1PCS | 11.8×1.1×1.5, 2 PCS 8×2.25×1.8, 1PCS | 18×1.1×1.5, 2 PCS | 18×1.1×1.5 2 PCS |
| 6 | Sand suction systerm | Pump size (inch) | 8/6 | 10/8 | 12/10 | 14/12 | 16/14 |
| 7 | Pump flow (cbm/hr) | 410-540 | 620-1450 | 1650-1800 | 1800-1950 | 2200-2600 | |
| 8 | Pump head (m) | 28-48 | 21-35 | 24-35 | 24-35 | 30-50 | |
| 9 | Pump speed (rpm) | 730-980 | 730 | 730 | 730 | 550-700 | |
| 10 | Main engine power (KW) | 132-156 | 180-250 | 250-300 | 300-410 | 410-460 | |
| 11 | Gearbox | Yes | Yes | Yes | Yes | Yes | |
| 12 | Connect metal base | Include | Include | Include | Include | Include | |
| 13 | High pressure water pump | jetting sand up | jetting sand up | jetting sand up | jetting sand up | jetting sand up | |
| 14 | Electric power system | Generator | electric power | electric power | electric power | electric power | electric power |
| 15 | Control system | Control room | Yes | Yes | Yes | Yes | Yes |
| 16 | Control board | Yes | Yes | Yes | Yes | Yes | |
| 17 | Lifting appliance | Electric winch | Yes | Yes | Yes | Yes | Yes |
| 18 | Propeller equipment | Propeller with engine | movement | movement | movement | movement | movement |
| 19 | Other equipment | Rubber suction hose, suction head, handrail, anchors, shelter, life jacket, etc. | |||||
| 20 | Remark | 1. Any data could be adjusted according to customers’ specific requirements. 2. Customized dredger acceptable according to requirements. 3. Engine power choose decided by dredger performance. 4. The work site situation will affect actual discharge distance, sand capacity, etc. 5. Above dredger size is not changeless, it could be adjusted according to specific circumstance. | |||||
