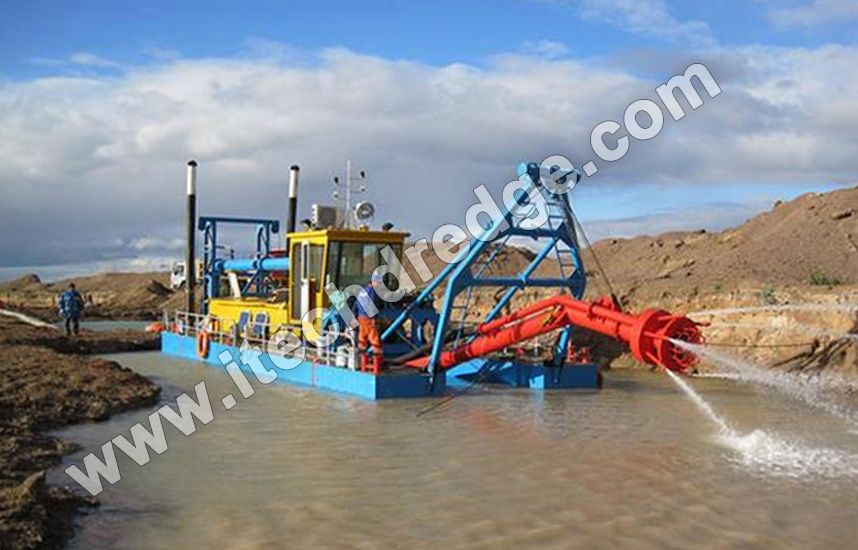

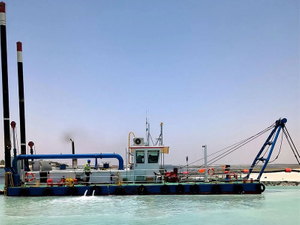

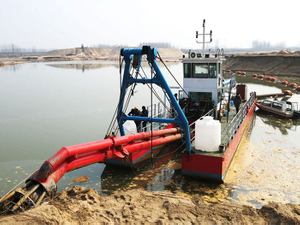

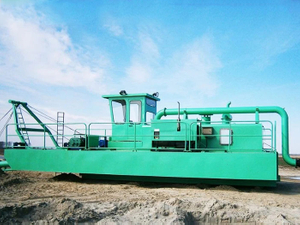

Jet Suction Dredger JSD300

Definition of Jet Suction Dredger 300 (JSD300)

The Jet Suction Dredger 300 (JSD300) is a mid-sized hydraulic dredging vessel designed for efficient removal of loose to moderately compacted sediments in shallow to medium-depth water bodies (≤15 meters). Named for its 300-mm diameter suction nozzle and pipeline system, the JSD300 combines a high-pressure jetting system (5 bar nominal pressure) with a centrifugal dredge pump (298 kW) to fluidize and transport sediments as a slurry. Ideal for applications such as river maintenance, harbor cleaning, and environmental remediation, the JSD300 offers a balance of mobility, low environmental impact, and operational simplicity. Its modular design allows for quick deployment via truck or barge, making it suitable for remote or urban projects.

Introduction to Dredging Technology

Dredging plays a critical role in maritime infrastructure, environmental remediation, and resource extraction. Two prominent types of dredgers—jet suction dredgers (JSD) and cutter suction dredgers (CSD)—employ distinct design philosophies to address varying sediment conditions. This section dissects their structural, mechanical, and operational design disparities in detail.

Differences Between Jet Suction Dredger and Cutter Suction Dredger

1.Mechanism of Sediment Disruption

• Cutter Suction Dredger (CSD)
  CSDs rely on a mechanical cutter head as their primary sediment disruption tool. This rotating head, equipped with tungsten carbide teeth or blades, physically breaks up compacted sediments, cohesive clays, or even soft rock layers. The cutter head is typically mounted on a ladder (a vertical arm) that can be lowered to the seabed, allowing operators to adjust the depth of excavation. For example, in projects involving hard clay deposits, the cutter head’s torque (often exceeding 100,000 N·m in large models) ensures efficient fragmentation.

• Jet Suction Dredger (JSD)
  JSDs utilize high-velocity water jets to fluidize sediments instead of mechanical cutting. Pressurized water nozzles (typically emitting jets at 20–50 bar) are integrated into the suction nozzle or a separate jetting arm. These jets create a turbulent flow that suspends particles in the water column, converting dense sediments into a slurry-like mixture. This design is ideal for loose to moderately compacted sediments, such as sands, silts, or fine clays, where mechanical cutting would be unnecessary or inefficient.

2. Suction System Design

• CSD: Rigid Suction Pipeline with Cutting Chamber
  CSDs feature a rigid suction pipeline directly connected to the cutter head. The cutter chamber, located at the front of the pipeline, captures fragmented sediments and conveys them to the dredge pump via negative pressure. The pipeline’s diameter (often 300–1200 mm) and pump power (up to 10,000 kW in large units) are optimized for high-solid-content slurries. For instance, a CSD handling gravel might use a wear-resistant steel pipeline with a thickness of 25–40 mm to withstand abrasion.

• JSD: Flexible Suction Nozzle with Integrated Jetting System
  JSDs employ a flexible suction nozzle (e.g., rubber or reinforced polymer) equipped with annular or linear jet nozzles. The nozzle’s flexibility allows it to adapt to uneven seabeds, while the jets create a “fluidization zone” around the suction inlet. The slurry mixture is then drawn into the pump through a shorter pipeline, which may include a venturi effect to enhance suction efficiency. For example, in a JSD designed for river dredging, the nozzle might have a 1:1 length-to-diameter ratio to balance jet coverage and suction power.

3. Vessel Configuration and Maneuverability

• CSD: Heavy-Duty Hull with Fixed Cutter Ladder
  CSDs are typically larger vessels (length: 30–150 m) with a robust hull design to support the cutter ladder’s weight and mechanical loads. They use spud poles (vertical steel poles) or winch systems for positioning, which anchor the vessel during dredging. Maneuverability is limited during operation, as the cutter ladder restricts lateral movement. However, their stability makes them suitable for offshore or high-energy environments.

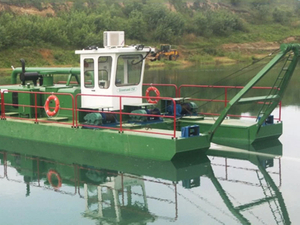

• JSD: Compact Hull with Agile Jetting Arms
  JSDs are often smaller and more agile (length: 10–50 m), with a streamlined hull designed for shallow-water navigation. They may use waterjet propulsion or azimuth thrusters for precise positioning, allowing them to navigate tight spaces like harbors or irrigation canals. The jetting arms (or nozzles) can be articulated or remotely controlled, enabling operators to target specific areas without repositioning the entire vessel.

4. Power and Energy Consumption

• CSD: High Mechanical Power Demand
  CSDs require substantial power to drive both the cutter head and dredge pump. A typical large CSD might consume 5,000–15,000 kW, with the cutter head accounting for 30–50% of total energy use. This makes them less efficient for loose sediments but indispensable for hard materials.

• JSD: Focus on Hydraulic Efficiency
  JSDs prioritize hydraulic power for water jetting (e.g., 500–3,000 kW for the jet pump) and rely on smaller suction pumps. Their energy consumption is generally 30–50% lower than CSDs for suitable sediments, as fluidization requires less energy than mechanical cutting.

5. Maintenance and Wear Components

• CSD: Frequent Replacement of Cutter Teeth and Pipeline Liners
  The cutter head and pipeline endure significant abrasion, requiring regular inspection and replacement of teeth (every 50–200 hours of operation) and wear-resistant liners (every 6–12 months).

• JSD: Reduced Mechanical Wear
  With no moving parts in direct contact with sediments, JSDs have fewer wearable components. Jet nozzles may erode over time (replaced every 100–500 hours) but are simpler and cheaper to maintain than cutter heads.

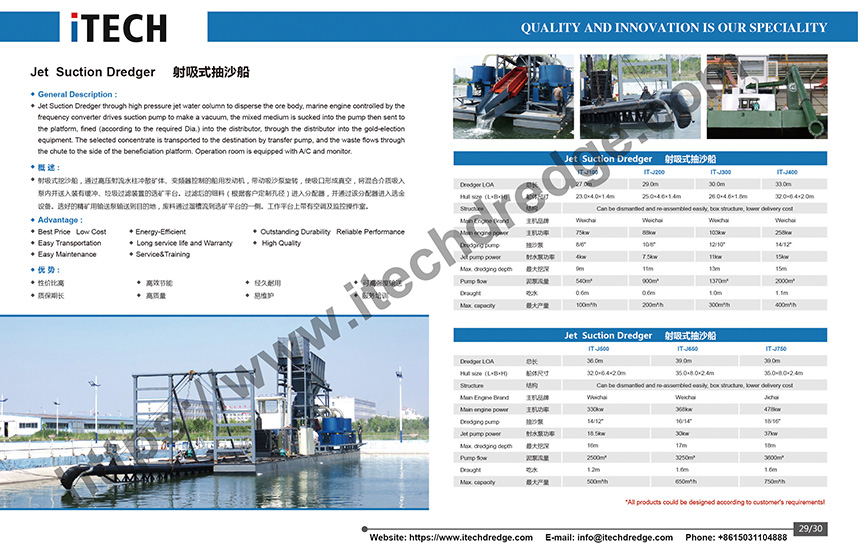

Key Equipment of Jet Suction Dredger

Core Components and Their Functions
A jet suction dredger’s efficiency relies on integrated hydraulic and mechanical systems. Below is a detailed breakdown of its key equipment:

1. High-Pressure Jetting System

• Jet Pump: Drives water through nozzles at 5-10 bar pressure. Typically a centrifugal pump with stainless steel impellers, capable of delivering 500–3,000 m³/h of water.

• Nozzles: Made of tungsten carbide or ceramic for abrasion resistance. Configurations include:

• Annular nozzles: Surround the suction inlet to create a circular fluidization zone.

• Linear nozzles: Mounted on a jetting arm for targeted erosion (e.g., 6–12 nozzles per arm).

• Hydraulic Hoses: Flexible pipes (rated for 60 bar) connect the pump to nozzles, allowing articulation during operation.

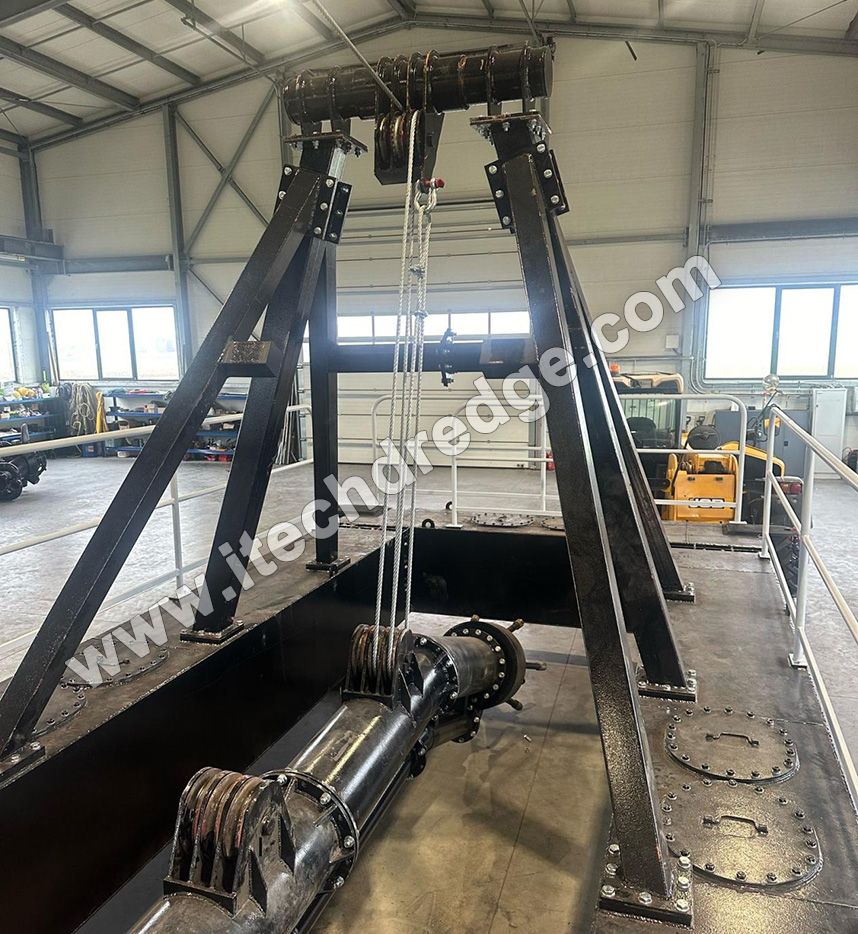

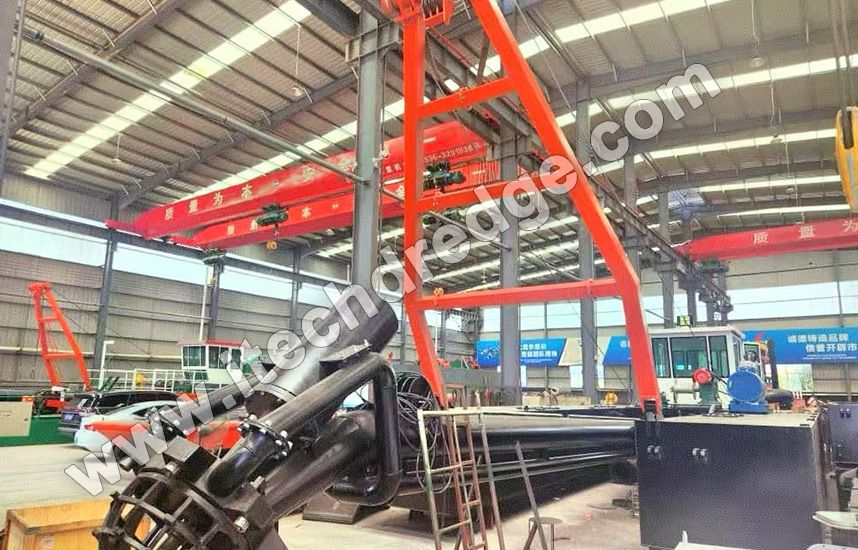

2. Suction Nozzle and Slurry Intake

• Nozzle Design: Often elliptical or rectangular to match sediment flow. For JSD300, the nozzle may have a 300-mm diameter with a 45° angled inlet to optimize slurry capture.

• Suction Hose: Reinforced rubber or PVC hose (length: 5–20 m) connects the nozzle to the dredge pump. Features anti-kink rings and quick-release couplings for easy deployment.

3. Dredge Pump

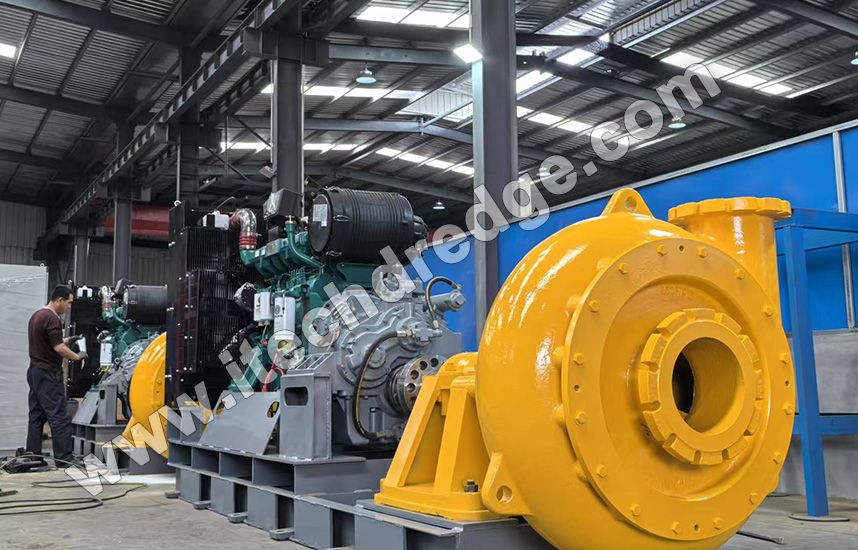

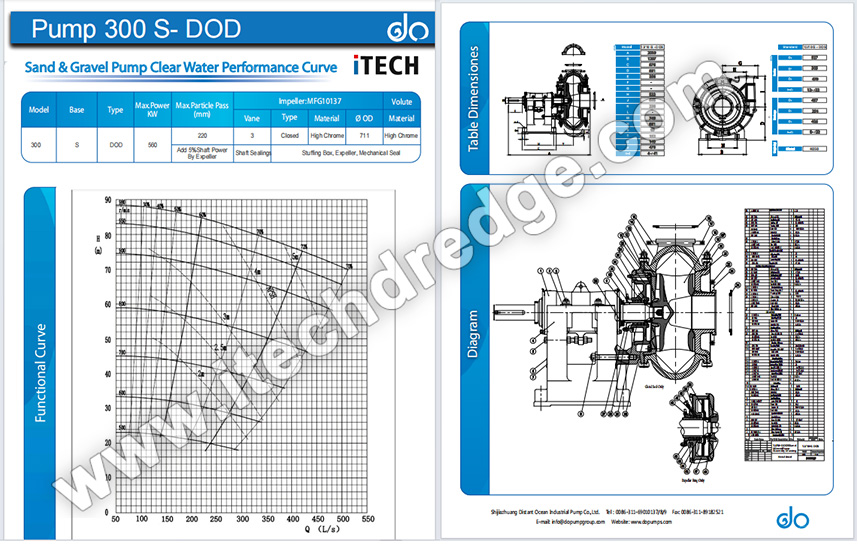

• Centrifugal Pump: Designed for low-solid-content slurries (≤30% solids by volume). The JSD300 may use a 500-kW pump with a 300-mm discharge diameter, capable of handling particles up to 50 mm in diameter.

• Anti-Abrasion Liners: Polyurethane or rubber coatings extend pump life in sandy environments.

4. Power Unit and Control System

• Diesel Engine: Typically a 298 kW marine diesel engine drives dredge pump.

• Control Panel: Features PLC (programmable logic controller) for real-time adjustment of jet pressure, pump speed, and nozzle angle. Includes sensors for monitoring slurry density and engine performance.

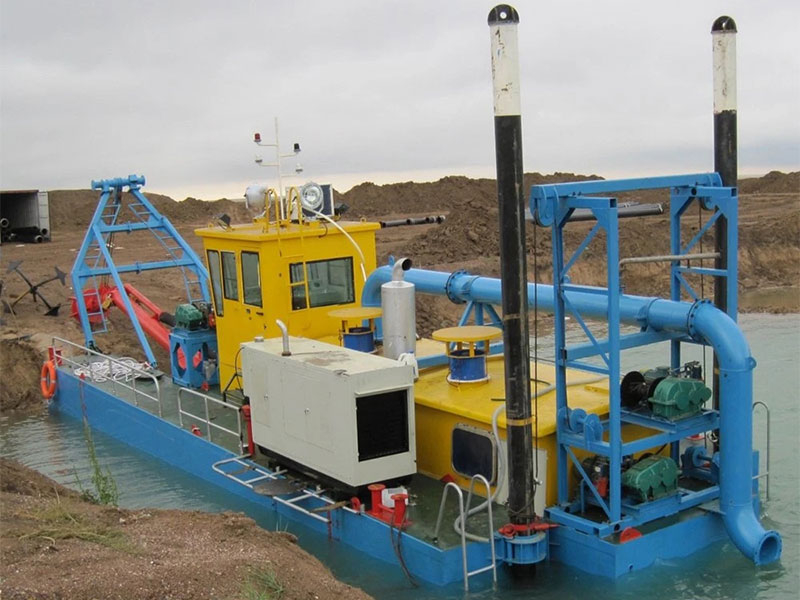

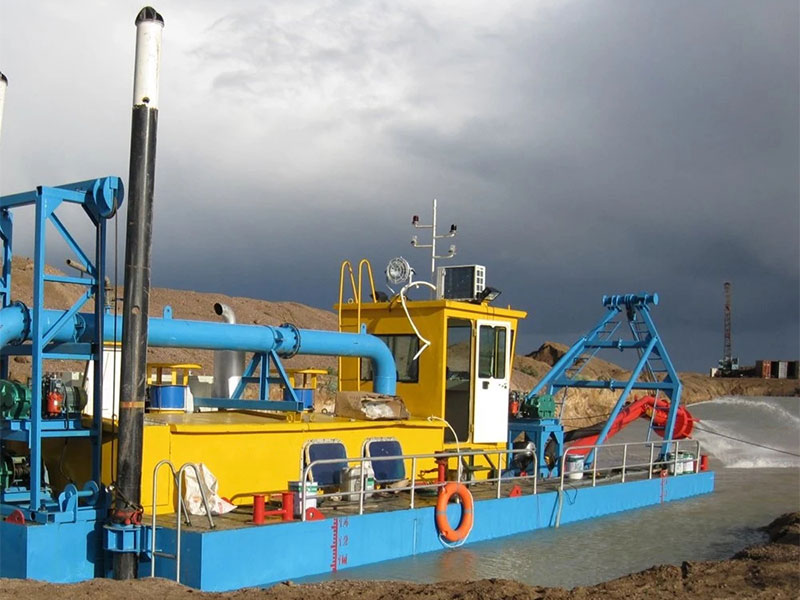

5. Vessel and Maneuvering Systems

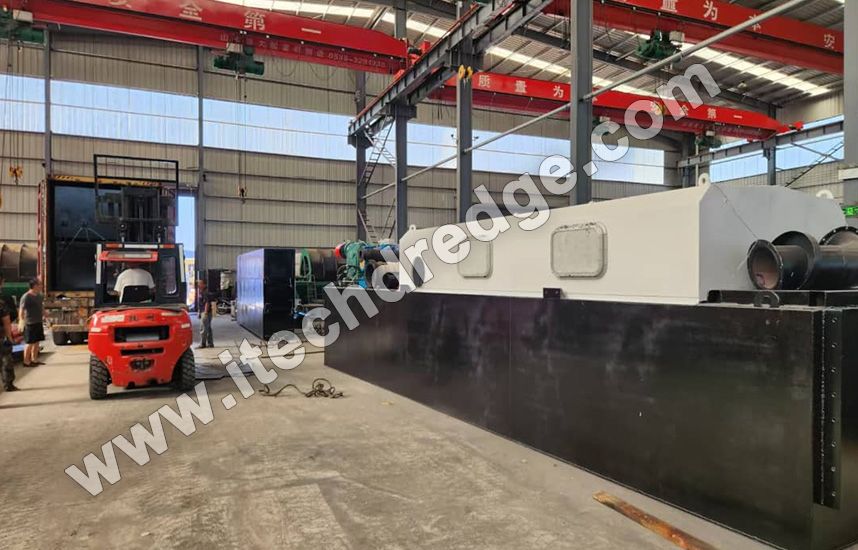

• Hull: Lightweight aluminum or steel hull (total length: 28m for JSD300) with a draft of ≤1.5 m for shallow-water access.

• Thrusters: Azimuth thrusters or waterjets provide 360° maneuverability, allowing precise positioning over target areas.
