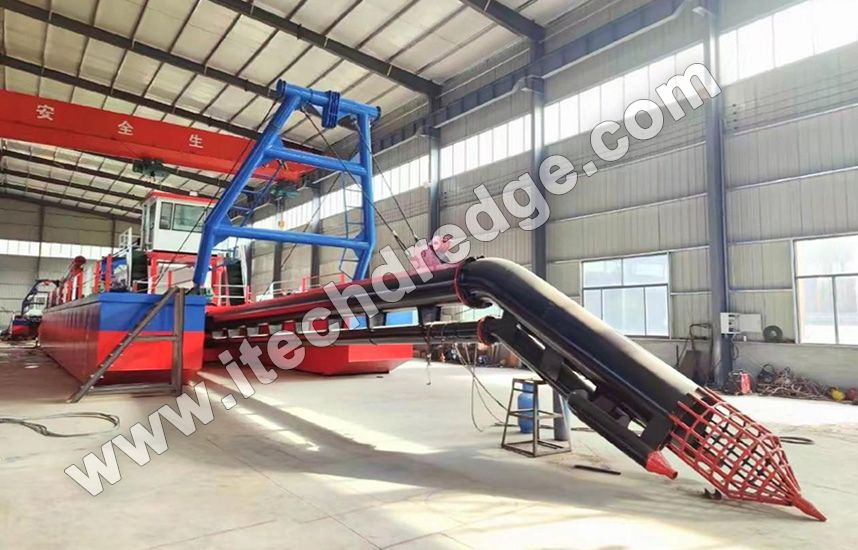

A jet suction dredger is a highly specialized piece of equipment used for dredging operations. It plays a crucial role in various marine and inland waterway projects. By utilizing the power of high - pressure water jets and suction mechanisms, it can efficiently remove sediment, debris, and other materials from the bottom of water bodies. The Jet Suction Dredger JSD250 is a remarkable model in this category, designed to meet the demanding requirements of modern dredging projects. With its advanced technology and robust construction, it offers high - performance capabilities, making it a reliable choice for a wide range of applications.

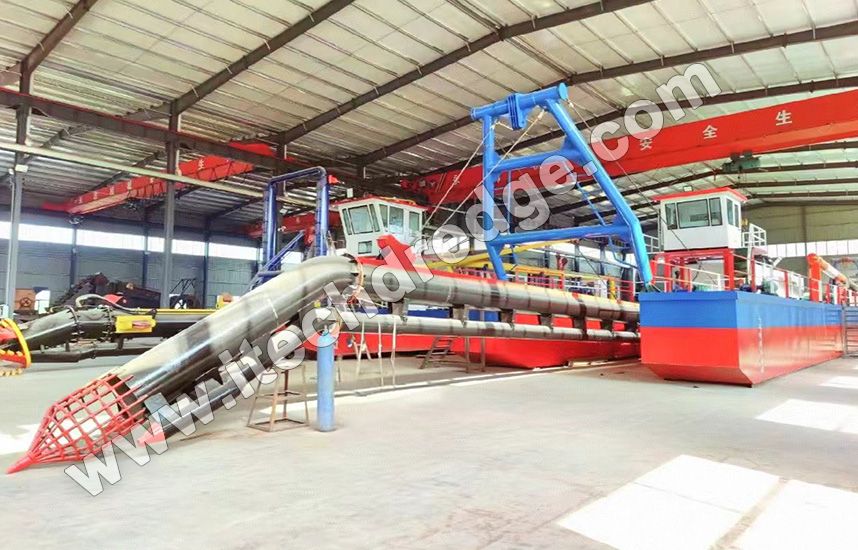

Key Components

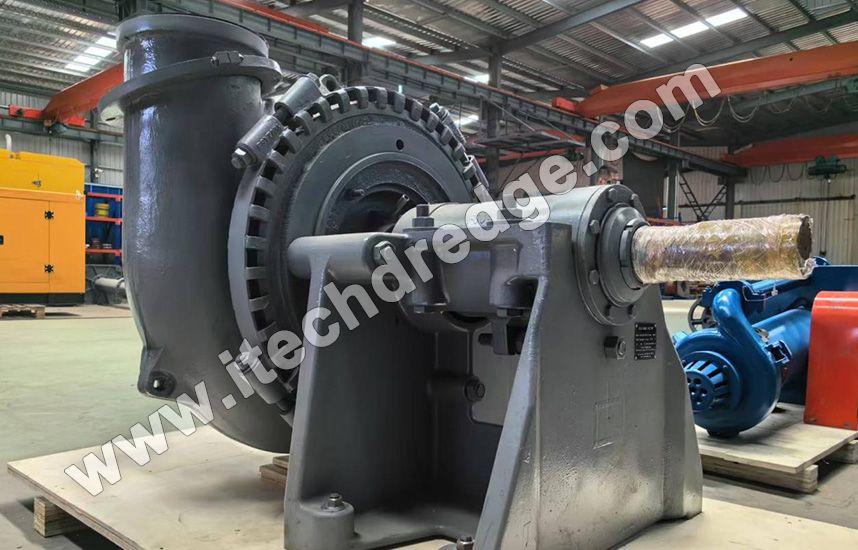

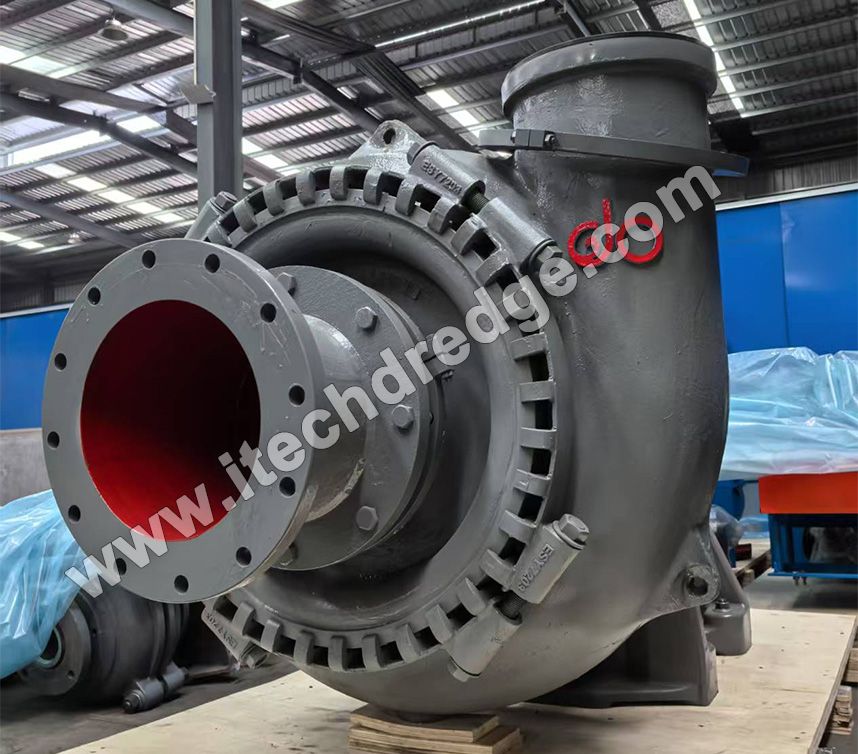

High - Pressure Water Pump: This is the heart of the jet suction dredger's jetting system. The high - pressure water pump generates a powerful stream of water that is directed through nozzles. These nozzles are strategically placed to break up the sediment on the seabed or riverbed. The pump is engineered to produce high - pressure water at a consistent flow rate, ensuring effective loosening of the material to be dredged.
Suction Pipe: The suction pipe is responsible for drawing in the loosened sediment and water mixture. It is designed with specific dimensions and materials to withstand the abrasive nature of the dredged material. The pipe's diameter and length are optimized to ensure maximum suction efficiency while minimizing pressure losses.
Dredge Head: The dredge head is where the high - pressure water jets and suction come together. It is equipped with multiple nozzles that create a swirling effect to further break up the sediment. The design of the dredge head also affects the shape and size of the area being dredged, and it can be customized according to the project requirements.
Power Unit: The power unit supplies the necessary energy to operate all the components of the jet suction dredger. It typically consists of diesel engines or electric motors, depending on the model and application. The power unit is sized to provide sufficient power to drive the high - pressure water pump, the suction system, and any other auxiliary equipment.
Steering and Control System: This system allows the operator to maneuver the dredger accurately. It includes controls for the movement of the dredger, the adjustment of the dredge head depth, and the operation of the suction and jetting systems. Modern control systems often feature advanced automation and monitoring capabilities for enhanced efficiency and safety.
Versatility: The JSD250 can operate in a variety of water conditions, including shallow waters, rivers, lakes, and coastal areas. Its modular design allows for easy adaptation to different project requirements, such as changing the dredge head or adjusting the length of the suction pipe.
High Efficiency: Thanks to its well - designed components and advanced technology, the JSD250 can achieve high dredging rates. The combination of powerful water jets and efficient suction enables it to quickly remove large volumes of sediment.
Low Environmental Impact: Compared to some traditional dredging methods, jet suction dredgers like the JSD250 cause less disturbance to the surrounding environment. The controlled use of water jets minimizes the resuspension of sediment, reducing the potential for water pollution and habitat disruption.
Advanced Jetting Technology: The JSD250 incorporates state - of - the - art jetting technology. The high - pressure water jets are precisely calibrated to break up sediment with minimal energy consumption. This not only improves the efficiency of the dredging process but also reduces wear and tear on the equipment.
Intelligent Control System: The dredger is equipped with an intelligent control system that monitors and adjusts various parameters in real - time. For example, it can automatically adjust the water pressure and suction power based on the type and density of the sediment being dredged. This ensures optimal performance and reduces the need for constant manual intervention.
Durable Construction: Built with high - quality materials, the JSD250 is designed to withstand the harsh marine and waterway environments. Its components are corrosion - resistant, and the overall structure is reinforced to handle the rigors of continuous operation. This durability results in a longer lifespan for the equipment and lower maintenance costs.
Easy Maintenance: The design of the JSD250 takes into account the need for regular maintenance. Access points to key components are easily accessible, and the modular construction allows for quick replacement of parts if necessary. This reduces downtime and keeps the dredger operational for longer periods.
Safety Features: Safety is a top priority in the design of the JSD250. It is equipped with various safety features, such as emergency stop buttons, overload protection systems, and alarms for critical system failures. These features protect the operator and the equipment during operation.

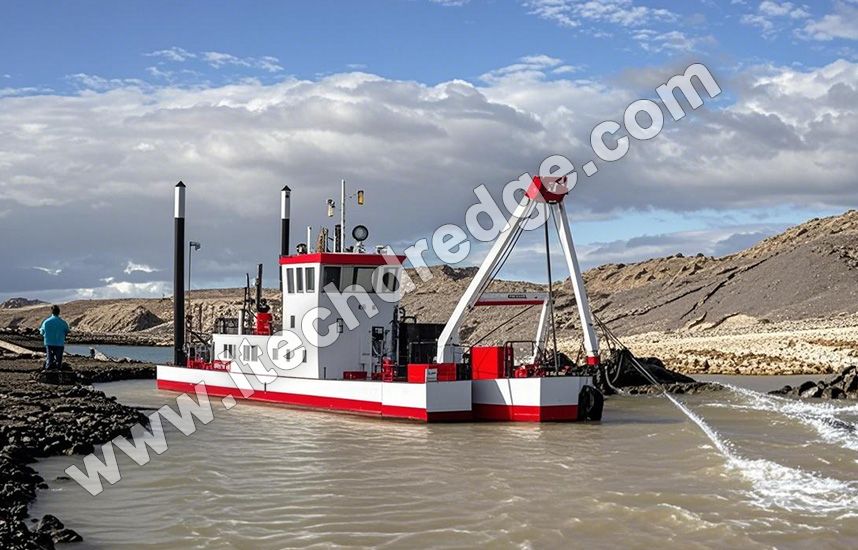

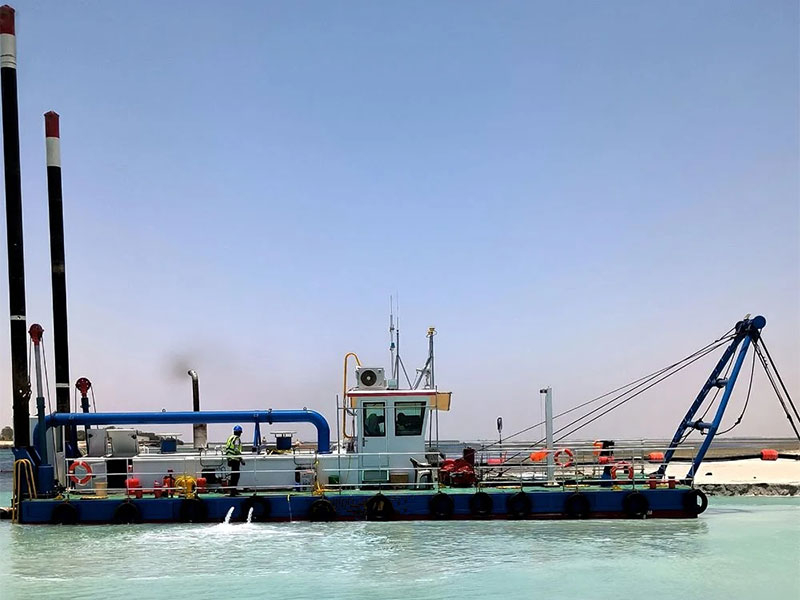

Jet suction dredgers like the JSD250 have a wide range of applications. In port construction and maintenance, they are used to deepen and widen channels, ensuring that large vessels can safely navigate. In river and canal projects, they clear sediment that has accumulated over time, restoring the waterway's capacity for transportation and flood control. In environmental projects, they are employed to remove contaminated sediment from lakes and estuaries, helping to improve water quality and protect aquatic ecosystems. Additionally, they can be used in land reclamation projects, where sediment is dredged and pumped to create new land areas.

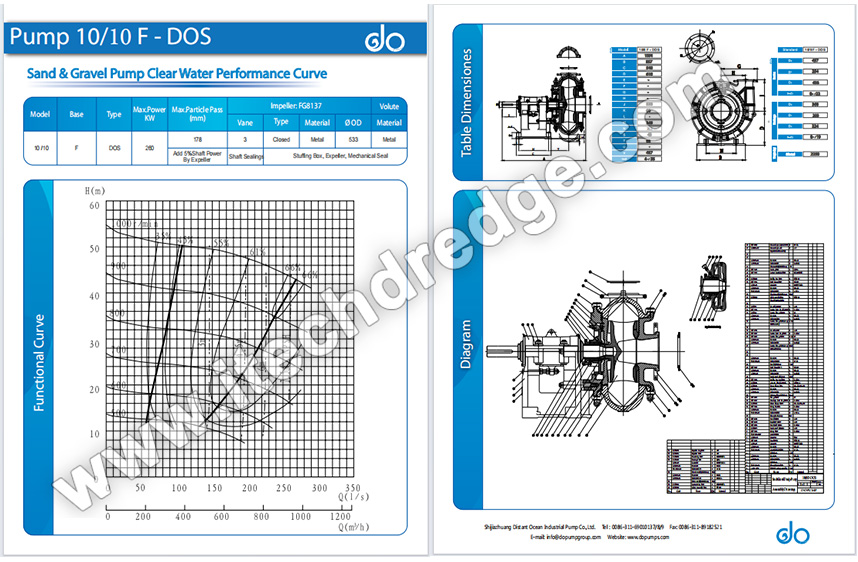

| No | Item | JSD200 | JSD250 | JSD300 | JSD350 | JSD400 | |
| 1 | Dredge performance | Sand capacity (cbm/hr) | 80-110 | 130-260 | 300-360 | 360-390 | 440-520 |
| 2 | Max. Discharge distance (m) | 200-600 | 200-1000 | 200-1500 | 200-1800 | 200-2000 | |
| 3 | Max. gravel diameter passing through (mm) | 50-60 | 60-70 | 60-70 | 60-70 | 60-80 | |
| 4 | Max. dreding depth (m) | 15 | 15 | 15 | 20 | 20 | |
| 5 | Dredge body | Size (LxWxH) (mm) | 8x1x1.5, 2 PCS 6×2.25×1.5, 1PCS | 8x1x1.5, 2 PCS 6×2.25×1.5, 1PCS | 11.8×1.1×1.5, 2 PCS 8×2.25×1.8, 1PCS | 18×1.1×1.5, 2 PCS | 18×1.1×1.5 2 PCS |
| 6 | Sand suction systerm | Pump size (inch) | 8/6 | 10/8 | 12/10 | 14/12 | 16/14 |
| 7 | Pump flow (cbm/hr) | 410-540 | 620-1450 | 1650-1800 | 1800-1950 | 2200-2600 | |
| 8 | Pump head (m) | 28-48 | 21-35 | 24-35 | 24-35 | 30-50 | |
| 9 | Pump speed (rpm) | 730-980 | 730 | 730 | 730 | 550-700 | |
| 10 | Main engine power (KW) | 132-156 | 180-250 | 250-300 | 300-410 | 410-460 | |
| 11 | Gearbox | Yes | Yes | Yes | Yes | Yes | |
| 12 | Connect metal base | Include | Include | Include | Include | Include | |
| 13 | High pressure water pump | jetting sand up | jetting sand up | jetting sand up | jetting sand up | jetting sand up | |
| 14 | Electric power system | Generator | electric power | electric power | electric power | electric power | electric power |
| 15 | Control system | Control room | Yes | Yes | Yes | Yes | Yes |
| 16 | Control board | Yes | Yes | Yes | Yes | Yes | |
| 17 | Lifting appliance | Electric winch | Yes | Yes | Yes | Yes | Yes |
| 18 | Propeller equipment | Propeller with engine | movement | movement | movement | movement | movement |
| 19 | Other equipment | Rubber suction hose, suction head, handrail, anchors, shelter, life jacket, etc. | |||||
| 20 | Remark | 1. Any data could be adjusted according to customers’ specific requirements. 2. Customized dredger acceptable according to requirements. 3. Engine power choose decided by dredger performance. 4. The work site situation will affect actual discharge distance, sand capacity, etc. 5. Above dredger size is not changeless, it could be adjusted according to specific circumstance. | |||||
Pre - operation Preparation
Inspection: Before starting the operation, conduct a thorough inspection of the entire jet suction dredger. Check the high - pressure water pump for any signs of leakage, damage, or low fluid levels. Examine the suction pipe for cracks, blockages, or loose connections. Inspect the dredge head to ensure that the nozzles are clean and unobstructed. Also, check the power unit, including the diesel engines or electric motors, for proper functioning and lubrication levels.
Fuel and Fluid Supply: Ensure that the power unit has an adequate supply of fuel. For diesel - powered dredgers, fill the fuel tank to the recommended level. Check the levels of other fluids such as engine oil, hydraulic fluid, and coolant, and top them up if necessary.
Navigation and Positioning: Use appropriate navigation tools, such as GPS, to accurately position the dredger at the work site. Mark the boundaries of the dredging area and ensure that the dredger is in a stable position, taking into account factors such as water depth, current, and wind conditions.
System Setup: Set up the control system according to the project requirements. Adjust the parameters for the high - pressure water pump, such as water pressure and flow rate, and the suction system, including the suction power and the speed of the pump that transports the dredged material.
Starting the Equipment: Begin by starting the power unit. Follow the manufacturer's instructions for starting the diesel engines or electric motors. Once the power unit is running smoothly, start the high - pressure water pump and gradually increase the water pressure to the desired level. Then, start the suction system and monitor the flow of the dredged material.
Dredging Operation: Lower the dredge head to the desired depth in the water. Use the steering and control system to maneuver the dredger and move the dredge head over the area to be dredged. The high - pressure water jets will break up the sediment, and the suction system will draw in the mixture of sediment and water. Continuously monitor the performance of the dredger, including the water pressure, suction power, and the flow rate of the dredged material. Make adjustments as necessary to ensure optimal dredging efficiency.
Material Transport: The dredged material is transported through the suction pipe to a storage or disposal area. Depending on the project, this may involve pumping the material to a barge, a shore - based storage facility, or directly to a disposal site. Monitor the transport system to ensure that there are no blockages or leaks.
Depth Control: Maintain the correct depth of the dredge head throughout the operation. Use the depth sensors and control mechanisms to adjust the depth as the dredging progresses. This is crucial for achieving the desired dredging depth and ensuring even removal of sediment.
Shutting Down the Equipment: When the dredging operation is complete, gradually reduce the water pressure and suction power. Stop the suction system first, followed by the high - pressure water pump. Then, shut down the power unit according to the manufacturer's instructions.
Cleaning and Maintenance: Clean the dredge head, suction pipe, and other components to remove any remaining sediment and debris. Inspect the equipment for any signs of wear or damage during the operation and perform any necessary maintenance tasks, such as lubricating moving parts or replacing worn - out seals.
Record - keeping: Keep detailed records of the dredging operation, including the start and end times, the amount of material dredged, any problems encountered during the operation, and the maintenance activities performed. These records will be useful for future reference and for evaluating the performance of the jet suction dredger.
In conclusion, the Jet Suction Dredger JSD250 is a powerful and versatile piece of equipment with a wide range of applications. Understanding its key components, features, and proper operation is essential for maximizing its efficiency and ensuring successful dredging projects.
