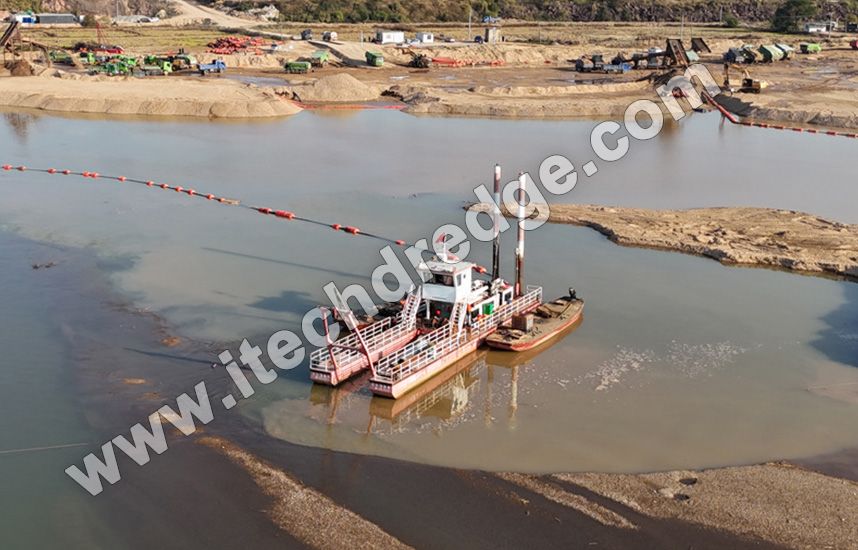

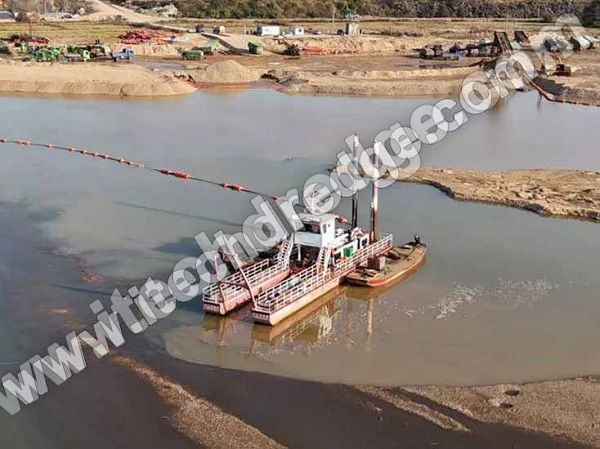

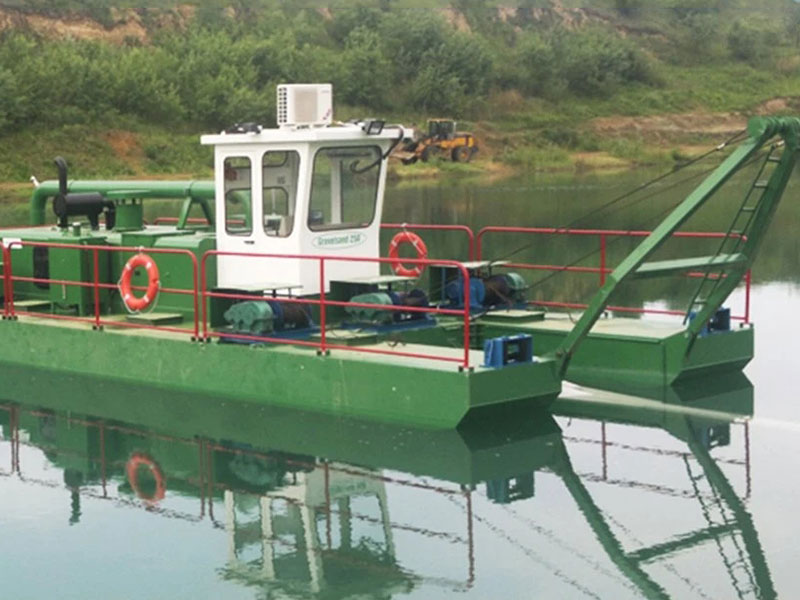

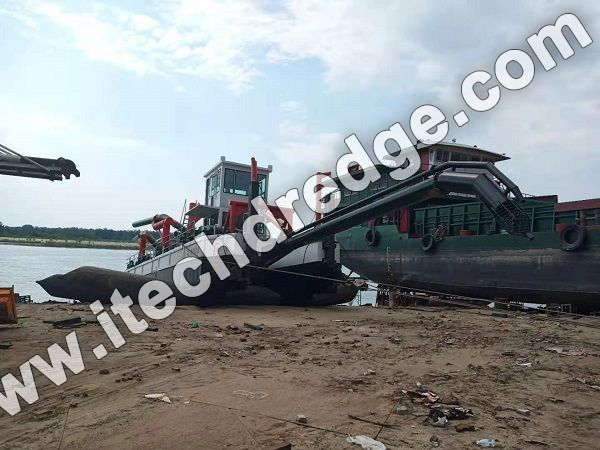

Jet Suction Dredger JSD350

Definition of Jet Suction Dredger 350 (JSD350)

The JSD350 jet - suction dredger is a highly efficient dredging equipment. It is mainly used for dredging operations in rivers, lakes, ports and other waters, capable of sucking and transporting sediment, sand and other substances. Equipped with a powerful jet - suction system, it can quickly suck up sediment and discharge it to the designated location through pipelines. With a certain dredging depth and flow capacity, it can meet the needs of different engineering projects, and plays an important role in waterway maintenance and land - reclamation projects.

What are the main technical parameters of the JSD350 jet-suction dredger?

• Dredging Capacity: 1800-2200 cubic meters per hour.

• Maximum Discharge Distance: 200 - 1800 meters.

• Maximum Passing Gravel Diameter: 180-220 millimeters.

• Maximum Dredging Depth: 20 meters.

• Dredger Body Size: Composed of two parts with dimensions of 11.8×1.1×1.5 meters and one part with dimensions of 8×2.25×1.8 meters.

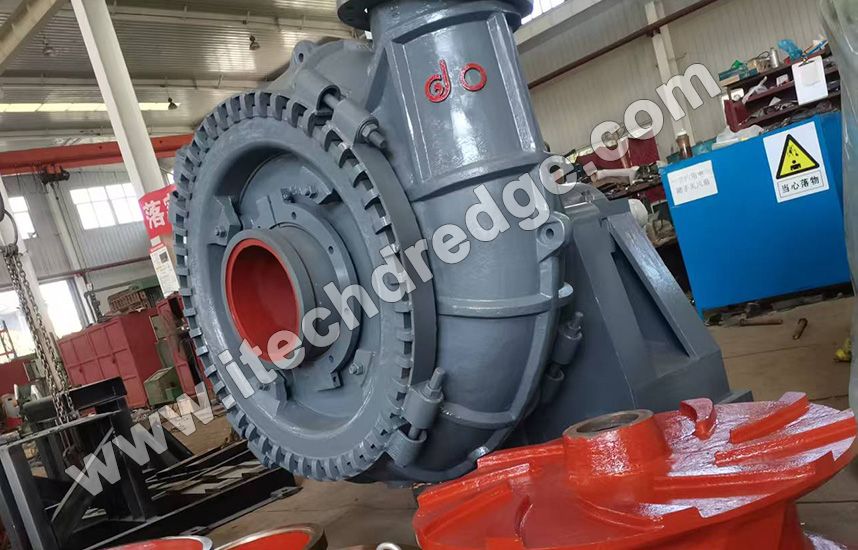

• Sand - Suction System Pump Size: 14/12 inches.

• Pump Flow: 1800 - 2200 cubic meters per hour.

• Pump Head:50-65 meters.

• Pump Speed: 750 revolutions per minute.

• Main Engine Power: 440-630 kilowatts.

• Gearbox: Equipped with a gearbox.

• Control System: With a control room and control board.

Operational Guide for Jet Suction Dredger

Step-by-Step Operation Protocol
Operating a jet suction dredger requires careful coordination of vessel positioning, jetting, and suction parameters. Below is a general workflow for the JSD400:

I. Pre-Operation Preparation

1. Site Survey: Use sonar or diving teams to map sediment depth, type, and underwater obstacles.

2. Vessel Setup:

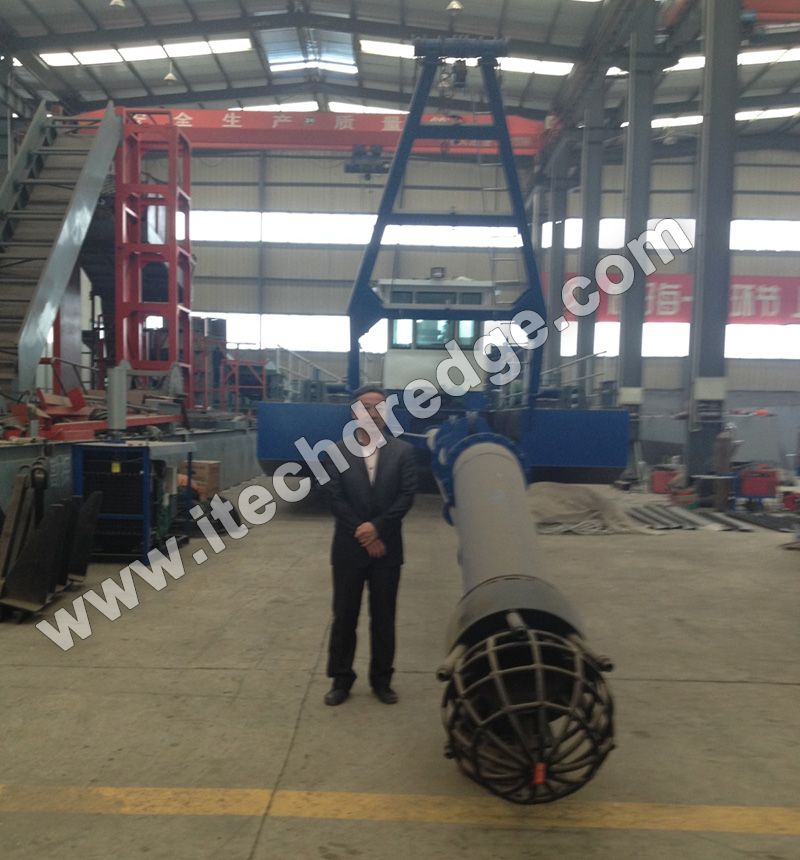

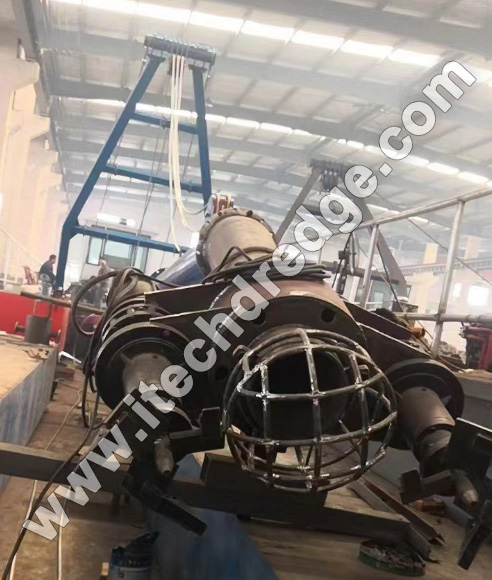

• Install the suction nozzle and jetting arms, ensuring nozzles are aligned with the seabed (typically 0.5–1.0 m above).

• Check hydraulic hoses for leaks and secure the dredge pump inlet.

• Power Up: Start the diesel engine and warm up the jet pump (5–10 minutes at idle).

II. Positioning and Dredging

• Maneuver to Target Area: Use thrusters to align the nozzle with the first dredging lane (typically 5–10 m wide).

• Initiate Jetting: Gradually increase jet pressure to 15–20 bar while monitoring the seabed for fluidization. The goal is to create a slurry cloud without excessive turbidity.

• Engage Suction Pump: Once sediments are suspended, start the dredge pump and adjust the nozzle height to maintain optimal slurry density (aim for 15–25% solids).

• Lane Navigation: Move the vessel forward in a grid pattern, overlapping each pass by 20–30% to ensure complete coverage. Use the control panel to adjust jet pressure and pump speed based on sediment resistance.

III. Slurry Disposal and Monitoring

• Pipeline Transport: Pump the slurry to a disposal site (e.g., containment pond or dewatering facility) via a flexible pipeline (up to 500 m in length for JSD400).

• Quality Control: Regularly test slurry density using a hydrometer and inspect discharged sediments to ensure compliance with project specifications (e.g., removal depth ±10 cm).

IV. Shutdown and Maintenance

• Clean Down: Flush the pump and pipelines with clean water for 5–10 minutes to prevent sediment buildup.

• Post-Operation Checks:

Inspect nozzles for wear and replace if erosion exceeds 10% of original diameter.

Lubricate moving parts (e.g., articulating joints on jet arms).

Record operational data (hours run, sediment volume processed) for maintenance scheduling.

V. Safety Considerations

• Always wear PPE (life jackets, hearing protection) and maintain a 50-m safety perimeter around the vessel.

• Avoid operating in high winds (>20 knots) or strong currents to prevent loss of control.

In environmentally sensitive areas, use turbidity curtains to contain sediment plumes.

Application Differences Between Jet Suction Dredger and Cutter Suction Dredger

Introduction to Dredging Scenarios
The choice between a JSD and CSD hinges on sediment type, project scale, environmental constraints, and operational logistics. This section explores their divergent applications across five key scenarios.

1. Sediment Type and Density

CSD: Ideal for Hard and Cohesive Materials

CSDs excel in high-density sediments such as:

• Compacted clay, glacial till, or laterite

• Soft rock (e.g., chalk, limestone)

• Debris-rich deposits (e.g., post-earthquake rubble)
  Example: In the expansion of the Suez Canal, CSDs were used to cut through layers of compacted sandstone, achieving depths of up to 20 meters.

JSD: Optimal for Loose and Fine-Grained Sediments
JSDs thrive in low-to-medium-density sediments such as:

• River sands, silt, and marine mud

• Tailings ponds or industrial sludge

• Soft organic deposits (e.g., lake sediments)
  Example: In the cleanup of Lake Pontchartrain after Hurricane Katrina, JSDs efficiently removed loose silt without disturbing underlying clay layers.

2. Water Depth and Environment

CSD: Offshore and Deep-Water Projects
CSDs are suited for deep-water dredging (up to 100 meters) in open seas or large rivers. Their stability and heavy-duty design make them suitable for:

• Port deepening (e.g., Singapore’s Jurong Port)

• Offshore pipeline trenching

• Mineral extraction (e.g., diamond mining in Namibia)

JSD: Shallow-Water and Sensitive Environments
JSDs excel in shallow or confined waters (≤10 meters) where larger vessels cannot operate, such as:

• Irrigation canals and drainage ditches

• Coastal wetlands and mangrove areas

• Small harbors and marina basins
  Example: In the Venice Lagoon, JSDs are used to maintain navigation channels without damaging fragile ecosystems.

3. Environmental Considerations

CSD: Higher Impact but Necessary for Tough Materials
CSDs generate more turbidity due to mechanical disturbance and require larger vessels, which can disrupt benthic habitats. However, they are indispensable for projects where complete sediment removal is non-negotiable (e.g., industrial port basins).

JSD: Low-Impact Dredging
JSDs minimize environmental disturbance through:

• Gentle fluidization (reduced turbidity compared to CSD)

• Smaller vessel size (less seabed compaction)

• Selective targeting of sediments (e.g., avoiding vegetation)
  Example: In the Everglades restoration project, JSDs were used to remove invasive silt while preserving native plant roots.

4. Project Scale and Logistics

CSD: Large-Scale, Long-Duration Projects
CSDs are cost-effective for projects requiring high production rates (e.g., 10,000–50,000 m³/day) and long-distance slurry transport (up to 20 km via pipelines). They are commonly used in:

• Land reclamation (e.g., Dubai’s Palm Islands)

• Channel widening for container ships

JSD: Small-to-Medium Projects with Tight Access
JSDs are ideal for:

• Quick maintenance dredging (e.g., annual harbor cleaning)

• Remote locations with limited infrastructure

• Projects requiring rapid mobilization (e.g., flood relief)
  Example: In the Amazon River, portable JSDs are transported via barges to clear sandbars in remote tributaries.

5. Industry-Specific Applications

CSD: Mining, Oil & Gas, and Heavy Construction
CSDs dominate industries requiring excavation of hard materials:

• Dredging for offshore oil platforms

• Extracting placer minerals (gold, tin) from riverbeds

• Breaking up rock formations for submarine cables

JSD: Environmental Remediation and Civil Engineering
JSDs are preferred in:

• Removing contaminated sediments (e.g., PCB-laden mud in harbors)

• Maintaining irrigation networks in agriculture

• Cleaning stormwater ponds in urban areas
