A jet suction dredger is a specialized piece of marine equipment designed to remove sediment, debris, and other materials from the bottom of water bodies such as rivers, lakes, ports, and seas. It operates on the principle of using high - velocity water jets to loosen and fluidize the sediment, which is then suctioned up through a pipeline and transported to a designated disposal area.
The basic working mechanism involves a system of pumps and nozzles. High - pressure water pumps generate a powerful stream of water that is directed through nozzles onto the seabed or riverbed. This jet of water breaks up the compacted sediment, turning it into a slurry - like mixture. Simultaneously, a suction pump creates a vacuum at the end of a suction pipe, drawing in the fluidized sediment - water mixture. The mixture is then conveyed through the pipeline, either to a barge for transport to a disposal site or directly to an on - shore location, depending on the configuration of the dredging operation.
Jet suction dredgers are highly versatile and can be adapted to various dredging scenarios, from shallow - water operations in small waterways to deeper - water projects in large harbors and coastal areas.

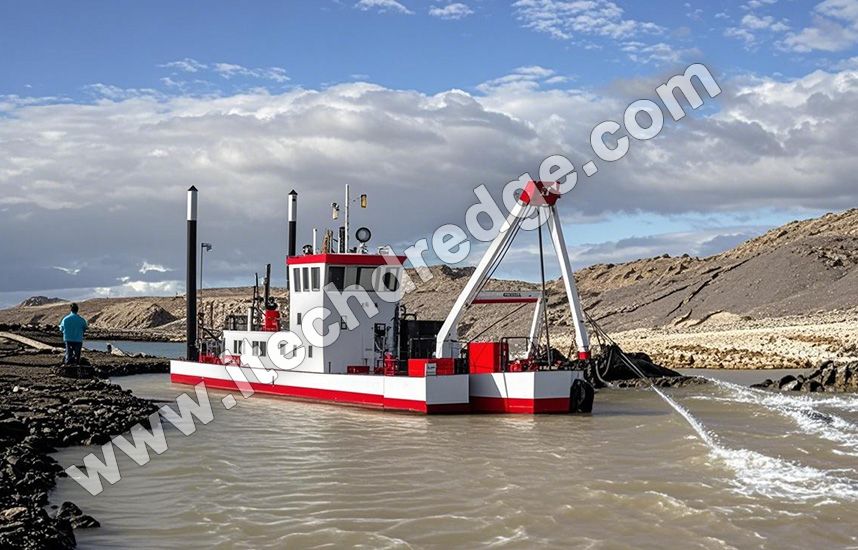

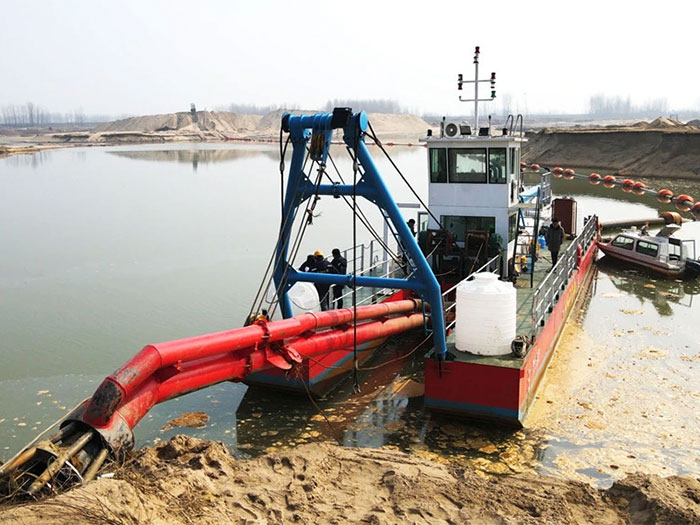

The Jet Suction Dredger JSD400 is a specific model within the jet suction dredger family. The “400” in its name often refers to a key characteristic of the dredger, which could be related to its capacity, power, or some other defining specification.
Typically, the JSD400 is designed to handle dredging projects with a certain scale and complexity. It has a set of high - pressure water pumps with a combined power output that enables it to generate a sufficient force of water jets to effectively loosen sediment in different soil conditions. The suction system of the JSD400 is engineered to handle a specific volume of sediment - water mixture per hour, which is an important factor in determining its productivity.
The dredger is equipped with a suction pipe of an appropriate diameter and length to reach the required dredging depths, usually capable of operating in waters ranging from relatively shallow to moderately deep. It also has a pipeline system that can transport the dredged material over distances suitable for common dredging projects, whether it's discharging onto a waiting barge or pumping it to an on - shore treatment or disposal facility. Additionally, the JSD400 comes with a control system that allows operators to precisely regulate the water jet pressure, suction power, and the movement of the dredger, ensuring efficient and accurate dredging operations.
Ports and harbors are vital for global trade, and over time, sediment accumulation can reduce water depth, hindering the safe passage of large vessels. Jet suction dredgers are regularly used to remove this sediment, maintaining the required navigational depth. They can precisely target areas where sediment buildup is a problem, such as near piers, channels, and turning basins. In addition, they can clean up debris and pollutants that may have settled at the bottom, improving the overall water quality in the harbor area.
Rivers are prone to sedimentation, especially in areas with high runoff or after floods. Jet suction dredgers are employed to clear the accumulated sediment, preventing riverbank erosion and reducing the risk of flooding. By keeping the river channels clear, they also improve the flow of water, which is essential for maintaining aquatic ecosystems and ensuring the smooth transportation of goods via inland waterways.
On the coast, jet suction dredgers can be used to nourish beaches. By dredging sediment from offshore areas and depositing it on eroding beaches, they help to restore and maintain beach profiles, protecting coastal communities from the impacts of storms and rising sea levels. They can also be involved in the construction of breakwaters and other coastal protection structures, by removing sediment to create the necessary foundation or to shape the seabed as required.
In polluted water bodies, jet suction dredgers can play a crucial role in environmental remediation. They can be used to remove contaminated sediment, which may contain heavy metals, hydrocarbons, or other pollutants. The dredged material can then be properly treated or disposed of, helping to improve the ecological health of the water body and surrounding areas.
One of the significant advantages of jet suction dredgers over cutter suction dredgers is their relatively gentle impact on the seabed. Cutter suction dredgers use a rotating cutter head to break up the sediment, which can cause significant damage to the seabed structure and disrupt the local marine ecosystem. In contrast, jet suction dredgers use water jets to fluidize the sediment, resulting in less disturbance to the seabed. This makes them more suitable for dredging operations in environmentally sensitive areas, such as coral reef regions or areas with fragile benthic habitats.
Jet suction dredgers perform exceptionally well in soft sediment conditions. The water jets can easily fluidize soft mud and silt, allowing for efficient suction. Cutter suction dredgers, on the other hand, may face challenges in very soft sediments as the cutter head can sink or become bogged down, reducing productivity. In areas where the seabed consists mainly of soft materials, jet suction dredgers offer a more reliable and efficient dredging solution.
Jet suction dredgers generally have a simpler mechanical structure compared to cutter suction dredgers. With fewer moving parts, especially the absence of a complex cutter head mechanism, jet suction dredgers are less prone to mechanical failures. This results in lower maintenance requirements and costs over the long term. Additionally, the reduced wear and tear on components mean less downtime for repairs, increasing the overall operational efficiency of the dredger.
In shallow - water environments, jet suction dredgers have an edge. Their design allows them to operate in relatively shallow depths without the risk of the cutter head hitting the bottom or getting stuck, which can be a common problem for cutter suction dredgers. The flexibility of jet suction dredgers in shallow waters makes them ideal for dredging small rivers, lakes, and near - shore areas where water depth may be limited.
The high - pressure water pumps are the heart of a jet suction dredger. These pumps are responsible for generating the powerful water jets that loosen the sediment. They are typically centrifugal pumps with high - performance motors. The pumps need to be able to deliver a large volume of water at high pressure, usually ranging from several hundred to thousands of kilopascals, depending on the requirements of the dredging project. The efficiency and reliability of these pumps directly impact the effectiveness of the dredging operation, as a consistent and powerful water jet is essential for proper sediment fluidization.

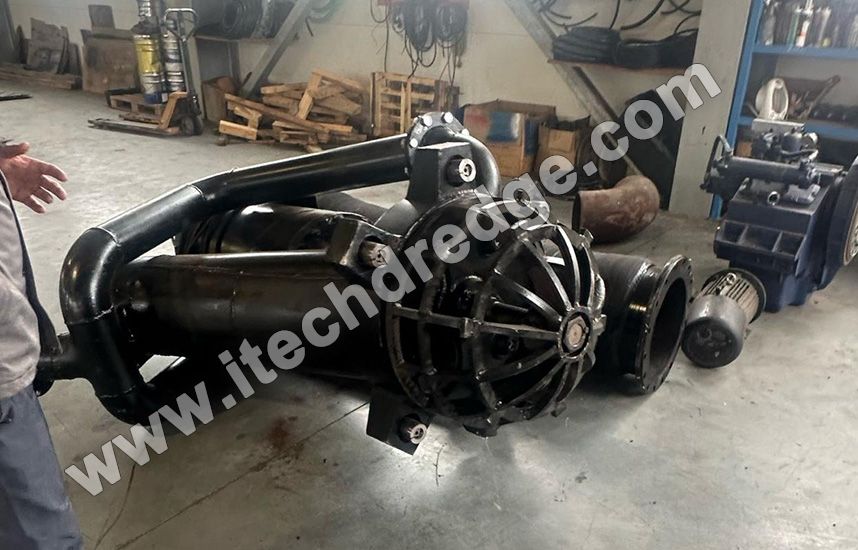

The nozzles are the components through which the high - pressure water is ejected. They are carefully designed to shape and direct the water jet for maximum effectiveness. Different nozzle shapes and sizes can be used depending on the type of sediment and the dredging conditions. For example, narrow nozzles can generate a more concentrated and high - velocity jet, which is useful for breaking up harder sediment, while wider nozzles may be preferred for softer materials to cover a larger area. The nozzles are usually made of durable materials such as stainless steel or tungsten carbide to withstand the high - pressure and abrasive effects of the water jet.

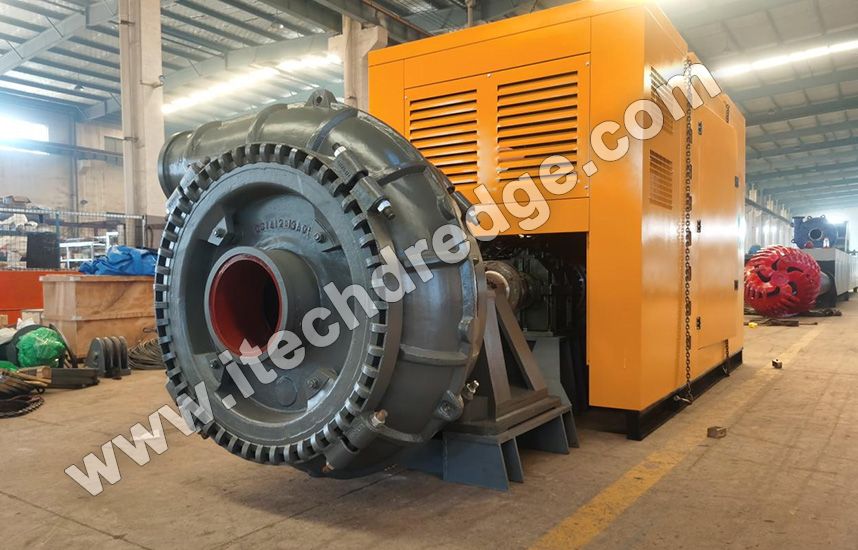

Suction pumps are crucial for drawing in the fluidized sediment - water mixture. These pumps create a vacuum at the end of the suction pipe, which allows the mixture to be sucked up. Centrifugal or submersible pumps are commonly used as suction pumps in jet suction dredgers. The suction capacity of the pump, measured in terms of the volume of fluid it can handle per unit of time, is an important parameter. It needs to be matched with the output of the high - pressure water pumps and the characteristics of the sediment - water mixture to ensure continuous and efficient dredging.

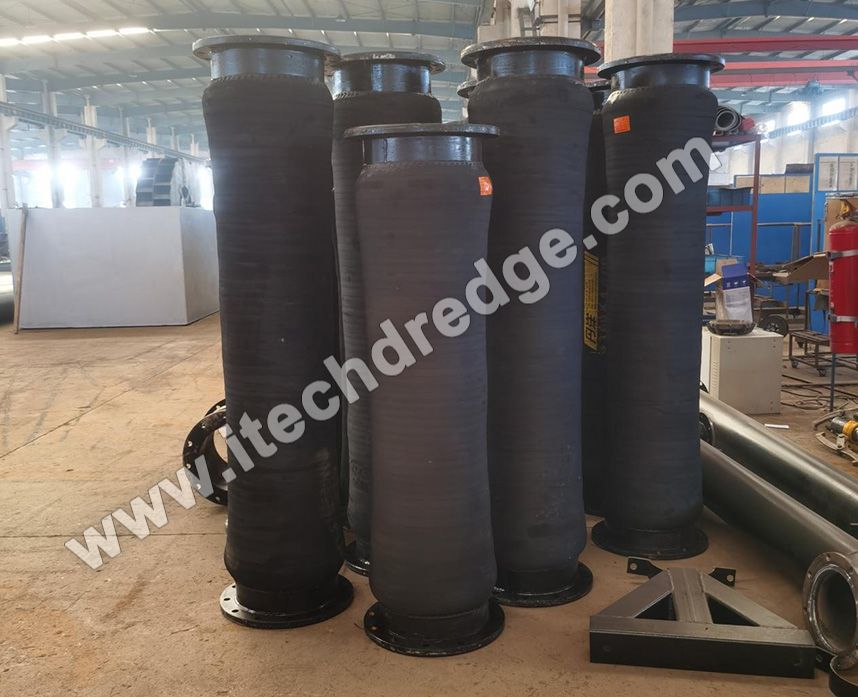

The suction pipe is used to transport the sediment - water mixture from the seabed to the pump. It is usually made of strong and durable materials such as steel or high - density polyethylene. The length and diameter of the suction pipe are determined by the dredging depth and the required flow rate of the mixture. The pipe needs to be flexible enough to allow for movement of the dredger during operation, yet rigid enough to maintain its shape under the pressure of the flowing mixture. Additionally, the end of the suction pipe may be equipped with a suction head or intake device that is designed to optimize the intake of the sediment - water mixture.

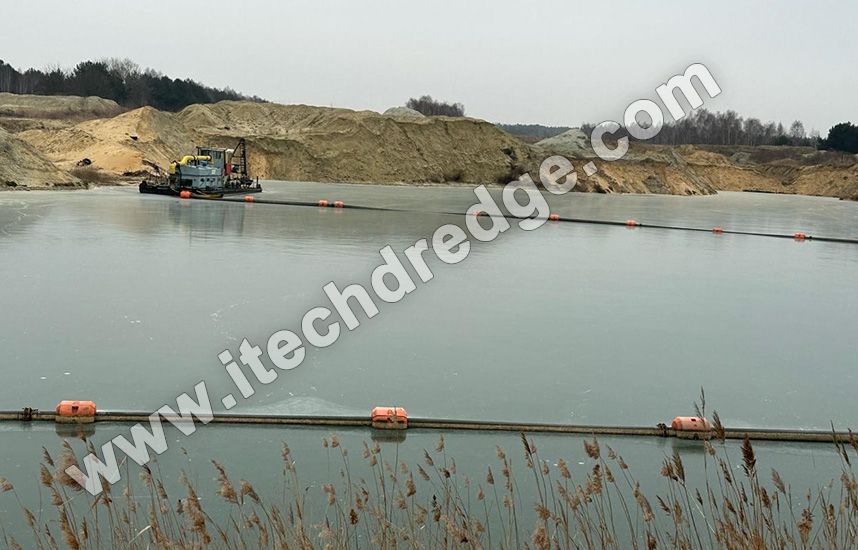

The pipeline system is responsible for transporting the dredged material from the suction pump to the disposal site. It consists of a series of pipes, elbows, valves, and fittings. The pipeline needs to be able to withstand the pressure of the flowing sediment - water mixture, which can be quite high, especially over long distances. The diameter of the pipeline is selected based on the volume of material to be transported and the desired flow velocity. Valves in the pipeline system are used to control the flow of the mixture, while elbows and fittings allow for changes in the direction of the pipeline as required for routing the material to the disposal area.
In conclusion, the jet suction dredger 400, with its unique design and functionality, offers a highly effective solution for a wide range of dredging applications. Its key components work in harmony to ensure efficient sediment removal, and its advantages over other types of dredgers make it a valuable asset in the marine engineering and environmental management sectors.
