What is a cutter suction dredger?

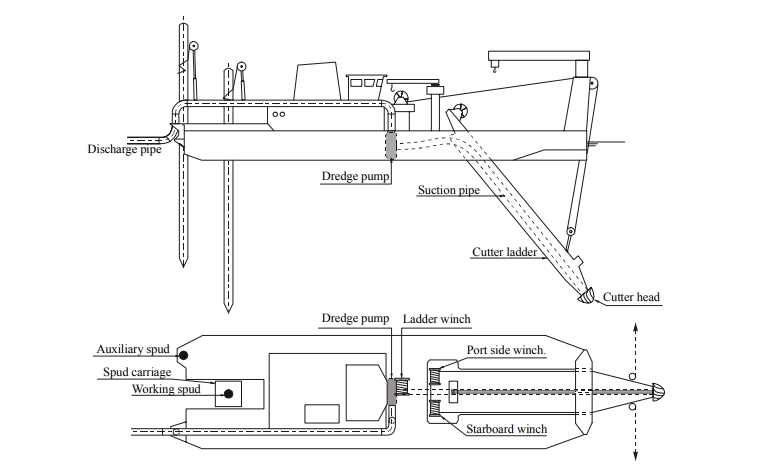

The cutter suction dredger is a type of dredging equipment with a rotating cutter head in front of vessel, by using spuds and anchor wires to position on working site during the dredging operation, and the cutter suction dredger is highly used for dredging silt, clay, rock, sand etc.

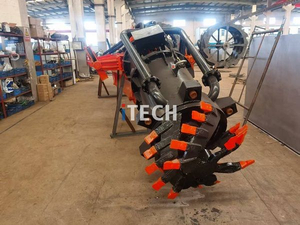

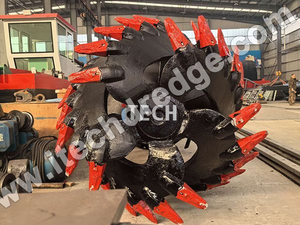

Regardless of how the cutter suction dredger works? The working principle of the cutter suction dredger is to use a rotating cutter head to disintegrate and break the soil, which is mounted in the front of the suction dredger, and use a pressured dredge pump to pipe the solid to a certain distance.
Cutter Suction Dredger CSD650 -25m
Cutter suction dredger CSD650 is a 26 inch dredger equipment with capacity of 7000 cubic meters per hour in mixture, which connecting 26 inch discharge diameter of pipe. The meaning of CSD means cutter suction dredger, 650 is the inner diameter of dredger discharge pipe, and -25m means the dredging suction depth can reach 25 meters.

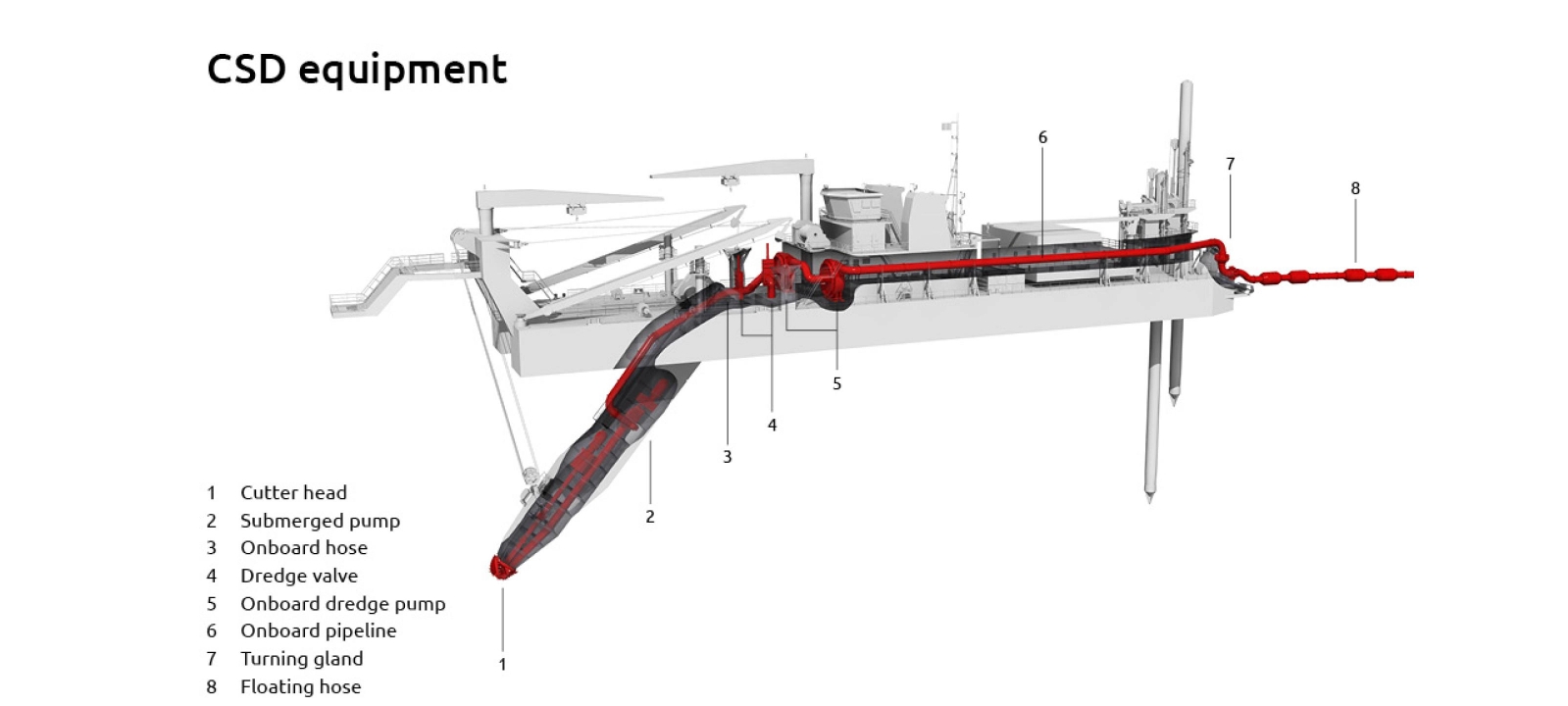

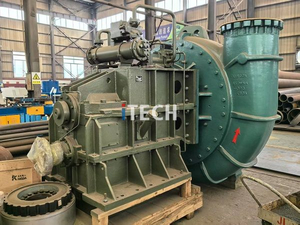

However, comparing with standard cutter suction dredger CSD650, the -25 meters of cutter suction dredger 650 is working in much deeper working environment, where a ladder dredge pump is required. The ladder dredge pump is also named as submersible dredge pump is mounted on the ladder, where the submersible dredge pump will work in the water, touching the sand and soild directly, it is mounted near to the dredger cutter head.

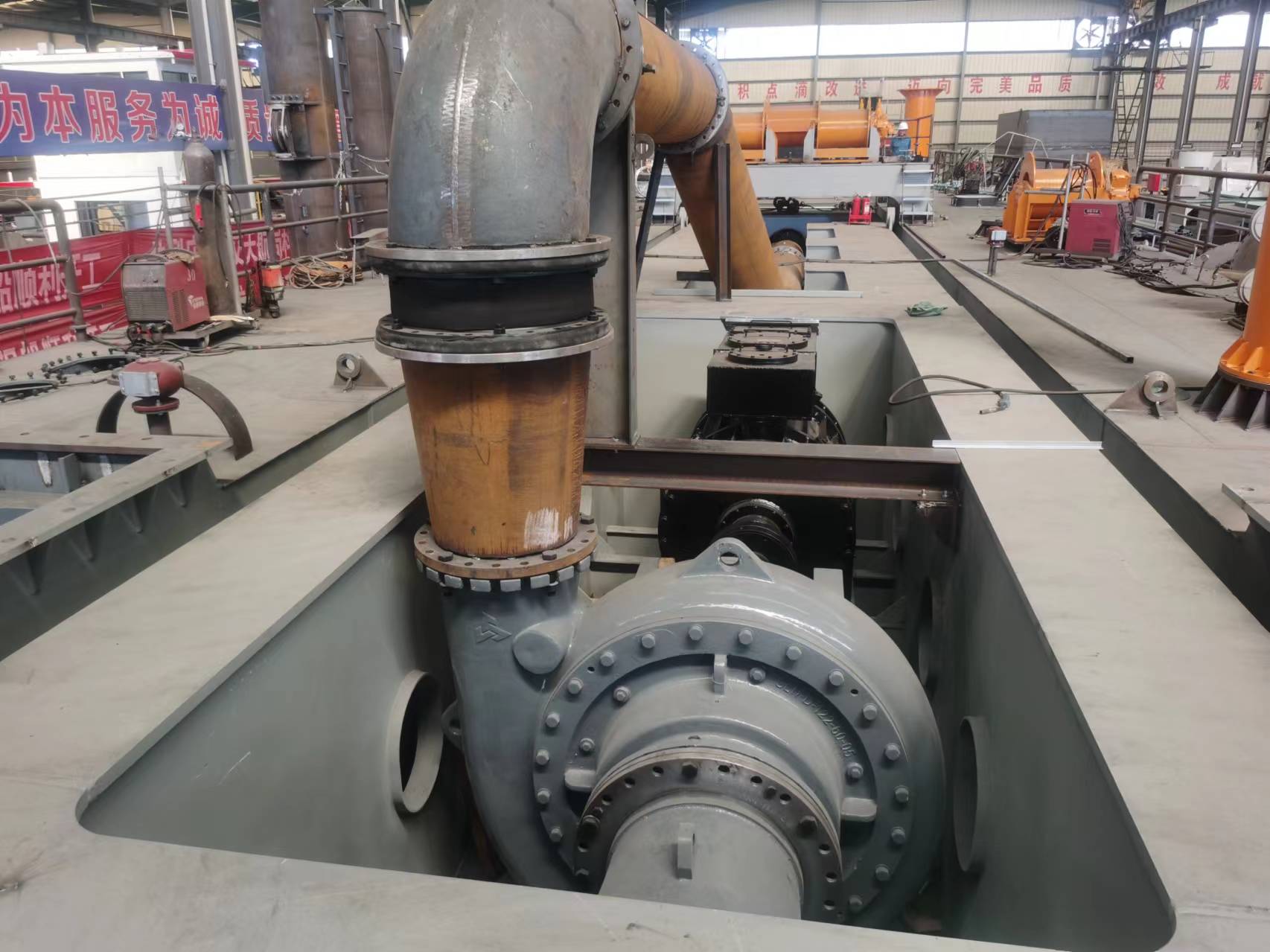

Onboard dredge pump may be also required according to the transfer distance, the submersible dredge pump is normally used for short distance, whereas addition on-board dredge pump can take more pressure as a booster pump station to much longer distance.

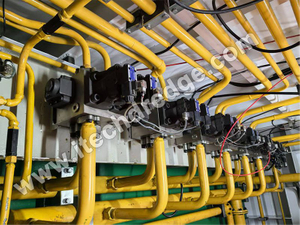

-25 meters cutter suction also requires larger cutter head ladder, winches, dredger hull, pontoon, hydraulic system and engines. However, the application of ladder dredge pump is also acting higher percentage of solid concentration, comparing with standard cutter suction dredger CSD650 by using single on-board dredge pump.
Cutter suction dredger application:
Cutter suction dredgers are highly used for dredging sand solid from seabed, which is a type of dredger can dredge all different kind of materia, such as fine sand, meduim sand, rock, stone etc. The CSDs are used for large dredging projects, harbours, fairways, navigation channels, port development, land reclamation project.

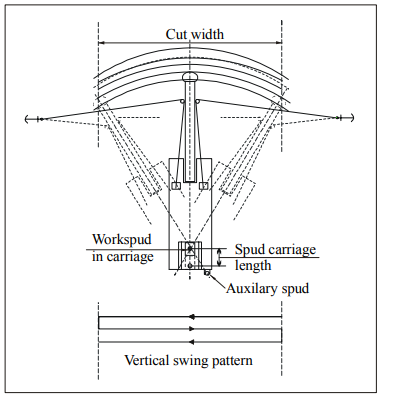

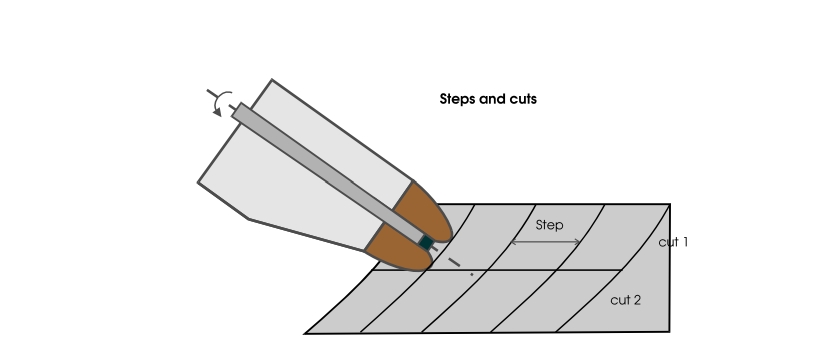

The application of cutter suction dredger distance is smaller than the geographic range of trailing suction hopper dredgers. The cutter suction dredger takes advantage of an accurate profile to be dredged due to the movement around the spud pole.
The application of cutter suction dredger can handle almost all types of soil, which depends on the cutter suction dredger cutter head power. which is designed from power of 20 kW to 4,000 kW for the largest. According to different working applications, the cutter suction dredger can be designed to largest depth of 30 meters, and the minimum dredging depth of cutter suction dredger is determined by the draught of the pontoon.
Available options:
Anchor booms
Deck crane
Swivel hose
Dredge valve
Production & position visualisation
Dredge performance
Pipe diameter: 650 mm
Dredge production: 7000 m³/h
Dredging depth: 25 m
Swing width: 71 m
Equipment
Cutter power: 700 kW
Cutter diameter: 2100 mm
Fuel capacity: 87.6 m³

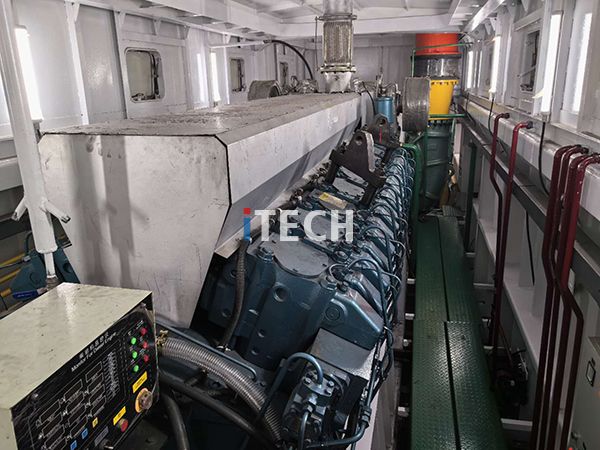

Total installed power: 3966 kW
Dimensions
Length: 70 m
Draught: 1.65 m
Air draught: 8.4 m
Total weight: 645 t
Cutter Suction Dredger CSD650 Manufacturer-iTECH iNTERNATIONAL
iTECH iNTERNATIONAL is a manufacturer of cutter suction dredger company, located in Qingzhou Shandong China, with more than 30 years experience, iTECH iNTERNATIONAL has suppliers dredging equipment to over 50 countries, for any interested related to the cutter suction dredger, jet suction dredger, hopper dredger, submersible pump dredger, and the dredging equipment components, we are very welcome for any inquiry at info@itechdredge.com.
