Cutter Suction Dredgers (CSDs) are stationary dredging vessels renowned for their precision, versatility, and efficiency in excavating underwater terrain. Unlike trailing hopper dredgers, CSDs anchor themselves via spud poles and swing laterally to cut material within a defined arc.
The CSD500 represents a mid-sized powerhouse engineered for projects requiring robust performance in varied soil conditions—from soft silt to hardened clay and fractured rock. Combining a rotating cutter head with a high-capacity suction system, it dislodges material and transports it via pipelines to disposal sites. Ideal for channel deepening, port construction, and environmental remediation, the CSD500 balances mobility, power, and
operational accuracy, making it a cornerstone of modern dredging fleets.
The CSD500 excels in diverse scenarios:
Port & Harbor Development: Deepening navigation channels, constructing berths, and maintaining harbor basins.
Land Reclamation: Pumping sand/slurry to create new coastal landmasses.
Environmental Remediation: Removing contaminated sediments with minimal ecological disturbance.
Pipeline/Cable Trenching: Cutting precise seabed trenches for infrastructure.
River & Canal Maintenance: Restoring waterway depth for flood control or navigation.
Mining Operations: Extracting underwater minerals or tailings.
Its adaptability to confined spaces and challenging soils makes it indispensable for infrastructure and environmental projects.
CSDs trace their origins to the late 1800s, when steam-powered bucket dredgers dominated. The pivotal innovation came in 1874 with the first hydraulic CSD, featuring a mechanical cutter to break cohesive soils. By the 1950s, diesel engines and hydraulic systems replaced steam, enabling deeper cuts and higher efficiency. The 1980s introduced computerized control, GPS positioning, and eco-friendly designs. The CSD500 embodies this legacy, integrating digital automation with rugged mechanical design to tackle 21st-century challenges like urbanization and climate-resilient infrastructure.
The CSD500 operates through a cyclic process:
Anchoring: Positioned using spud poles (one fixed, one mobile) and auxiliary anchors.
Cutting: A rotating cutter head fragments soil at depths up to 15-20 meters.
Suction: A centrifugal pump vacuums loosened material into a pipeline.
Swinging: Winches pull the vessel laterally around the spud, covering an arc of 40–60°.
Advancing: The spud carriage "walks" the dredger forward 1–5 meters per swing cycle.
Disposal: Slurry is piped to designated sites (e.g., reclamation areas or barges).
This method ensures continuous operation with millimeter-grade precision.
| Model | Dredging Capacity | Dredging Depth | Suction/Discharge Pipe Dia. | Engine(s) Power |
| CSD-200 | 500 m3 /hr | 1-5 m | 200/200 mm | 160-300 kw |
| CSD-250 | 800 m3 /hr | 1-8 m | 250/250 mm | 200-400 kw |
| CSD-300 | 1200 m3 /hr | 1-12 m | 300/300 mm | 400-600 kw |
| CSD-400 | 2200 m3 /hr | 1.5-14 m | 400/400 mm | 700-1200 kw |
| CSD-500 | 3500 m3 /hr | 1.5-15 m | 600/500 mm | 1100-1600 kw |
| CSD-650 | 5000 m3 /hr | 1.5-18 m | 650/650 mm | 2200-2500 kw |
| CSD-700 | 7000 m3 /hr | 1.5-20m | 750/700 mm | 2800-3500 kw |

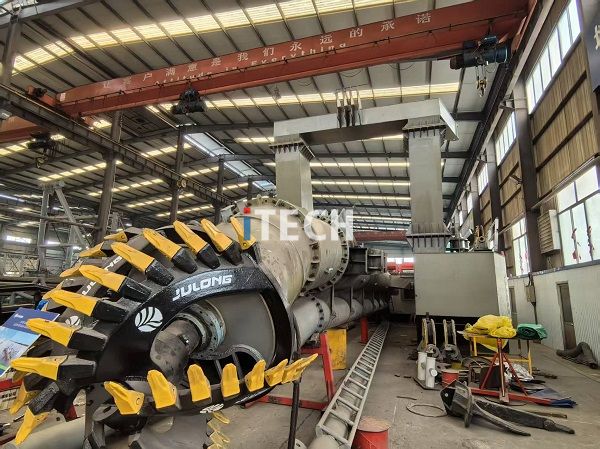

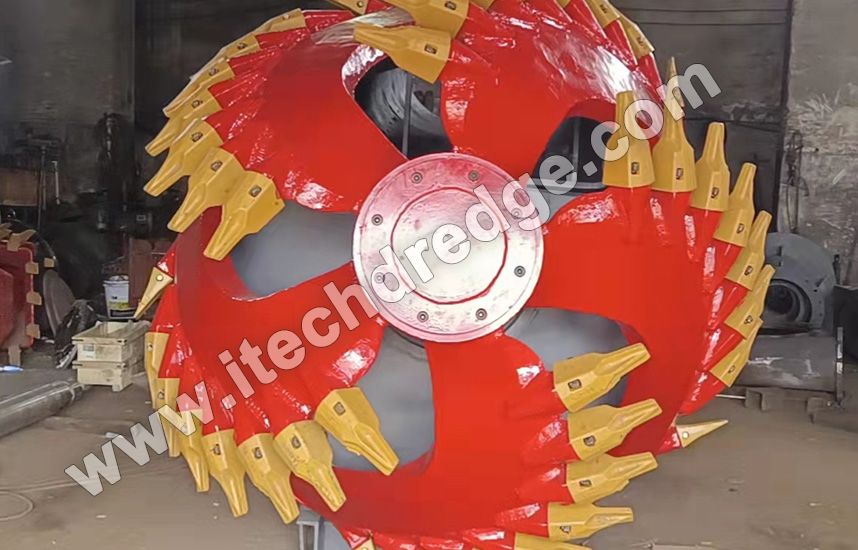

a) Cutter Head
Function: Fragments soil via rotating blades (teeth, picks, or discs).
CSD500 Specs: 3.2-meter diameter; 170 kW power; optimized for mixed soils (sand, clay, gravel).
Design: Modular teeth for quick replacement; variable rotation speeds (15–30 RPM).
b) Reaction Force Management
Cutting generates lateral forces (up to 50 tonnes).
Countermeasures: Spud poles absorb vertical loads; anchor winches provide lateral stability.

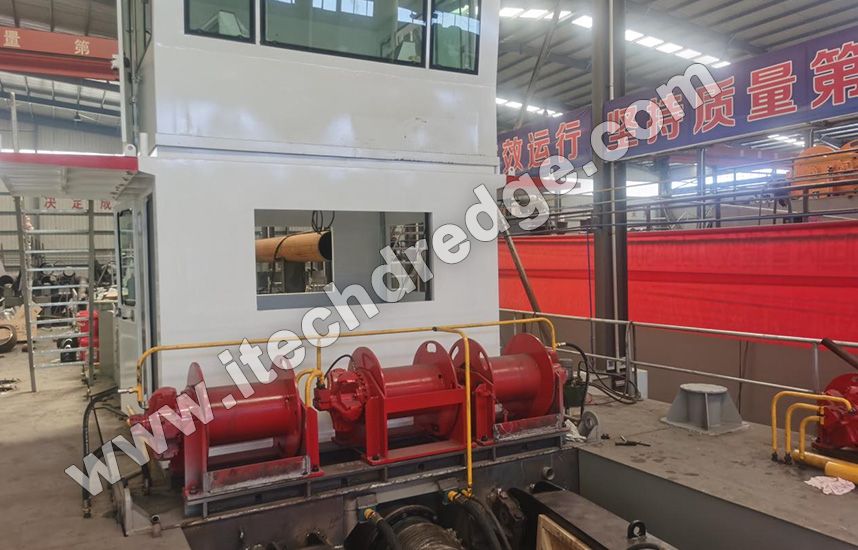

c) Side Winch System
Power: 2 × 100 KN electric winches.
Speed: 0–15 m/min, adjustable for soil hardness.
Role: Controls swing speed to optimize cutting efficiency.
d) Ladder Winch System
Power: 100KN hydraulic winch.
Speed: 0–5 m/min.
Function: Lowers/raises the cutter ladder (max depth: 18m).

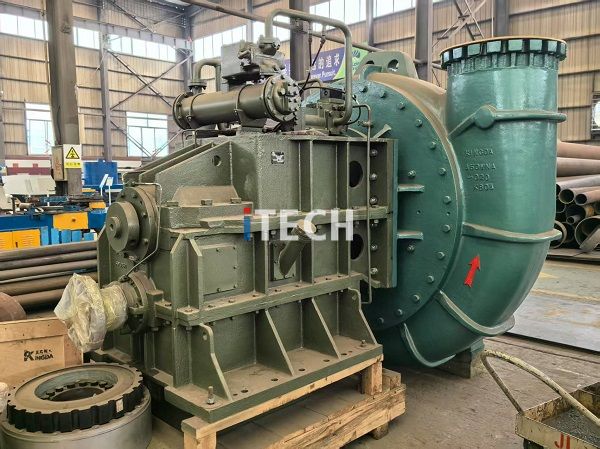

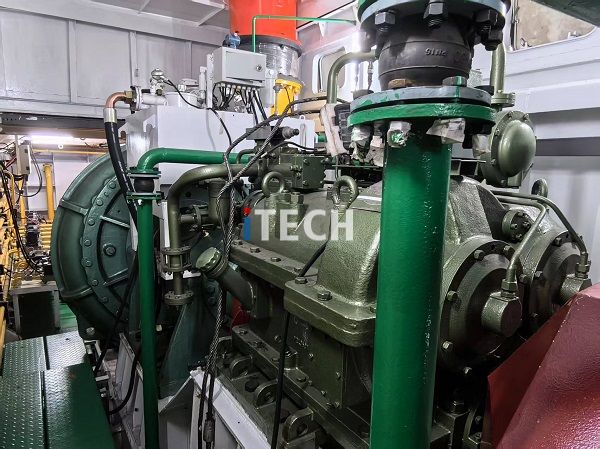

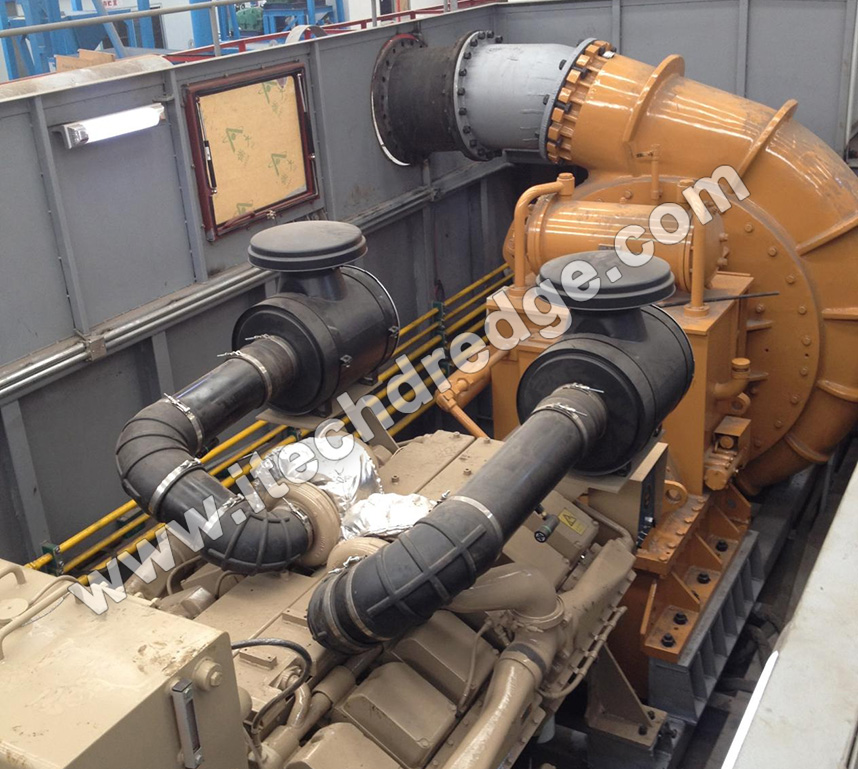

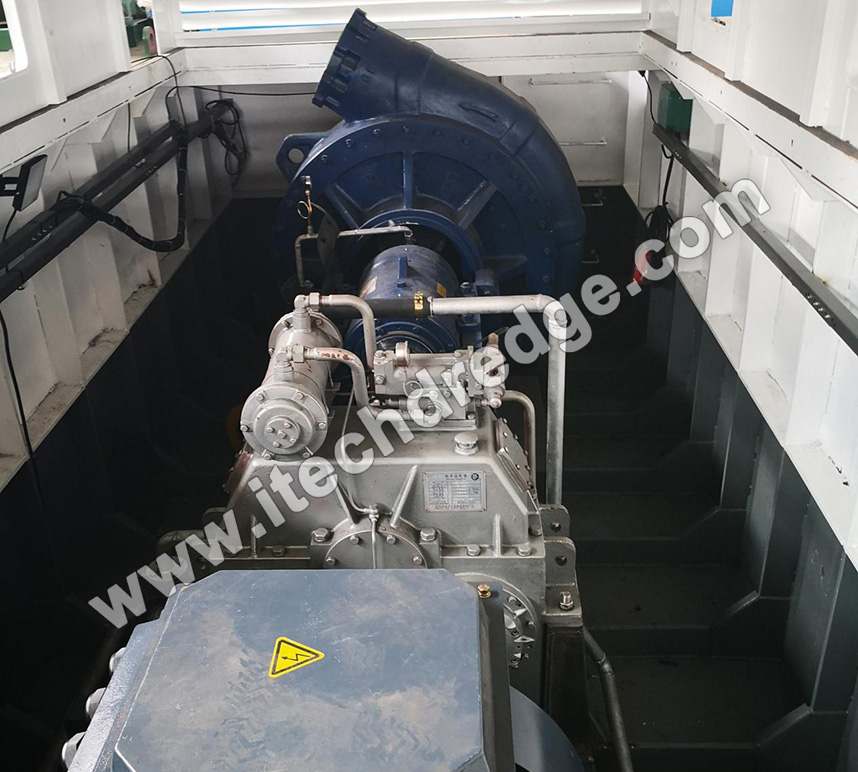

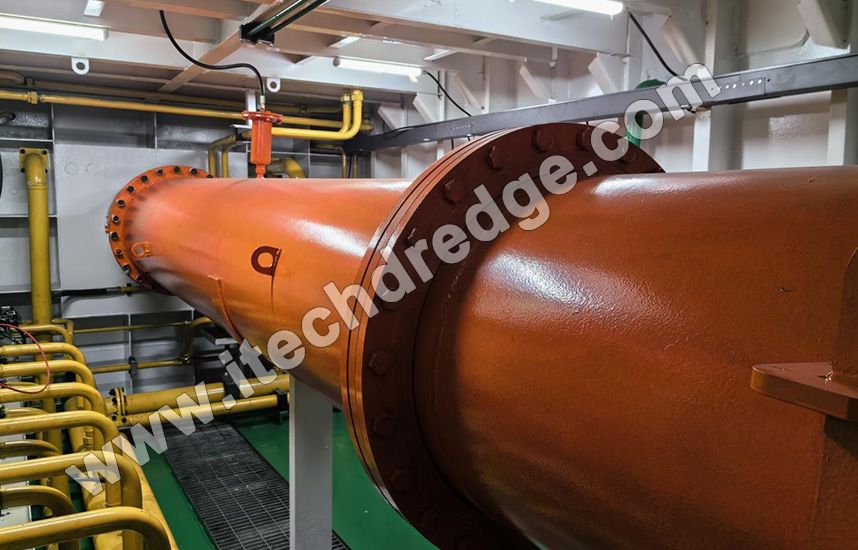

e) Dredge Pump
Type: Centrifugal pump with wear-resistant liners.
CSD500 Specs: 895 kW; 3500-4000 m³/hr capacity; handles 20–30% solids concentration.
f) Hydraulic Power System
Output: 300 kW.
Components: High-pressure pumps, valves, and motors driving winches/cutter.
Efficiency: Variable displacement pumps reduce energy waste.

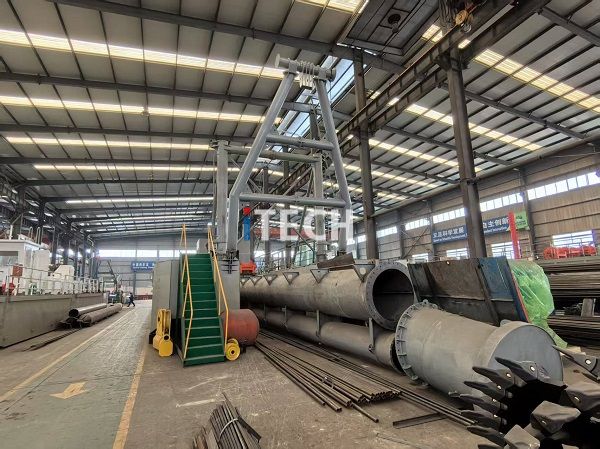

g) Spud Carrier System
Design: Dual spuds (main + auxiliary) on a 10-meter carriage.
Function: "Walking" mechanism advances the dredger without re-anchoring.
CSD500 Advantage: Automated sequencing for uninterrupted operation.
a) Spillage Mitigation
Spillage (uncaptured cut material) reduces efficiency.
Solutions: Optimize cutter speed; position suction mouth close to cutting zone; adjust swing velocity.
b) Production in Breach-Forming Soils
Soils: Sand, gravel, or loose clay that collapses when cut.
Strategy: High swing speeds (10–15 m/min) maximize material flow into the suction pipe.
Output: Up to 800 m³/hr in sand.
c) Production in Non-Breach-Forming Soils
Soils: Stiff clay, rock, or consolidated sediments requiring fragmentation.
Strategy: Slow cutter rotation (15 RPM) with high torque; reduced swing speed (3–5 m/min).
Output: 700-800 m³/hr in hard clay.
d) Specific Energy (SE)
Formula: SE (kWh/m³) = Cutter Power / Production Rate.
Importance: Measures efficiency; lower SE = higher profitability.
CSD500 Target: 0.8–1.2 kWh/m³ in medium soils.
e) Cutting Production Calculation
Key Variables: Cutter power, soil type, swing speed, depth.
Equation:
Production (m³/hr) = Cutter Width × Cut Thickness × Swing Speed × 60
CSD500 Benchmark: 700-800 m³/hr average in mixed soils.

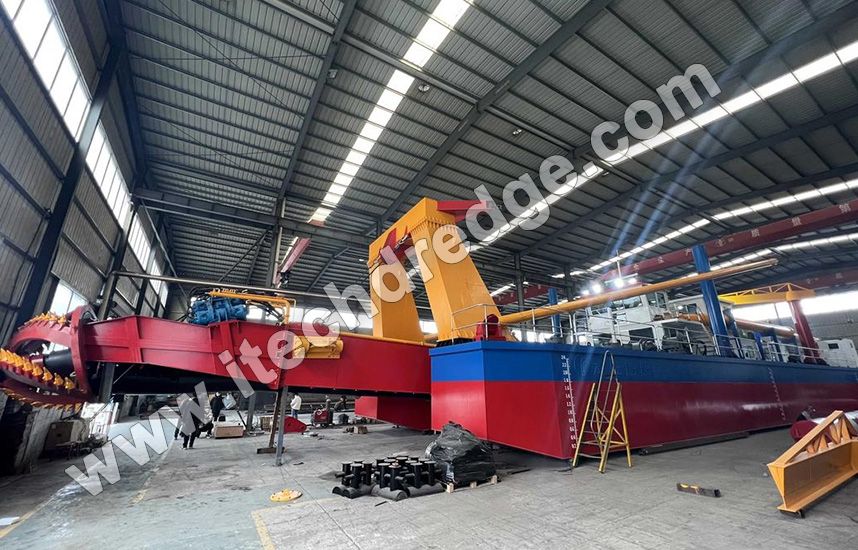

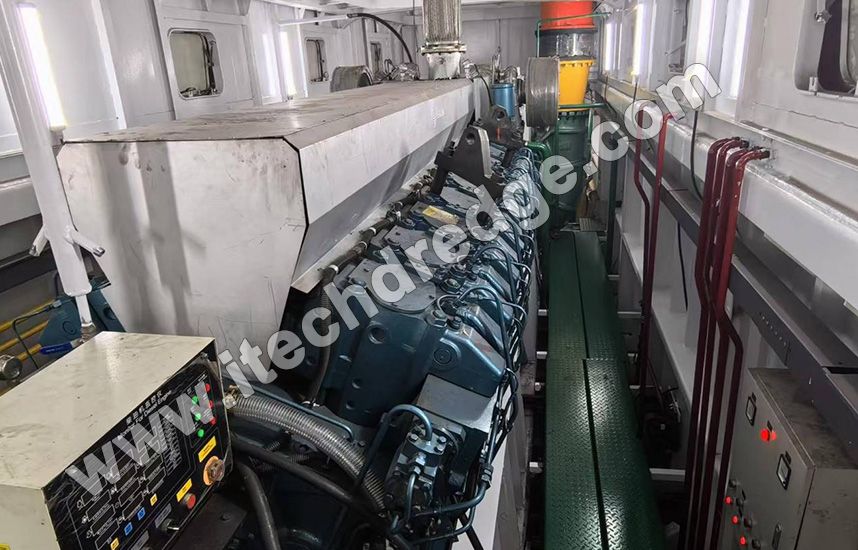

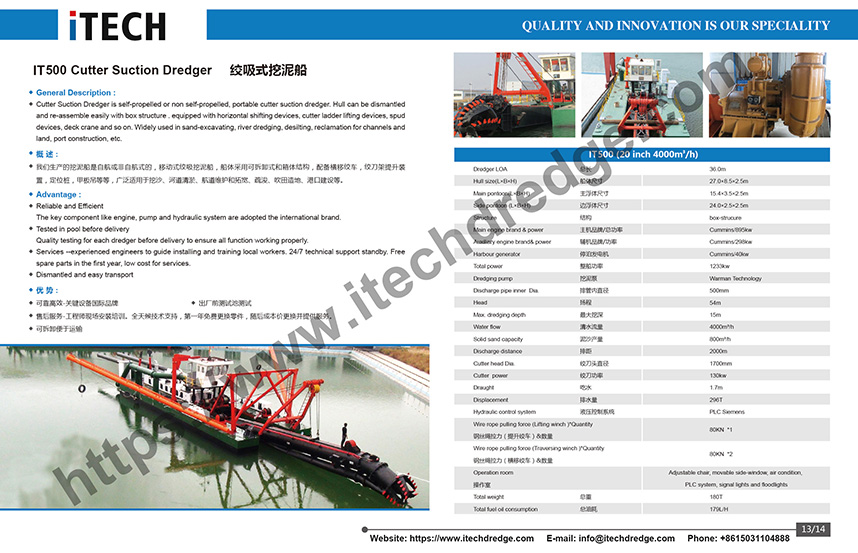

The CSD500 is a diesel-electric, medium-sized cutter suction dredger designed for high maneuverability and sustained output.
Key specifications:
Total Power: 1100-1600 kW (diesel generator).
Dredging Depth: 15 meters (standard), extendable to 18m.
Pipeline Diameter: 500 mm.
Dimensions: 36m (L) × 6.5m (W) × 2.5m.
Crew: 4–6 operators.
Unique Features:
Automated spud carriage sequencing.
Real-time production monitoring via IoT sensors.
Modular cutter heads for rapid soil adaptation.
Choosing among dredger manufacturers demands rigorous evaluation:
a) Technical Fit
Verify CSD500’s specs align with project needs (depth, soil, output).
Demand soil trial data for performance guarantees.
b) Manufacturer Reputation
Prioritize firms with 20+ years in CSD engineering.
Request case studies from similar projects.
c) Support & Logistics
Ensure global spare parts availability.
Confirm training programs for operators.
d) Cost Analysis
Upfront Price: $3M–$5M for CSD500-class dredgers.
Lifetime Cost: Include fuel (50–80 L/hr), maintenance (10–15% of CAPEX/year), and downtime.
e) Technology & Sustainability
Opt for Tier 4 engines (low emissions).
Require automation features (e.g., GPS dredge control).
f) Contract Flexibility
Leasing vs. buying options.
Performance-based payment structures.
Company | CSD Range | Strengths |
IHC | CSD500–CSD1500 | R&D focus; automation |
Damen | CSD500–CSD1200 | Modular design; global service |
Keppel | CSD400–CSD1000 | Custom engineering; hybrid options |
The Cutter Suction Dredger CSD500 epitomizes modern dredging excellence, blending historical engineering principles with cutting-edge automation. From harbor expansions to eco-sensitive projects, its versatility and efficiency make it a prudent investment. When selecting a provider, prioritize technical alignment, lifecycle costs, and manufacturer credibility. As global trade and climate resilience drive dredging demand, the CSD500 stands ready to shape coastlines and waterways with unmatched precision.
