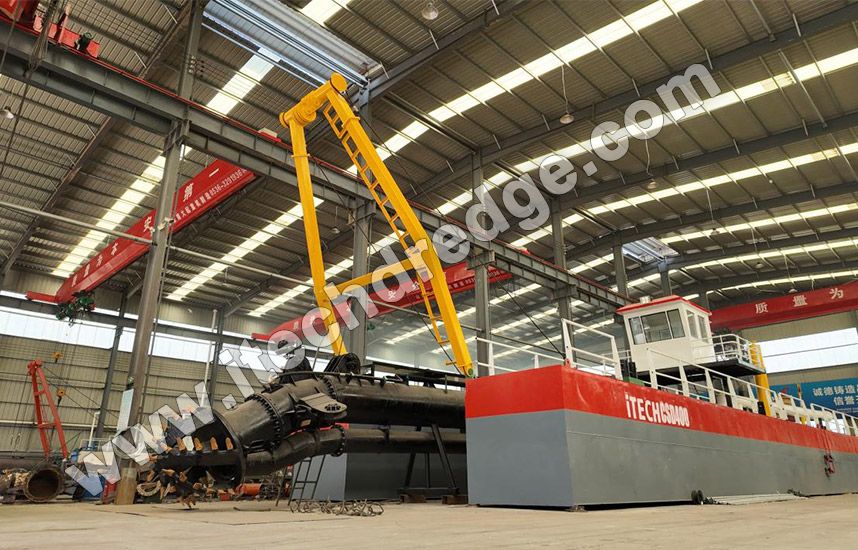

Cutter suction dredgers are a type of hydraulic dredging equipment widely used in various dredging projects. They are highly efficient in excavating and transporting sediment, soil, and even hard rock in water bodies. These dredgers play a crucial role in maintaining waterways, constructing ports, and reclaiming land. With advanced technology, they ensure precise and effective dredging operations.
Cutter suction dredgers feature a rotating cutter head that can break up tough materials. Their powerful dredge pumps are capable of high - volume suction and discharge. They often have a modular and dis-mountable design for easy transportation. Additionally, they are equipped with winches and spuds for stable positioning during operation, ensuring accurate and efficient dredging.
These dredgers find applications in river and canal dredging to maintain water flow and depth. They are essential for port construction and maintenance, deepening berths and fairways. In environmental dredging, they help remove contaminated sediment from lakes and bays. They are also used in mining projects to extract minerals from underwater deposits.
Working Principle of Cutter Suction Dredger

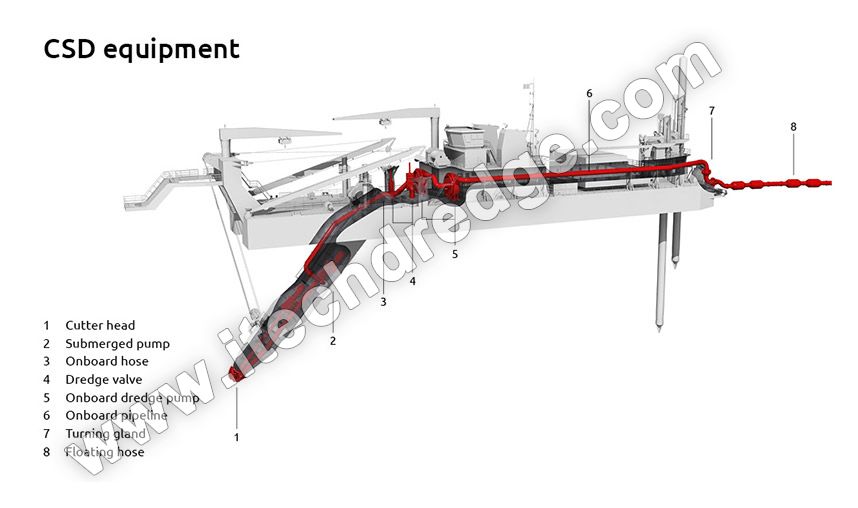

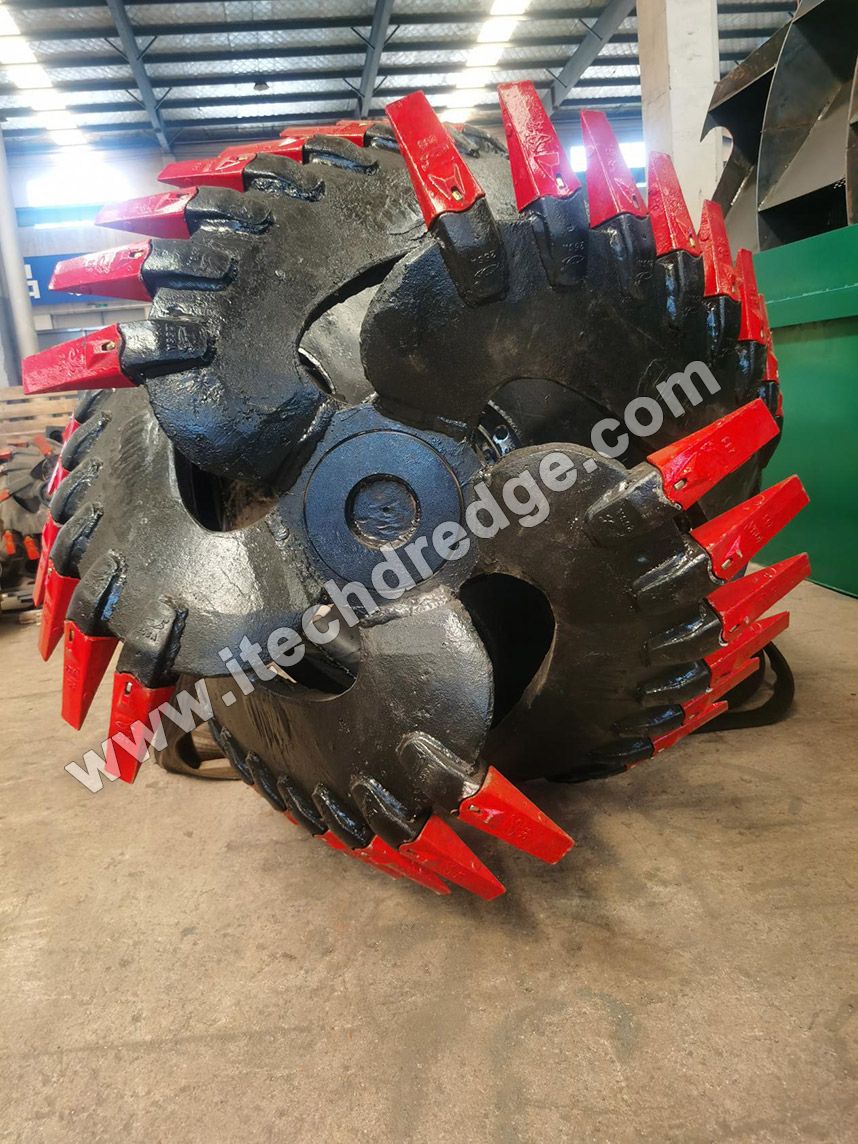

The cutter head, located at the front of the suction pipe, rotates to mechanically break the cohesion of the soil or rock to be dredged. Once the material is fragmented, the dredge pump creates a powerful suction force. This force draws the broken - up material through the suction pipe and then discharges it through pipelines to a designated deposit area, either on - land or in another water area.
A Cutter Suction Dredger (CSD) operates through the coordinated functions of mechanical cutting, hydraulic transportation, and vessel positioning systems, enabling efficient excavation and long-distance transportation of underwater materials. This detailed breakdown covers solid material characteristics, cutter head engineering, sand pump dynamics, hydraulic system designs, and pontoon adaptations for different environments.
1.1 Soil Classification & Treatment:
Cohesive Soils (Silt, Clay): Require low rotation speeds (15–25 rpm) and high torque (50–100 kNm). Cutter heads feature wide-blade designs with (flow channels) to prevent mud adhesion and blockage.
Sandy Soils (Medium-Coarse Sand, Gravel): Use medium-high speeds (30–40 rpm) and dense tooth configurations (5–8 cm spacing). Carbide-tungsten alloy teeth on the head edges enhance abrasion resistance and fragmentation efficiency.
Rock Layers (Compressive Strength ≤50MPa): Demand high speeds (40–60 rpm) and cone-shaped teeth (30°–45° angle). Pre-impact crushing mechanisms reduce motor load during hard material penetration.
Diameter (D): Ranges from 0.8–3.5m, adjusted for dredging depth (10–30m) and material hardness:
Shallow Water (≤15m)/Soft Soils: Smaller diameters (1–1.5m) for maneuverability.
Deep Water/Hard Soils: Larger diameters (2–3m) to maximize single-pass cutting volume (V = πD⊃2;/4 × penetration depth).
Rotating Speed: Hydraulically driven with variable frequency control:
Soft Soils: 20–30 rpm (linear speed 1.5–2.5m/s) to avoid excessive slurry dilution.
Hard Soils: 40–50 rpm (linear speed 3–4m/s) to leverage centrifugal force for improved fragmentation.

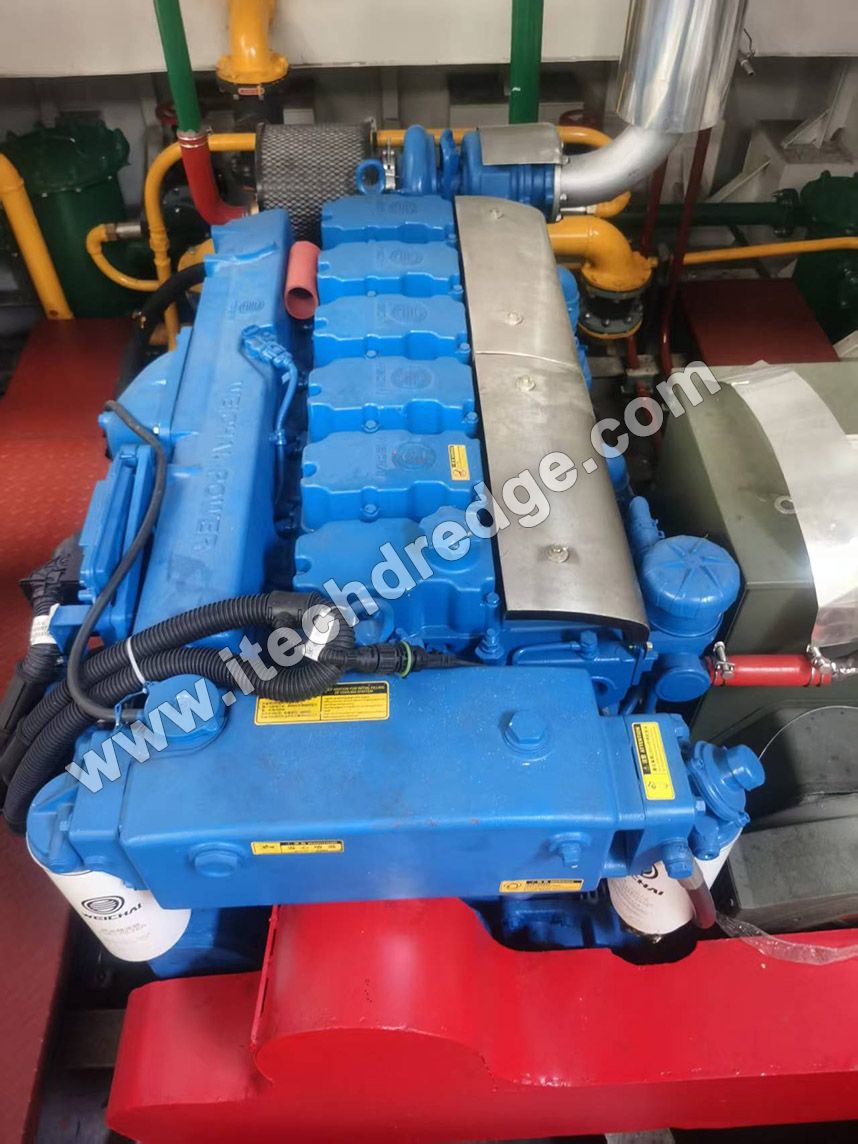

Drive Power: Accounts for 30–50% of total machine power, calculated as:\(P = \frac{k \cdot \rho \cdot V \cdot n^3 \cdot D^5}{1000}\)(k = hardness coefficient: 0.8–1.2 for soft soil, 1.5–2.0 for hard soil; ρ = soil density; n = rotation speed; D = diameter). CSD400 800–1500kW for medium-hard

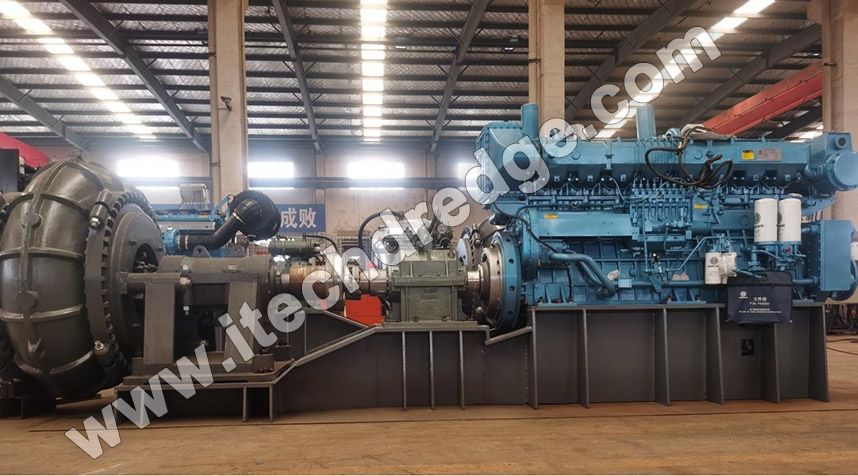

Design Type: Single-stage single-suction centrifugal pump with high-chromium (e.g., ASTM A532 Grade III) impellers, offering ≥2000-hour wear resistance.
Flow Rate (Q): 1500–5000m³/h, determined by impeller diameter (600–1200mm) and speed (1200–1800rpm):\(Q = \frac{\pi D^2 n \eta}{4}\)(η = volumetric efficiency, 0.85–0.92).
Head (H): 40–120m for long-distance delivery (8–15m friction loss per km). Multi-stage pumps are used for high-head requirements.
Suction Performance: Vacuum pressure ≤-0.08MPa; suction pipe diameter 300–800mm. Suction velocity is controlled ≤3m/s to prevent air ingestion, monitored by vacuum gauges and flow sensors.
Pump power calculation:\(P = \frac{\rho g Q H}{\eta_p \eta_m}\)(ρ = slurry density; g = gravitational constant; η_p = pump efficiency; η_m = motor efficiency).
Variable-speed drives adjust pump speed based on slurry concentration (15–40% sediment), achieving 15–25% energy savings. Case: 18% fuel reduction in a port dredging project via intelligent power matching.

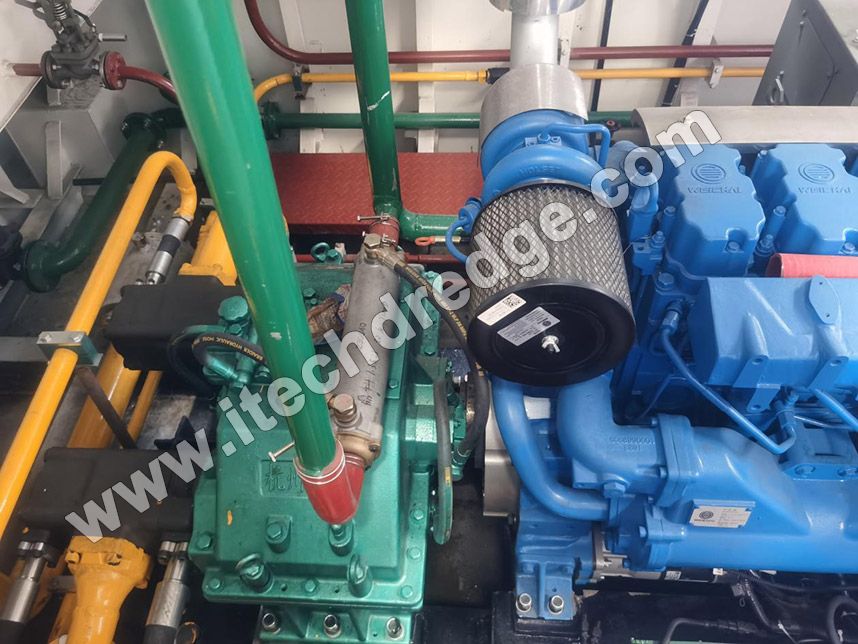

Closed-loop hydraulic circuit with piston pumps (200–500cc/rev), variable motors (30–80kNm torque), and pressure sensors (±1% FS accuracy):
Constant Torque Control: Automatically increases pressure (up to 35MPa) to maintain speed during sudden resistance (e.g., rock impact).
Overload Protection: Relief valves discharge at >40MPa to prevent motor stalling.
Winch Hydraulics: Three-directional winches (traverse, anchor, cutter ladder) use proportional valves for ±0.5m positioning accuracy. Load-sensitive pumps (LS pumps) reduce energy consumption by 30% via dynamic flow adjustment.
Spud Lifting System: Twin-spud hydraulic cylinders (bore 200–300mm, stroke 3–5m) with displacement sensors enable "step-by-step" shifting (0.5–1m per step), ensuring stable positioning on soft seabeds.
For long-distance operations (e.g., cross-sea dredging), hydraulic cylinders adjust spud carrier angles (±15°) to compensate for wave-induced hull motion, maintaining cutter head verticality within ≤1° error.
Positioning: GPS + sonar maps seabed topography; three-spud system (two front, one rear) secures the vessel.
Excavation: Cutter head breaks materials while the sand pump suctions slurry. Concentration sensors feed PLC systems to adjust cutting depth (±5cm accuracy).
Transportation: Slurry is piped to disposal sites via wear-resistant pipes (ceramic/polyurethane liners). Remote monitoring (pressure/flow/concentration sensors) alerts blockage risks.
Relocation: Hydraulic winches adjust anchor cables; spuds shift alternately with dynamic leveling, achieving 50–100m/h positioning efficiency.
Customization: Engineered wear-resistant cutter heads (20% longer life) and high-concentration pumps (≥45% sediment) for Southeast Asian high-sand rivers.
Intelligent Control: Standard IoT monitoring (10Hz data collection), with ≤30s fault diagnosis response.
Cost-Effectiveness: 30–40% lower equipment cost than European/American counterparts, with 25% reduced lifecycle maintenance costs.
Manufacture Period: in general, we can finish cutter suction dredger in 1-2 months.
This technical precision ensures the CSD400 excels in river dredging, port expansion, and land reclamation, making it a preferred choice in global dredging markets.

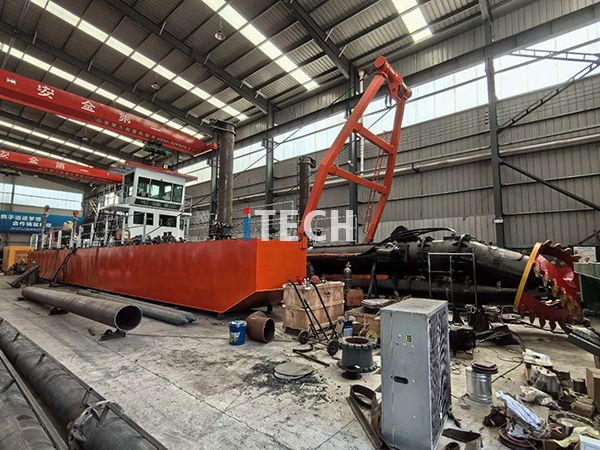

The term "Cutter Suction Dredger 300" typically refers to a CSD model characterized by its dredging performance in discharge diameter, which is approximately 300mm inner discharge diameter.
The "400" in CSD400 typically refers to the dredge output discharge diameter. This naming convention indicates the size/power class of the dredger:
CSD = A stationary dredger that cuts, sucks, and pumps sediment via pipelines.
CSD400 = Cutter suction dredger with a ~400 mm dredge output discharge diameter .
Model | Dredging Capacity | Dredging Depth | Suction/Discharge Pipe Dia. | Engine(s) Power |
CSD-200 | 500 m3 /hr | 1-5 m | 200/200 mm | 160-300 kw |
CSD-250 | 800 m3 /hr | 1-8 m | 250/250 mm | 200-400 kw |
CSD-300 | 1200 m3 /hr | 1-12 m | 300/300 mm | 400-600 kw |
CSD-400 | 2200 m3 /hr | 1.5-14 m | 400/400 mm | 700-1200 kw |
CSD-500 | 3500 m3 /hr | 1.5-15 m | 600/500 mm | 1100-1600 kw |
CSD-650 | 5000 m3 /hr | 1.5-18 m | 650/650 mm | 2200-2500 kw |
CSD-700 | 7000 m3 /hr | 1.5-20 m | 750/700 mm | 2800-3500 kw |
