What is a cutter suction dredger?
The principle of a cutter suction dredger are: loosening the soil by a rotating cutter head, sucking it up by dredging pump through flexible rubber hose, transport the material sand through pipleline, the final destination is either disposal site or a hopper barge.
The purpose of cutter suction dredging is to increase the depth of navigation channels and ensure the safe passage of vessles, and dredging can used used for sand / soil vacumming out of river, land reclamation in lakes and sea. The powerful cutter head are used for where the seabed material is hard, like rock, stone, mudium sand, coral etc.

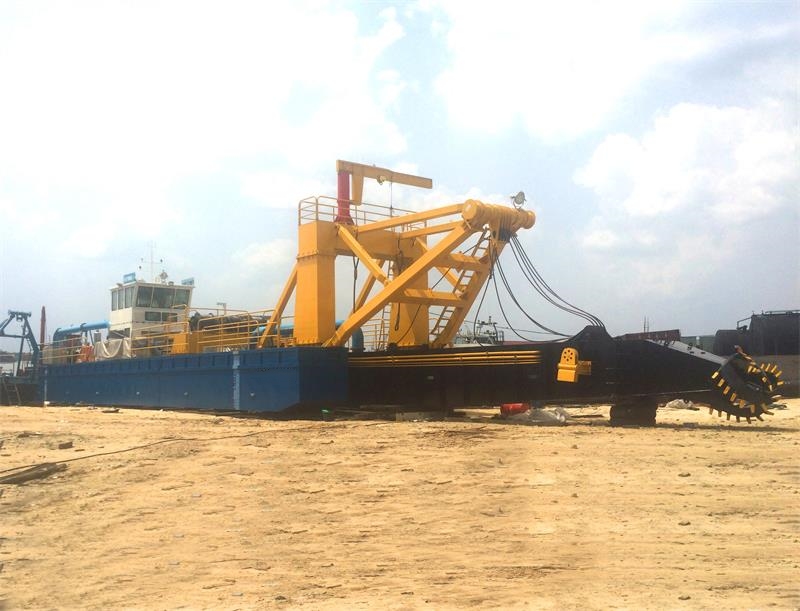

cutter-suction-dredger-CSD650-18m

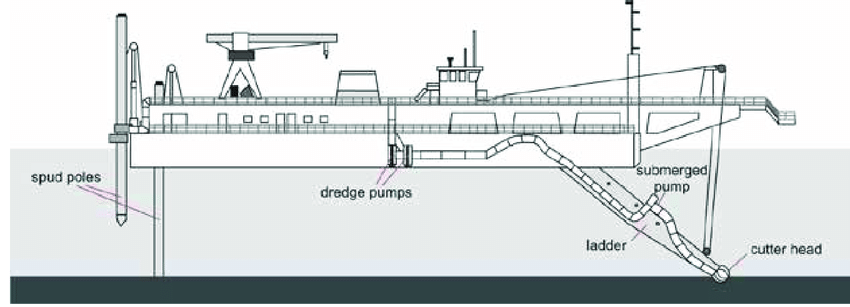

The process of cutter suction dredger works is while operating, a spud will be lowered in the seabed, in order to secure the vessel and kept into a same location, because the cutter suction dredger is the staionary dredger. The dredger swings sideways by hydarulic swing winches, the ladder and cutter head of the dredger lifting up and lower down by hydraulic ladder winch. The rotating cutter head cuts the soil, mixture the solid with water, suction pipe and rubber hose are pressured by the sand dredge pump, and the the sand slurry is pumped out through a pipe line.
Cutter suction dredger CSD650 is standarded with suction depth of 18 meters, with large capacity of 6000 cubic meters per hour, 20% sand production in average, transfer distance 3 kilometers. CSD is the short name of cutter suction dredger, 650 is the diameter of dredger discharge pipe inner diameter, -18 is the suction depth of 18 meters.

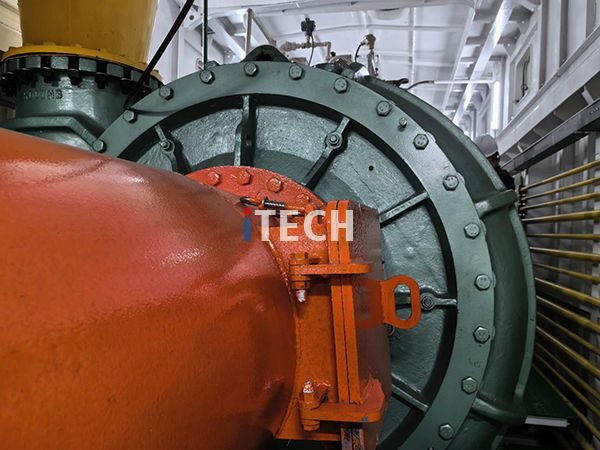

Comparing with CSD650 -25m, the cutter suction dredger 650 -18 only requires one dredge pump, which is installed in board, a submerged dredge pump on the ladder is not in necessary. A powerful cutter head can be customized according to different working environment, with suction inner diameter of 700 mm.
Why choose iTECH dredgers?
iTECH iNTERNATIONAL is in manufacturing cutter suction dredger for 20 years, with research and development in all the dredging equipment with high efficiency, long duration operation, easy maintainence, modern design for mining, sand dredging, reclamation, environmental-friendly dredging projects.
iTECH iNTERNATIONAL has bulit customer reputation on dredging equipment worldwide, as a Chinese dredging manufacture company, we supply all kind of cutter suction dredgers, jet suction dredgers, and dredging equipments to Chinese market. More than that, we can build long-term business in the countries of USA, Europe, Africa, Asian Pacific.
Every single dredging products from iTECH dredging company will be fully tested before delivery, and we have build strong production capacity in order to reduce the manufacture cycle and cut the delivery time. We have established after-sales services in main sales regions for customers.
Available options:
Increased dredging depth
Submersible dredge pump unit
Anchor booms
Deck crane
Production & position visualisation
Dredge performance
Pipe diameter: 650 mm
Dredge production: 600 m³/h
Dredging depth: 18 m
Swing width: 63 m
Equipment
Cutter power: 700 kW
Cutter diameter: 2100 mm
