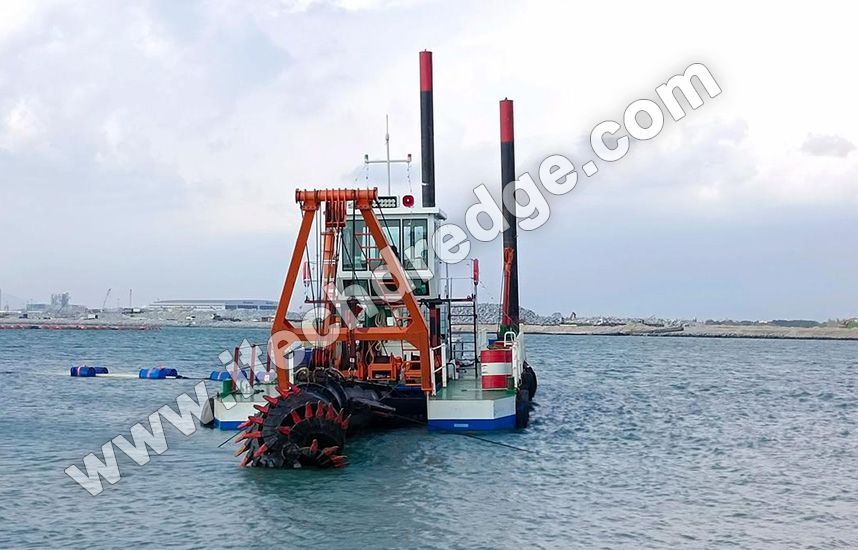

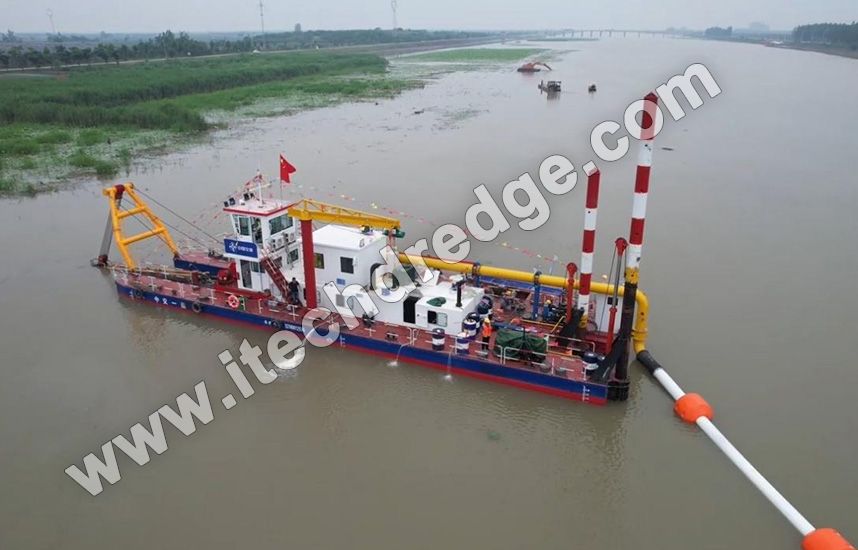

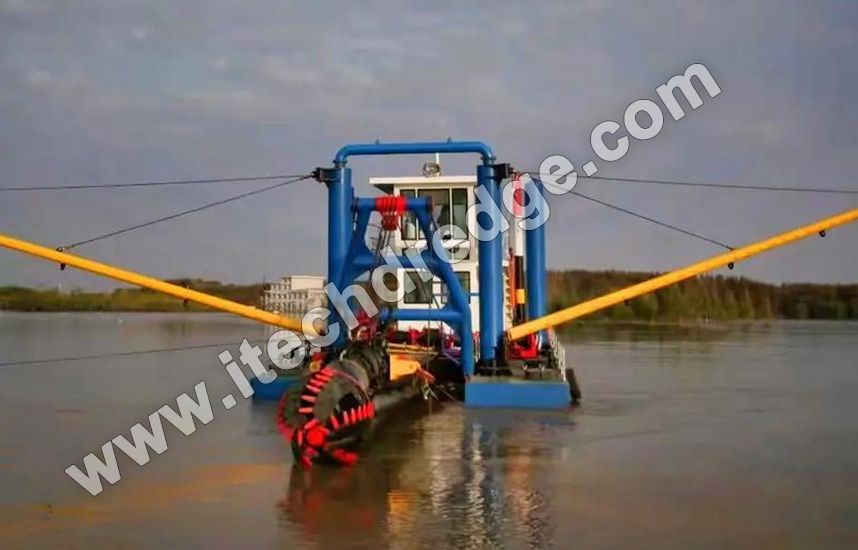

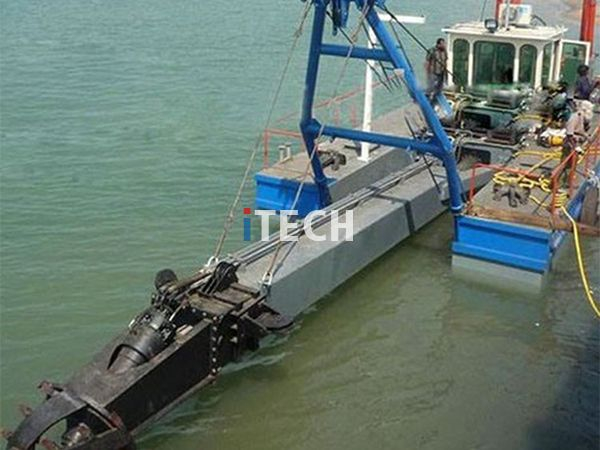

The CSD450 cutter suction dredger represents cutting-edge dredging equipment designed for high-efficiency sediment removal. A cutter suction dredger operates using a rotating cutter head that excavates material while powerful pumps transport slurry through pipelines. This self-propelled vessel excels in challenging environments where precision dredging is required. The working method involves systematic cutting, suction, and transportation - the rotating cutter loosens soil, suction pipes draw the sediment-water mixture, and discharge pipelines transport it to disposal areas. Hydraulic spuds provide stability during operations while winches enable precise positioning.

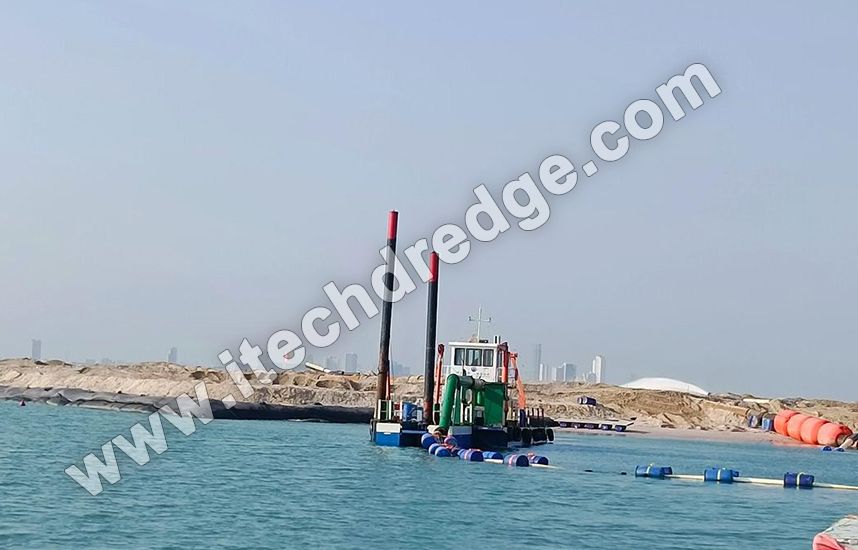

Application areas for this versatile cutter suction dredger include port and harbor deepening, river navigation channel maintenance, land reclamation projects, mining operations, environmental remediation, and beach nourishment initiatives. The adaptability of modern cutter suction dredgers makes them indispensable for infrastructure development, particularly in the rapidly expanding China dredger market where coastal development projects demand reliable dredging equipment.
The CSD450 cutter suction dredger incorporates innovative engineering to deliver exceptional performance. Key specifications position this dredging equipment as industry-leading:
Dredging Capacity: 600 m³/hour production rate
Dredging Depth: 15-20-meter maximum operating depth
Soil Type Compatibility: Handles sand, clay, gravel, and consolidated soils
Cut Width: 30-50 meter swath coverage per pass
Transport Distance: 5,000-meter pipeline transfer capability with booster pump station
Site Access: Modular design enables rapid deployment
This cutter suction dredger features optimized hull geometry for stability in turbulent waters and advanced automation systems for operational efficiency. The CSD450's cutter head adapts to varying soil conditions through interchangeable tool configurations, while its dredge pump maintains constant flow velocity to prevent pipeline sedimentation. The spud carriage system allows smooth advancement during cutting operations, and the diesel-electric power plant delivers 900-1300 kW with Tier III emissions compliance. These design elements make this dredging equipment particularly competitive in the China dredger market where large-scale coastal infrastructure projects demand high productivity.
Understanding the main components reveals why the CSD450 excels as premium dredging equipment:

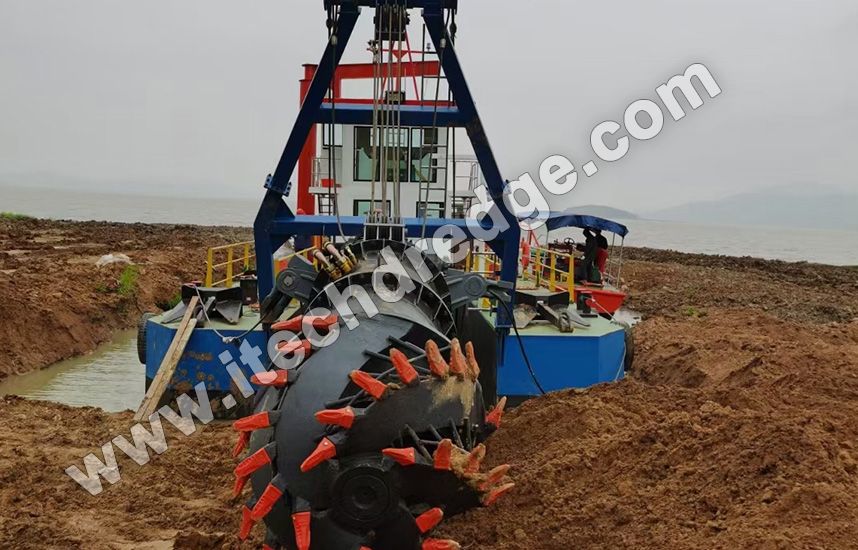

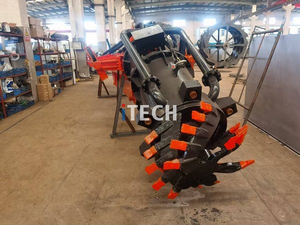

Cutter Head: Features tungsten-carbide tipped teeth with multiple configuration options for different soil types, mounted on a reinforced ladder structure

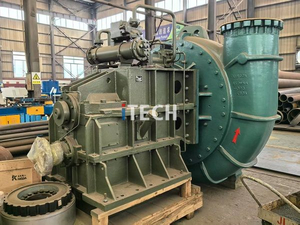

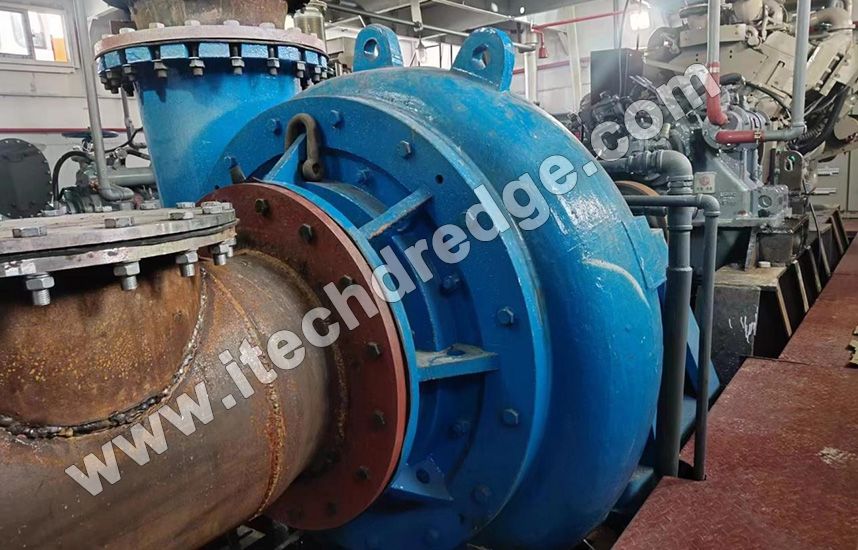

Dredge Pump: High-chrome alloy construction with wear-resistant linings handles abrasive slurries at 3,000 m³/hour capacity
Power Plant: Tier III compliant diesel engine with integrated power management system
Positioning Winches: Dual-drum configuration with dynamic braking and 50-tonne pulling capacity
Spud System: Telescopic spuds provide 15-meter penetration depth with hydraulic clamping
Hydraulic Cylinders: Precision-controlled ladder positioning with position feedback sensors
Spud Carriage: Rail-mounted system with rack-and-pinion drive for smooth advancement
Each component in this cutter suction dredger undergoes rigorous testing to ensure maximum durability. The hydraulic system operates at 350-bar pressure with redundant circuits for critical functions, while the control cabin integrates comprehensive monitoring systems. These engineering standards reflect advancements in the China dredger market where component reliability directly impacts project timelines.
Choosing optimal dredging equipment requires careful evaluation of project parameters against cutter suction dredger capabilities:
Key Selection Factors:
Depth Requirements: Match project depth to dredger's maximum operating depth
Soil Classification: Verify cutter head compatibility with site-specific materials
Production Targets: Ensure hourly capacity meets project timelines
Disposal Distance: Confirm pump performance for pipeline transport
Mobilization Constraints: Consider modularity for remote site access
450mm discharge pipeline diameter
Automated cutter head pressure monitoring
Remote diagnostics and performance optimization
ECO-mode reduces fuel consumption by 18%
Integrated GPS dredge tracking system
Comprehensive spare parts network
This cutter suction dredger particularly suits medium-to-large scale projects requiring continuous operation. Its 1,500 m³/hour capacity handles demanding schedules while maintaining precision cutting. The competitive pricing structure through China dredger market channels makes this dredging equipment accessible for international infrastructure projects.
Detailed cutter suction dredger schematics provide essential engineering insights for project planning. The CSD450 technical drawings package includes:
Dimensional drawings with principal measurements (length overall, hull dimensions, cutter reach)
Hydraulic system schematics showing valve configurations and pressure parameters
Pump curve performance charts for various mixture densities
Electrical system layouts with power distribution details
Structural reinforcement maps for critical stress areas
Component assembly diagrams for maintenance planning
| Model | Dredging Capacity | Dredging Depth | Suction/Discharge Pipe Dia. | Engine(s) Power |
| CSD-200 | 500 m3 /hr | 1-5 m | 200/200 mm | 160-300 kw |
| CSD-250 | 800 m3 /hr | 1-8 m | 250/250 mm | 200-400 kw |
| CSD-300 | 1200 m3 /hr | 1-12 m | 300/300 mm | 400-600 kw |
| CSD-400 | 2200 m3 /hr | 1.5-14 m | 400/400 mm | 700-1200 kw |
| CSD-500 | 3500 m3 /hr | 1.5-15 m | 600/500 mm | 1100-1600 kw |
| CSD-650 | 5000 m3 /hr | 1.5-18 m | 650/650 mm | 2200-2500 kw |
| CSD-700 | 7000 m3 /hr | 1.5-20m | 750/700 mm | 2800-3500 kw |
These technical documents demonstrate the engineering sophistication behind Chinese dredging equipment. The cutter suction dredger drawings facilitate transport planning through weight distribution diagrams and highlight accessibility points for component servicing. Project engineers can accurately plan pipeline routing using discharge connection details and verify site suitability through hull draft specifications. The comprehensive documentation available for this cutter suction dredger exemplifies the standardization emerging in the China dredger market.
The China dredger market has transformed global dredging through manufacturing excellence and technological innovation:
Manufacturing Advantages:
Cost-efficient production without quality compromise
Integrated supply chains reducing lead times by 40%
Custom fabrication capabilities for project-specific requirements
Large-scale testing facilities simulating extreme conditions
Streamlined logistics for global equipment delivery
Technological Leadership:
AI-assisted dredge route optimization systems
Remote operation capabilities with real-time monitoring
Automated sediment density adjustment
Hybrid diesel-electric power configurations
Advanced anti-corrosion treatments for extended service life
Market Position:
Supplies 65% of global cutter suction dredgers
15% annual growth in dredging equipment exports
Government-supported R&D initiatives
Complete life cycle service packages
Competitive financing solutions
The China dredger market offers unparalleled value through economies of scale and engineering expertise. Chinese cutter suction dredgers like the CSD450 incorporate these advantages while maintaining international quality standards. Domestic infrastructure projects provide testing grounds for innovations that subsequently benefit global customers. The combination of technical sophistication and cost efficiency makes Chinese dredging equipment increasingly preferred for international tenders.
The cutter suction dredger segment continues evolving with automation and sustainability trends. The CSD450 platform incorporates these developments through its modular design allowing future upgrades. As environmental regulations tighten globally, Chinese manufacturers lead in developing eco-friendly dredging equipment with reduced emissions and enhanced efficiency. The China dredger market is projected to grow at 8.5% CAGR through 2030, driven by domestic infrastructure initiatives and expanding international demand. This growth will further cement China's position as the primary source for high-performance, cost-effective cutter suction dredgers suitable for diverse dredging applications worldwide.
