Meta Description: Explore the iTECH CSD-200 Cutter Suction Dredger. Engineered for efficiency in sand, silt, and clay removal. Featuring 450 kW power, 15m dredging depth, and a production capacity of up to 150 m³/h. Built for reliability and performance.

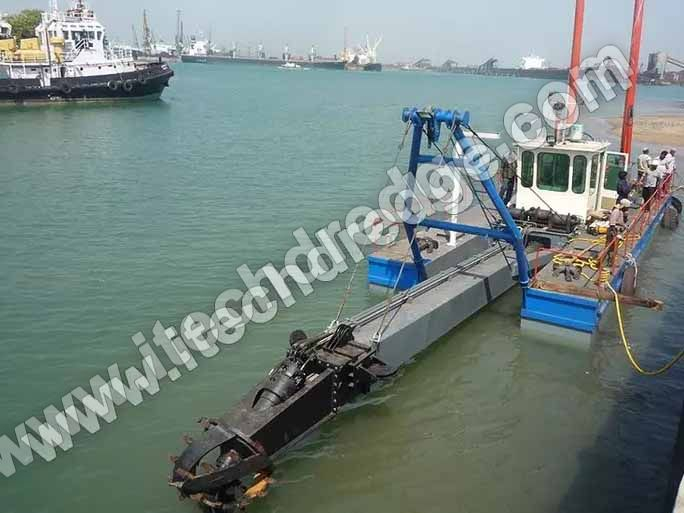

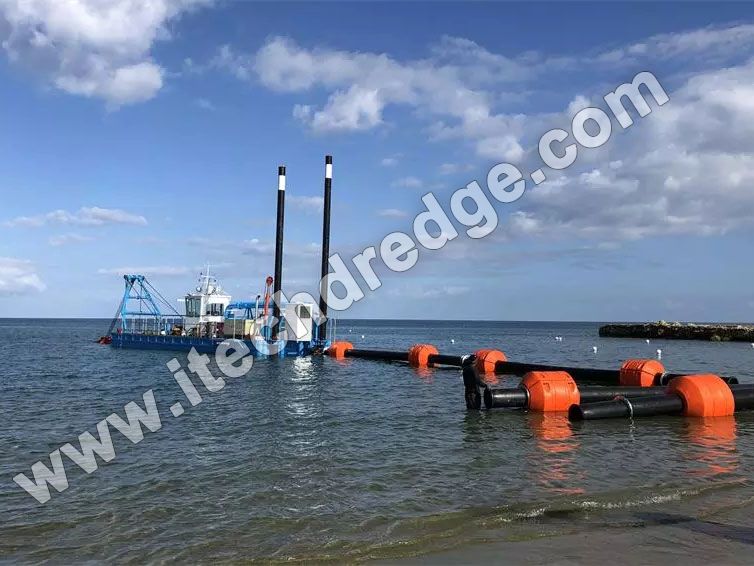

Welcome to iTECH, a global leader in the design and manufacture of high-performance dredging equipment. Our flagship iTECH CSD-200 Cutter Suction Dredger represents the perfect synergy of robust engineering, operational efficiency, and innovative technology. Designed for a wide range of applications including river dredging, lake rehabilitation, port construction, and land reclamation, the CSD-200 is the industry's choice for medium-scale projects demanding reliability and high output.
The iTECH CSD-200 is packed with features designed to maximize productivity and minimize downtime.
High-Torque Cutter System: Our custom-designed cutter head, with optional ladders for different soil types (standard, rock, or eco-friendly), delivers superior cutting performance, efficiently breaking up compacted materials.
Diesel-Hydraulic Power Plant: A centralized, fuel-efficient diesel power module drives all systems (dredge pump, cutter, winches), ensuring seamless synchronization and reduced maintenance.
Advanced Winch & Spud System: Precisely control the dredge's positioning with our powerful, variable-speed winches and a robust A-frame spud system, allowing for accurate and efficient swinging operations.
Operator-Centric Control Cabin: The sound-proofed, climate-controlled cabin offers an ergonomic layout with intuitive joystick controls and real-time monitoring of all critical parameters (pressure, vacuum, engine RPM).
To ensure you have all the data for informed decision-making, here are the comprehensive specifications for the CSD-200 model.
Dredger 200 Cutter Suction Dredger Id:
| Parameter | Specification | |
|---|---|---|
| Discharge Pipe Diameter | 200 mm (8 Inches) | |
| Dredging Depth | Standard: 9 meters | Optional: Up to 15 meters |
| Total Installed Power | 450 kW (604 HP) | |
| Main Dredge Pump Power | 220 kW (295 HP) | |
| Cutter Power | 75 kW (100 HP) | |
| Cutter Max. Speed | 0-25 RPM (Variable Speed Control) | |
| Theoretical Production Capacity | 80 - 150 cubic meters per hour (Varies with material) | |
| Winch Pulling Force | 4 x 5 Ton Winches (Standard) | |
| Overall Dimensions (LxW) | Approx. 18m x 5.5m (Pontoon Size) | |
| Floatation | Modular Pontoon Design for easy transport and assembly |
The iTECH CSD-200 is engineered for tangible results. Our performance data, based on in-field operations, demonstrates its capability:
In Sand & Silt: Achieve production rates of 120 - 150 m³/h with a solids concentration of 20-30%.
In Medium Clay: Expect consistent outputs of 70 - 100 m³/h, thanks to the high-torque cutter and powerful suction pump.
Discharge Distance: Efficiently transport slurry over distances of up to 1.5 kilometers with a standard pump setup. Longer distances are achievable with a booster station.
The CSD-200's adaptability makes it an invaluable asset for numerous projects:
Environmental Dredging: Safely remove contaminated sediments for lake and pond cleanup.
Infrastructure Development: Execute precise dredging for port expansions, marina construction, and bridge pier protection.
Sand Mining & Aggregate Extraction: Efficiently extract sand and gravel for commercial use.
Waterway Management: Maintain navigation channels, irrigation canals, and flood control channels by removing siltation.
Selecting an iTECH dredger means investing in more than just machinery; it's a partnership for your project's success.
Proven Reliability: Built with premium-grade components and a reinforced steel structure for operation in demanding environments.
Ease of Transportation & Assembly: The modular pontoon design allows for quick disassembly, easy transport to remote sites, and rapid reassembly, saving you time and money.
Comprehensive Support: iTECH provides unparalleled after-sales service, including global technical support, a readily available parts inventory, and optional operator training programs.
Customizable Solutions: While the CSD-200 is a standard model, we offer a range of optional extras—from different cutter heads to advanced automation systems—to tailor the dredger to your specific project needs.
The iTECH CSD-200 Cutter Suction Dredger is more than a product; it's a productivity solution. It embodies our commitment to quality, innovation, and customer satisfaction.
Ready to enhance your dredging operations? Contact the iTECH team today for a detailed quotation, a project consultation, or to arrange a live demonstration of the CSD-200 in action.
iTECH - Engineering Your World, Above and Below the Water.
