A Cutter Suction Dredger (CSD) is a specialized marine vessel designed for underwater excavation and material transport.
Its core function is to remove sediment, soil, or rock from the bottom of water bodies—such as rivers, ports, lakes, and seas—and discharge it to a designated location, either through pipelines or barges.
Equipped with a rotating cutter head at the front of a suction pipe, the CSD breaks up dense materials into a slurry (a mixture of solids and water), which is then pumped for disposal or reuse.
These vessels are pivotal in infrastructure projects like port expansion, land reclamation, river maintenance, and environmental remediation, combining precision, power, and adaptability for complex hydrographic tasks.
The operation of a CSD involves a systematic process of cutting, suction, and discharge:
Anchoring: The dredger stabilizes itself using spuds (vertical steel poles driven into the seabed) or a network of anchors and winches, ensuring stability during excavation.
Cutting: The motorized cutter head rotates to break down tough materials—from soft silt to hard rock—into smaller particles, creating a slurry.
Suction: A high - capacity centrifugal pump generates suction force to draw the slurry through the suction pipe, which connects the cutter head to the discharge system.
Discharge: The slurry is either pumped through pipelines to onshore disposal/fill sites (for distances up to several kilometers) or loaded onto barges for offshore transport.
Repositioning: The dredger adjusts its position by lifting and reinserting spuds or adjusting anchor cables, allowing continuous excavation in a controlled, swinging motion.
CSDs are versatile workhorses across multiple industries:
Marine Infrastructure: Deepening port channels, maintaining harbor basins, and expanding coastal terminals to accommodate larger vessels.
Land Reclamation: Excavating seabed material to create new land for industrial zones, residential developments, or coastal protection projects.
Environmental Projects: Removing contaminated sediments from lakes/estuaries, restoring natural water flow in rivers/canals, and mitigating flood risks by clearing silt buildup.
Mining & Resource Extraction: Harvesting underwater minerals (e.g., sand, gravel, or placer deposits) for construction or industrial use.
The working principle of a CSD revolves around two core mechanisms:
Mechanical Cutting: The cutter head, outfitted with replaceable teeth or blades, mechanically disintegrates the seabed material. The design of the cutter—including tooth shape, spacing, and power output—varies based on the material hardness (e.g., broad teeth for sand, carbide - tipped teeth for rock).
Hydraulic Suction: The suction pump creates a pressure differential that pulls the slurry through the pipeline. The pump’s capacity (measured in m³/h) and head pressure (determining discharge distance) are critical for efficiency, with modern CSDs using energy - efficient diesel - electric or hybrid systems to optimize performance.
CSDs offer distinct operational and economic benefits:
High Productivity: Capable of processing up to tens of thousands of cubic meters of material daily, ideal for large - scale projects with tight deadlines.
Precision Control: Spud - based positioning and automated navigation systems enable accurate dredging to specified depths and shapes, minimizing over - excavation.
Material Versatility: Effective in a wide range of substrates, from cohesive clays to abrasive gravels, with adjustable cutter heads and pump settings to match project needs.
Cost Efficiency: Direct pipeline discharge reduces reliance on barges and transport vessels, lowering operational costs. Fuel - efficient engines and long - lasting components further enhance cost - effectiveness.
Environmental Friendliness: Modern CSDs incorporate features like enclosed cutter heads to reduce turbidity, oil - water separators to prevent pollution, and compliance with strict emission standards (e.g., IMO Tier IV).
A CSD's performance hinges on its specialized components:

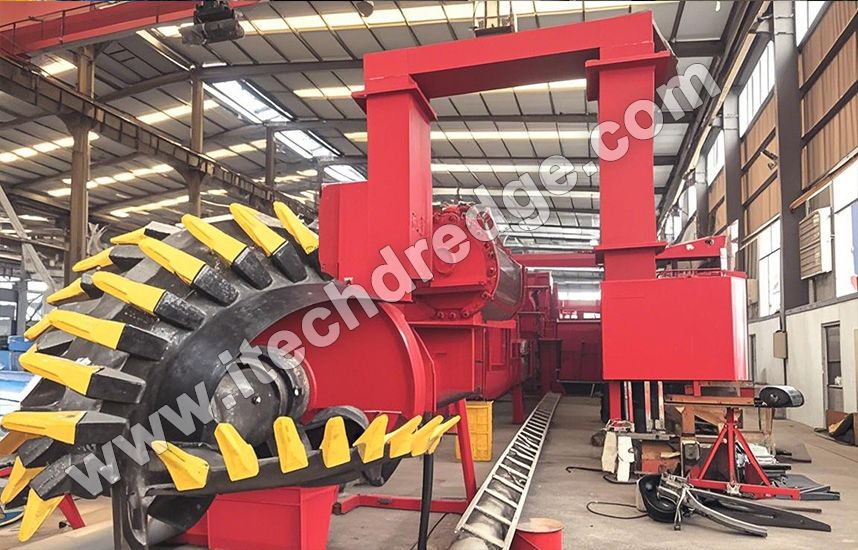

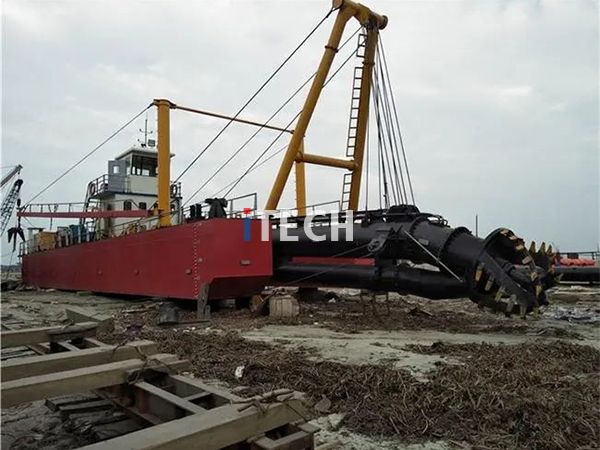

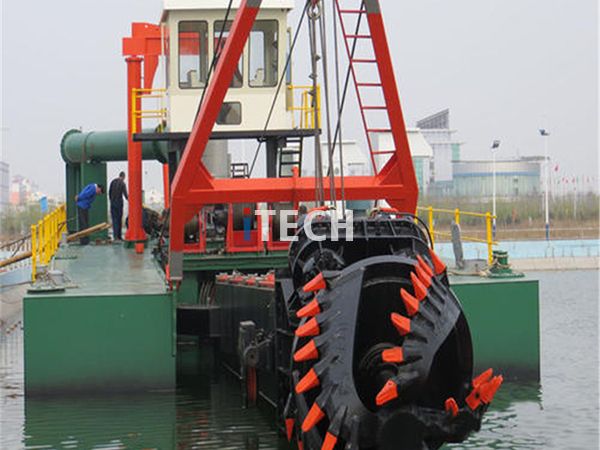

Cutter Head: The primary excavation tool, available in various designs (e.g., open - type for soft sediments, closed - type for hard materials) with replaceable wear parts to extend lifespan.
Suction Pipe & Ladder: The ladder supports the suction pipe and cutter head, allowing adjustable dredging depths. The pipe is lined with abrasion - resistant materials (e.g., rubber or steel alloys) to withstand slurry erosion.

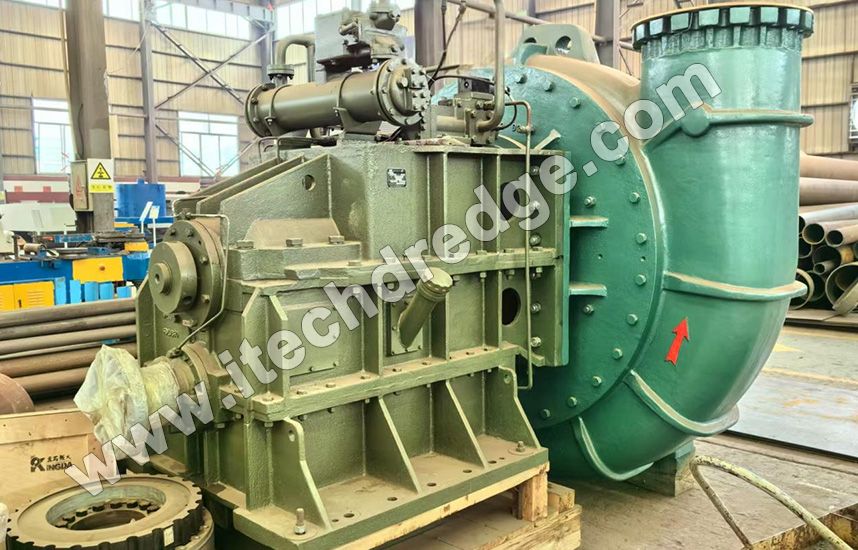

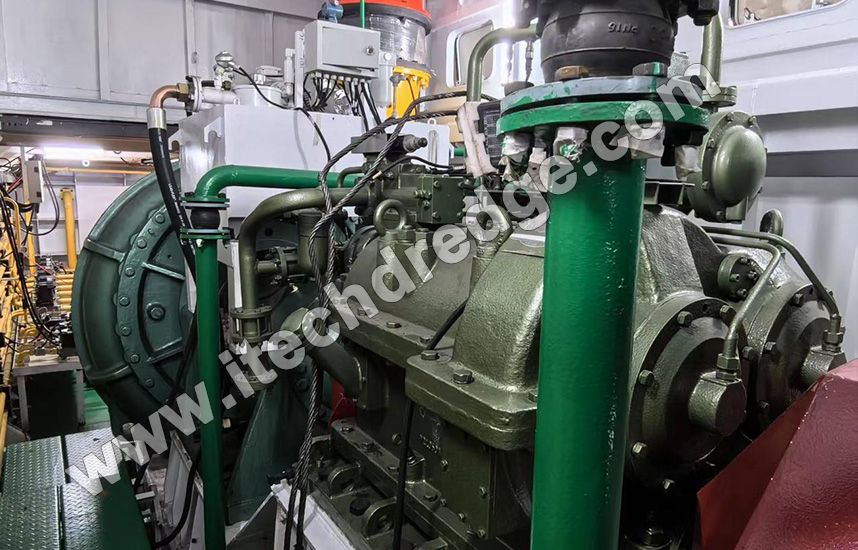

Suction Pump: A heavy - duty centrifugal pump, often driven by diesel engines or electric motors, designed to handle high - density slurries with minimal clogging.
Spuds & Winches: Spuds provide vertical stability, while winches and anchor cables control horizontal movement, enabling the dredger to “walk” across the work area in a stepwise fashion.
Control System: Modern CSDs feature integrated PLC (Programmable Logic Controller) systems with real - time monitoring of dredging depth, pump pressure, and cutter torque, enhancing safety and efficiency.
Model | Dredging Capacity | Dredging Depth | Suction/Discharge Pipe Dia. | Engine(s) Power |
CSD-200 | 500 m3 /hr | 1-5 m | 200/200 mm | 160-300 kw |
CSD-250 | 800 m3 /hr | 1-8 m | 250/250 mm | 200-400 kw |
CSD-300 | 1200 m3 /hr | 1-12 m | 300/300 mm | 400-600 kw |
CSD-400 | 2200 m3 /hr | 1.5-14 m | 400/400 mm | 400-600 kw |
CSD-500 | 3500 m3 /hr | 1.5-15 m | 600/500 mm | 1100-1600 kw |
CSD-650 | 5000 m3 /hr | 1.5-18 m | 650/650 mm | 2200-2500 kw |
CSD-700 | 7000 m3 /hr | 1.5-20 m | 750/700 mm | 2800-3500 kw |

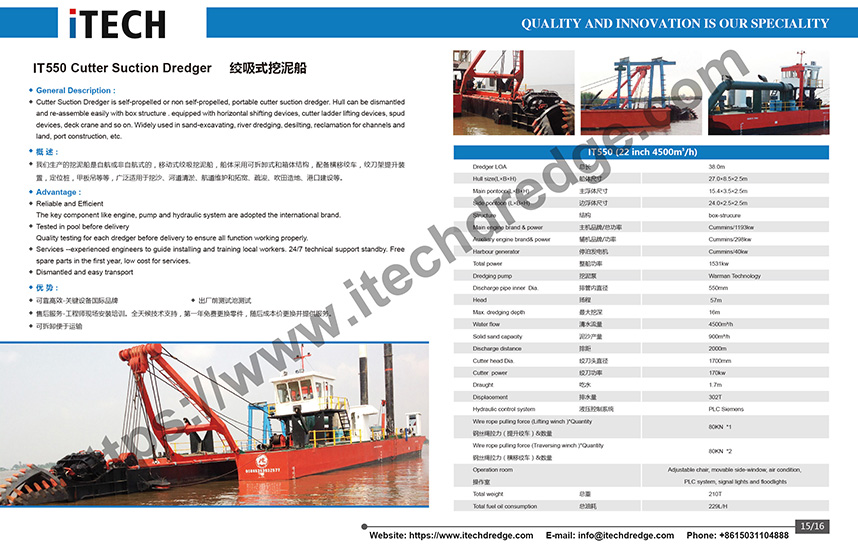

The CSD550 stands out as a premium - class dredger with cutting - edge specifications:
Powerful Performance: A 1,200 kW cutter motor and 4,000 m³/h pump capacity ensure rapid material processing, even in dense or rocky substrates.
Deep Dredging Capability: Capable of excavating to depths of 15 meters, making it suitable for offshore projects and deep - water port maintenance.
Intelligent Automation: A state - of - the - art navigation and control system with GPS integration allows precise positioning and real - time adjustment of dredging parameters, reducing operator error.

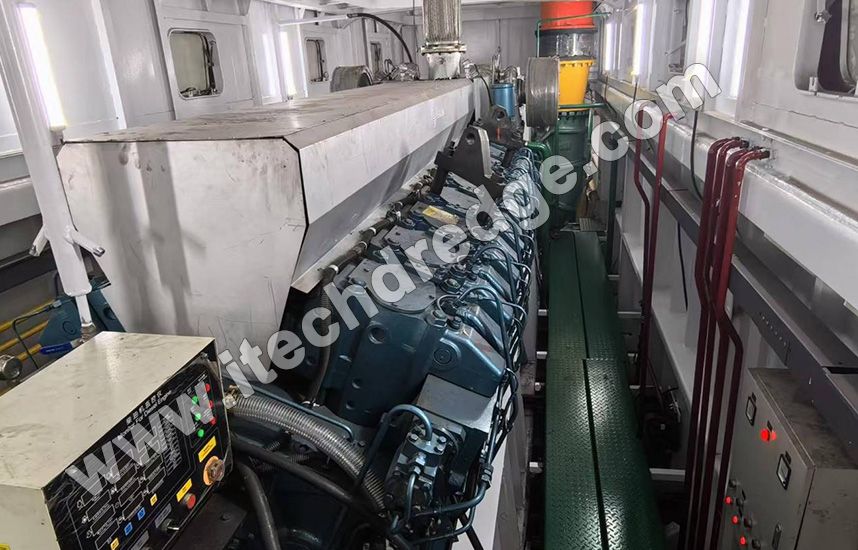

Fuel - Efficient Design: Tier IV - compliant diesel - electric engines minimize emissions and fuel consumption, aligning with global environmental standards.
Robust Construction: A reinforced steel hull and corrosion - resistant coatings ensure durability in harsh marine environments, while modular components simplify maintenance and parts replacement.
Adaptable Configuration: Customizable cutter heads, pipeline lengths, and discharge options (e.g., booster pumps for extended transport) make the CSD550 suitable for diverse project scopes.
Choosing the right CSD involves evaluating technical, commercial, and service factors:
Project Requirements: Define your needs first—dredging depth, material type, discharge distance, and productivity goals. For example, shallow river projects may prioritize maneuverability, while offshore tasks require deep - water capability.
Manufacturer Expertise: Look for suppliers with a proven track record in designing CSDs, especially those with experience in your target industry (e.g., port construction, environmental dredging). Check for certifications (ISO 9001, DNV GL) and case studies of similar projects.
Customization Options: A reputable manufacturer will offer tailored solutions—such as upgraded pumps for high - density slurries or specialized cutter heads for abrasive materials—to match your project’s unique challenges.
After - Sales Support: Ensure access to 24/7 technical service, a global network of spare parts, and operator training programs. Long - term maintenance contracts can also reduce downtime and extend the dredger’s lifespan.
Cost - Benefit Analysis: Compare upfront costs with long - term efficiency. A slightly more expensive CSD with lower fuel consumption and higher durability may offer better ROI than a budget model with frequent breakdowns.
Environmental Compliance: Verify that the dredger meets local and international emissions and pollution control standards, especially for projects in ecologically sensitive areas.
By prioritizing these factors, you can select a cutter suction dredger that not only meets your operational needs but also delivers lasting value for your business.
