In the intricate and dynamic world of dredging operations, cutter suction dredgers stand as essential workhorses. iTECH Dredge, a leading force in the dredging industry, recognizes the significance of these highly versatile machines and their adaptability to diverse dredging scenarios. This article will comprehensively explore cutter suction dredgers, with a particular focus on the crucial question of whether their operating parameters can be adjusted during the work process.

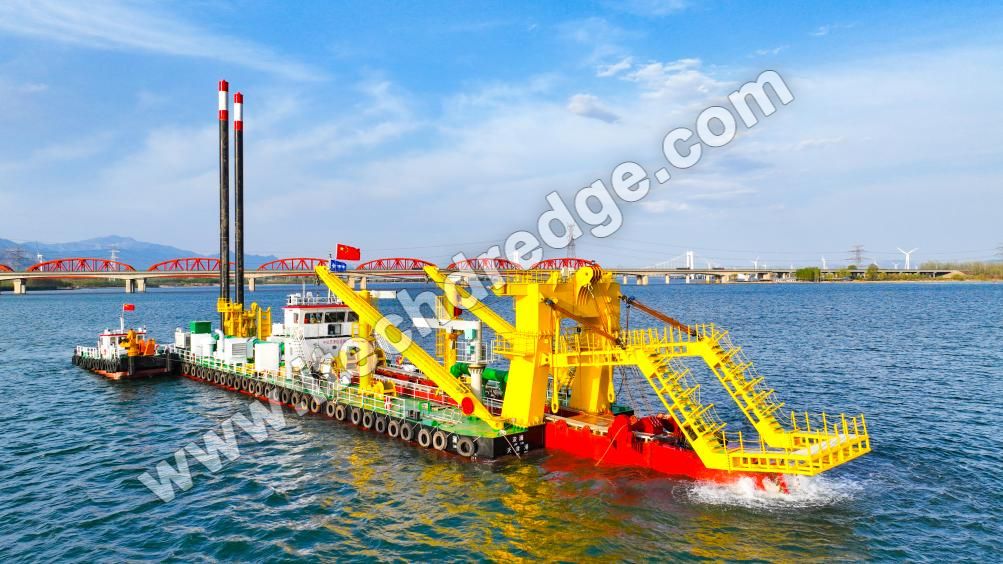

A cutter suction dredger is a type of hydraulic dredging vessel that has become a staple in the dredging industry. Its core function is to efficiently remove sediment, soil, and other materials from the bottoms of water bodies such as rivers, harbors, and lakes. iTECH Dredge offers an extensive range of cutter suction dredgers, each meticulously designed to meet the unique requirements of various projects. These dredgers are equipped with a rotating cutter head, a fundamental component that empowers them to break through hard soil, rock, and other challenging materials. By disintegrating the material, the cutter head enables the dredger to suction up the loosened particles and transport them to a designated disposal area, either through pipelines or other suitable means.

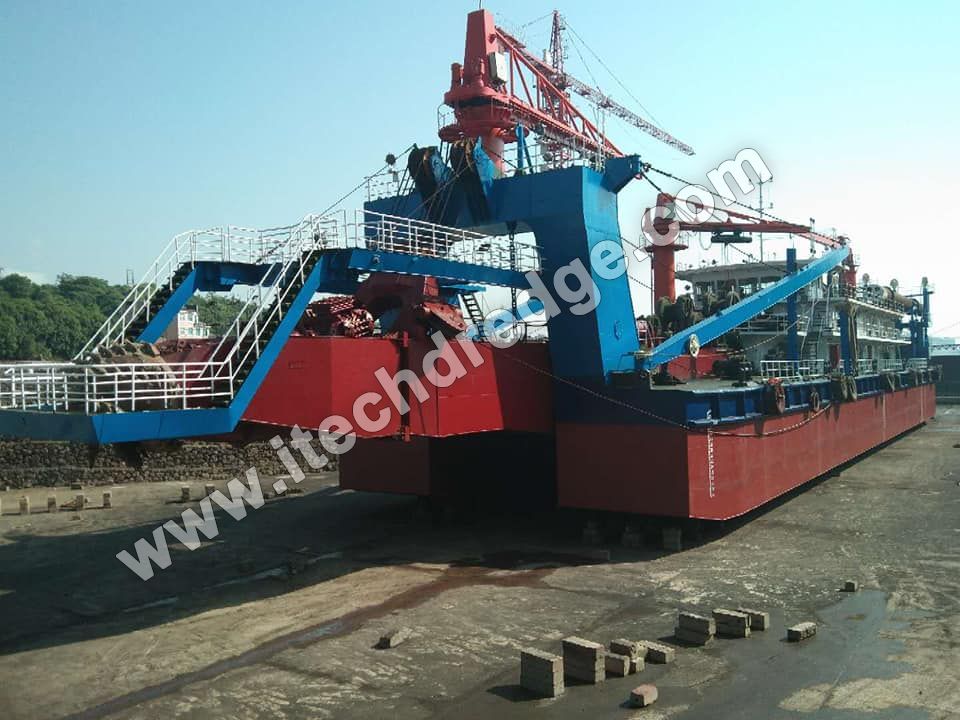

l Cutter Head: The cutter head is a mechanical marvel mounted at the front of the suction head. It rotates along the axis of the suction pipe and is outfitted with a series of toothed blades. The size and design of these blades are carefully selected based on the nature of the material to be dredged. For example, when dealing with hard rock, larger and more robust blades are employed, as they can withstand the intense forces required to break through the tough material. In contrast, for softer sediments, smaller and more flexible blades may be sufficient, allowing for more efficient cutting. The cutter head provides the necessary cutting force to break up the bottom sediment and mix it with the surrounding water, creating a slurry that can be easily suctioned.

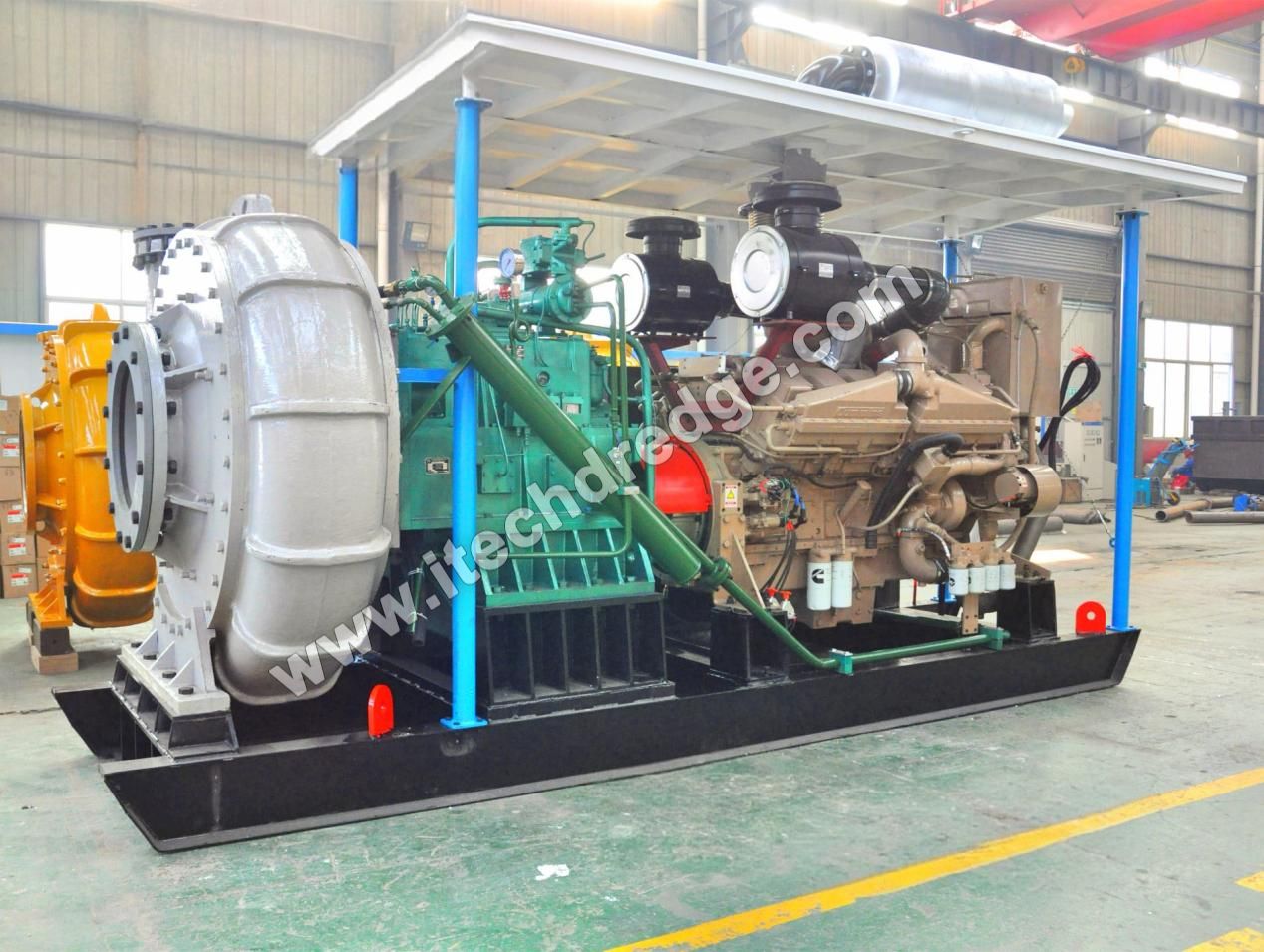

l Suction Pipe and Dredge Pump: The suction pipe serves as the crucial link between the cutter head and the dredge pump. Once the material is cut and loosened by the cutter head, the dredge pump springs into action, creating a powerful vacuum that draws in the slurry of sediment and water at high speed. The pump is the heart of the dredging operation, ensuring the efficient transportation of the material. At iTECH Dredge, our pumps are engineered to handle a wide variety of sediment types and volumes. For large - scale projects, we offer high - capacity models that can effectively manage substantial amounts of material, ensuring the project progresses smoothly and on schedule.

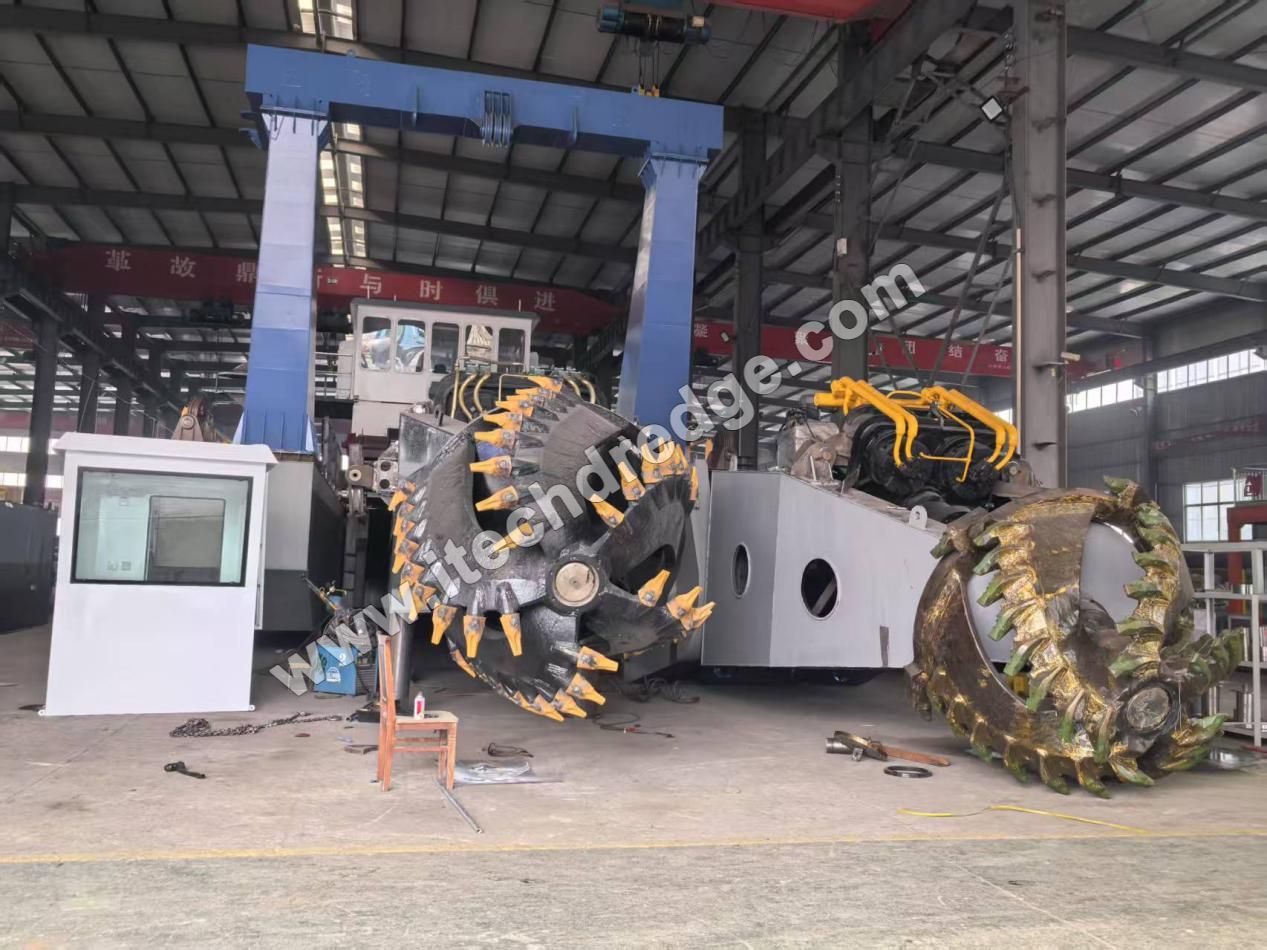

l Cutter Ladder: The cutter ladder is a vertical steel structure that plays a vital role in the dredging process. It can be hydraulically raised or lowered, allowing for precise control over the depth of dredging. The cutter ladder supports the cutting and dredging equipment, with the cutter head attached at its bottom. The ability to adjust the height of the cutter ladder makes the dredger suitable for various water body conditions, whether it's a shallow river or a deep - water harbor.
l Positioning and Propulsion Systems: Some cutter suction dredgers are self - propelled, granting them the freedom to move from one location to another under their own power. These vessels are equipped with a propulsion system, which typically includes engines and propellers. For stationary operations, the dredger relies on a spud, a large metal pole that is lowered into the seabed to secure the vessel in place. Additionally, winches and anchors are used to swing the dredger sideways, enabling the cutter head to cover a wider area and ensuring comprehensive dredging.
Yes, the operating parameters of a cutter suction dredger can indeed be adjusted during the work process. This flexibility is a game - changer for optimizing the dredging operation based on the ever - changing conditions encountered in the field.

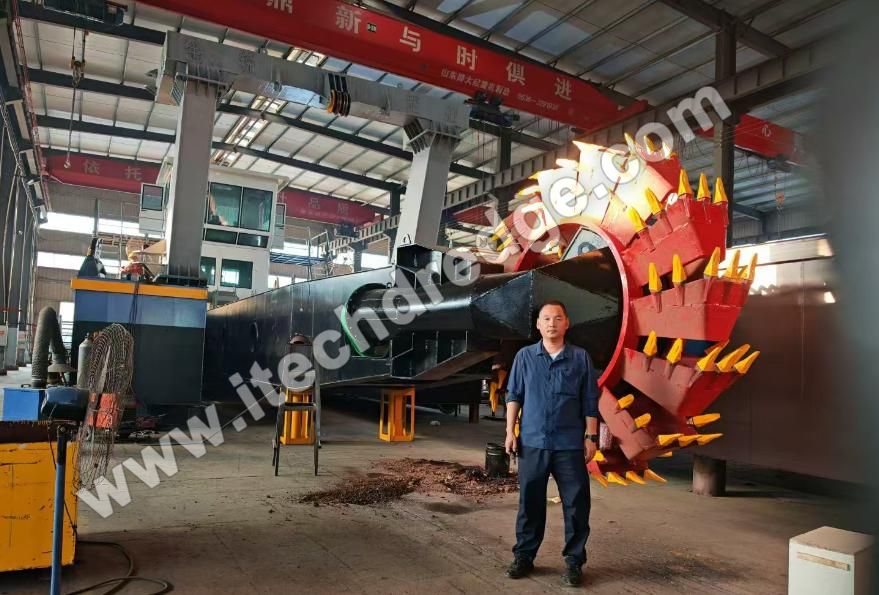

l Speed of the Cutter Head: The rotational speed of the cutter head is a key parameter that can be adjusted. When faced with softer materials, such as a silt - filled riverbed, a higher speed is often preferred. This allows for faster cutting, significantly increasing productivity. The rapid rotation of the cutter head quickly breaks up the sediment, enabling the dredger to cover more ground in less time. Conversely, when dredging hard rock or compacted clay, a lower speed is the way to go. This gives the cutter head more time to apply the necessary force and break through the tough material without overloading the equipment. In an electrically - controlled system, variable frequency drives are commonly used to adjust the motor speed, which in turn precisely controls the cutter head speed.

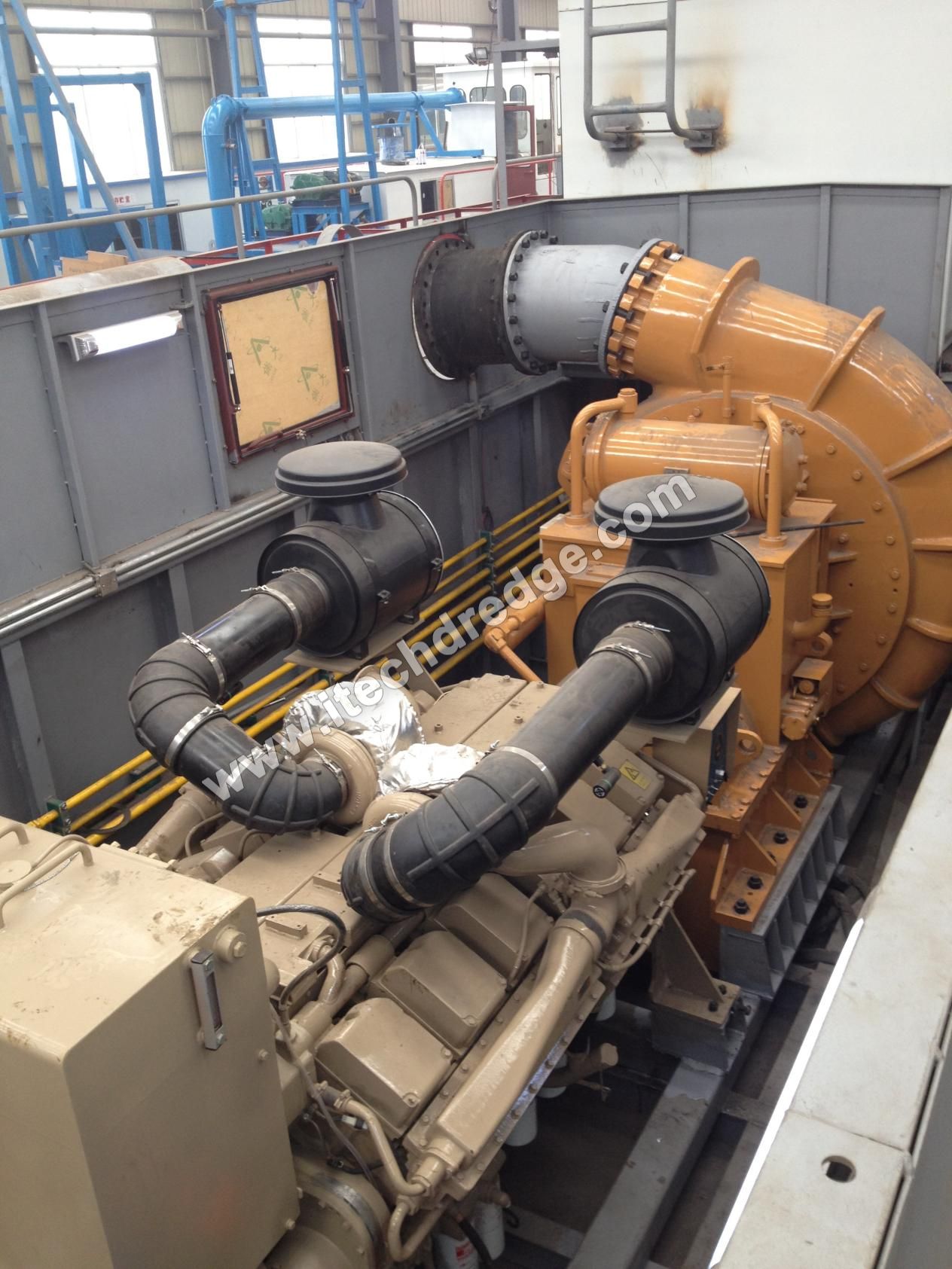

l Power Output of the Dredge Pump: The power output of the dredge pump is another parameter that can be fine - tuned. If the sediment is particularly thick or dense, increasing the pump power becomes necessary. This ensures that the slurry is effectively sucked up and transported through the pipelines, preventing blockages and maintaining a smooth flow. On the other hand, if the material is lighter or the pipeline is shorter, reducing the pump power can save energy without sacrificing performance. This adjustment is usually made through the pump's control panel, which allows operators to regulate the motor speed and the impeller settings with ease.

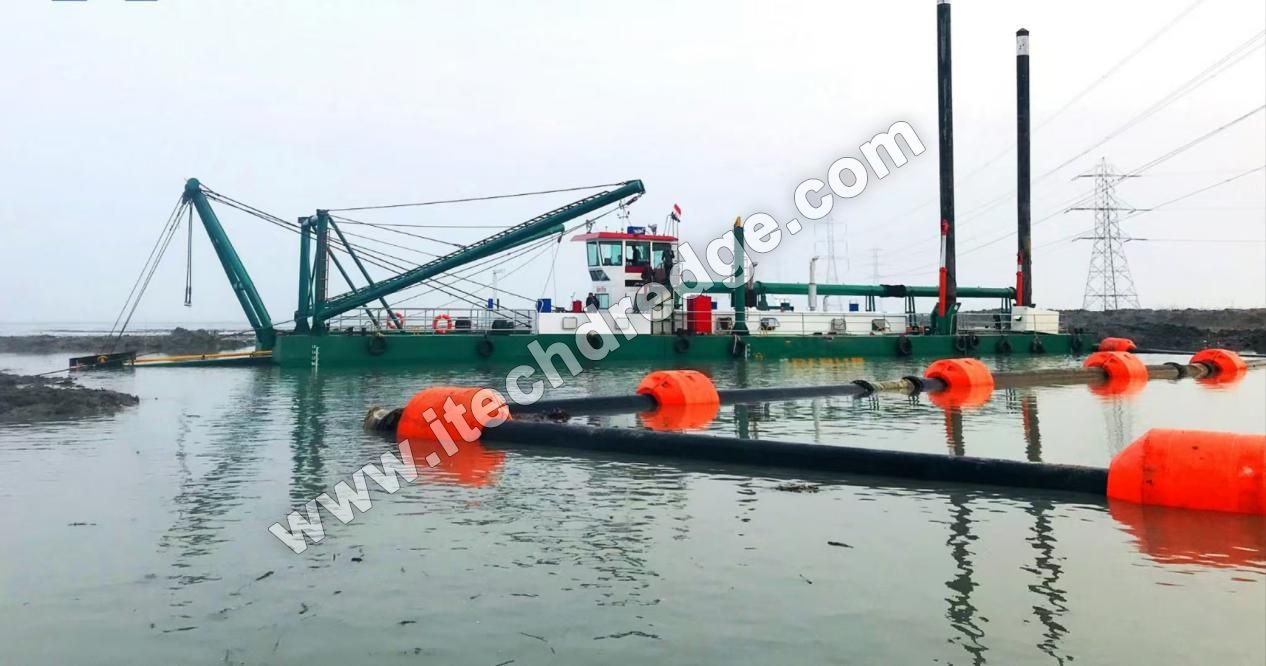

l Depth of Dredging: Controlling the depth at which the cutter head operates is crucial for a successful dredging project. This is achieved by adjusting the position of the cutter ladder. Hydraulic cylinders are used to raise or lower the cutter ladder, enabling the dredger to reach different depths in the water body. For example, in a harbor where the depth varies, the operator can use depth - measuring sensors to monitor the position of the cutter head and adjust the cutter ladder accordingly. This ensures that the dredger is removing sediment from the correct depth, meeting the project's requirements precisely.
l Swing Angle of the Dredger: The swing angle of the dredger, which determines the area covered by the cutter head during each swing, can also be adjusted. By controlling the winches and anchors, the operator has the power to change the angle at which the dredger swings. A wider swing angle is beneficial when covering a large area with relatively uniform sediment, as it allows for more efficient dredging. In more confined spaces or when precision is of the utmost importance, a narrower angle may be required. This flexibility in swing angle ensures that the dredger can adapt to different project layouts and environmental conditions.

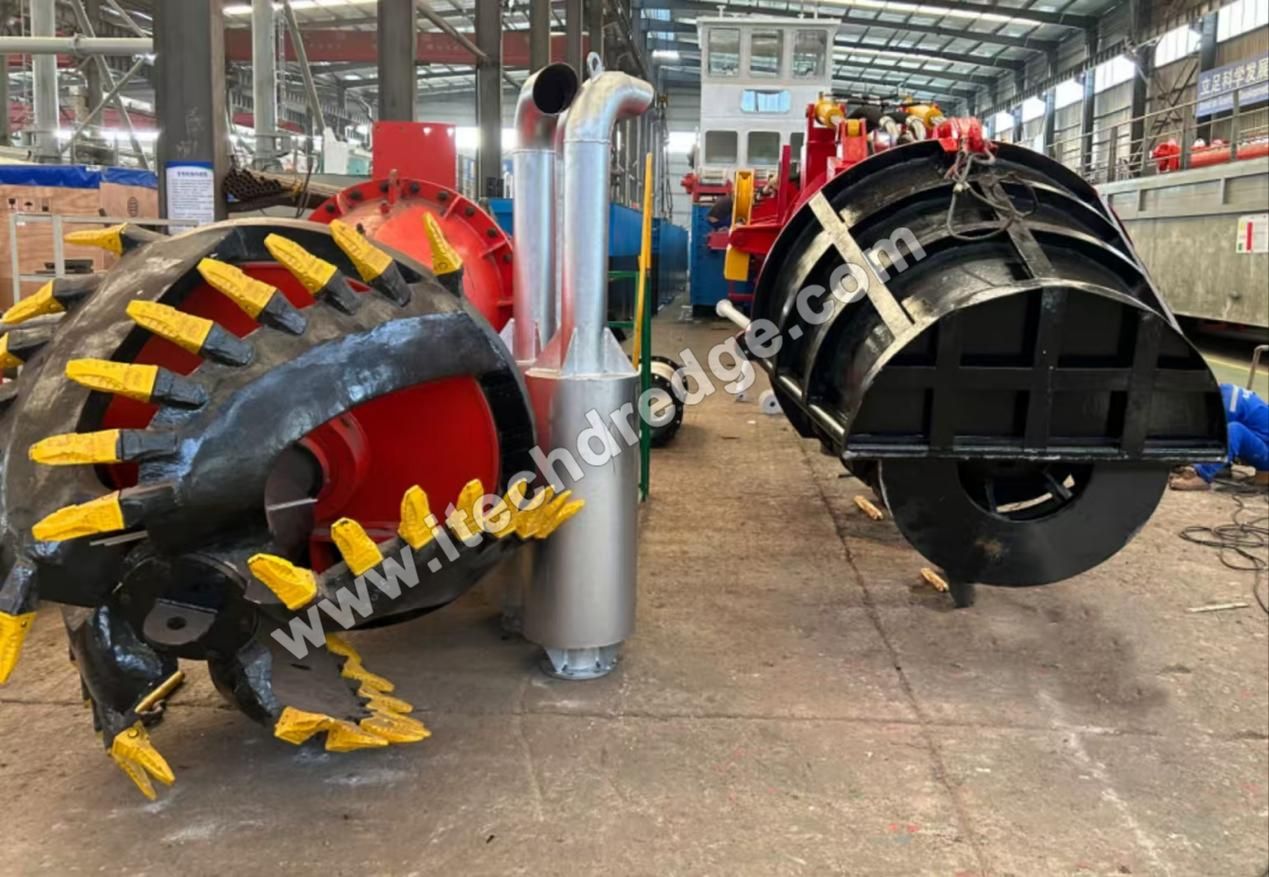

l Positioning: The cutter suction dredger begins its operation by positioning itself at the dredging site. If it is a self - propelled vessel, it skillfully maneuvers to the desired location using its propulsion system. For stationary operations, the spud is lowered into the seabed to firmly secure the vessel. Winches and anchors are then utilized to fine - tune the position and orientation of the dredger, ensuring it is perfectly aligned for the dredging task ahead.
l Lowering the Cutter Ladder: Once in position, the cutter ladder, with the cutter head attached at the bottom, is hydraulically lowered into the water. It descends slowly until it reaches the sediment or soil to be dredged. The smooth operation of the hydraulic system ensures that the cutter ladder is lowered precisely to the desired depth.
l Cutting and Suctioning: The cutter head then starts rotating at a controlled speed, depending on the material being dredged. As it rotates, it cuts through the material, breaking it into smaller pieces. The cut material is mixed with water to form a slurry. Simultaneously, the dredge pump activates, creating a strong suction force that draws the slurry through the suction pipe. The coordinated operation of the cutter head and the dredge pump is essential for efficient dredging.
l Transporting the Material: The slurry is transported through the internal pipes of the dredger and then through a discharge pipeline to a disposal area. In some cases, if the distance to the disposal area is long, additional booster pumps may be installed along the pipeline. These booster pumps maintain the flow of the slurry, ensuring it reaches the disposal area without any issues.
l Moving and Repositioning: After covering a certain area, the dredger may need to be repositioned. This involves raising the cutter ladder, retracting the spud (if applicable), and using the winches or propulsion system to move the dredger to a new location. The process then repeats, allowing the dredger to systematically cover the entire dredging area.
Dredging Market Worldwide
l Europe: In Europe, the dredging market is driven by multiple factors. The need to maintain and expand ports, waterways, and coastal infrastructure is a major driver. Countries like the Netherlands, Belgium, and the United Kingdom have a long - standing tradition of dredging for navigation, flood control, and land reclamation. The demand for cutter suction dredgers in Europe is high, especially for projects related to environmental restoration. Stringent environmental regulations in Europe require advanced dredging technologies to minimize the impact on the ecosystem. iTECH Dredge has been actively involved in the European market, providing high - quality cutter suction dredgers that meet the specific project requirements while adhering to local environmental standards. Our dredgers are equipped with the latest features to ensure efficient and environmentally friendly dredging operations.
l China: China has a vast and rapidly evolving dredging market. With large - scale infrastructure projects, including the construction of new ports, the expansion of existing ones, and the development of coastal areas, the demand for cutter suction dredgers is substantial. The Chinese government's focus on improving inland waterway transportation and environmental protection has also led to increased dredging activities. Chinese companies are constantly seeking innovative and efficient dredging solutions. iTECH Dredge has recognized the potential in the Chinese market and has been collaborating with local partners to offer customized cutter suction dredgers. These dredgers are designed to meet the unique challenges and requirements of Chinese projects, taking into account factors such as the type of sediment, water depth, and project scale.
l Africa: Africa is experiencing a growing need for dredging services as it invests heavily in infrastructure development, particularly in the port and waterway sectors. Many African countries are looking to improve their transportation links and boost trade, which necessitates the construction and maintenance of ports. Cutter suction dredgers are essential for these projects, as they can handle a variety of soil conditions. In addition, there is a need for environmental dredging in some African water bodies to address pollution and improve water quality. iTECH Dredge has been exploring opportunities in the African market, providing reliable and cost - effective cutter suction dredgers. Our dredgers are well - suited to the African environment, offering high performance and durability.
In conclusion, cutter suction dredgers are highly adaptable machines, and their operating parameters can be adjusted during the work process. This flexibility is a significant advantage, allowing for optimized dredging operations regardless of the material being dredged, the depth of the water body, or the specific project requirements. At iTECH Dredge, we are committed to providing state - of - the - art cutter suction dredgers. Our dredgers not only offer the ability to adjust parameters but also feature high - quality components and reliable performance. With a global presence in key dredging markets such as Europe, China, and Africa, we are well - positioned to meet the diverse needs of our clients. Whether it's a small - scale river maintenance job or a large - scale port construction project, our cutter suction dredgers are designed to deliver efficient and effective results, contributing to the success of dredging projects worldwide.
