iTECH Dredge, a leading manufacturer of specialized dredging equipment, is renowned for delivering high-performance cutter suction dredgers (CSDs) tailored to global clients. When transporting large-scale machinery like an 18-inch cutter suction dredger, bulk shipment emerges as a cost-effective and efficient solution, especially for long-distance or intercontinental deliveries. Unlike container shipping, bulk shipment allows for the transport of oversized, heavy components by leveraging specialized vessels, strategic disassembly, and precise logistics planning.
This guide outlines the step-by-step process for shipping an 18-inch cutter suction dredger via bulk shipment, focusing on the disassembly, packaging, vessel selection, loading, securing, and documentation required to ensure safe and timely delivery. The dredger, split into pre-defined units—ladder+cutter head, main pontoon, side pontoon, control room, living room, and spud carrier—requires meticulous handling to preserve functionality and integrity throughout the journey.
Before initiating the shipment process, thorough planning is critical to address technical, logistical, and regulatory challenges.
The 18-inch cutter suction dredger is disassembled into the following core units, each with unique dimensions, weights, and handling requirements:
Component | Typical Dimensions (L×W×H) | Approx. Weight | Key Handling Notes |
Ladder + Cutter Head | 12m × 2.5m × 3m | 15–20 tons | Fragile cutting teeth; avoid impact |
Main Pontoon | 18m × 4m × 2m | 42-50 tons | Contains engine, gearbox, dredge pump; sealed compartments |
Side Pontoon | 15m × 3m × 1.8m | 12–15 tons | Auxiliary buoyancy; lightweight but bulky |
Control Room | 4m × 3m × 2.5m | 3–5 tons | Electronics, monitors, controls; shock-sensitive |
Living Room | 5m × 3m × 2.5m | 4–6 tons | Furnishings, utilities; moisture-sensitive |
Spud Carrier | 8m × 2m × 2m | 10–15 tons | Structural steel; heavy-duty but balanced |
Table 1: Component Specifications for 18-Inch Cutter Suction Dredger
· Port of Origin & Destination: Identify ports with bulk cargo handling capabilities, including cranes (minimum 50-ton capacity), heavy-lift equipment, and dredger assembly infrastructure.
· Vessel Type: Choose a bulk carrier or heavy-lift vessel with deck space for oversized cargo. Heavy-lift vessels are preferred for their specialized cranes and securing systems.
· Weather & Seasonal Factors: Avoid routes prone to storms or extreme temperatures, which could damage sensitive components like electronics in the control room.
· Customs Documentation: Prepare export licenses, technical specifications, and material safety data sheets (MSDS) for hydraulic fluids, fuels, and lubricants in the main pontoon.
· International Standards: Adhere to IMO (International Maritime Organization) guidelines for securing heavy cargo (IMO CSS Code) and environmental regulations (MARPOL) to prevent oil or fuel leaks.
Proper disassembly ensures components are manageable for transport while minimizing the risk of damage. iTECH Dredge’s engineering team follows strict protocols to disassemble the dredger:
· Ladder + Cutter Head: Detach hydraulic hoses and electrical connections from the main pontoon. Cap all ports to prevent contamination. Secure the cutter head with protective covers to shield cutting teeth from corrosion or impact.

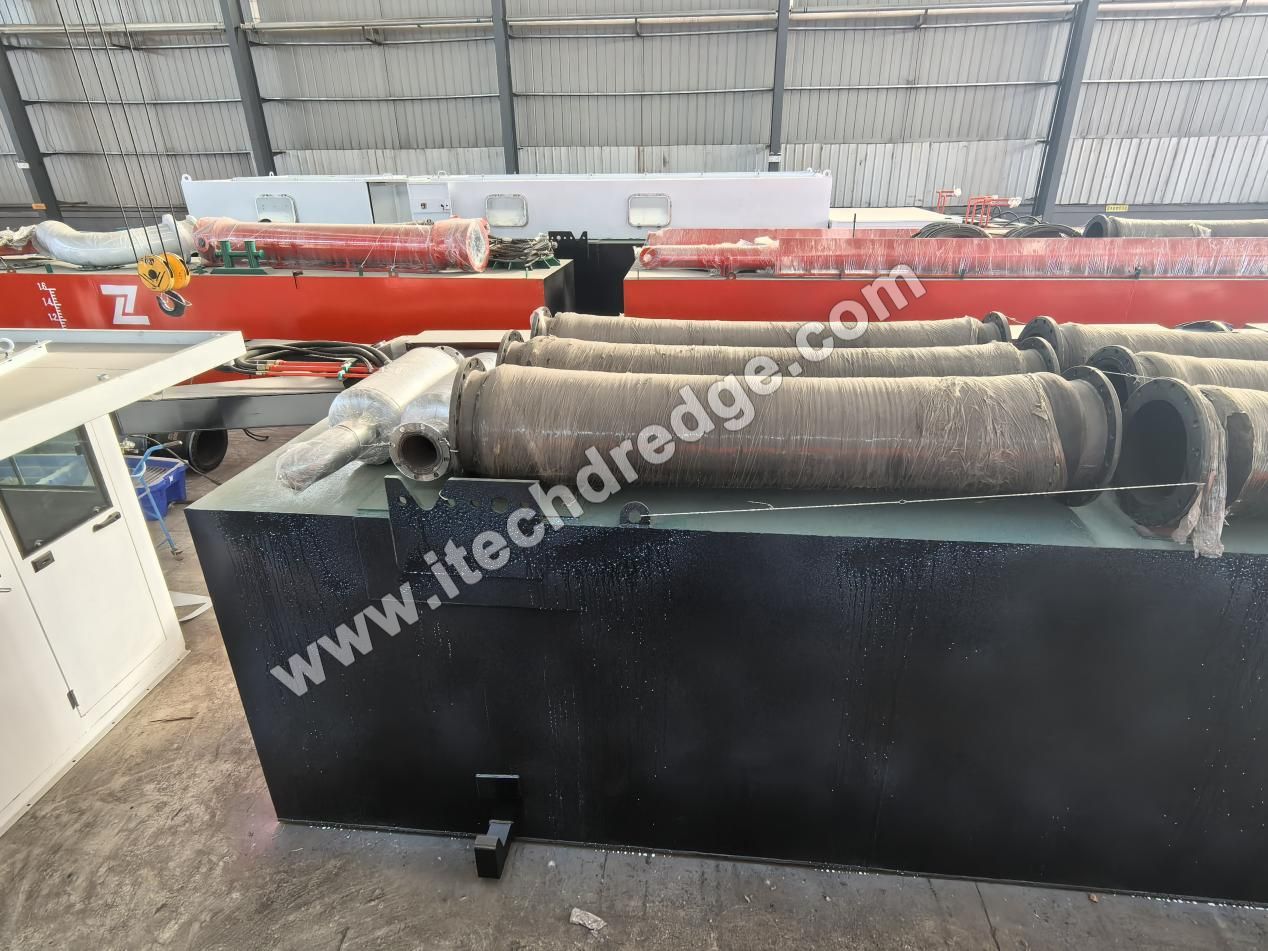

· Main Pontoon: Drain fluids (fuel, oil, hydraulic fluid) into approved containers for separate transport (per MARPOL regulations). Disconnect batteries and secure loose parts (e.g., valves, gauges) with shock-absorbing padding.

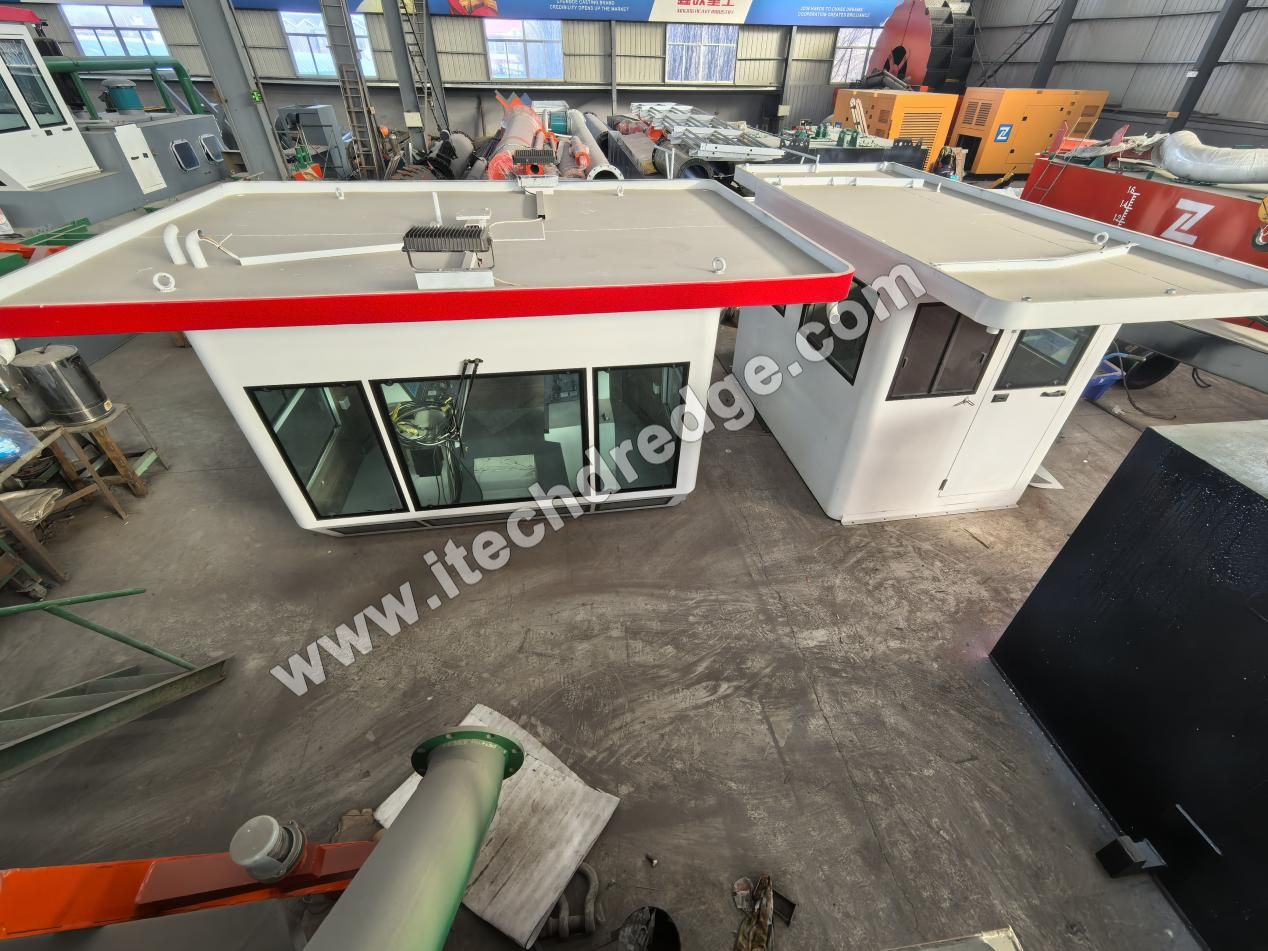

· Control & Living Rooms: Remove fragile items (monitors, furniture) and pack them separately in climate-controlled crates. Seal electrical panels with waterproof covers and label all wiring for easy reassembly.

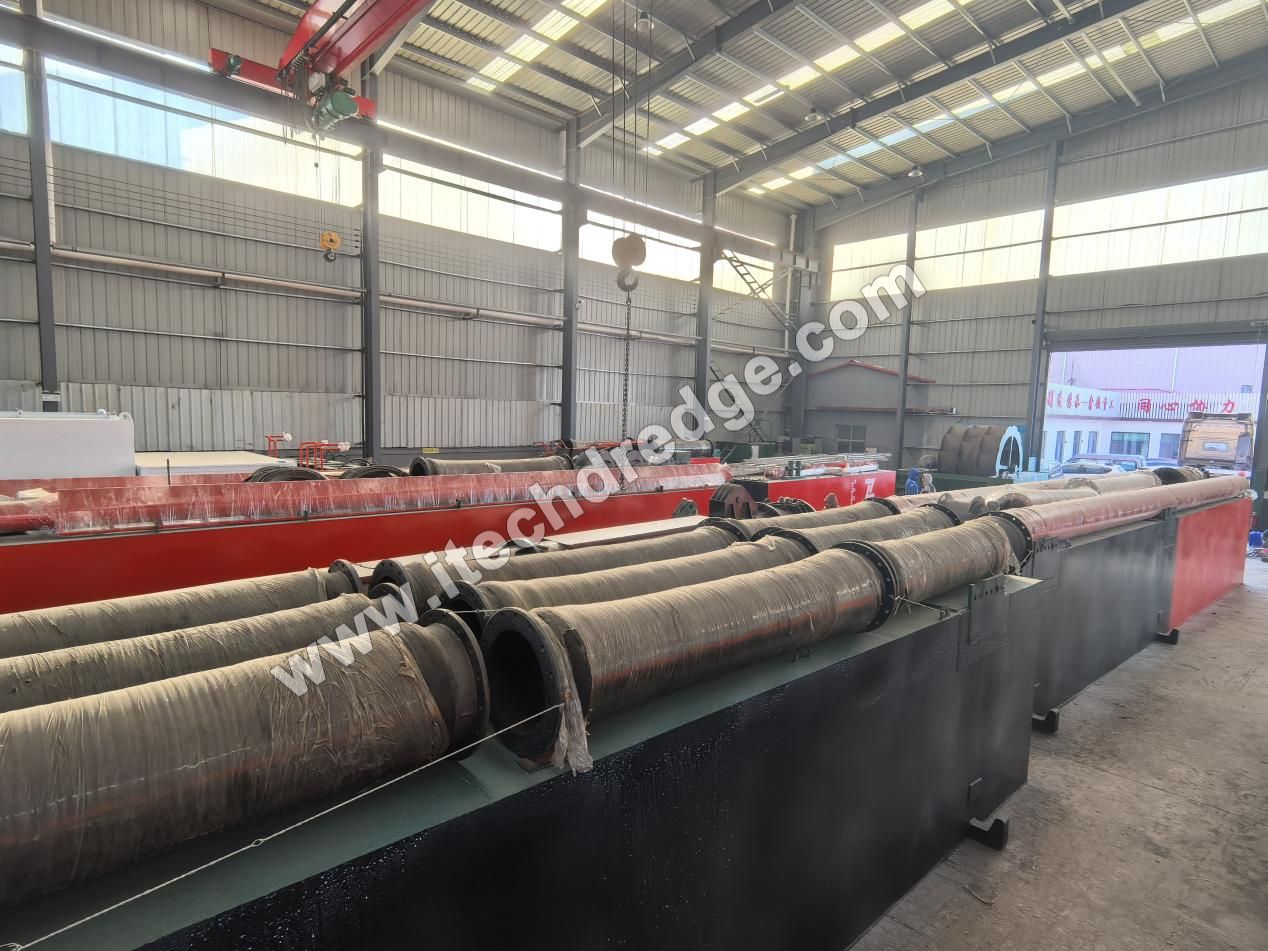

· Pontoons & Spud Carrier: Inspect for structural weaknesses; reinforce welds if necessary. Install lifting lugs at designated points (engineered to withstand 1.5× the component weight) for safe hoisting.

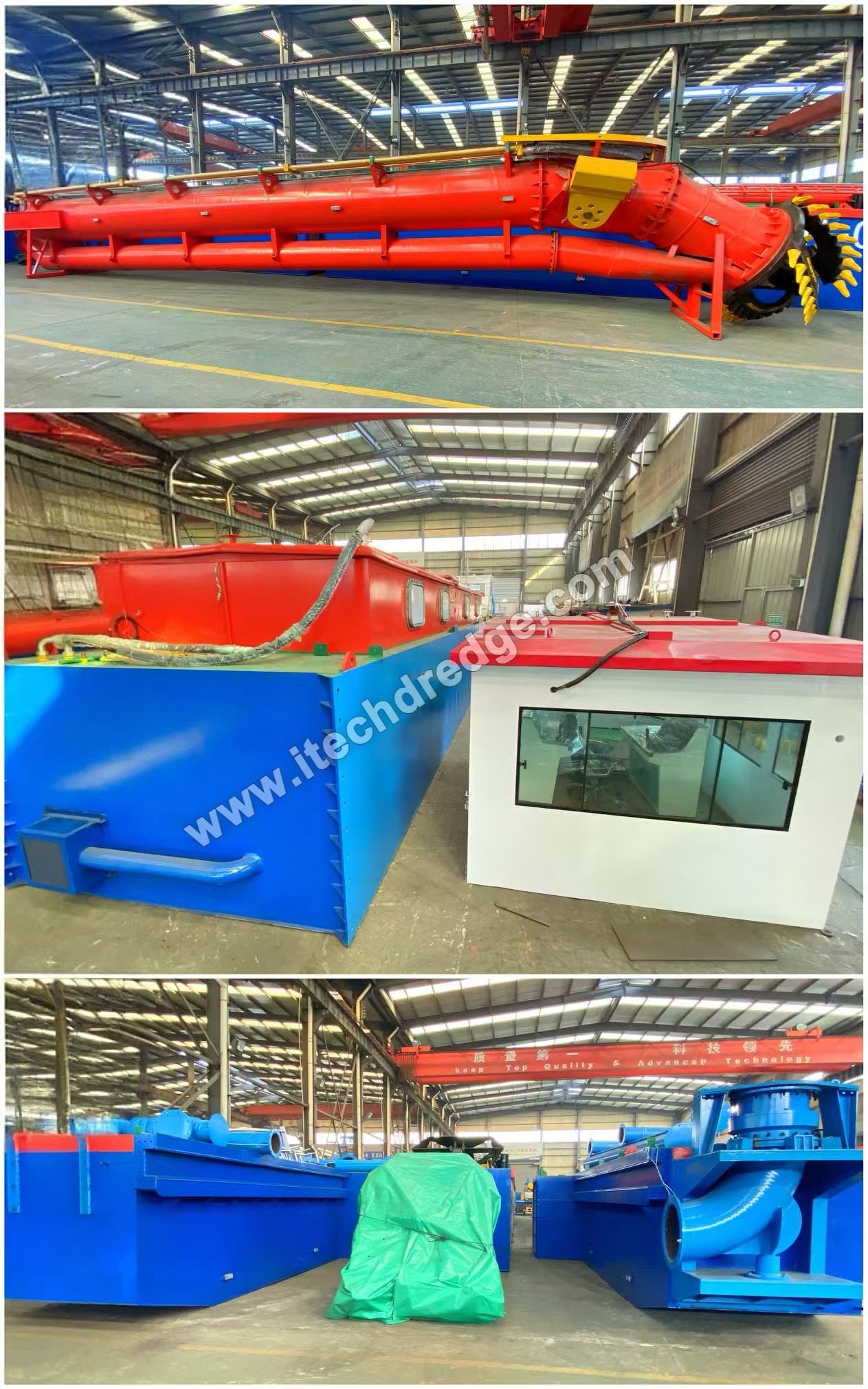

· Corrosion Protection: Apply anti-rust coatings to metal surfaces (e.g., ladder, spud carrier) and wrap exposed parts in VCI (Volatile Corrosion Inhibitor) paper.
· Moisture Control: Place desiccant packs in sealed compartments (e.g., control room cabinets) and use waterproof tarps for outdoor storage pre-loading.
· Labeling: Tag each component with unique identifiers, weight, center of gravity (CoG), and handling instructions (e.g., “This Side Up,” “Do Not Stack”).

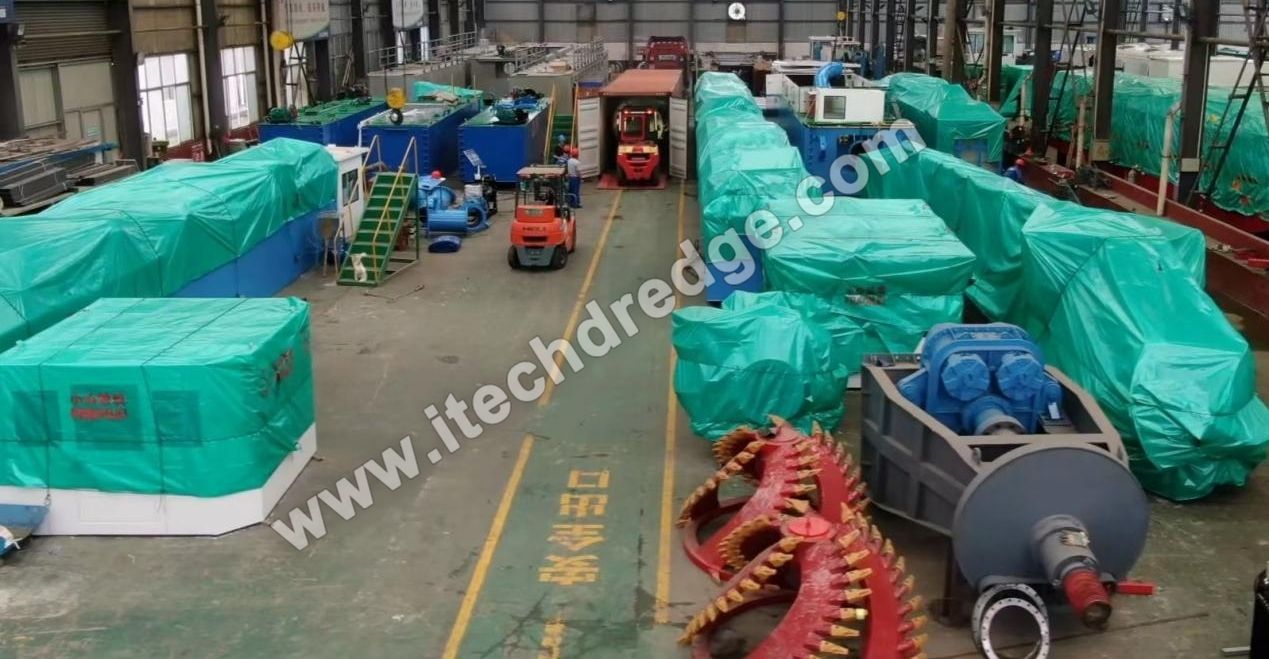

While bulk shipment typically involves “breakbulk” cargo (unpackaged or minimally packaged), critical components require protective packaging:
· Fragile Components: The control room’s electronics and living room furnishings are crated in custom wooden boxes lined with foam padding. Crates are labeled with “Fragile” and “Climate-Controlled” stickers.
· Oversized Units: The main pontoon, side pontoon, and ladder are left uncrated but wrapped in heavy-duty plastic sheeting to shield against saltwater spray during transit. Steel bracing is added to vulnerable areas (e.g., ladder joints) to prevent bending.
· Small Parts: Bolts, hoses, and tools are packed in waterproof bins, labeled with component IDs to simplify reassembly at the destination.
Bulk carriers experience dynamic forces (pitching, rolling, heaving) during transit, making proper loading and securing critical to prevent cargo shift or damage.
· Heavy Components First: Load the main pontoon and ladder+cutter head first, positioning them low in the vessel’s hold or on the main deck to lower the center of gravity.
· Balanced Placement: Distribute weight evenly across the vessel to avoid listing. The side pontoon is positioned opposite the main pontoon to balance the load.
· Fragile Items Last: Load the control room and living room crates last, placing them in sheltered areas (e.g., under deck canopies) to minimize exposure to weather.
· Lashing Systems: Use high-tensile steel cables or synthetic webbing straps to secure components to the vessel’s deck fixtures. Each component is secured at 4–6 points (depending on size) with tensioners to maintain tightness.
· Blocking & Bracing: Wooden or steel blocks are placed under the main and side pontoons to prevent sliding. Wedges are inserted between components and vessel walls to limit lateral movement.
· Welding for Stability: For ultra-heavy units like the main pontoon, temporary welds between the component’s lifting lugs and the vessel’s deck brackets provide additional security (removed post-delivery).
· iTECH Dredge’s logistics team conducts pre-loading inspections to verify:
· Correct tension in lashing straps (using torque meters).
· Secure blocking of all components.
· Sealing of fluid compartments to prevent leaks.
· A third-party marine surveyor certifies compliance with IMO CSS Code requirements before departure.
· The vessel is equipped with GPS tracking to monitor location, speed, and weather conditions throughout the journey. iTECH Dredge’s team receives daily updates to address delays or emergencies promptly.
· Temperature and humidity sensors in control room crates transmit data to ensure climate conditions remain within acceptable ranges (15–25°C, <60% humidity).
A comprehensive shipment dossier is prepared, including:
· Bill of Lading (BOL): Details cargo description, weights, and consignee information.
· Packing List: Itemized of all components and small parts.
· Engineering Drawings: Assembly diagrams and lifting plans for the destination team.
· Insurance Certificates: Coverage for loss, damage, or delays (arranged by iTECH Dredge).
· Customs Clearance Docs: Export declarations, import permits, and duty forms for the destination country.
Upon arrival at the destination port, iTECH Dredge coordinates with local partners to ensure smooth unloading and preparation for assembly.
· Heavy-Lift Cranes: Port cranes with 50+ ton capacity lift components from the vessel, following the reverse of the loading sequence (fragile items first, heavy units last).
· Inspections: A joint inspection by iTECH Dredge engineers and the client verifies component condition. Any damage is documented for insurance claims.

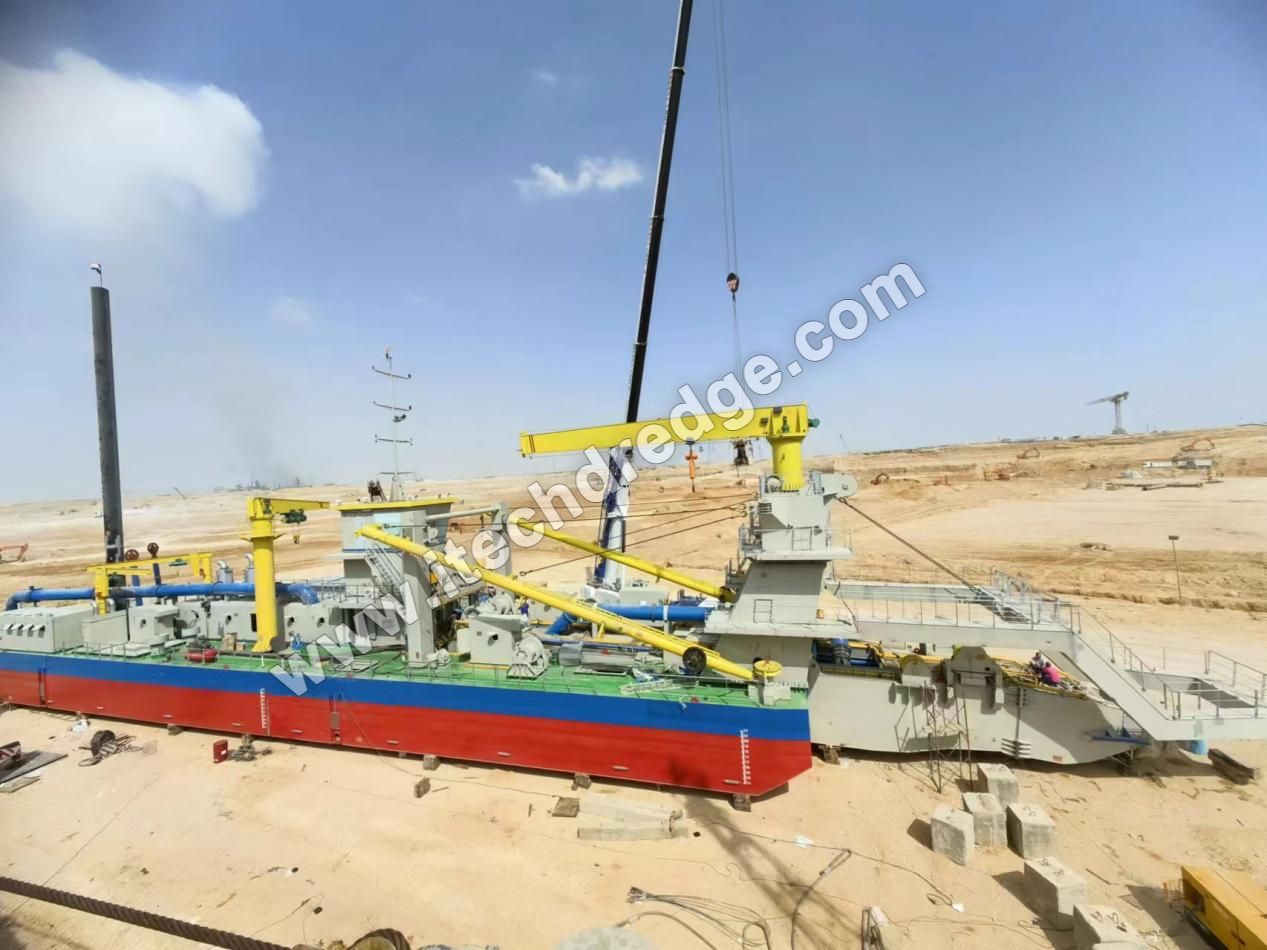

· iTECH Dredge dispatches a technical team to the destination to supervise reassembly, using detailed manuals and labeled components to streamline the process.
· Post-assembly testing includes engine trials, hydraulic system checks, and cutter head functionality to ensure the dredger operates at peak performance.
Shipping an 18-inch cutter suction dredger via bulk shipment demands precision, engineering expertise, and logistical rigor. By leveraging strategic disassembly, robust packaging, and IMO-compliant securing methods, iTECH Dredge ensures its equipment arrives at clients’ sites intact and ready for operation.
From pre-shipment planning to post-delivery support, iTECH Dredge’s end-to-end logistics solution minimizes risks, reduces costs, and guarantees timely delivery—reinforcing its reputation as a trusted partner in the global dredging industry.
