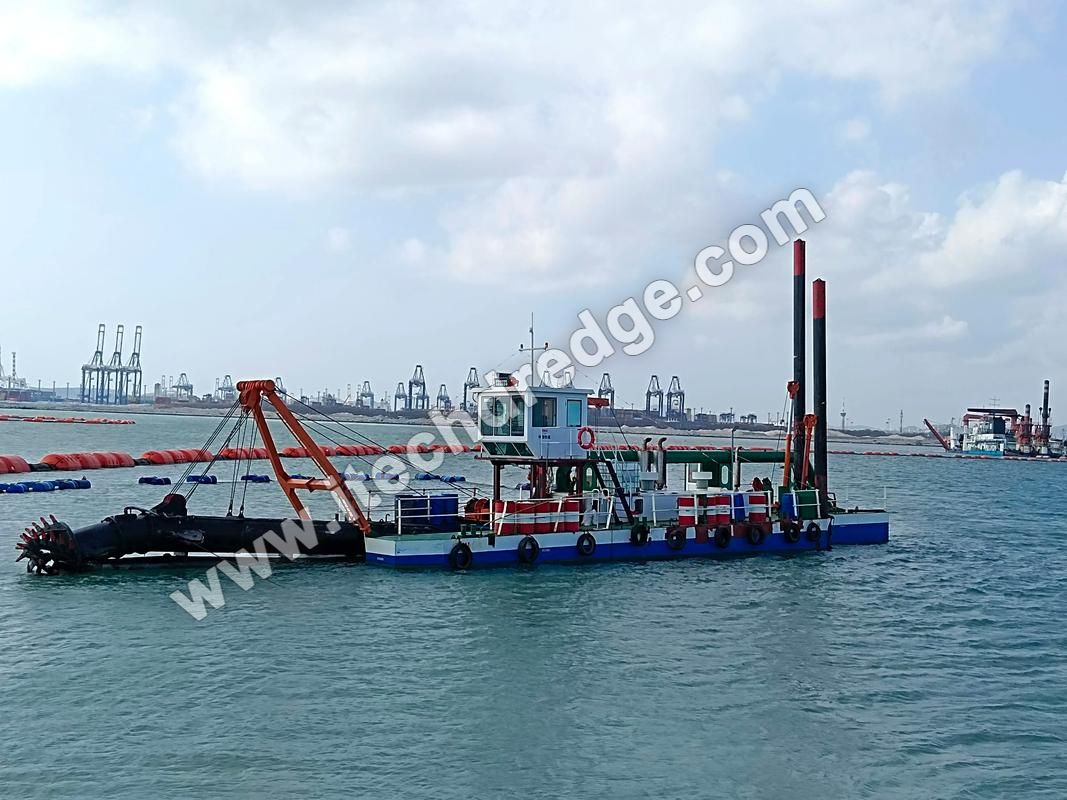

A cutter suction dredger (CSD) is a specialized marine or freshwater vessel designed to excavate and transport underwater sediment, rock, and other materials. It combines three core functions: cutting, suction, and pumping. At its heart is a rotating cutter head mounted on an extendable arm (or "spud pole"), which breaks up compacted materials like clay, sand, and even hard rock. The loosened material is then sucked into a suction pipe by a powerful dredge pump, which transports the slurry (a mixture of solid material and water) through a pipeline to a designated disposal area—either a barge, a reclamation site, or an offshore dump zone.
This versatility makes cutter suction dredgers indispensable in industries ranging from port construction to environmental remediation. Unlike trailing suction hopper dredgers (which rely on gravity to collect sediment), CSDs excel in precise, controlled excavation, even in confined spaces or hard-bottom environments. Their ability to operate in both shallow and deep waters, coupled with continuous material transport, positions them as workhorses in modern marine engineering.
The efficiency of a cutter suction dredger is defined by its ability to excavate material quickly, handle diverse substrates, and operate at required depths—all while minimizing energy consumption and downtime. Key performance factors include:

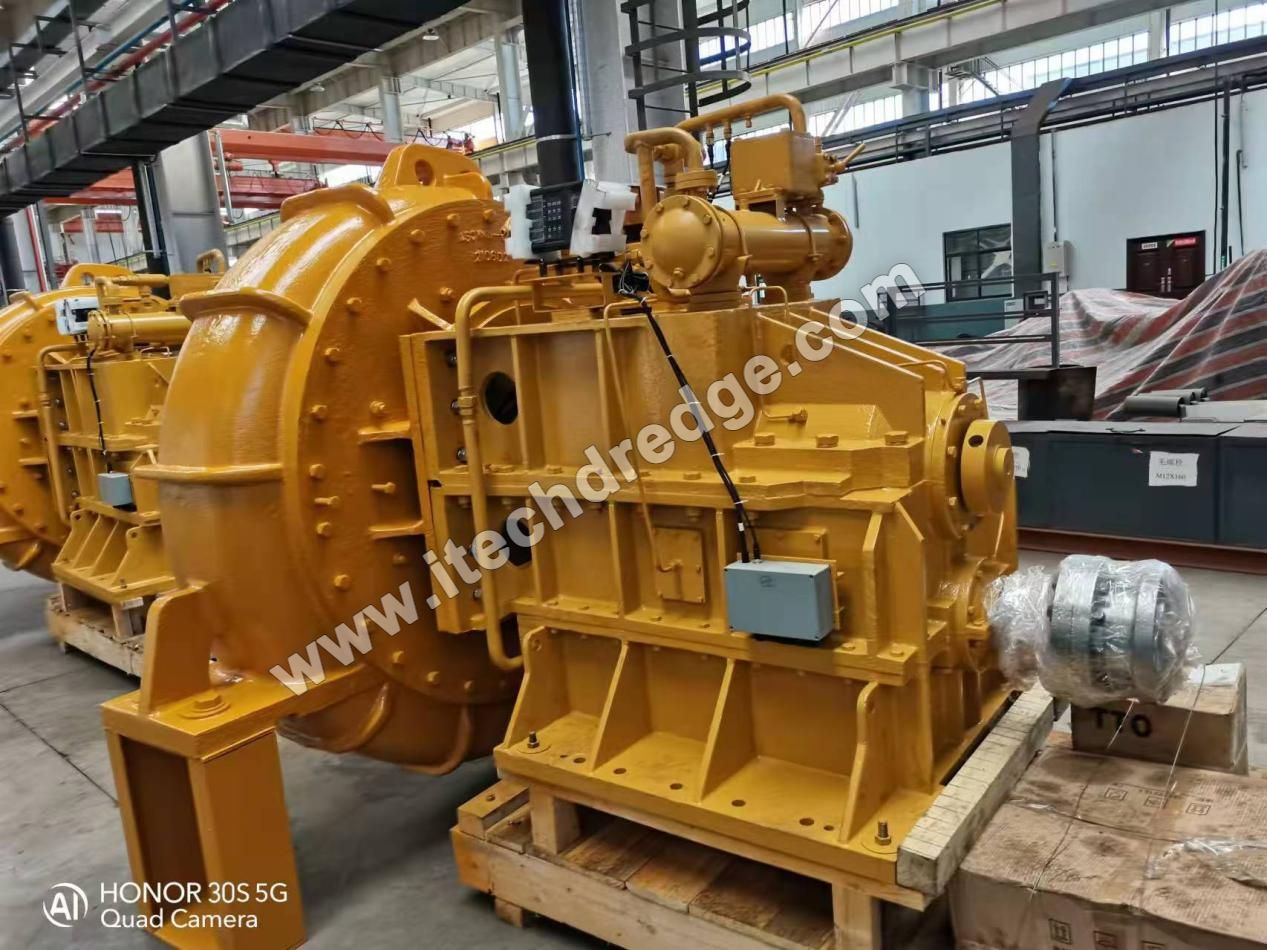

1. Dredge Pump Power
The dredge pump is the "engine" of material transport. Its capacity directly dictates the volume of slurry moved per hour. Modern CSDs feature high-pressure, multi-stage pumps with flow rates exceeding 10,000 cubic meters per hour. For example, large-scale dredgers used in deep-sea port projects may employ pumps with 5,000+ kW motor power, enabling them to transport slurry over distances of 5 km or more via floating pipelines. Pump efficiency is critical: a well-optimized pump reduces energy waste, especially when handling dense slurries with high solid content.

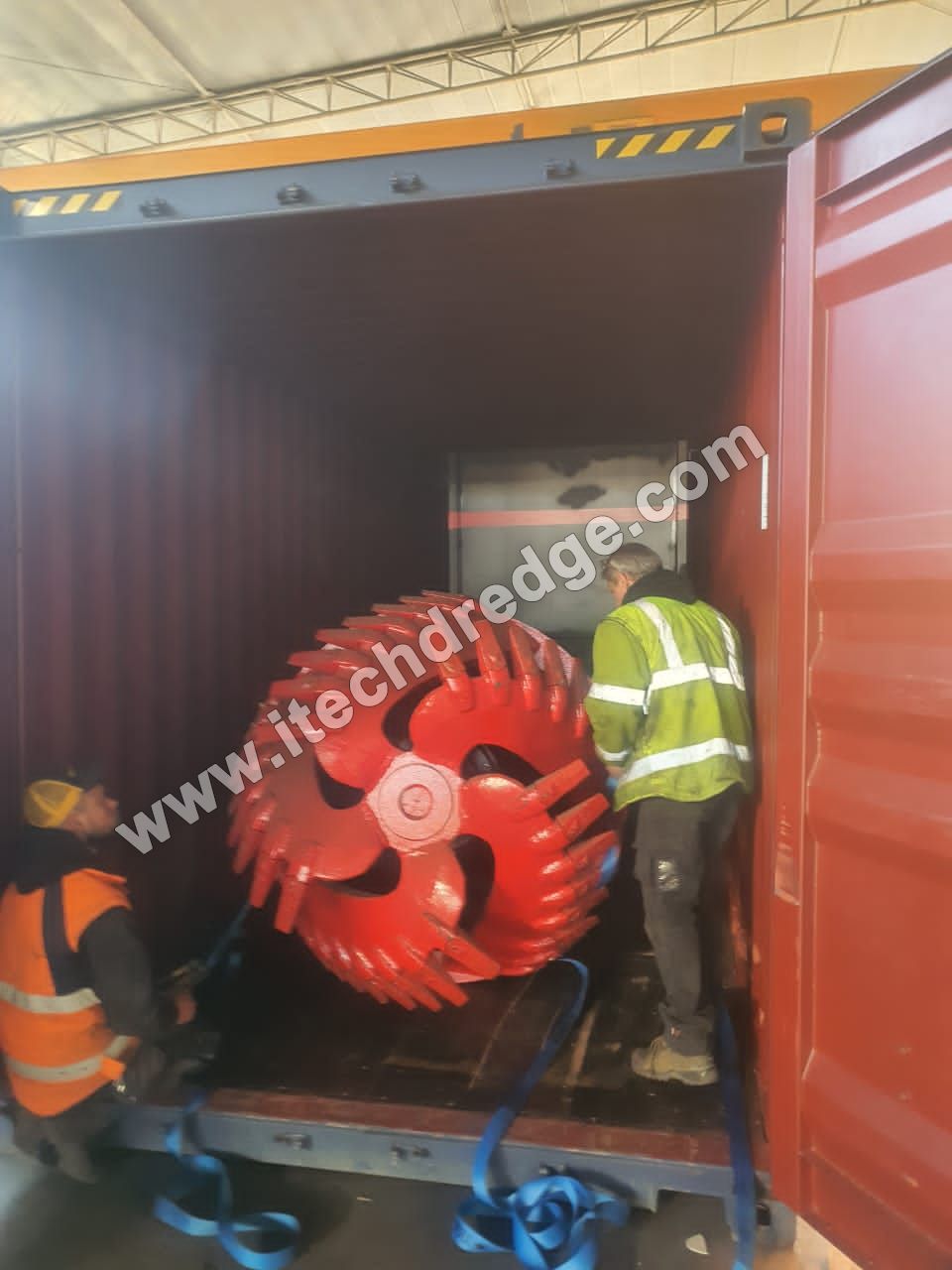

2. Cutter Head Design and Power
The cutter head’s ability to break up material determines the dredger’s excavation rate. Variables like tooth geometry, rotation speed, and torque must align with the substrate. For soft sediments (e.g., silt), a high rotation speed (up to 100 rpm) with lightweight, sharp teeth maximizes output. For hard rock or compacted clay, slower speeds (20–50 rpm) paired with heavy-duty, wear-resistant teeth (often tungsten-carbide tipped) deliver the necessary torque to fracture tough materials. Cutter head power, measured in kW, ranges from 50 kW for small dredgers to over 2,000 kW for industrial models, directly correlating with excavation capacity.
3. Dredging Depth and Reach
CSDs are categorized by their maximum dredging depth, which varies from 5 meters (small, portable units) to 30+ meters (large, stationary dredgers). This flexibility allows them to tackle projects from river canal maintenance (shallow depths) to offshore pipeline trenching (deep waters). The length of the boom or ladder (the arm holding the cutter head) also affects horizontal reach, with some models extending 50+ meters to access hard-to-reach areas.
Advancements in materials science, automation, and environmental engineering are transforming CSD performance, making them more efficient, precise, and sustainable. Below are the most impactful innovations:

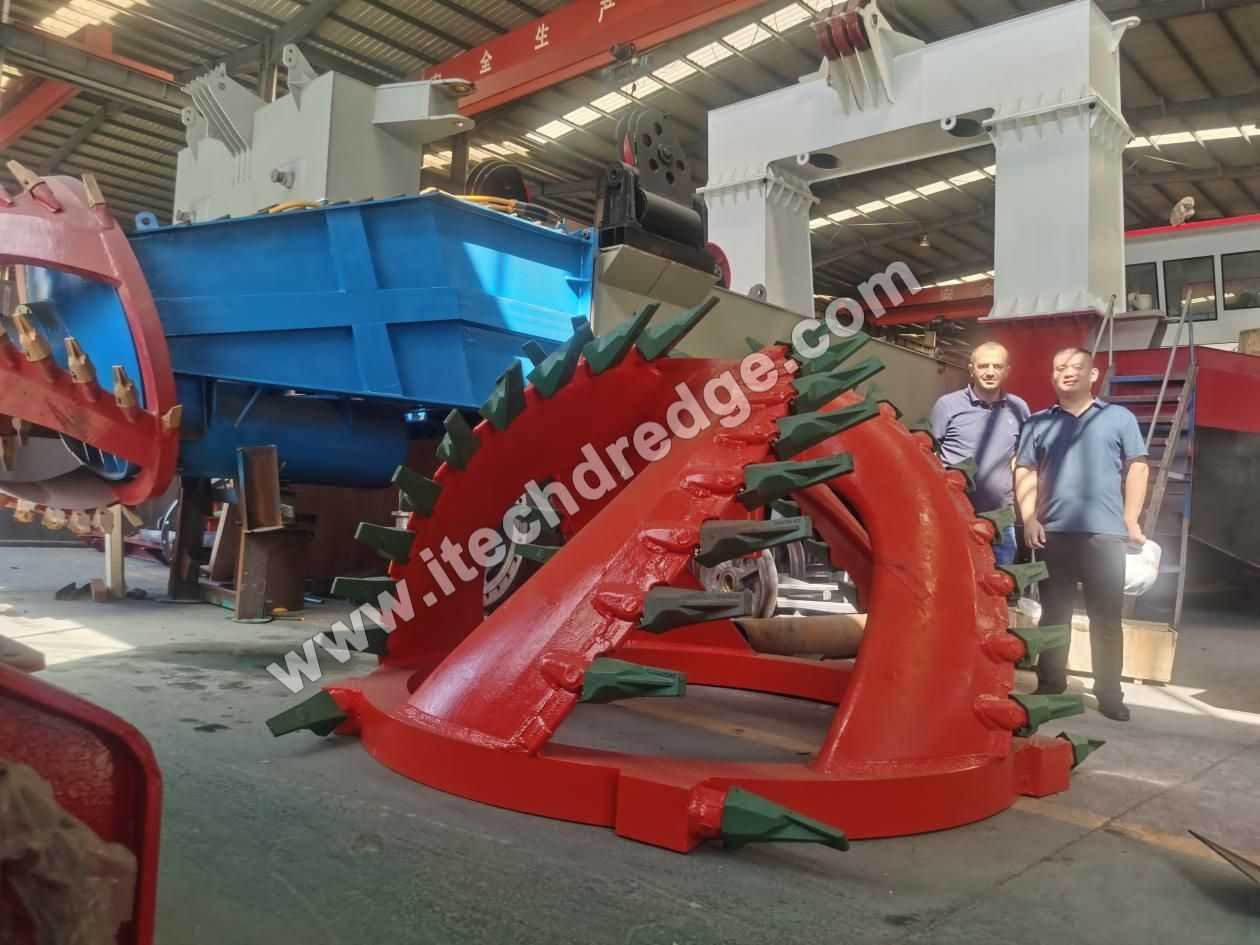

1. Next-Generation Cutter Heads
Modern cutter head designs prioritize adaptability and durability. Key innovations include:
· Modular, Interchangeable Teeth: Teeth made from high-strength alloys (e.g., chromium-nickel steel) or tungsten carbide are easily replaceable, reducing maintenance downtime by up to 30%. Brands like IHC Dredging offer "quick-change" tooth systems that allow crews to swap worn teeth in minutes, rather than hours.
· Adaptive Pitch Technology: Variable-pitch cutter heads, developed by DAMEN, adjust tooth angles in real time based on material hardness. Sensors embedded in the cutter head detect substrate density, and hydraulic actuators reposition teeth to optimize cutting force—no manual reconfiguration needed.
· Dual-Cutter Systems: For ultra-hard materials (e.g., coral reefs or concrete debris), some CSDs now feature twin cutter heads rotating in opposite directions. This design doubles the cutting force while reducing vibration, improving stability in rough seas.

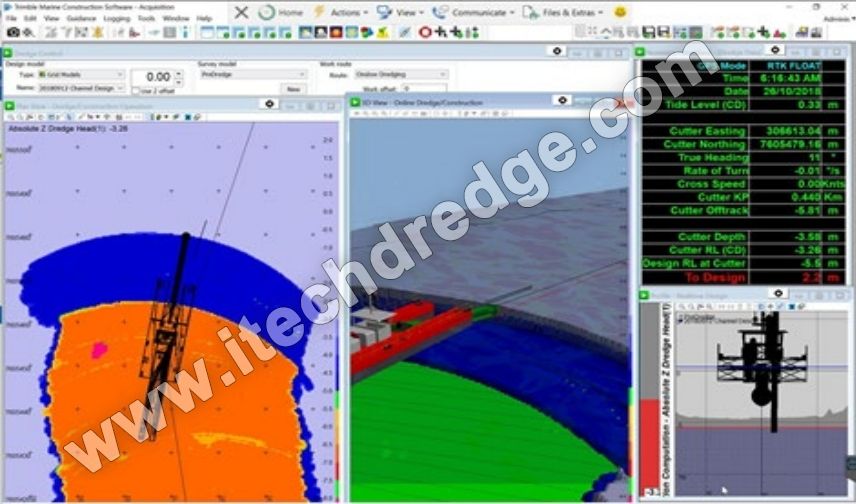

2. Automation and Remote Control
Automation is reducing human error and expanding operational capabilities:
· AI-Driven Dredging Cycles: Systems like IHC’s "Smart Dredge" use machine learning algorithms to analyze real-time data (substrate type, pump pressure, cutter load) and adjust parameters automatically. For example, if the cutter head encounters unexpected rock, the system slows rotation, increases torque, and adjusts pump speed to prevent clogging—all without operator input.
· Remote Operation Centers: DAMEN’s "Remote Dredge Control" allows operators to manage CSDs from onshore facilities via 5G or satellite connectivity. High-definition cameras, LiDAR, and sonar provide a 360° view of the worksite, while haptic feedback controls mimic the feel of on-board operation. This is invaluable for projects in hazardous areas (e.g., oil-contaminated waters) or extreme weather conditions.
· Autonomous Navigation: Smaller CSDs for inland waterways now use GPS and inertial navigation systems to follow pre-programmed dredging paths with centimeter-level precision, ensuring uniform channel depths and reducing over-excavation.

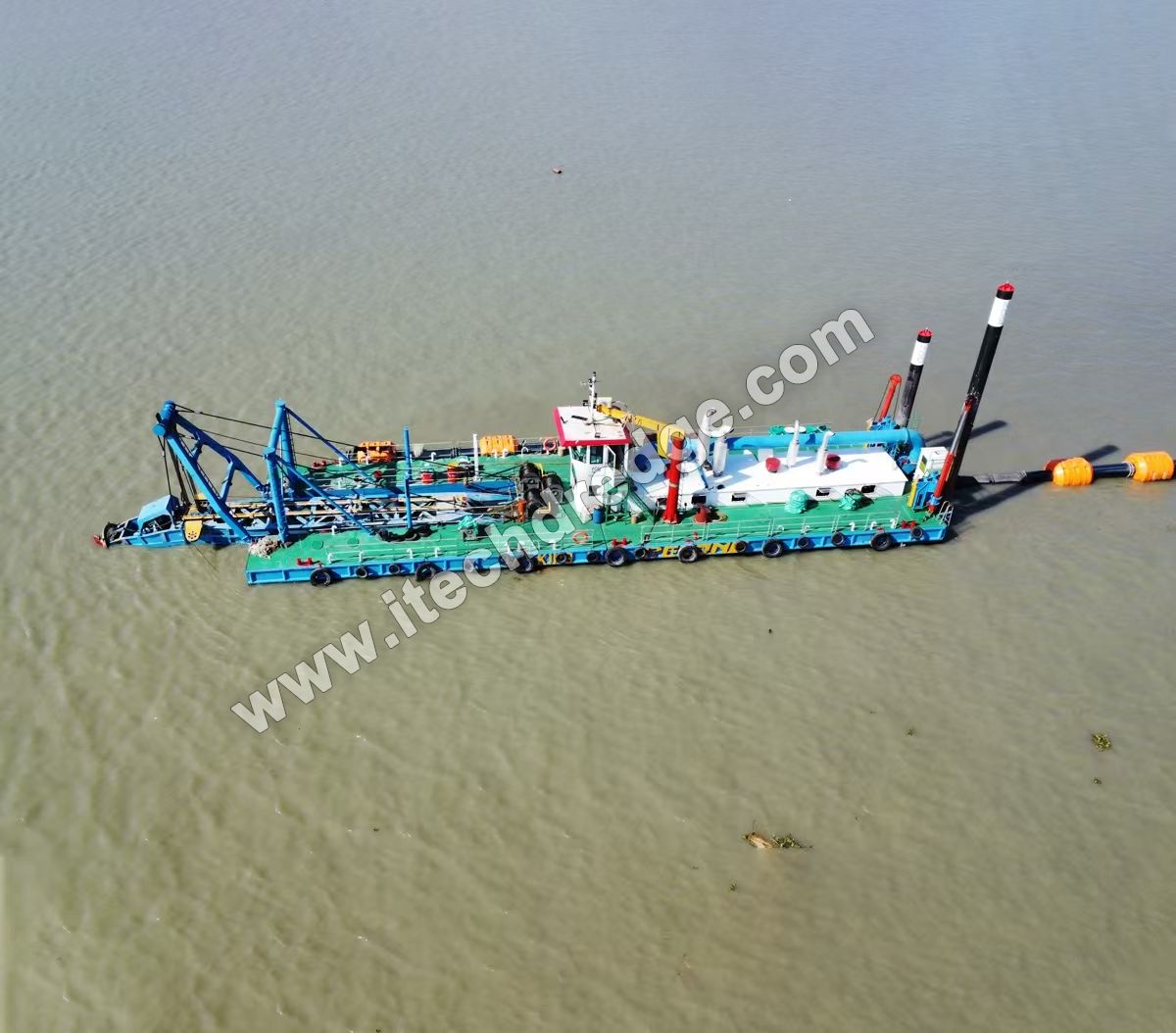

3. Eco-Friendly Technologies
Sustainability is a key focus, with innovations aimed at reducing emissions and minimizing environmental impact:
· Electric and Hybrid Propulsion: Traditional diesel-powered CSDs are being replaced by electric models or hybrid systems (diesel-electric). For instance, IHC’s "E-Dredger" uses battery packs charged by shore power or on-board solar panels, eliminating CO₂ and NOₓ emissions during operation. These models are 40% quieter than diesel versions, making them ideal for urban waterways or marine protected areas.
· Sediment Treatment Systems: Advanced CSDs integrate on-board separation units to filter dredged material. For example, DAMEN’s "Envipro" system uses centrifuges and chemical flocculants to separate clean water (returned to the environment) from solids (reused for land reclamation). This reduces the need for offshore dumping and lowers disposal costs by up to 50%.
· Low-Impact Cutter Designs: New cutter heads with rounded teeth minimize disturbance to aquatic habitats in sensitive areas (e.g., coral reefs or fish spawning grounds). These "eco-cutters" reduce sediment plumes by 30%, preserving water clarity and marine life.

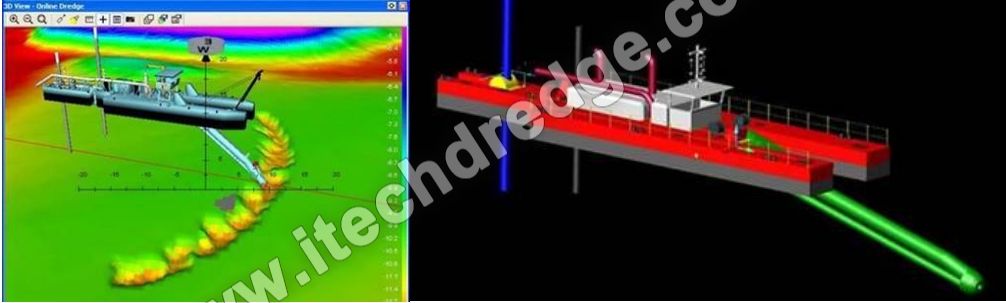

4. Advanced Monitoring Systems
Real-time data collection and predictive maintenance are now standard:
· IoT-Enabled Sensors: Modern CSDs are fitted with hundreds of sensors tracking parameters like cutter tooth wear, pump pressure, bearing temperature, and slurry density. Data is transmitted to cloud platforms (e.g., Dredging Today’s "DredgeTrack") for centralized analysis, allowing managers to monitor performance across multiple projects.
· Predictive Maintenance Algorithms: Systems like JOURNILIST’s "DredgeHealth" use historical data to forecast component failures. For example, by analyzing vibration patterns in the cutter head, the algorithm can predict when bearings will wear out, enabling proactive replacement and reducing unplanned downtime by 25–30%.
· 3D Visualization Tools: LiDAR and sonar data are combined to create 3D models of the seabed before, during, and after dredging. This allows engineers to verify project accuracy (e.g., channel depth) and document environmental compliance, streamlining regulatory reporting.
Cutter suction dredgers are evolving from brute-force machines to precision tools, driven by advancements in automation, materials, and sustainability. By integrating adaptive cutter heads, AI-driven controls, eco-friendly propulsion, and real-time monitoring, modern CSDs deliver higher performance while minimizing environmental impact. As global demand for port expansion, coastal protection, and inland waterway maintenance grows, these technologies will be critical to meeting project deadlines, reducing costs, and ensuring responsible resource management.
00001. IHC Dredging Equipment. "Innovations in Cutter Head Design." Technical Brochure, 2024. Available at: https://www.royalihc.com/
00001. DAMEN Dredging. "Remote Control and Automation in Modern Dredgers." Technology Report, 2023. Accessed from: https://www.damen.com/
00001. "Eco-Friendly Dredging: Electric Propulsion Trends." Dredging Today Magazine, 2024. Available at: https://www.dredgingtoday.com/2023/11/13/case-study-on-electric-powered-dredging-ships/
00001. Journal of Marine Engineering Research (JOURNILIST). "Predictive Maintenance in Cutter Suction Dredgers," Vol. 18, Issue 2, 2023.
00001. Global Dredging Technology Market Report 2024. Research Firm: MarineTech Insights.
