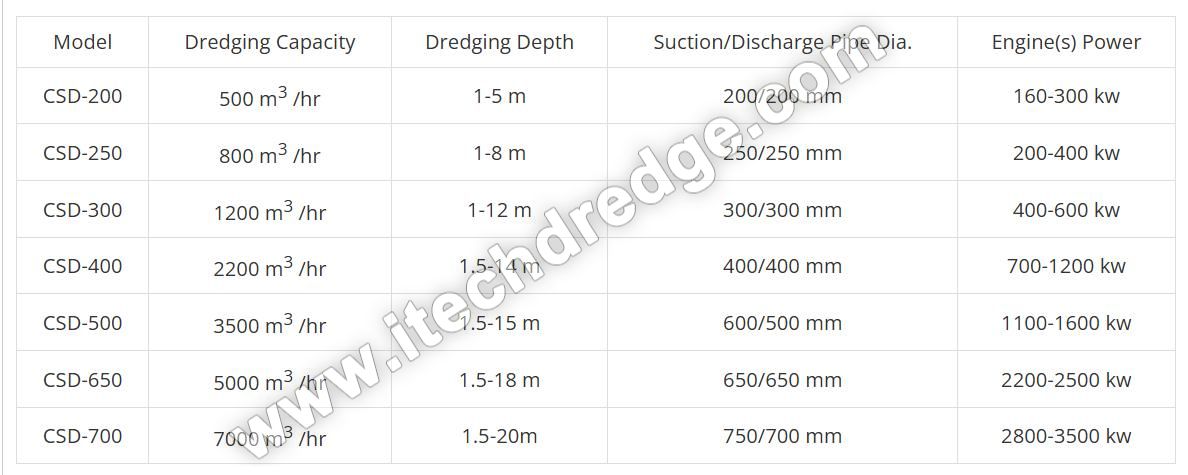

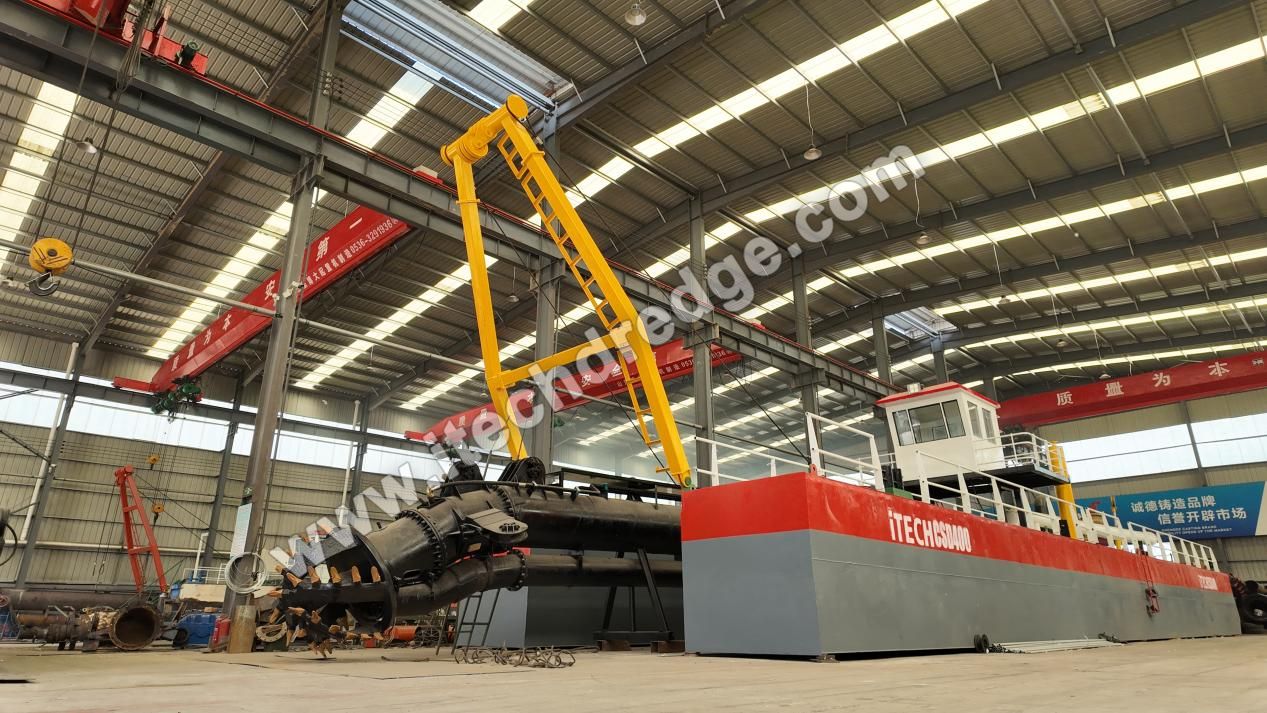

The power system of a cutter suction dredger is a complex and crucial component that ensures the efficient operation of the vessel in dredging projects. At iTECH Dredge, we understand the importance of a well - configured power system, and our approach follows a methodical process of requirement - calculation - selection - result.
1. Dredging Operations
1. Cutting Power: The cutter head, which is used to break up the seabed or riverbed material, requires significant power. The power needed depends on the type of soil or sediment to be cut. For example, hard clay or rocky materials demand much more power compared to soft silt or sand. If the cutter is designed to cut through a 4 - 10 - meter - thick mud layer (a common range in many dredging projects), the power requirements can be substantial.
2. Pumping Power: After the material is cut, it needs to be pumped through a pipeline to the disposal site. The distance of the pipeline, the diameter of the pipeline, and the density of the slurry all affect the pumping power. A longer pipeline or a higher - density slurry will require more power to move the material. In some large - scale projects, the slurry may need to be pumped over several kilometers.
3. Auxiliary Equipment: Equipment such as winches for positioning the dredger, the ladder - lowering mechanism for the cutter head, and the hydraulic systems for operating various components also consume power. These auxiliary systems need to be powered simultaneously with the main dredging operations.
2. Vessel Propulsion (if self - propelled)
1. If the cutter suction dredger is self - propelled, the power system must provide sufficient energy for the vessel to move to and from the dredging site, as well as for maneuvering during the dredging process. The size and weight of the vessel, the desired cruising speed, and the resistance of the water all play a role in determining the propulsion power requirements. A larger dredger will generally require more power to move through the water.
3. Environmental and Operational Conditions
1. Duration of Operations: If the dredging project is expected to run continuously for long periods, the power system must be able to maintain a stable output without overheating or experiencing other performance issues. For example, in a large - scale port - expansion project, the dredger may need to operate 24/7 for several months.
2. Location - specific Requirements: In some areas, there may be restrictions on emissions. For instance, in environmentally sensitive areas, the power system may need to meet strict emission standards, which could influence the choice of power generation technology.

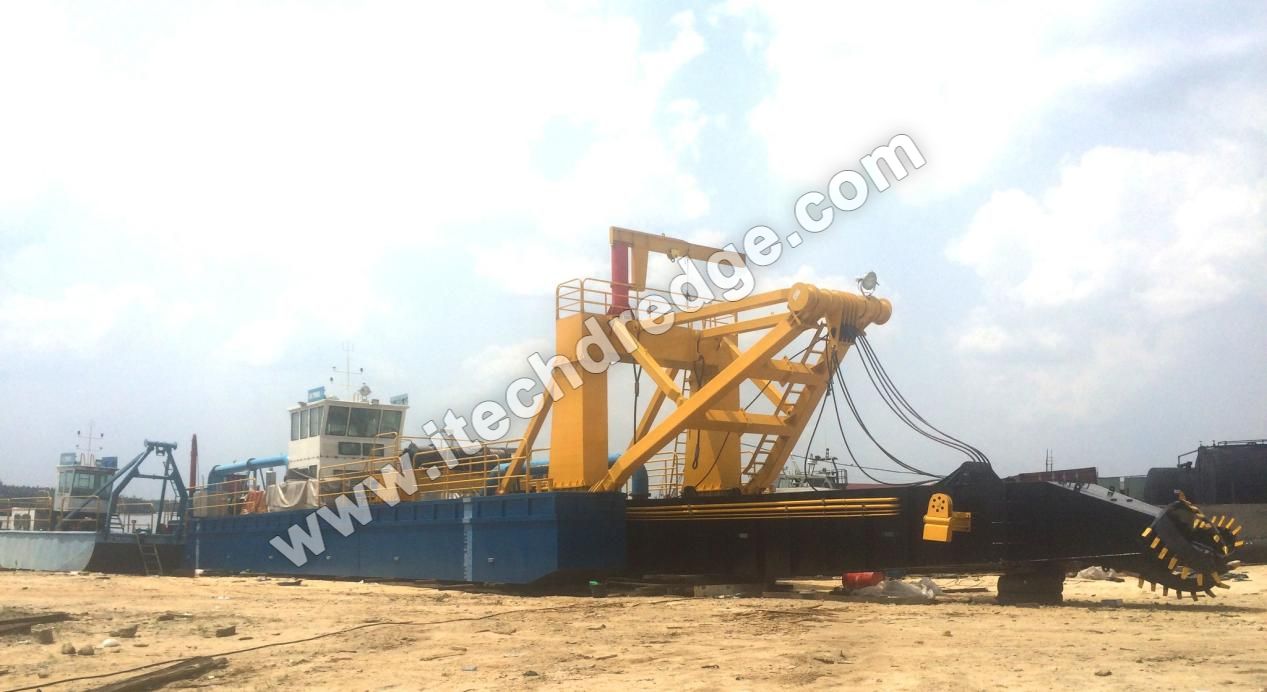

1. Cutter Power Calculation
1. The power required for the cutter head (Pcutter) can be estimated using the formula Pcutter=K×D×B×V, where K is a coefficient that depends on the soil type (for soft soil, K might be around 0.5 - 1.0, while for hard soil it could be 2 - 5), D is the diameter of the cutter head, B is the width of the cut, and V is the cutting speed. For example, if the cutter head has a diameter (D) of 2 meters, a cut width (B) of 1.5 meters, and a cutting speed (V) of 0.5 m/s in soft soil (K=0.8), then Pcutter=0.8×2×1.5×0.5=1.2 MW.

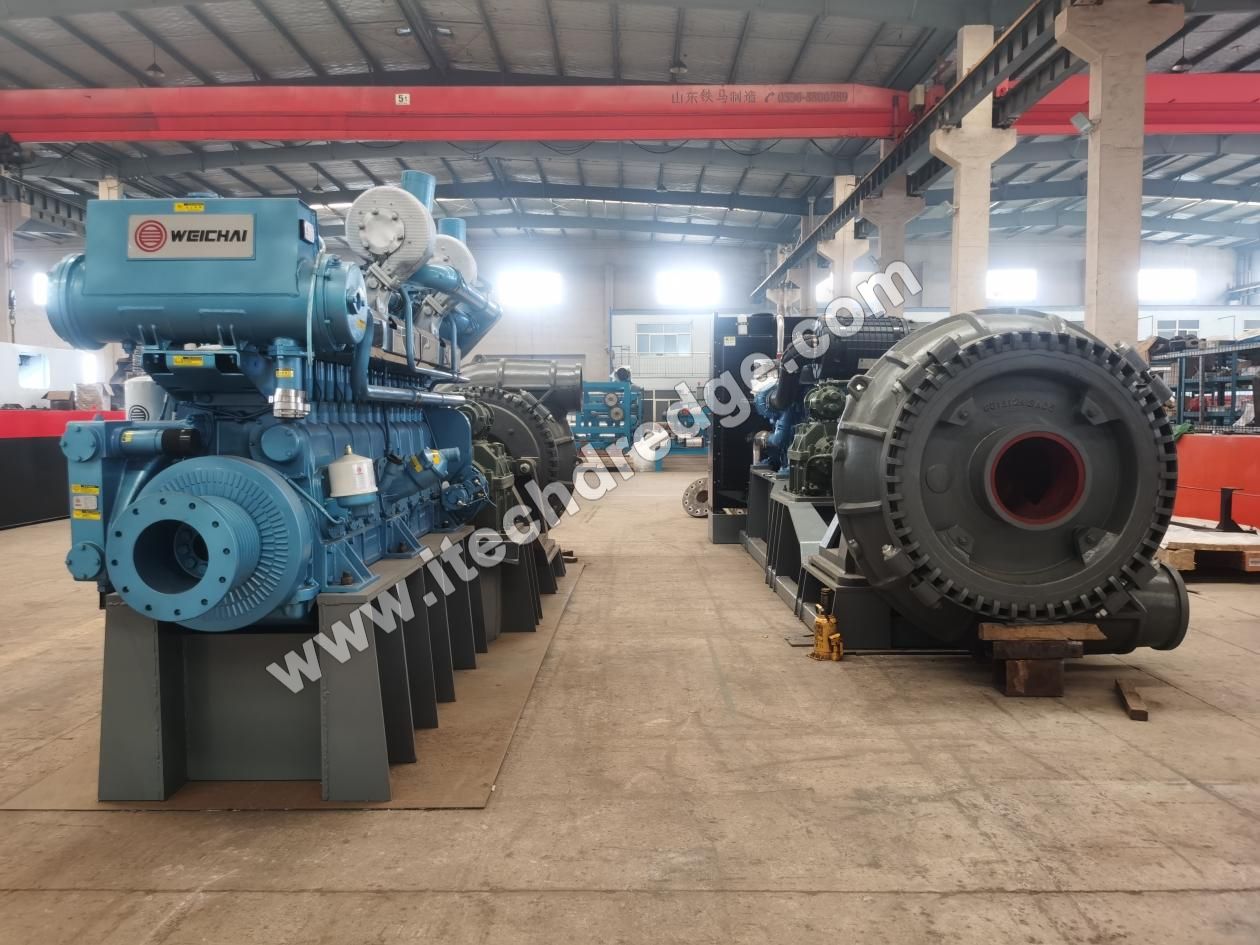

2. Pumping Power Calculation
1. The power required for pumping (Ppump) can be calculated using the formula Ppump=ηρ×g×Q×H, where ρ is the density of the slurry (a mixture of water and sediment), g is the acceleration due to gravity (9.81m/s2), Q is the volumetric flow rate of the slurry, H is the total head (the sum of the static head, which is the vertical height the slurry needs to be lifted, and the friction head, which accounts for the resistance in the pipeline), and η is the efficiency of the pump.
2. Suppose the density of the slurry ρ=1200kg/m3, the volumetric flow rate Q=1000m3/h (which is 1000/3600m3/s), the total head H=50 m, and the pump efficiency η=0.7. First, convert the flow rate: Q=36001000≈0.278m3/s. Then, Ppump=0.71200×9.81×0.278×50≈234.5 kW.

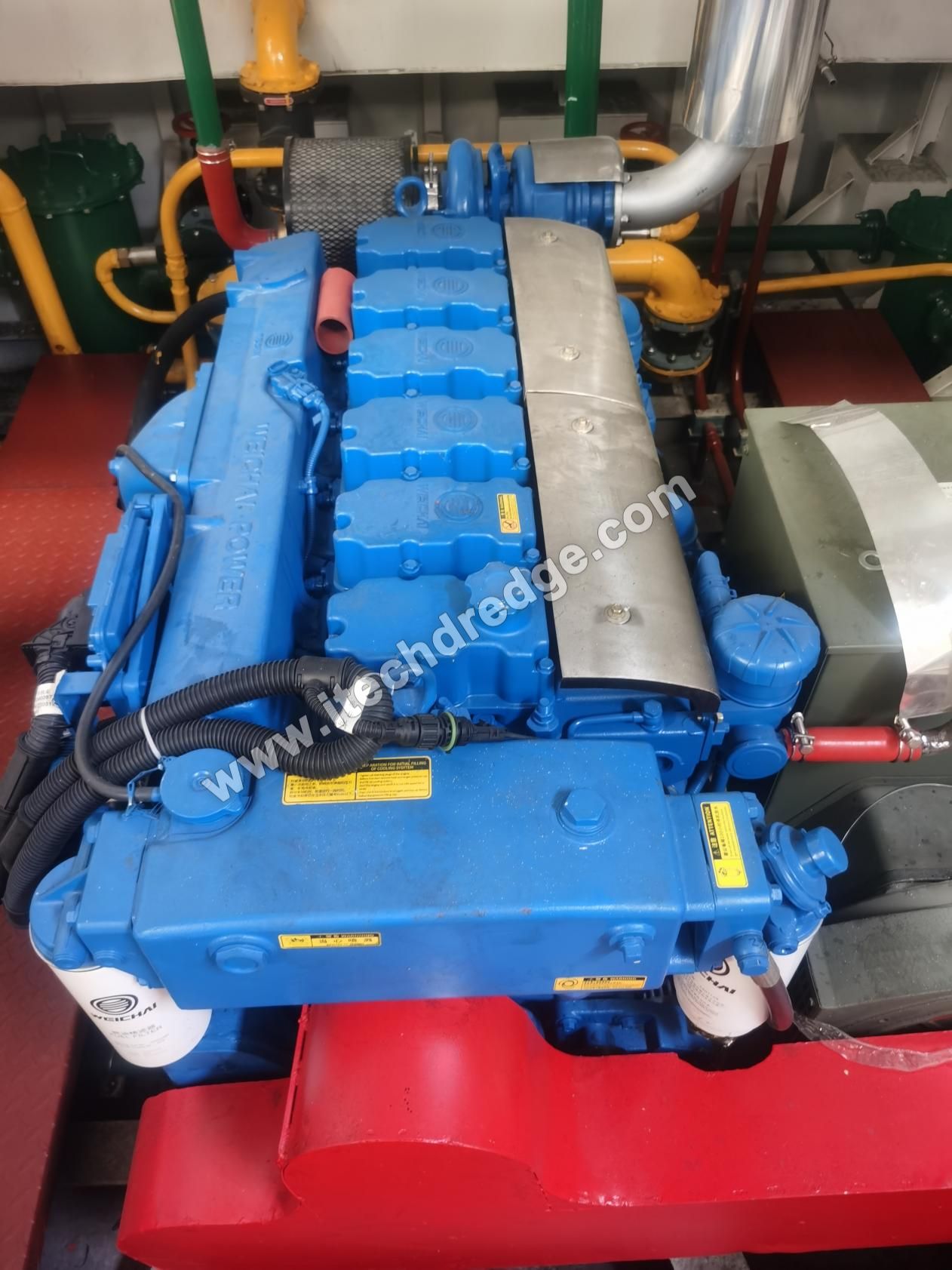

3. Auxiliary Equipment Power Calculation
1. The power requirements of each auxiliary device need to be calculated separately. For example, a winch motor may have a power rating of Pwinch=50 kW, and if there are two winches, the total power for winches is 2×50=100 kW. The hydraulic power unit for operating various components may require Phydraulic=80 kW. Summing up all auxiliary equipment power, if there are other small - power devices adding up to Pothers=30 kW, the total auxiliary power Pauxiliary=100+80+30=210 kW.
4. Propulsion Power Calculation (if self - propelled)
1. For a self - propelled cutter suction dredger, the propulsion power (Ppropulsion) can be estimated using the formula Ppropulsion=21ρwCTApVs3, where ρw is the density of water (1000kg/m3 for fresh water), CT is the thrust coefficient (which depends on the hull shape and propeller design, typically in the range of 0.5 - 1.5), Ap is the projected area of the hull perpendicular to the direction of motion, and Vs is the desired service speed.
2. If the vessel has a projected area Ap=100m2, a thrust coefficient CT=1.0, and a desired service speed Vs=10 knots (which is approximately 5.14 m/s), then Ppropulsion=21×1000×1.0×100×(5.14)3≈683.5 kW.
The total power requirement Ptotal for the dredger, considering all these components, is Ptotal=Pcutter+Ppump+Pauxiliary+Ppropulsion (if self - propelled). In the example above, if the dredger is self - propelled, Ptotal=1200+234.5+210+683.5=2328 kW.

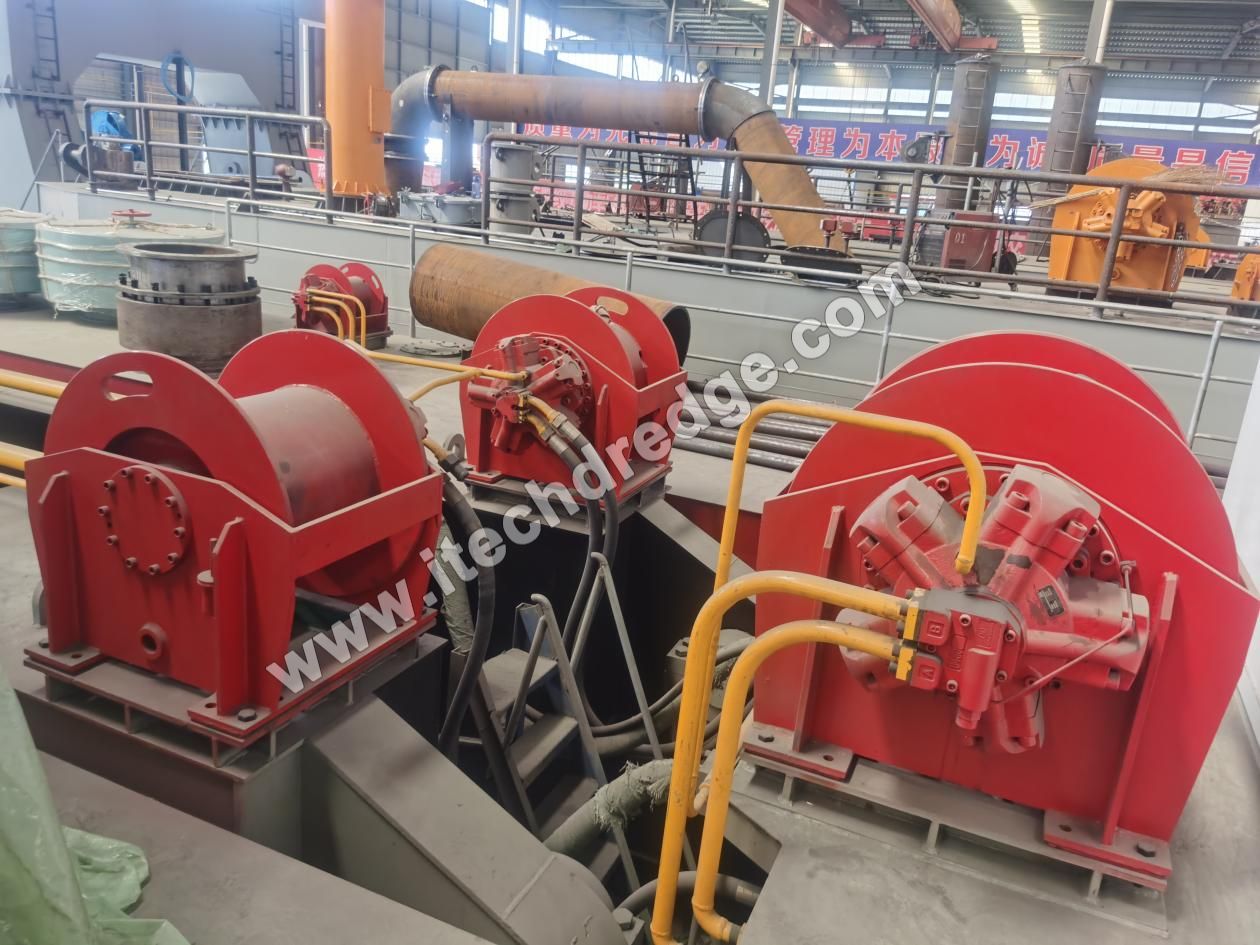

1. Diesel - Electric Systems
1. Generators: Based on the calculated power requirements, diesel - generators are often selected. For a total power requirement of around 2328 kW, multiple diesel - generators can be installed. For example, three diesel - generators with a capacity of 800 kW each can be used. These generators convert the chemical energy of diesel fuel into electrical energy. The diesel - generators are typically of the medium - speed type, which offers a good balance between power output, fuel efficiency, and compactness.
2. Motors: Electric motors are then used to drive the cutter head, pumps, and other equipment. Variable - frequency drives (VFDs) are often paired with the motors. For the cutter head motor, a high - torque motor with a power rating corresponding to the calculated cutter power (in this case, 1200 kW) is selected. The VFDs allow for precise control of the motor speed, which is crucial for optimizing the dredging process. For the pump motor, a motor with a power rating of 234.5 kW (as calculated) is chosen, and the VFD enables adjustment of the pump speed to match the varying flow and head requirements.
2. Diesel - Direct Drive Systems (less common but applicable in some cases)
In some smaller cutter suction dredgers or in situations where simplicity is preferred, diesel engines can be directly connected to the driven equipment. For example, a diesel engine can be directly coupled to the cutter head through a gearbox. However, this approach may not offer the same level of flexibility in terms of speed control as the diesel - electric system.

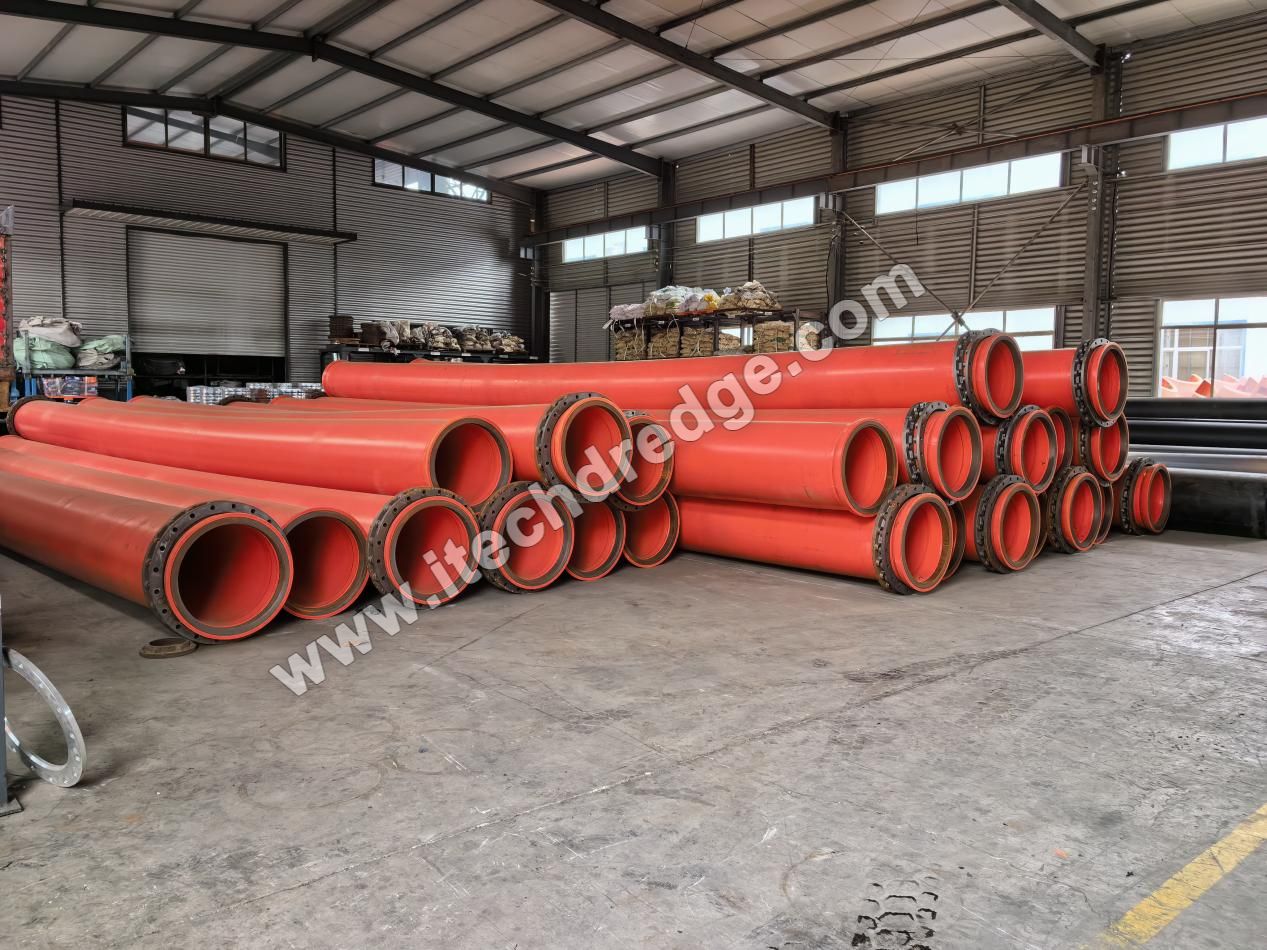

3. Hybrid and Alternative Power Systems
1. Hybrid Systems: In recent years, hybrid power systems that combine diesel - generators with energy - storage systems (such as batteries) have become more popular. The batteries can store excess energy generated during periods of low demand and release it during peak - load situations, reducing the load on the diesel - generators and improving fuel efficiency. For example, in a dredger with a significant amount of start - stop operations (such as when frequently repositioning), a hybrid system can be beneficial.
2. Alternative Power Sources: In certain environmentally - sensitive areas, alternative power sources like liquefied natural gas (LNG) can be used. LNG - powered engines produce fewer emissions compared to traditional diesel engines. Some cutter suction dredgers are now being designed with LNG - fuel systems, which require specialized storage and fuel - delivery infrastructure on the vessel.

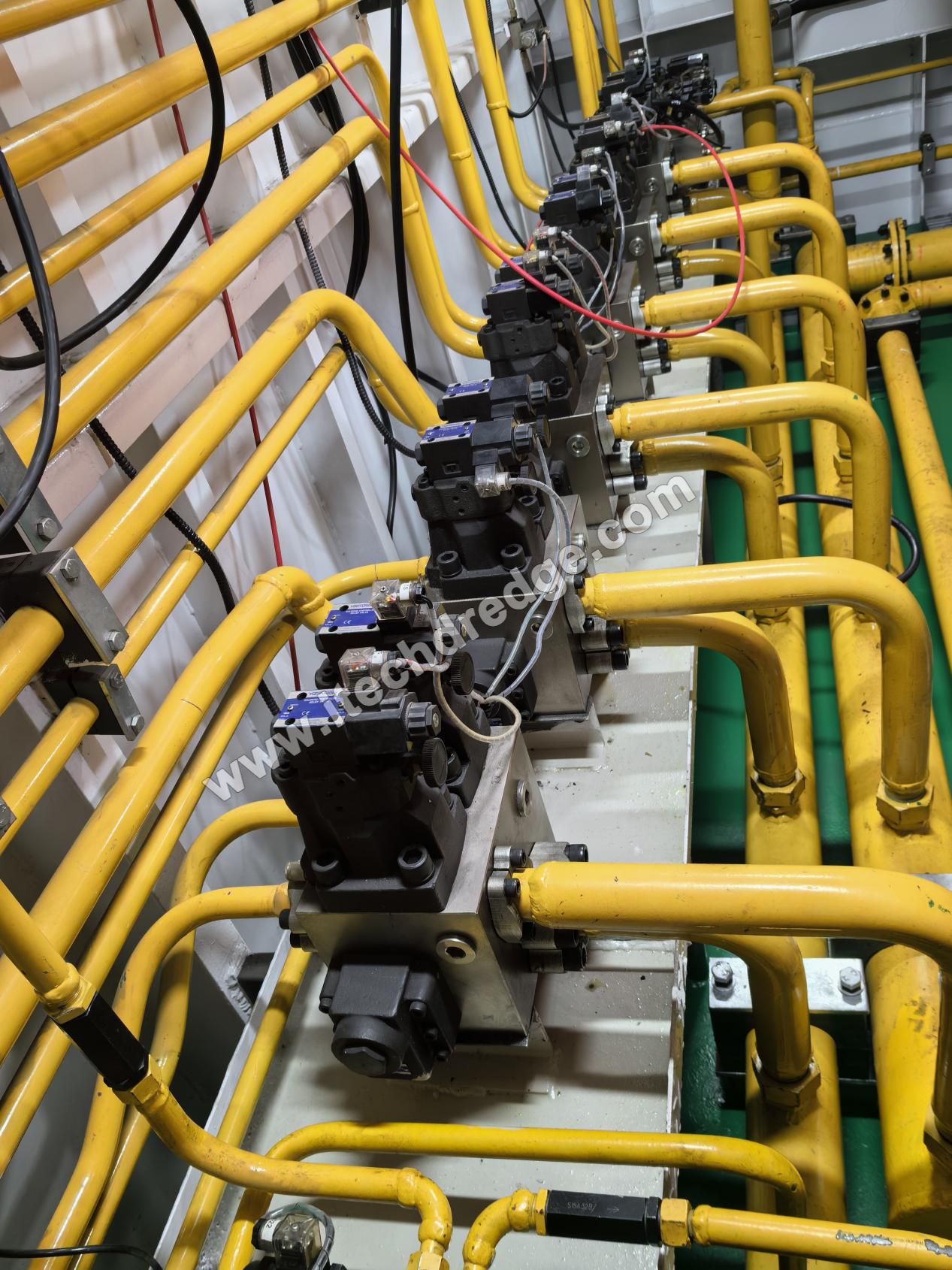

1. Efficient Dredging Operations
With a properly configured power system, the cutter suction dredger can operate at peak efficiency. The cutter head can break up the sediment effectively, and the pumps can transfer the slurry to the disposal site without any power - related bottlenecks. This leads to higher productivity in dredging projects. For example, in a large - scale river - widening project, an iTECH Dredge cutter suction dredger with a well - configured power system was able to complete the dredging work 20% faster than the original schedule.
2. Reliability and Redundancy
By using multiple power - generation units (such as multiple diesel - generators in a diesel - electric system), there is built - in redundancy. If one generator fails, the others can continue to supply power to the critical systems of the dredger, ensuring that the dredging operations can continue with minimal disruption. This is essential for long - term and continuous dredging projects.
3. Compliance with Environmental and Operational Requirements
1. The selection of power systems, especially those that use alternative fuels or hybrid technologies, allows the cutter suction dredger to meet strict environmental regulations. In addition, the power system can be configured to adapt to different operational conditions, such as varying water depths or soil types, ensuring that the dredger can perform optimally in a wide range of scenarios.
In conclusion, at iTECH Dredge, the power system configuration of our cutter suction dredgers is a carefully planned process that takes into account the specific requirements of each dredging project. Through accurate calculations, appropriate power - system selection, we ensure that our dredgers offer high - performance, reliable, and environmentally - friendly solutions for our clients in the dredging industry.
Do you think this breakdown of the power system configuration process is comprehensive? Are you interested in learning more about specific components or applications of these power systems in different dredging scenarios?
