Cutter suction dredgers are vital equipment for waterway maintenance, land reclamation, and port construction, and iTECH Dredge has long been a leader in delivering high-quality dredging solutions worldwide. When it comes to shipping large equipment like a 12-inch cutter suction dredger, containerization offers efficiency, cost-effectiveness, and security—provided the process is meticulously planned. This guide details how iTECH Dredge safely and efficiently ships its 12-inch cutter suction dredger using 40HQ containers, focusing on the disassembly, container selection, packing, and logistics management of key components: the ladder, cutter head, control room, living room, main pontoon, and side pontoon.
Before diving into the shipping process, it is critical to understand the dimensions of both the dredger components and the containers used. This ensures compatibility and avoids logistical delays.

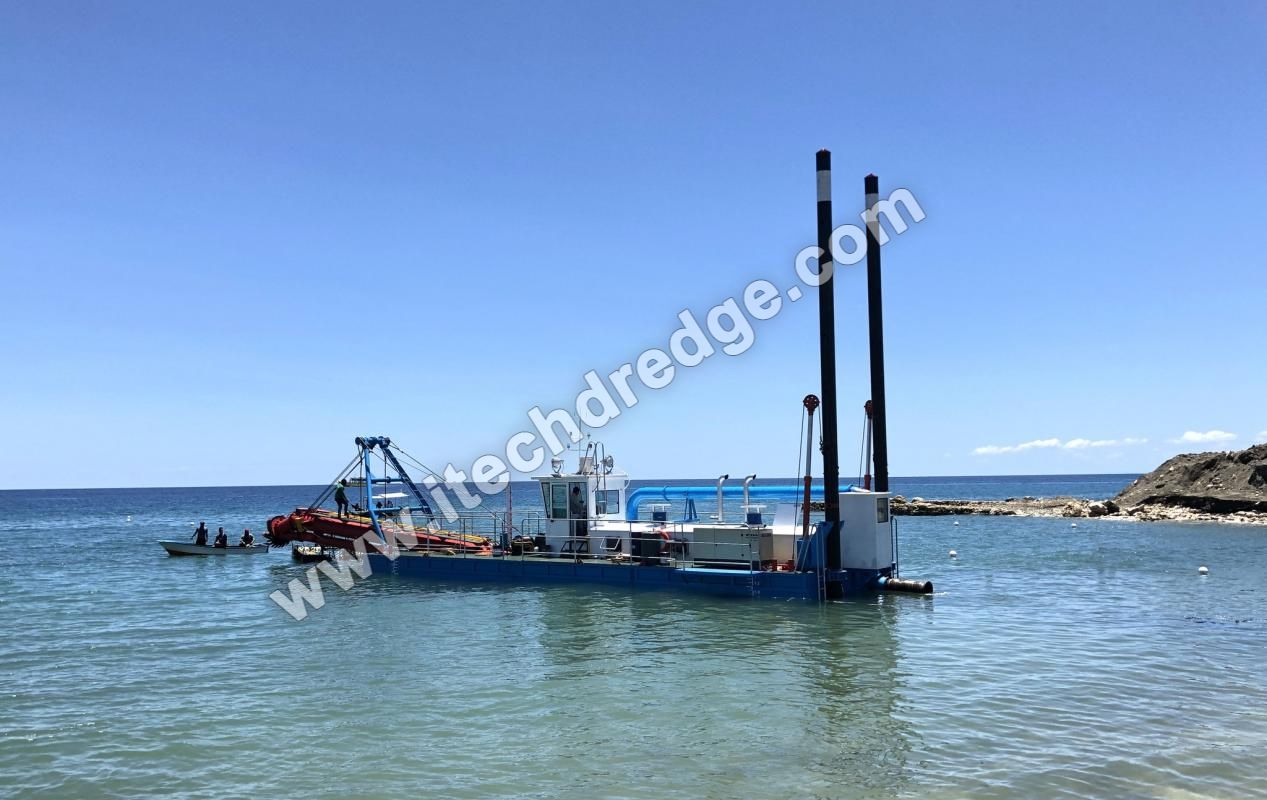

iTECH Dredge’s 12-inch cutter suction dredger is engineered for modular disassembly, allowing each major component to fit into standard shipping containers. The core components include:
· Ladder: A long, vertical/angled structure housing the suction pipe and cutter drive system.
· Cutter Head: The rotating cutting tool at the end of the ladder, responsible for loosening sediment.
· Control Room: The operational hub containing navigation, dredging control, and monitoring systems.
· Living Room: Onboard accommodation for crew, including sleeping quarters and basic amenities.
· Main Pontoon: The primary floating platform supporting the dredger’s weight and machinery.
· Side Pontoons: Auxiliary floats enhancing stability and buoyancy.

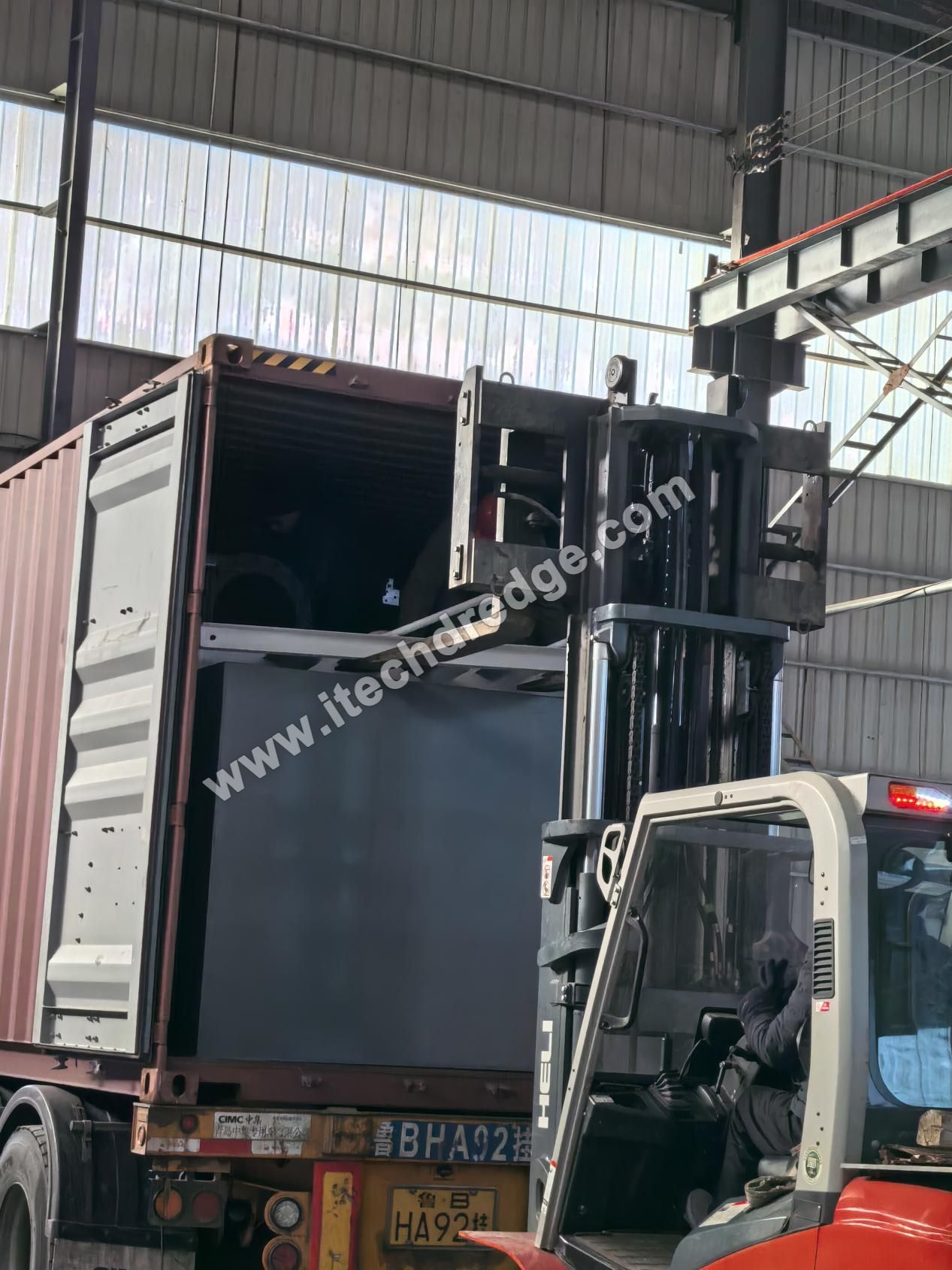

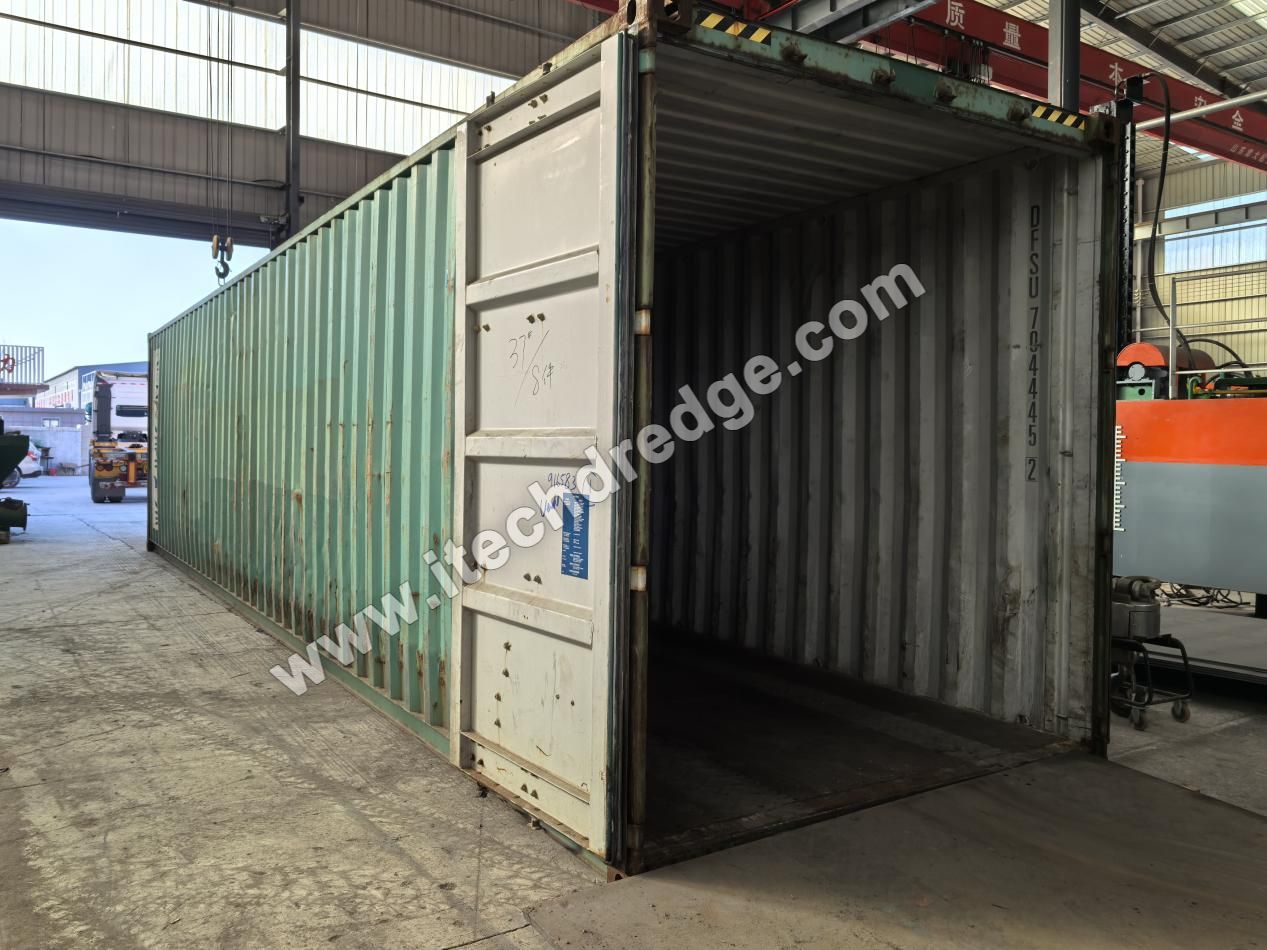

The 40-foot High Cube (40HQ) container is the standard choice for shipping large, heavy components due to its increased height and capacity. Key dimensions:
· Length: 12.192 meters (40 feet)
· Width: 2.438 meters (8 feet)
· Height: 2.896 meters (9 feet 6 inches)
· Maximum payload: ~26 tons (varies by carrier)
· Door opening: 2.34 meters (width) x 2.70 meters (height)
This container size provides ample space for most dredger components when properly disassembled and packed.

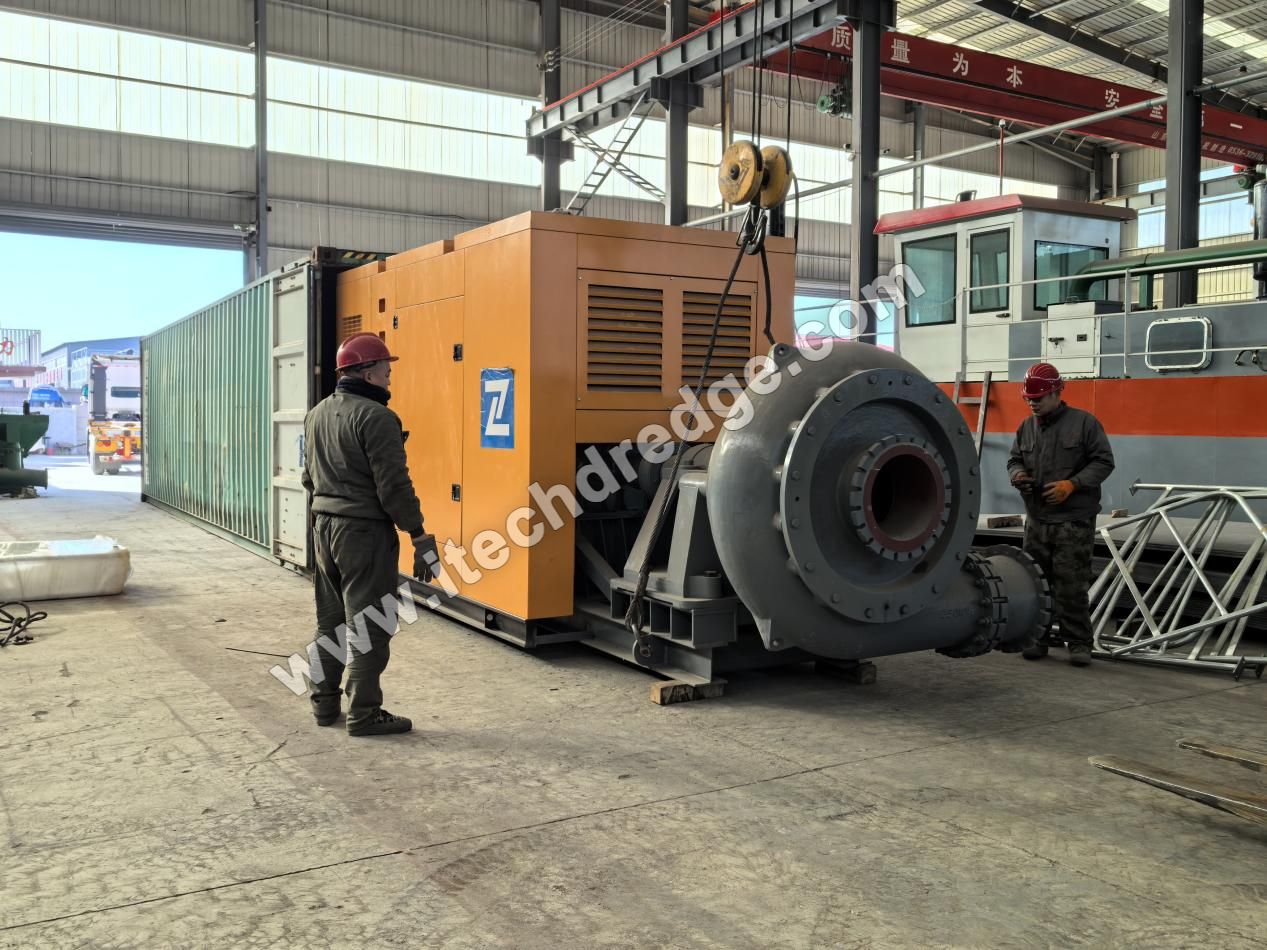

Disassembly is the foundation of successful container shipping. iTECH Dredge follows strict protocols to break down the dredger into container-friendly parts while ensuring structural integrity and ease of reassembly.
· Engineering Drawings: Refer to detailed 3D models and component blueprints to determine disassembly sequences, ensuring no critical connections are damaged.
· Tooling and Equipment: Use specialized tools (e.g., hydraulic wrenches, cranes) to safely detach heavy components like the ladder and pontoons.
· Labeling and Documentation: Each part is tagged with unique identifiers, and a packing list is created to track components during transit. Photos and diagrams of connections are included to guide reassembly.
· Ladder:
The ladder is disassembled into 2–3 sections (depending on length) using flanged connections. Hydraulic hoses and electrical cables are disconnected, coiled, and labeled. Each section is capped to protect internal pipes from debris.

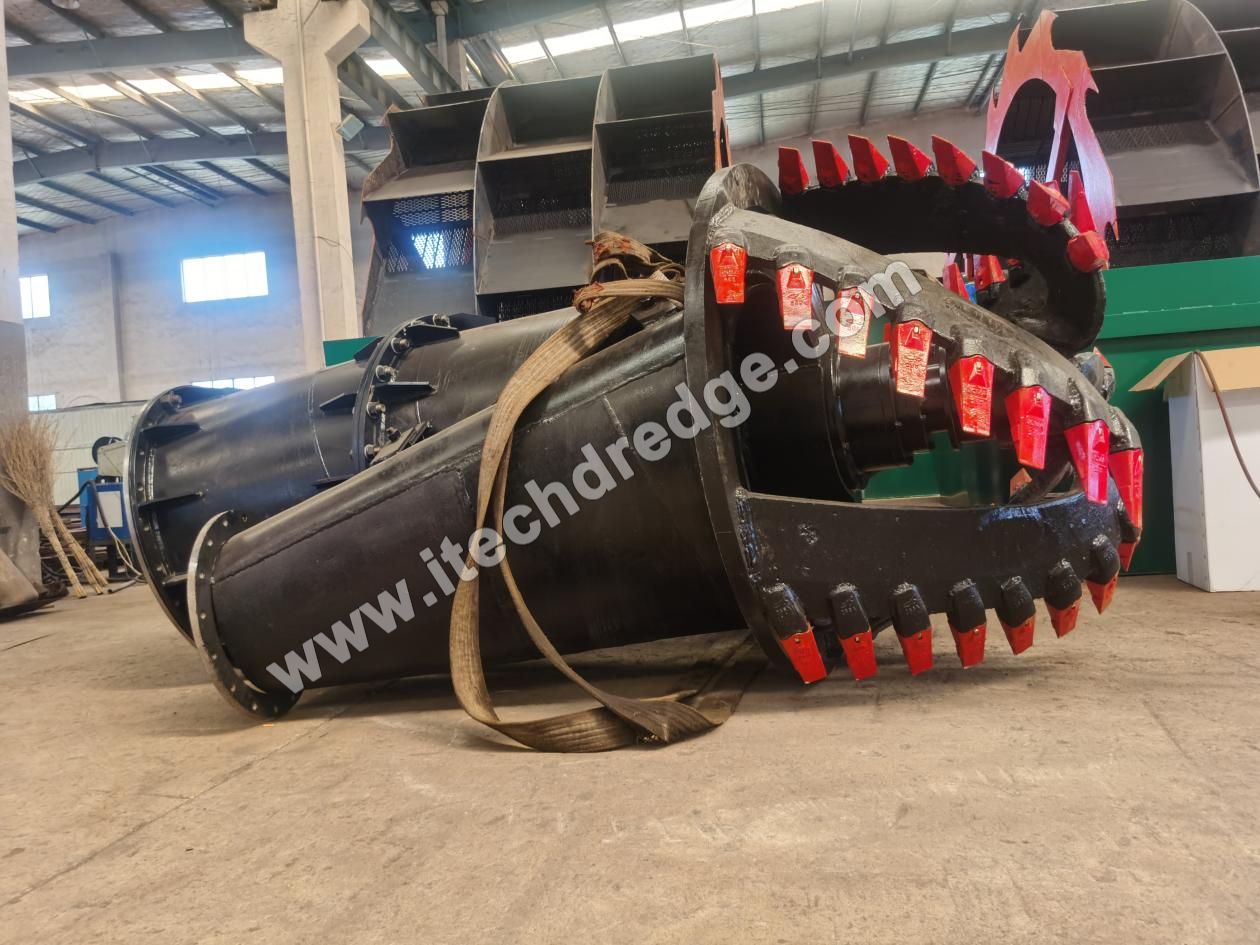

· Cutter Head:
The cutter head is detached from the ladder’s lower end. Sharp edges are covered with protective padding, and the drive shaft is secured with a locking device to prevent rotation during transit.

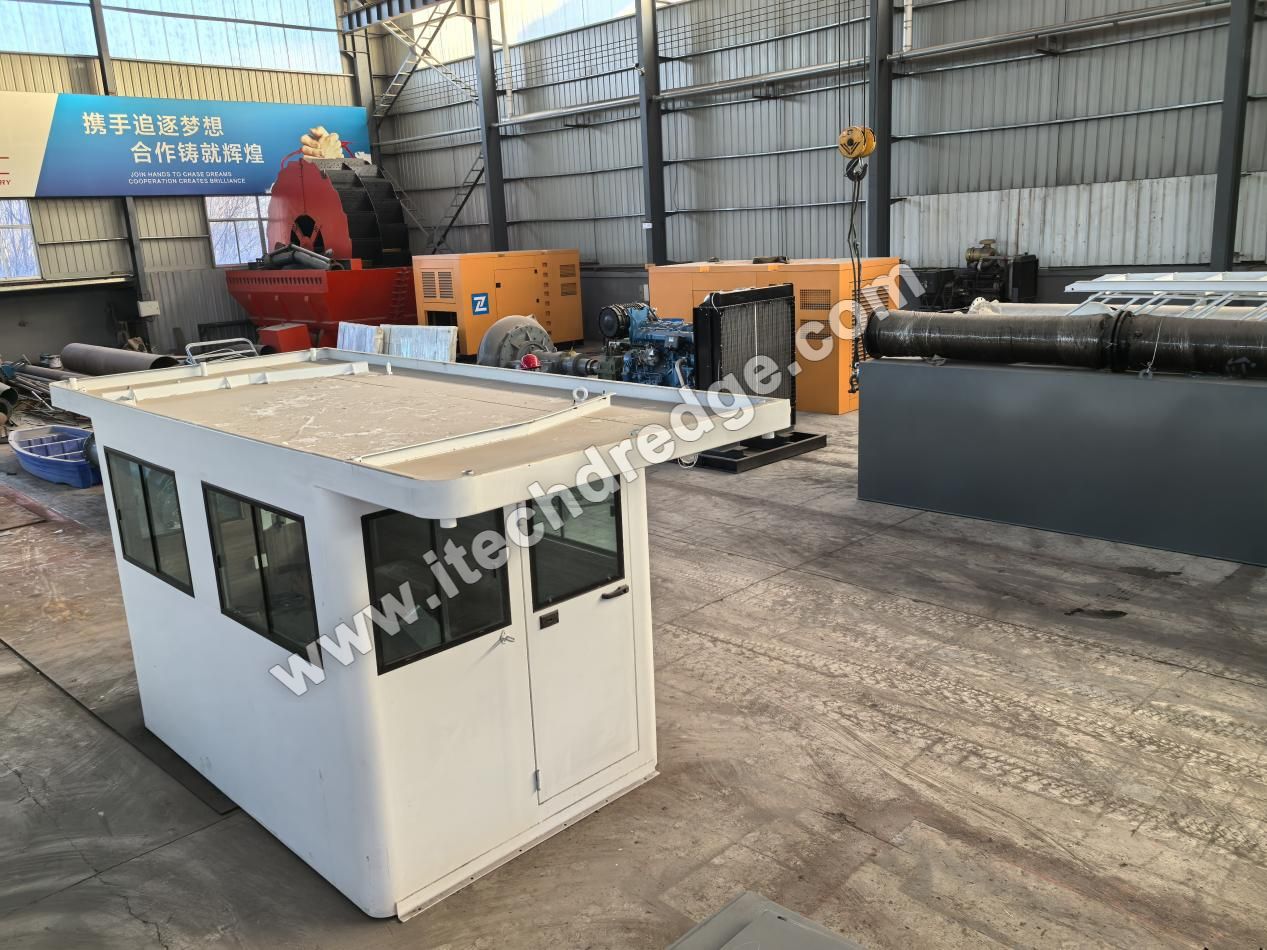

· Control Room and Living Room:
These modular cabins are prefabricated as single units but may require minor disassembly (e.g., removing windows, detaching external fixtures) to reduce width/height. Internal equipment (monitors, furniture) is secured to prevent shifting.

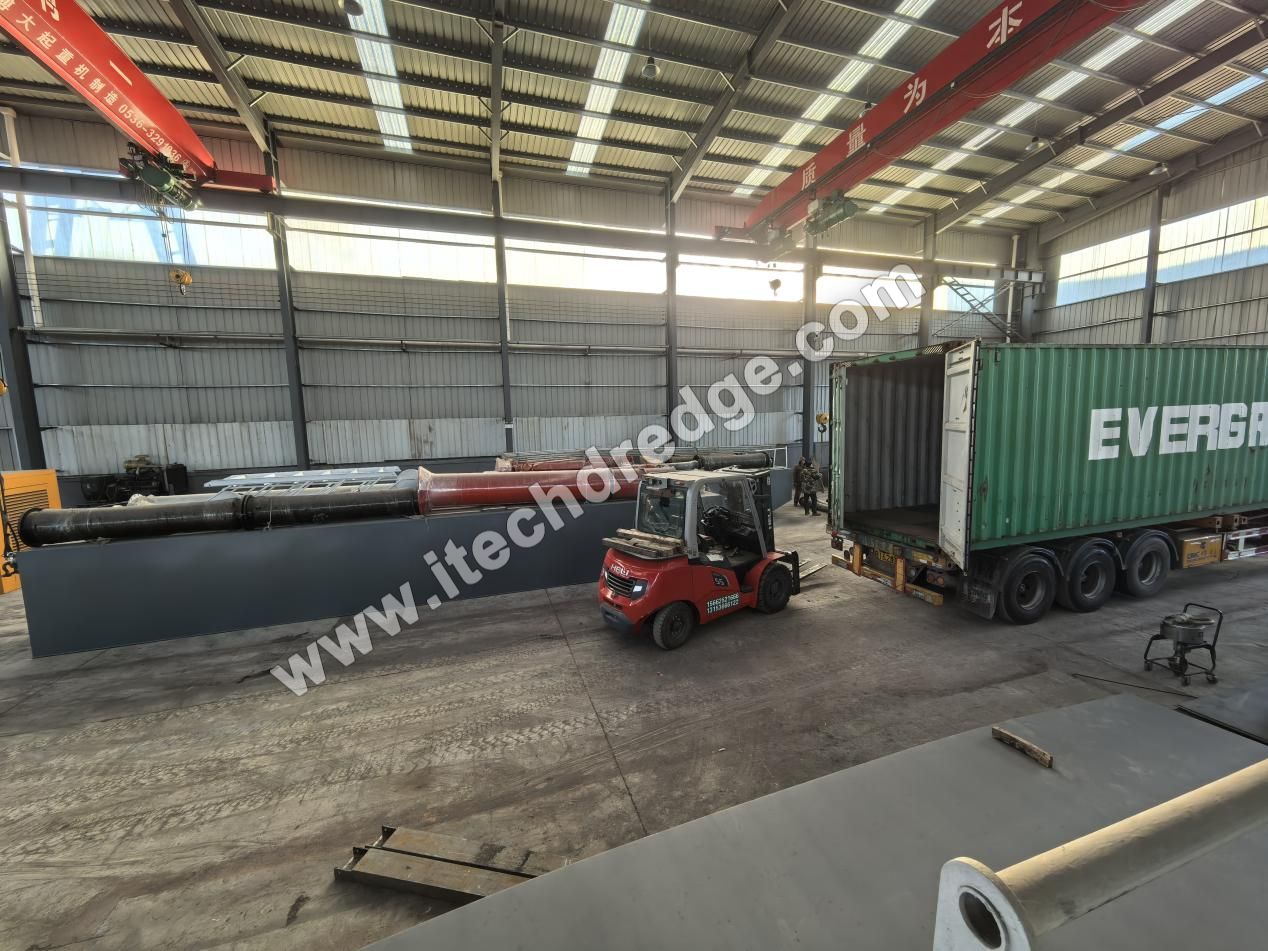

· Main and Side Pontoons:
Pontoons are designed with bolted joints for easy separation. Non-essential fixtures (handrails, access ladders) are removed, and buoyancy compartments are drained and sealed to prevent water ingress.
Packing components into 40HQ containers requires precision to optimize space, distribute weight evenly, and protect against damage during handling and shipping.
· Even Weight Distribution: Each container’s payload is balanced to avoid tilting or overloading. Heavy components (e.g., the ladder sections, cutter head) are placed low and centered, with lighter items (e.g., control room panels) stacked above.
· Floor Reinforcement: For components exceeding 10 tons, wooden or steel pallets are used to distribute weight across the container floor, preventing damage to the container’s structure.
Component | Packing Strategy | Container Quantity |
Ladder Sections | Place horizontally on padded skids, secured with steel straps to container walls. | 1 containers |
Cutter Head | Wrap in anti-corrosion film, place on a custom cradle, and secure with chains. | 1 container |
Control Room | Load upright, with internal equipment braced. Secure to floor with anchor bolts. | 1 container |
Living Room | Similar to control room; remove detachable furniture and pack separately. | 1 container |
Main Pontoon | stack with padding between sections. | 1containers |

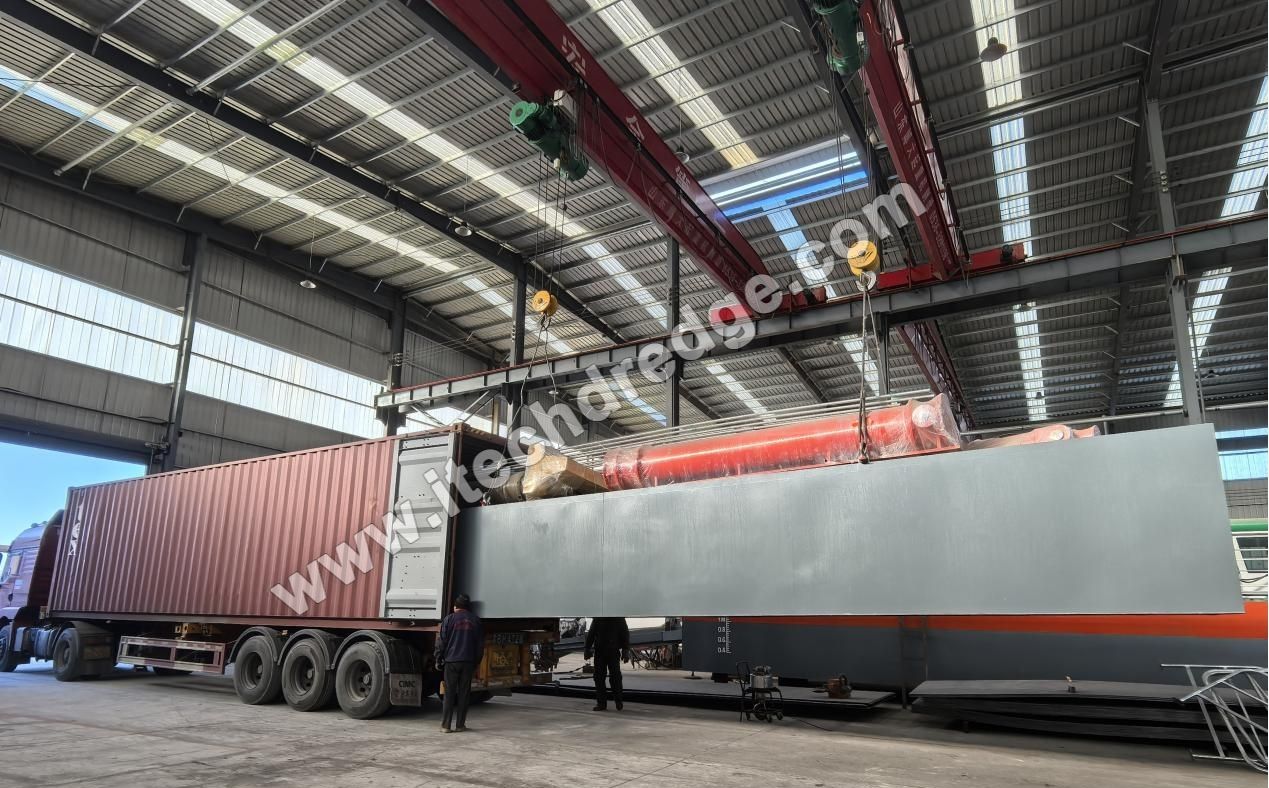

Side Pontoons | Two side pontoons per container, placed side by side with protective buffers. | 2 container |
· Weatherproofing: Components are wrapped in waterproof tarps or shrink wrap to protect against moisture. Electrical panels and motors are sealed in waterproof enclosures.
· Shock Absorption: Foam padding, rubber mats, or wooden blocks are used between components to absorb vibrations during transit.
· Security: Containers are sealed with high-security locks, and GPS trackers are installed to monitor location and movement.
International shipping requires rigorous documentation to comply with customs regulations and carrier requirements. iTECH Dredge ensures all paperwork is accurate and complete.
· Commercial Invoice: Details component values, quantities, and buyer/seller information.
· Packing List: Itemized list of components in each container, including weights and dimensions.
· Bill of Lading (BOL): Legal contract between iTECH Dredge and the carrier, specifying shipment terms and destination.
· Certificate of Origin: Confirms the dredger’s manufacturing location (e.g., “Made in China”) for tariff purposes.
· Safety Certifications: Compliance documents (e.g., ISO, CE) verifying component safety and quality.
· Import Restrictions: Research destination country regulations (e.g., weight limits, import taxes, environmental standards) to avoid delays. For example, the EU requires CE marking for machinery, while Australia mandates biosecurity checks for wooden packaging.
· Dangerous Goods Declaration: If components contain hydraulic fluids or batteries, a dangerous goods declaration is filed to ensure proper handling.
iTECH Dredge partners with reputable freight forwarders and carriers to manage the entire shipping process, from factory loading to on-site delivery.
· Trucking: From iTECH Dredge’s factory to the port, components are transported via flatbed trucks with cranes for loading/unloading.
· Port Handling: At the origin port, containers are inspected, weighed, and stacked onto cargo ships using port cranes.
· Ocean Freight: Containers are loaded onto a container ship, with priority given to minimizing transit time (e.g., direct routes over transshipment hubs).
· Real-Time Tracking: Use carrier-provided tracking systems to monitor container locations, estimated arrival times, and any delays (e.g., port congestion, weather).
· Communication with Client: Regular updates are shared with the client, including departure/arrival notices, customs clearance status, and contact details for local agents at the destination port.

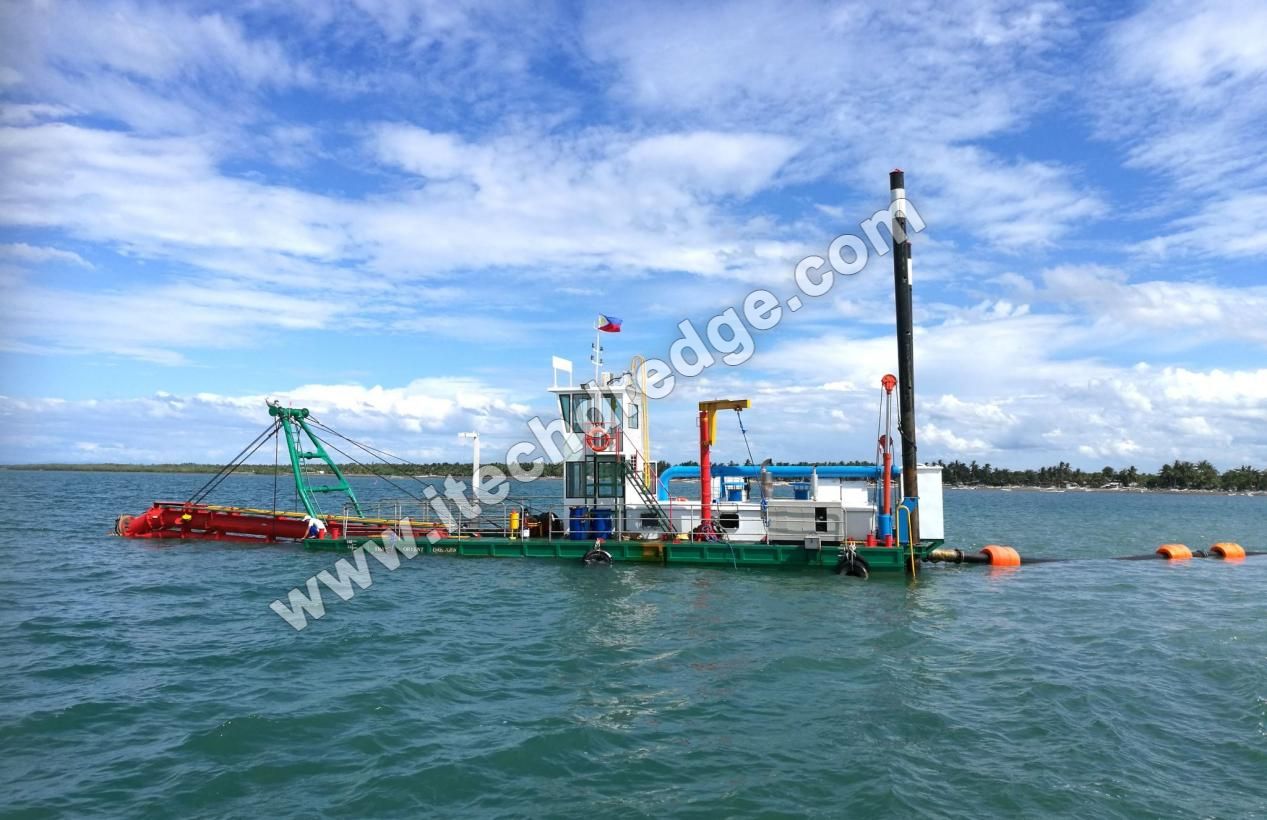

Shipping doesn’t end at delivery—iTECH Dredge provides on-site support to ensure smooth unloading and reassembly.
· Port Coordination: Coordinate with local logistics teams to arrange cranes, trucks, and storage facilities at the destination port.
· Inspection: Unload containers carefully and inspect components for damage. Any issues are documented and reported immediately for insurance claims.
· Technical Team: iTECH Dredge dispatches a team of engineers to supervise reassembly, using the labeled components and documentation created during disassembly.
· Training: Crew training is provided on reassembly procedures, safety protocols, and equipment operation to ensure the dredger is ready for use.
iTECH Dredge prioritizes quality and reliability throughout the shipping process, with measures to mitigate common risks:
· Insurance: Comprehensive cargo insurance covers loss, damage, or theft during transit.
· Testing: Critical components (e.g., cutter head motors, hydraulic systems) are tested before shipping to ensure functionality post-transit.
· Contingency Planning: Backup components (e.g., spare bolts, hoses) are included in shipments to address minor losses or damages.
Shipping a 12-inch cutter suction dredger by 40HQ containers is a complex but manageable process when guided by careful planning, engineering expertise, and attention to detail. iTECH Dredge’s modular design, rigorous disassembly protocols, and end-to-end logistics support ensure that clients receive their dredgers safely, on time, and ready for operation. By leveraging containerization, iTECH Dredge continues to deliver efficient, cost-effective dredging solutions to projects worldwide, reinforcing its reputation as a trusted partner in the maritime industry.
