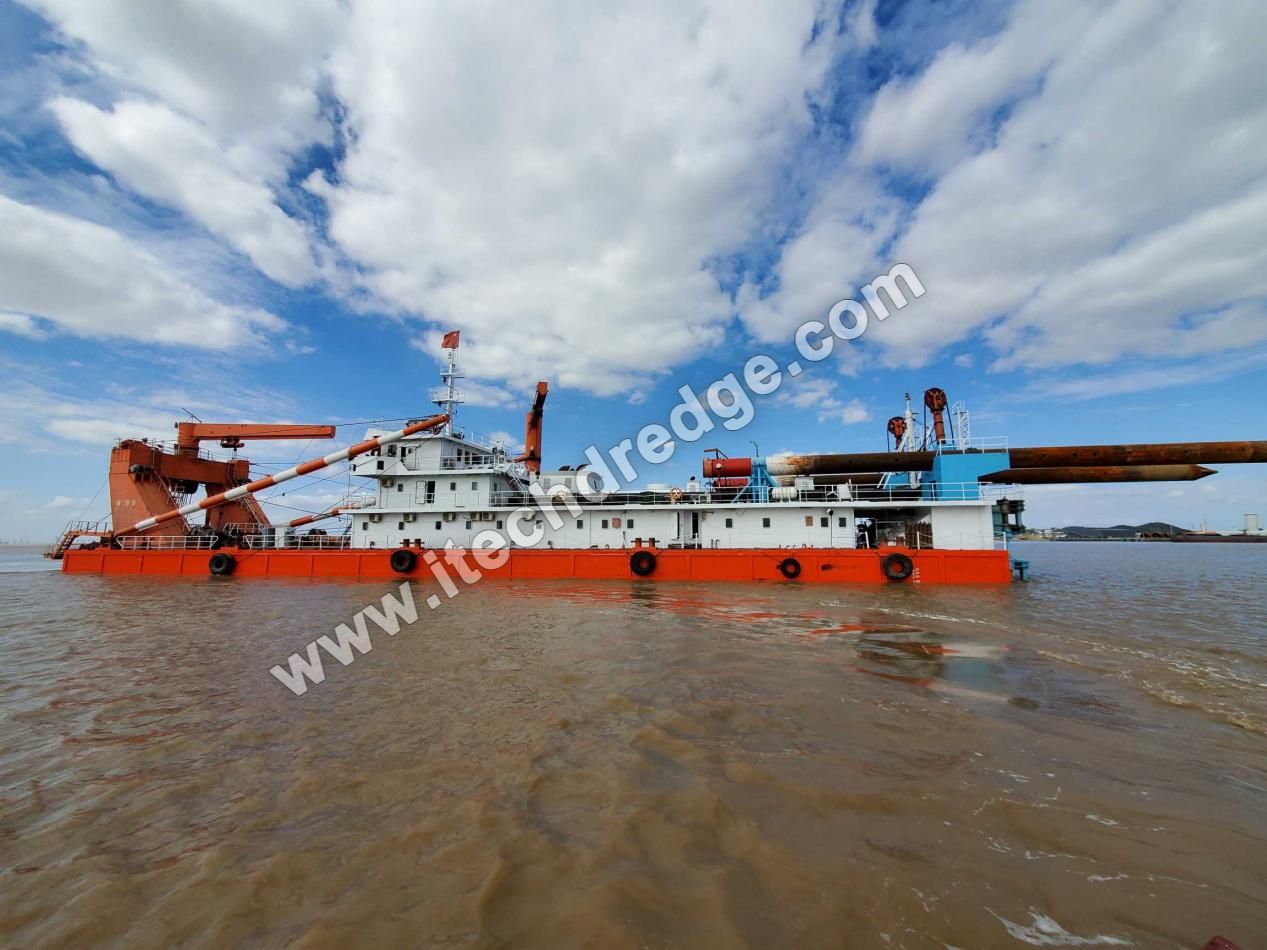

Cutter suction dredgers (CSDs) are essential equipment in hydraulic engineering, primarily used for excavating and transporting sediments, soil, and rocks in waterways, ports, and coastal areas. The cutter head, as the core component of a CSD, directly determines the dredging efficiency, applicability to different geological conditions, and operational safety. iTECH Dredge, a leading provider of dredging solutions, offers a diverse range of cutter heads designed to meet various project requirements. This article systematically introduces the main types of cutter heads, their structural features, technical differences, and practical applications, providing professional insights for engineering projects.

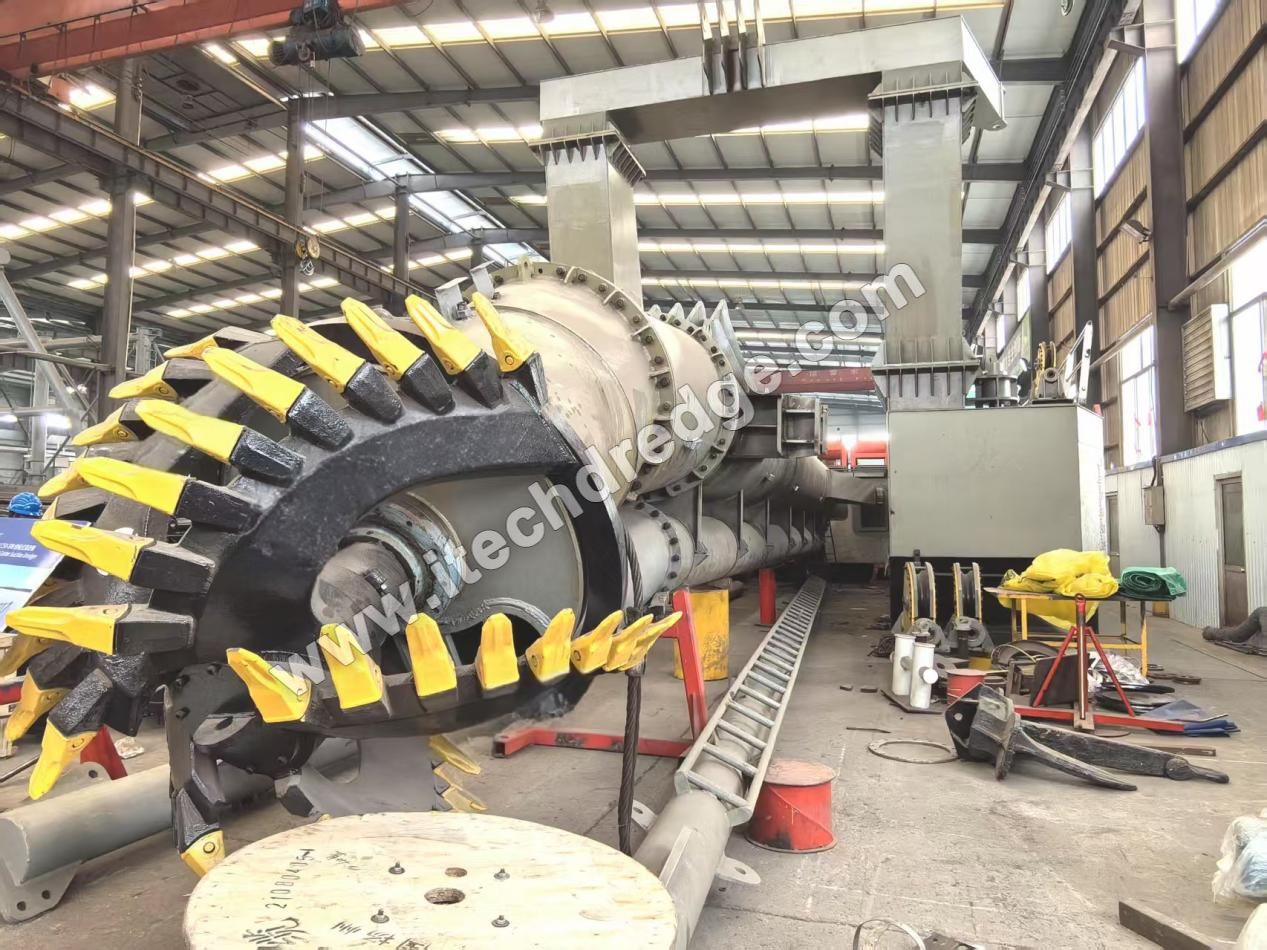

The standard draghead cutter head is the most basic type, characterized by a cylindrical or conical shell with evenly distributed cutting teeth on the periphery. It is typically equipped with a central suction port connected to the dredge pipe, allowing the suction of excavated materials through hydraulic pressure. iTECH Dredge's standard draghead features a wear-resistant alloy steel shell and replaceable tungsten carbide teeth, enhancing durability in soft to medium-hard sediments.
· Material Adaptability: Ideal for soft clay, silt, fine sand, and loose sediments with a compressive strength of ≤20 MPa.
· Cutting Efficiency: The rotational speed ranges from 20 to 40 rpm, suitable for large-area excavation with high throughput (up to 5,000 m³/h for large models).
· Design Advantages: Simple structure, low maintenance costs, and easy replacement of wear parts.
· Port and harbor dredging for sediment deposition control.
· Canal and river widening projects with soft geological conditions.
· Environmental dredging for lakes and reservoirs, where precision and minimal disturbance are required.

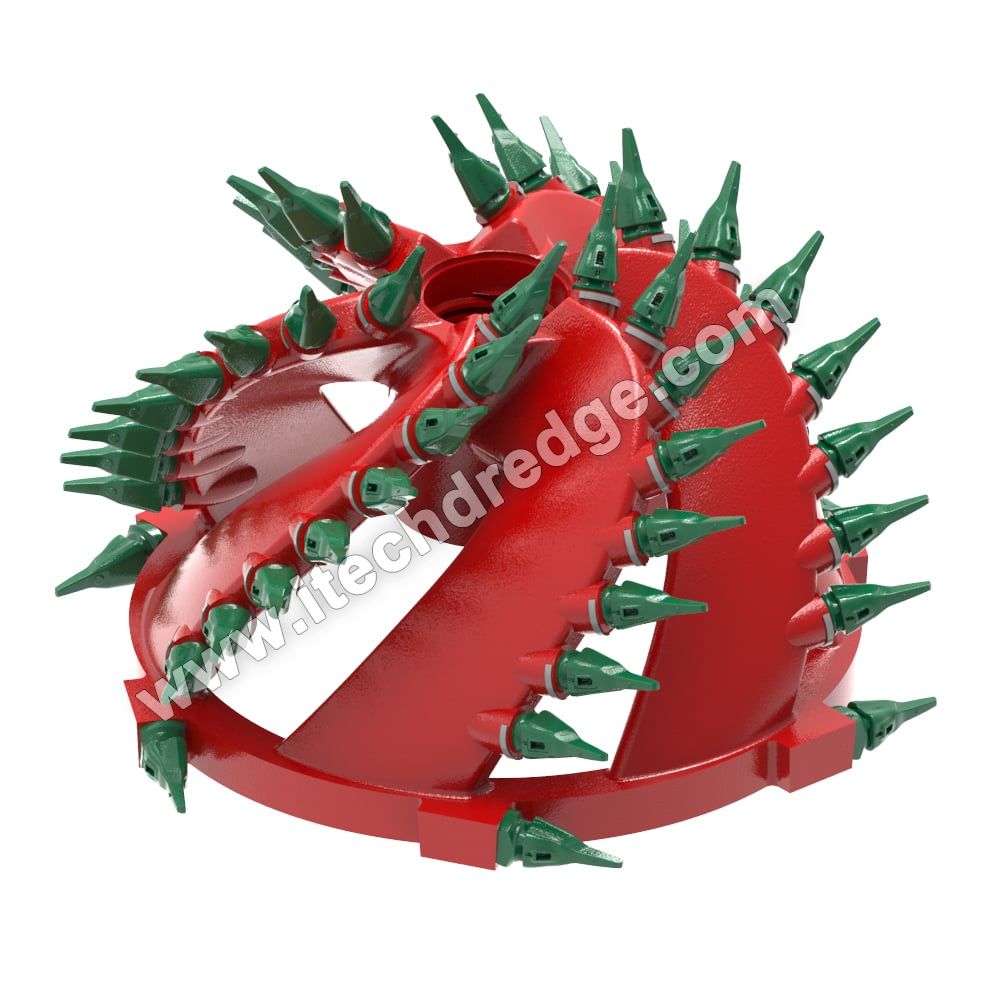

Unlike standard dragheads, rock cutter heads feature a robust design with fewer but thicker cutting teeth (e.g., chisel-shaped or cone-shaped picks) and reinforced protective plates. iTECH Dredge's rock cutter heads incorporate a modular structure, with replaceable tooth blocks and a high-strength manganese steel frame to withstand high impact forces. Some models are equipped with pre-breaking devices, such as impact hammers or jet nozzles, to crack hard rocks before cutting.
· Material Adaptability: Capable of excavating medium-hard to hard rocks, concrete, and weathered bedrock (compressive strength: 20–80 MPa).
· Cutting Mechanism: Lower rotational speed (10–25 rpm) combined with higher torque, reducing wear while ensuring breaking efficiency.
· Safety Features: Overload protection systems and automatic rotation speed adjustment to prevent mechanical damage.
· Deepwater port construction requiring rock excavation.
· Channel dredging through rocky seabeds or riverbeds.
· Mining projects for underwater mineral deposits (e.g., gravel, iron ore).

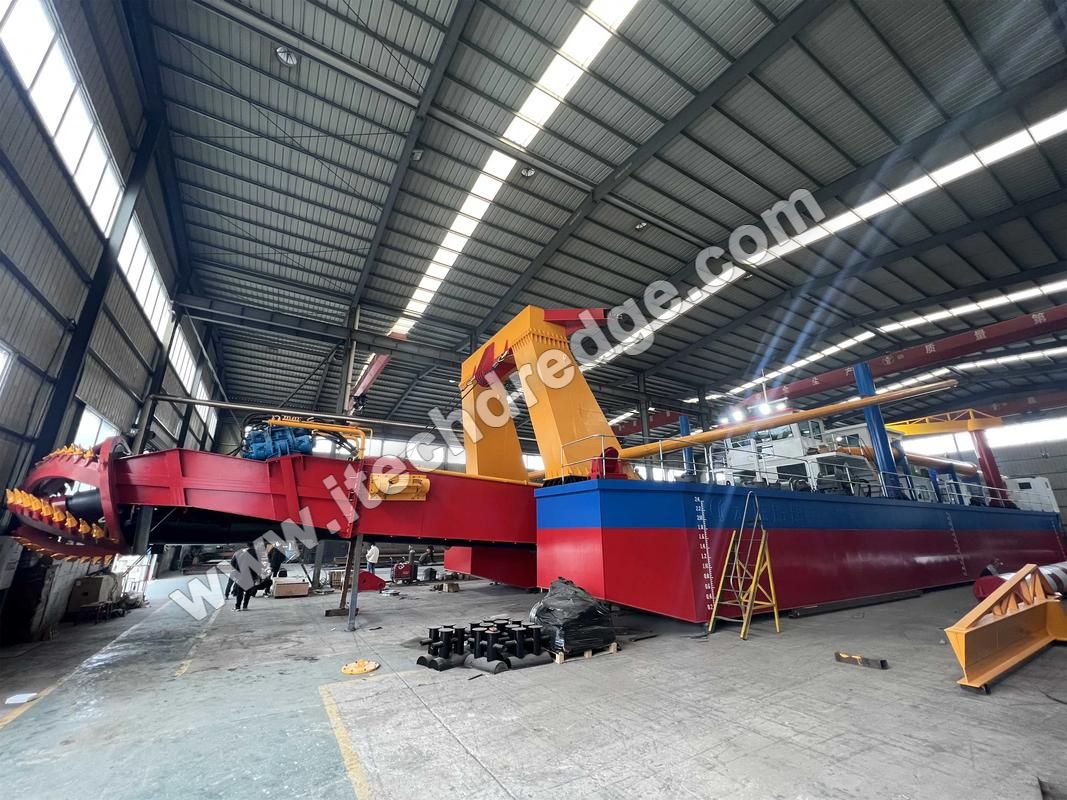

Coral cutter heads are designed with environmental considerations, featuring a gentler cutting structure to minimize damage to coral reefs and marine life. iTECH Dredge's model uses blunt-edged teeth and a low-speed rotational design (15–30 rpm), combined with a suction port with a protective grille to filter large debris. The shell is coated with anti-corrosive materials suitable for seawater environments.
· Ecological Features: Reduces coral fragmentation and sediment diffusion, complying with strict environmental protection regulations.
· Material Suitability: Effective for coral rubble, limestone, and marine sediments with embedded coral structures.
· Precision Control: Hydraulic fine-tuning systems enable precise excavation in sensitive marine areas.
· Coastal protection works in coral reef regions.
· Dredging for marine renewable energy projects (e.g., offshore wind farms).
· Restoration of damaged coral ecosystems through controlled sediment removal.

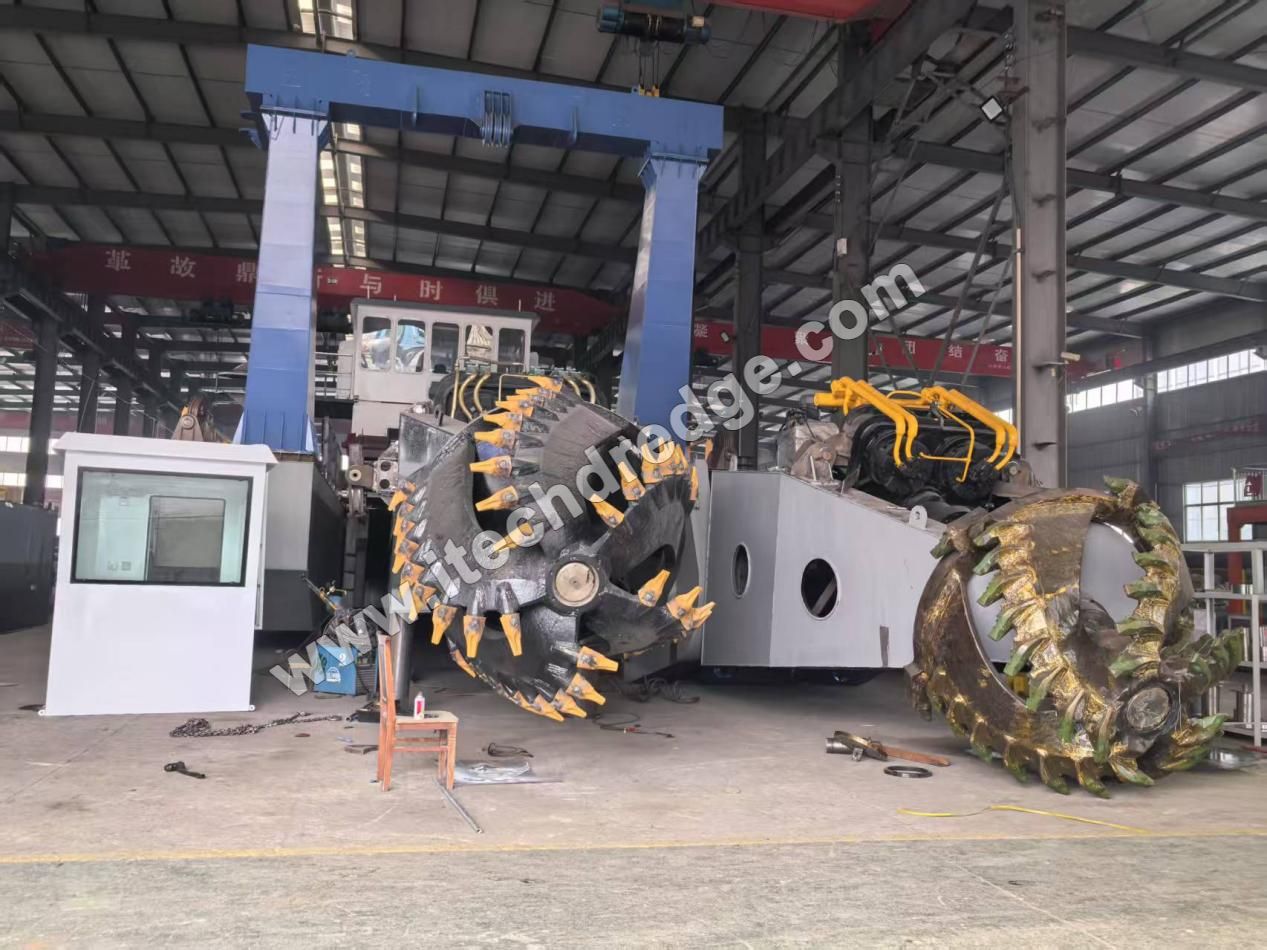

The diamond wire cutter head represents a breakthrough in precision dredging, using a diamond-coated wire rope driven by a rotational mechanism to slice through hard materials. iTECH Dredge's innovation integrates a tension control system and automatic wire replacement technology, improving efficiency and reducing downtime. This type is particularly suitable for projects requiring minimal vibration and precise shaping.
· Cutting Precision: Capable of forming smooth vertical or curved surfaces, with a cutting error of ≤5 cm.
· Material Range: Effective for hard rocks, reinforced concrete, and underwater structures (compressive strength: ≤150 MPa).
· Low-Impact Operation: Reduces noise and vibration, making it suitable for urban waterfront projects.
· Underwater pipeline and cable trench excavation.
· Demolition of sunken ships or underwater structures.
· Construction of precision hydraulic structures (e.g., dock foundations).

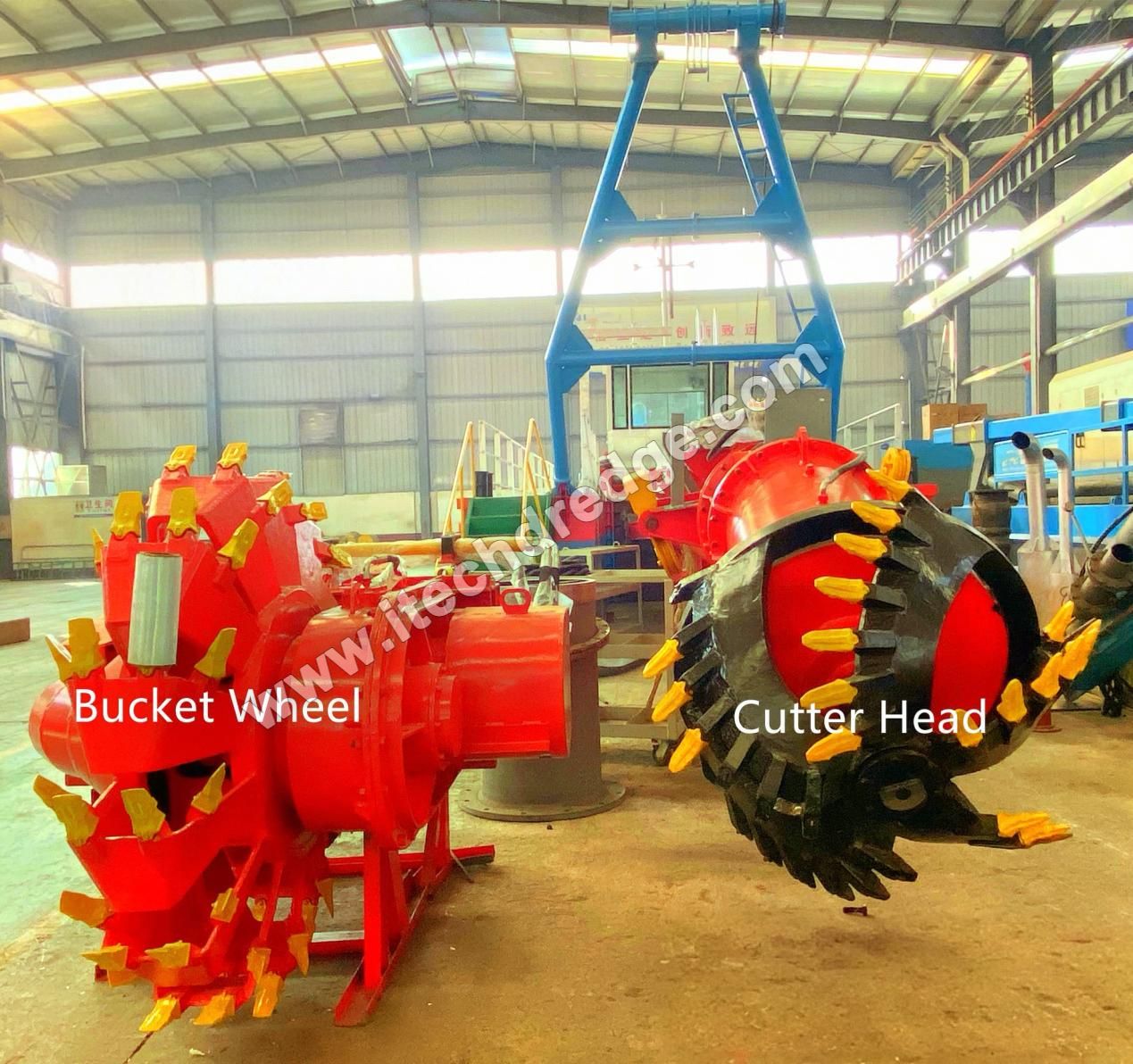

The bucket wheel cutter head features a rotating wheel with multiple excavating buckets, similar to a bucket wheel excavator. iTECH Dredge's design optimizes the bucket geometry and spacing to maximize material intake, with a throughput capacity of up to 10,000 m³/h for super-large models. The wheel is driven by a high-torque hydraulic system, suitable for continuous operation in large-scale projects.
· Productivity: Ideal for high-volume excavation of loose to medium-hard materials (e.g., sand, gravel, and soft clay).
· Operational Efficiency: Reduces cycle time through continuous material loading, suitable for 24/7 operations.
· Maintenance Design: Modular bucket systems allow quick replacement and reduce downtime.
· Land reclamation for industrial parks or urban expansion.
· Deepening of major shipping channels (e.g., international straits).
· Mining of offshore sand and gravel deposits for construction materials.
Designed for polar or cold-region projects, this type features a reinforced steel structure and anti-freezing coatings. iTECH Dredge's model includes a pre-icing breaking mechanism and heating systems to prevent ice accumulation, ensuring operation in water temperatures as low as -30°C.
For hazardous environments (e.g., oil spill cleanup or areas with flammable sediments), this cutter head uses anti-static materials and explosion-proof hydraulic components, meeting international safety standards (e.g., ATEX/IECEx).
Used in high-risk areas (e.g., contaminated sediments or deepwater operations), this type is operated via remote control or autonomous systems, minimizing human exposure to dangers. iTECH Dredge integrates AI-powered sensors for real-time condition monitoring and automatic adjustment.
Cutter Head Type | Material Compressive Strength | Rotational Speed | Typical Throughput | Key Applications |
Standard Draghead | ≤20 MPa | 20–40 rpm | 1,000–5,000 m³/h | Soft sediment dredging, environmental projects |
Rock Cutter Head | 20–80 MPa | 10–25 rpm | 800–3,000 m³/h | Hard rock excavation, port construction |
Coral Cutter Head | 10–30 MPa (coral rubble) | 15–30 rpm | 500–2,000 m³/h | Marine ecological projects, coral reef areas |
Diamond Wire Cutter Head | ≤150 MPa | 5–15 rpm | 300–1,500 m³/h | Precision cutting, underwater structures |
Bucket Wheel Cutter Head | ≤30 MPa | 8–15 rpm | 5,000–10,000 m³/h | Large-scale land reclamation, channel deepening |

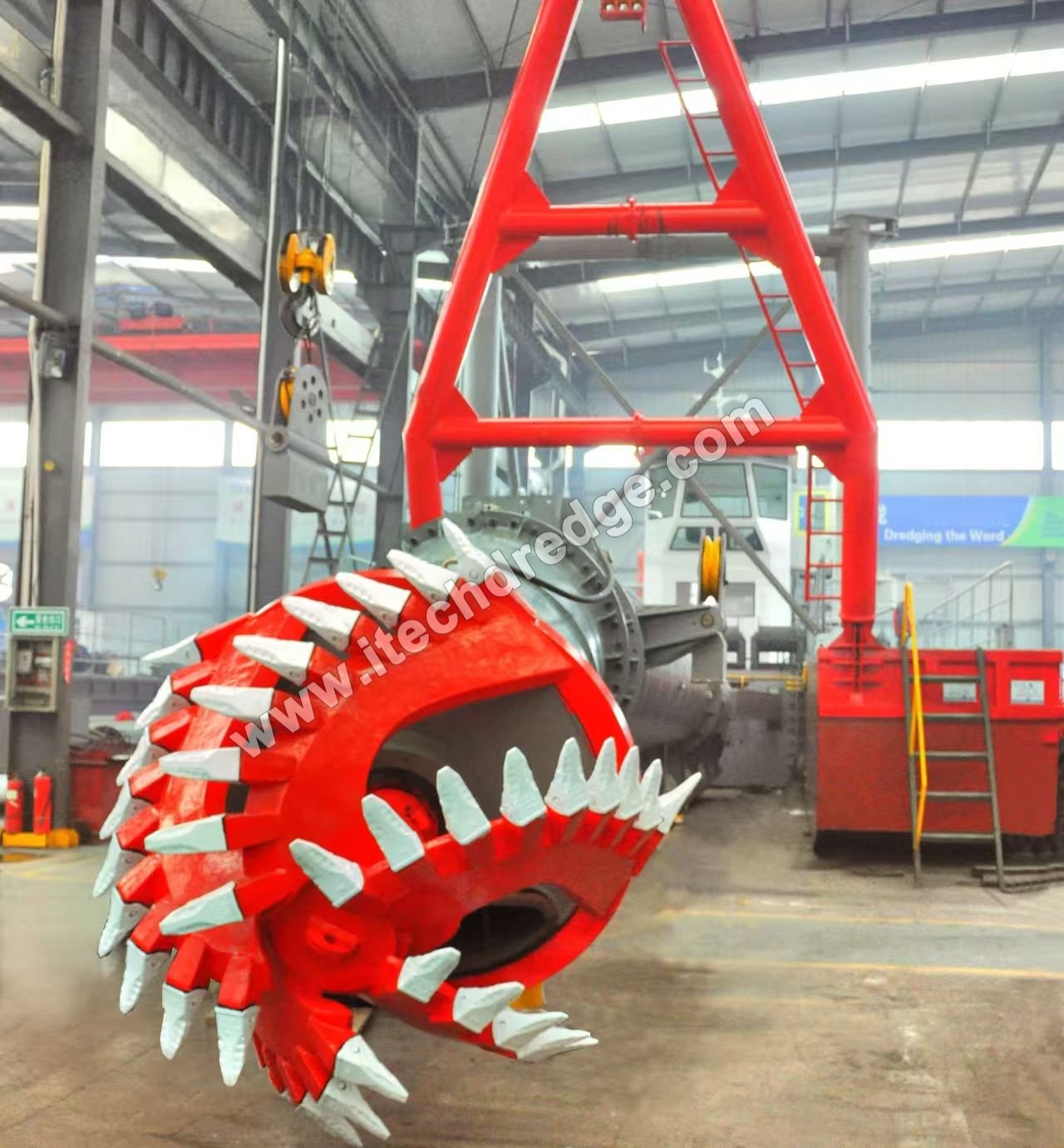

Geological Analysis:
Conduct a thorough site survey to determine sediment type, hardness, and particle size. For example, rock cutter heads are indispensable for projects involving bedrock, while standard dragheads suffice for silt.
Project Scale and Objectives:
· Large-scale land reclamation: Bucket wheel cutter heads for high throughput.
· Urban waterfront projects: Diamond wire cutter heads for precision and low impact.
Environmental Considerations:
In ecologically sensitive areas, prioritize coral cutter heads or remote-controlled models to minimize environmental damage.
Operational Efficiency and Cost:
Balance initial investment with maintenance costs. Rock cutter heads, though expensive, offer higher efficiency in hard strata, reducing overall project duration.
iTECH Dredge combines decades of engineering experience with cutting-edge technology, offering customized cutter head solutions for global projects. Our R&D team continuously improves cutter head designs through finite element analysis (FEA) and field testing, ensuring optimal performance in challenging environments. Additionally, we provide comprehensive after-sales services, including spare parts supply, technical training, and on-site maintenance, to maximize equipment uptime.
The diversity of cutter heads for cutter suction dredgers reflects the industry's commitment to addressing complex engineering challenges. From standard dragheads for everyday dredging to diamond wire cutter heads for precision operations, each type embodies specific technical innovations. iTECH Dredge's comprehensive product line ensures that clients can access the most suitable cutter head for their projects, balancing efficiency, cost, and environmental responsibility. As global infrastructure demands evolve, the continuous innovation of cutter head technology will remain pivotal to advancing hydraulic engineering.
