Cutter suction dredgers are essential workhorses in the dredging industry, playing a crucial role in various projects such as maintaining waterways, land reclamation, and environmental restoration. One of the key performance parameters of these powerful machines is their maximum dredging depth, which determines the scope and feasibility of many dredging operations. In this article, we will explore the factors influencing the maximum dredging depth of cutter suction dredgers, and examine some of the world's most advanced models and their capabilities.
Cutter suction dredgers (CSDs) stand as the backbone of modern dredging operations, powering projects from port expansion to coastal restoration. At the heart of their capabilities lies a critical metric: maximum dredging depth. For industries relying on precise underwater excavation, understanding this parameter— and how iTECH Dredge pushes its boundaries— is essential. Below, we explore the technical nuances, industry benchmarks, and cutting-edge innovations that define dredging depth in the 21st century.
Before delving into the maximum dredging depth, it's important to understand how cutter suction dredgers operate. These vessels use a rotating cutter head to loosen sediment at the bottom of a water body. The loosened material is then sucked up through a suction pipe and pumped through a discharge pipeline to a designated disposal area. This integrated process allows for efficient removal of sediment, making cutter suction dredgers suitable for a wide range of applications.

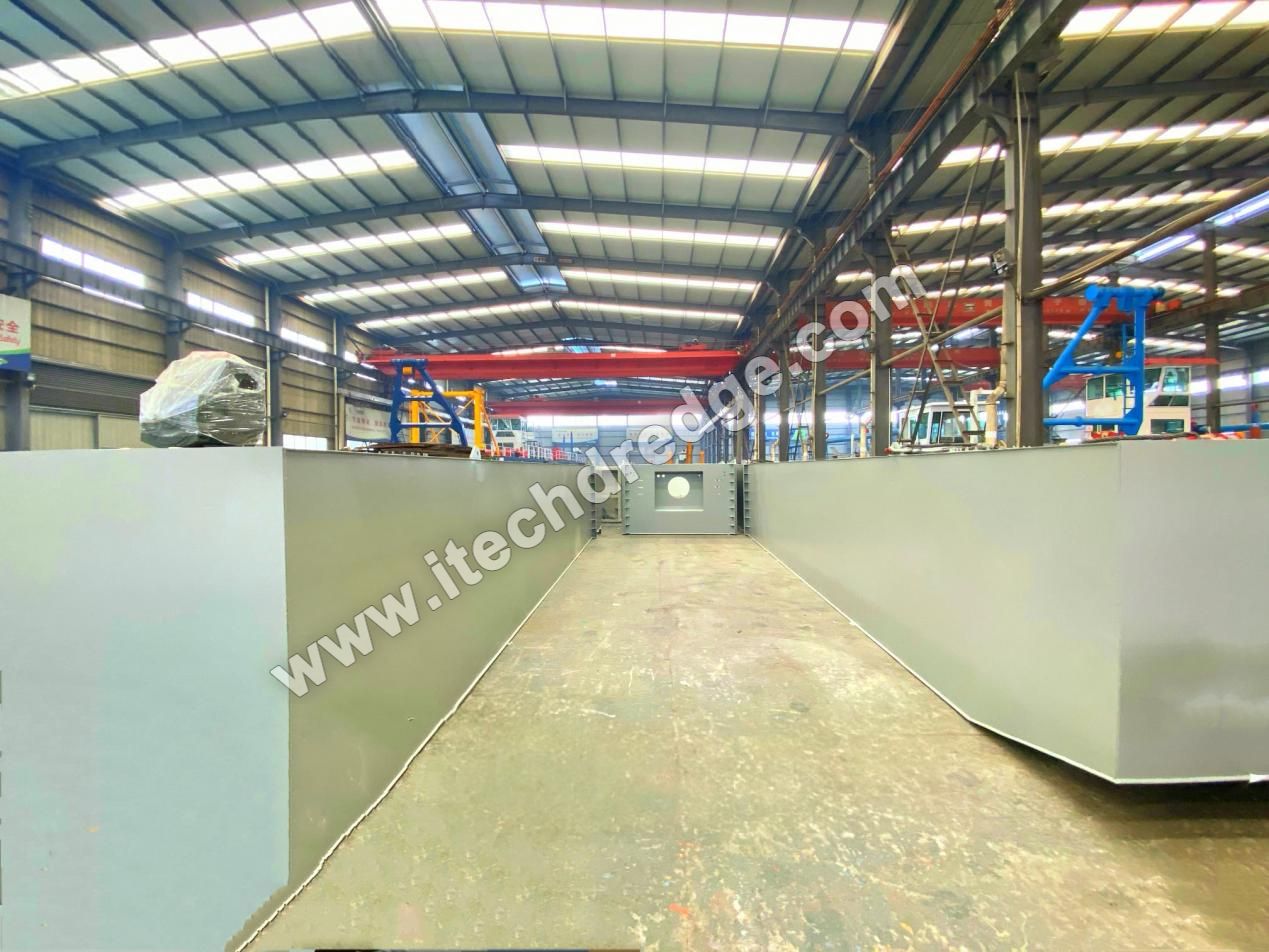

1. Design and Construction
1. Hull Design: The size and shape of the cutter suction dredger's hull play a significant role in determining its maximum dredging depth. Larger and more stable hulls can support longer and heavier suction pipes, which are necessary for reaching greater depths. For example, self - propelled cutter suction dredgers with a robust hull structure can be designed to operate in deeper waters compared to smaller, non - self - propelled models.
2. Length of the Suction Pipe: The length of the suction pipe is directly related to the maximum dredging depth. As the depth increases, a longer suction pipe is required to reach the seabed or riverbed. Special materials are often used to construct these pipes to ensure they can withstand the high pressures at greater depths. High - strength steel alloys are commonly used to prevent the pipe from collapsing under the hydrostatic pressure.
For iTECH Dredge, this process is optimized through proprietary designs that prioritize both depth and efficiency. Our vessels integrate advanced materials science and computational fluid dynamics (CFD) to ensure every component thrives under extreme conditions.
2. Power and Performance

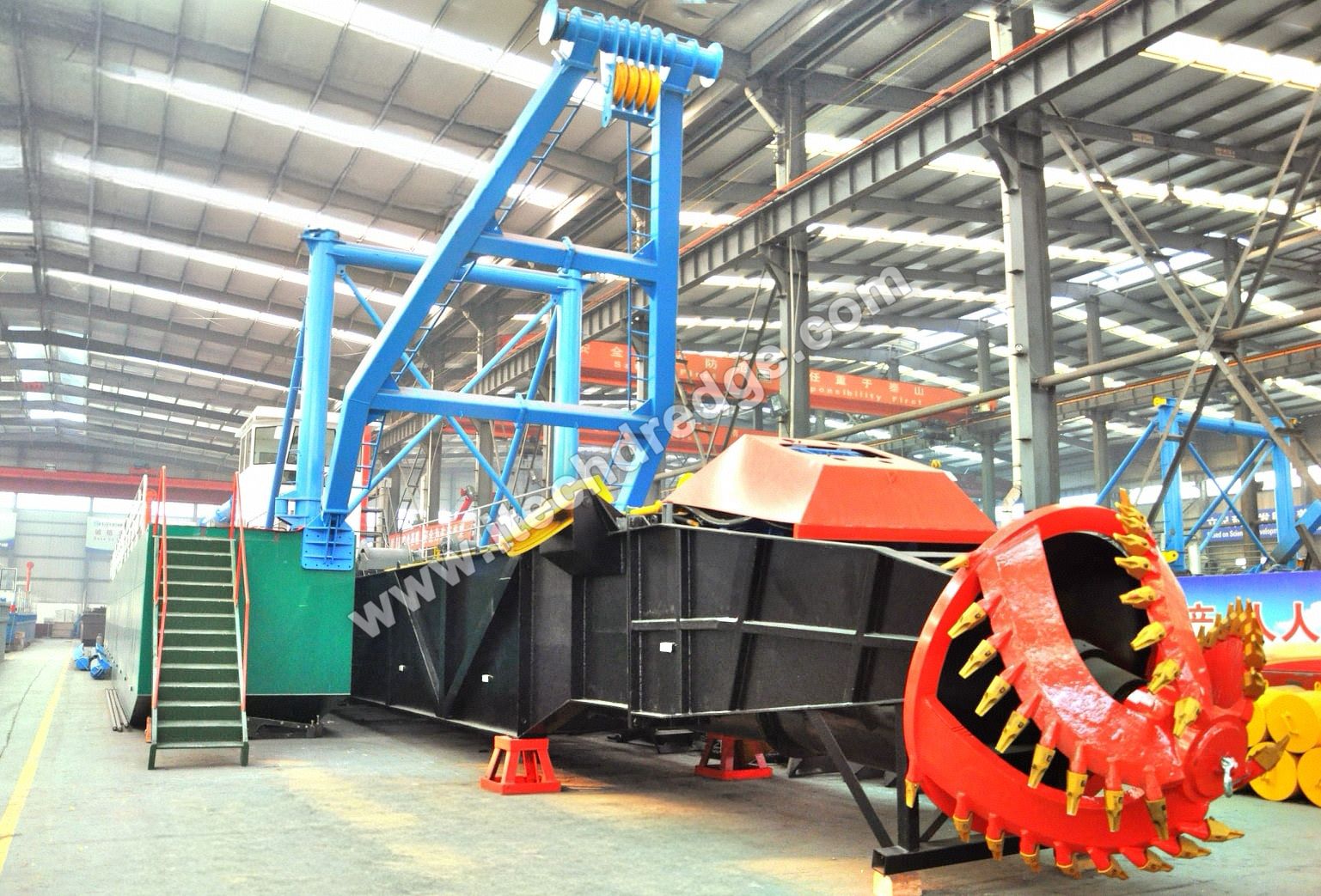

1. Cutter Power: The power of the cutter head is crucial for loosening sediment at deeper depths. Softer sediments may require less power, while harder materials such as rock or compacted sand need a more powerful cutter. Advanced cutter suction dredgers are equipped with high - torque electric or hydraulic motors to drive the cutter head, enabling them to effectively excavate at significant depths.
2. Pumping Power: The ability to pump the dredged material from the bottom to the surface and then to the disposal area is another critical factor. High - power pumps are needed to overcome the pressure differential created by the depth. The higher the dredging depth, the greater the pressure that the pump must overcome to lift the slurry. For instance, some of the world's largest cutter suction dredgers are equipped with pumps that can generate pressures sufficient to lift material from depths of over 30 meters.

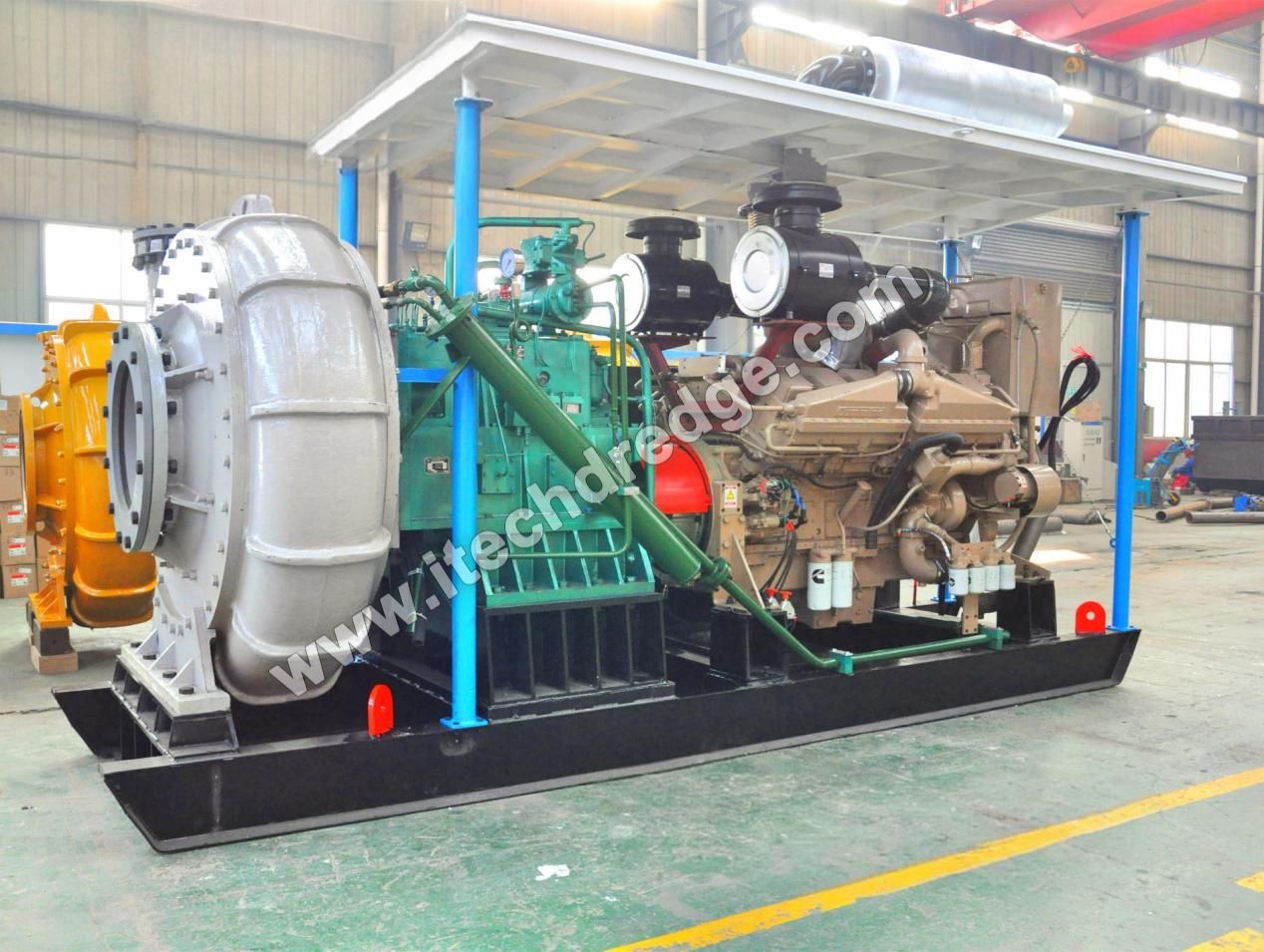

3. Dredge Pump
Every meter of depth adds approximately 0.1 bar of hydrostatic pressure. iTECH’s Dredge pumps use dual-stage impellers and variable frequency drives (VFDs) to generate up to 8 bar of discharge pressure— enough to lift slurry from 50+ meters deep while maintaining a high flow rate.
3. Environmental Conditions
1. Water Depth and Currents: The natural water depth of the area where the dredging is taking place is an obvious limiting factor. Additionally, strong underwater currents can make it difficult for the dredger to maintain a stable position and operate effectively at depth. Cutter suction dredgers need to be designed to withstand these environmental forces, and in some cases, additional stabilizing equipment such as anchors or dynamic positioning systems may be required.

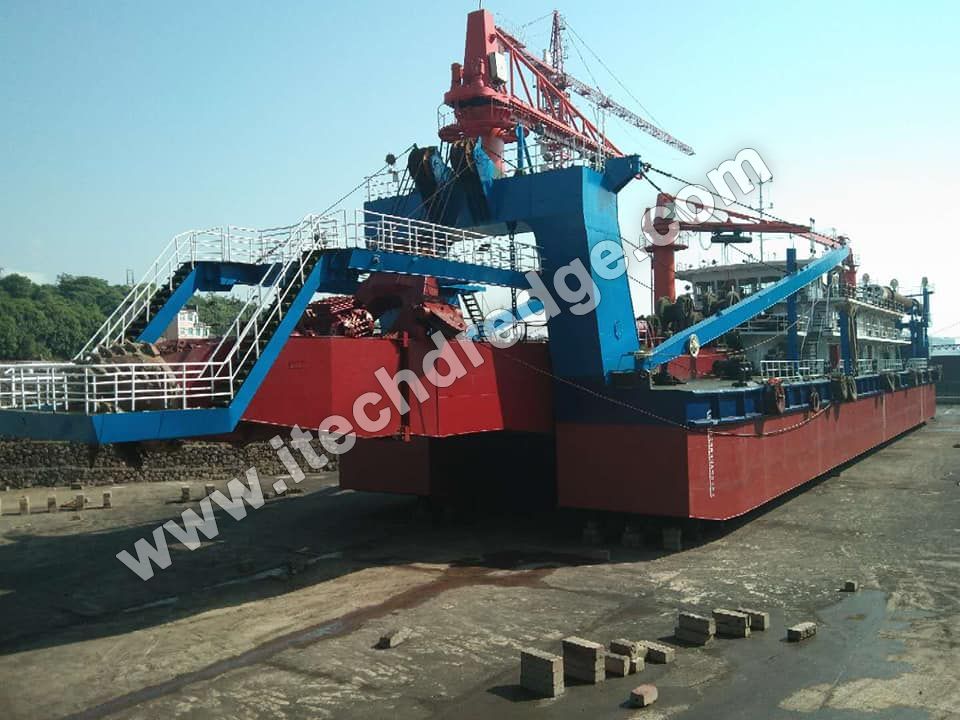

2. Seabed or Riverbed Conditions: The type of sediment on the seabed or riverbed can also impact the maximum dredging depth. Soft mud is relatively easy to excavate, while hard rock formations may limit the depth that can be reached, even with the most powerful cutters. In such cases, specialized techniques such as pre - drilling or blasting may be required before dredging can commence.

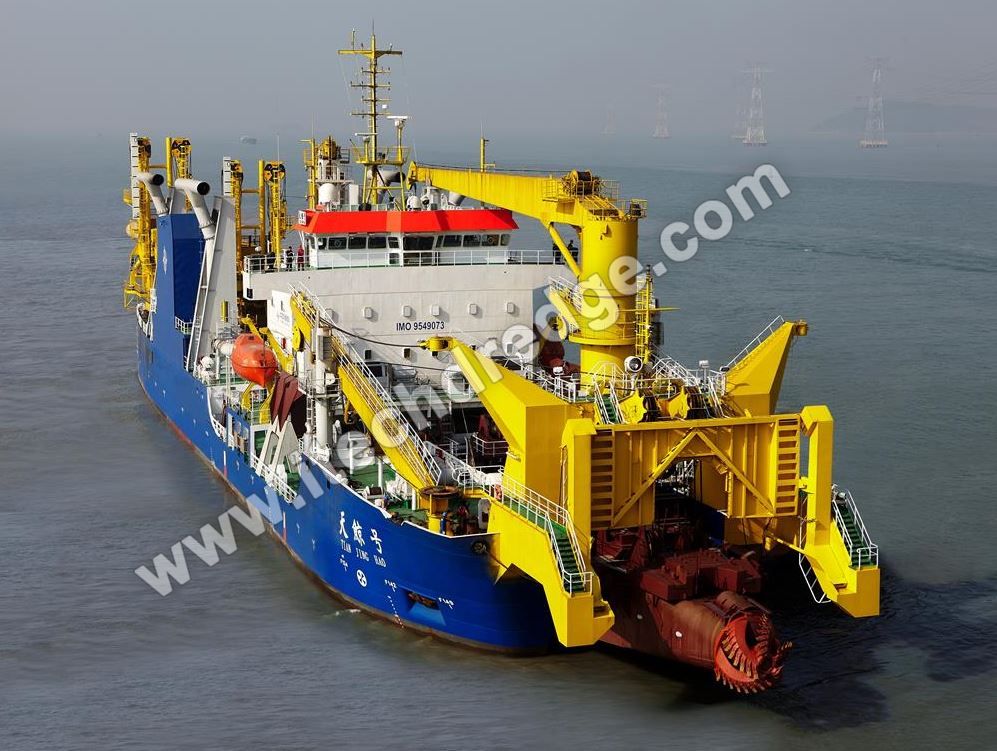

1. "Tian Kun Hao" (China)
1. This is one of the world's largest and most advanced cutter suction dredgers. With a length of 140 meters and a width of 27.8 meters, the "Tian Kun Hao" has a maximum dredging depth of 35 meters. It is equipped with a 6600 - kilowatt cutter head, which allows it to excavate a variety of materials, including rock with a uniaxial compressive strength of up to 50 megapascals. The vessel's powerful pumping system can transport the dredged material over long distances, making it a versatile tool for large - scale dredging projects, such as port construction and land reclamation.
Image source: China Dredging Association

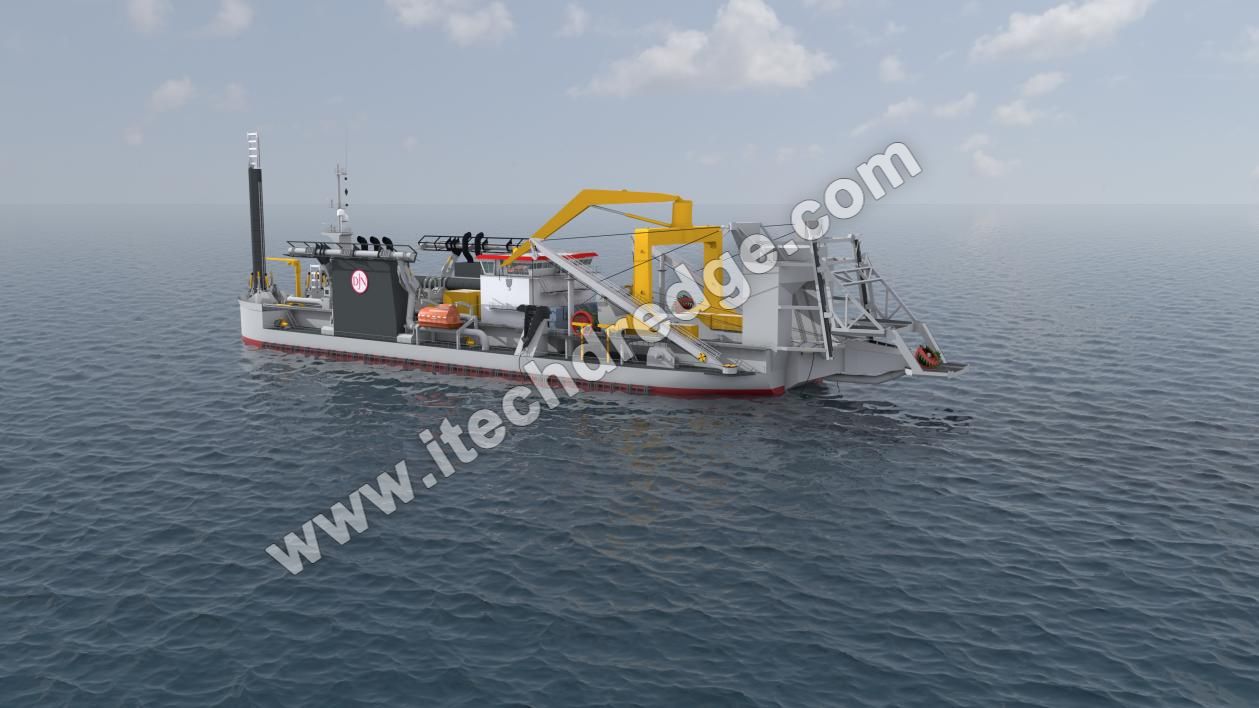

2. "JDN8069" (Jan De Nul Group, Luxembourg)
1. As of now, the "JDN8069" is among the largest cutter suction dredgers globally. Although specific details about its maximum dredging depth are not as publicly available as some other models, considering its size and the capabilities of Jan De Nul's fleet, it is likely to be capable of dredging to depths well beyond 30 meters. The vessel is designed with state - of - the - art technology to handle complex dredging operations in various environments, including deep - sea applications.
Image source: Dredge Wire

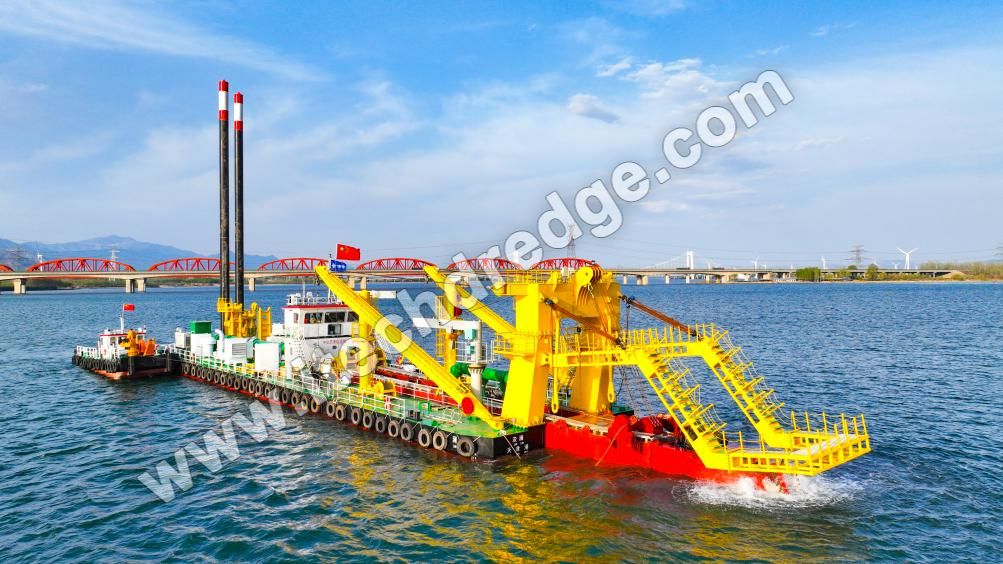

3. "jùn lán浚澜" (China)
1. The "jùn lán浚澜" is a unique non - self - propelled, steel - structured, and modular cutter suction dredger. It has a maximum dredging depth of 25 meters. Measuring 67 meters in length and 11.95 meters in width, it is equipped with a 600 - kilowatt cutter head and a total installed power of 4520 kilowatts. This dredger is designed for inland waterways, lakes, and reservoir dredging projects. Its modular design allows for easy transportation and assembly, making it suitable for projects in areas with limited access.
Image source: Xinhua News
As technology continues to advance, the maximum dredging depth of cutter suction dredgers is likely to increase. Research and development efforts are focused on improving materials, power systems, and control technologies. For example, the development of lighter and stronger materials for suction pipes could allow for longer pipes and thus greater dredging depths. Additionally, more efficient power systems, such as advanced electric - drive systems, may enhance the performance of cutters and pumps at greater depths.
Furthermore, the use of autonomous and semi - autonomous control systems could improve the accuracy and safety of dredging operations at extreme depths. These systems can help the dredger adapt to changing environmental conditions and optimize the dredging process, ultimately enabling deeper and more efficient dredging.
In conclusion, the maximum dredging depth of a cutter suction dredger is determined by a combination of design, power, and environmental factors. Currently, some of the world's leading cutter suction dredgers can reach depths of up to 35 meters or more. As the industry continues to innovate, we can expect to see even greater dredging depths in the future, opening up new possibilities for projects in deeper waters and more challenging environments. Whether it's for maintaining vital shipping channels, creating new land for development, or restoring damaged ecosystems, cutter suction dredgers will continue to be at the forefront of the dredging industry, with ever - increasing capabilities in terms of maximum dredging depth.
