Cutter suction dredgers are vital in various dredging projects, from maintaining waterways to land reclamation. One of the most crucial aspects of these powerful machines is their sediment discharge speed, which directly impacts project efficiency and cost. In this article, brought to you by iTECH Dredge, we'll delve into the factors determining a cutter suction dredger's discharge speed, how to calculate it, and how to select the right dredger for your specific needs.

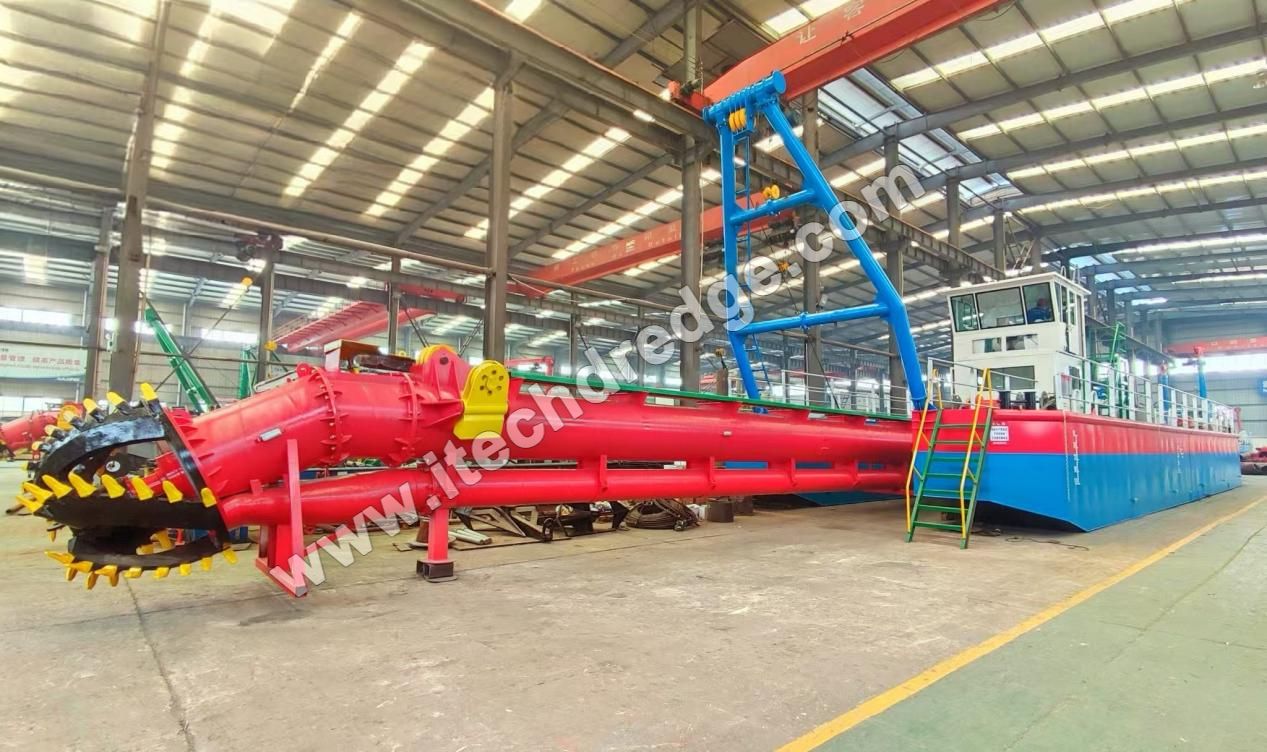

A cutter suction dredger operates by using a rotating cutter head to break up sediment at the bottom of a water body. The loosened sediment, mixed with water, forms a slurry. This slurry is then sucked up by a powerful pump and transported through pipelines to a designated disposal area. The discharge speed of sediment depends on multiple factors, including the dredger's design, the type of sediment being dredged, and the operational conditions.

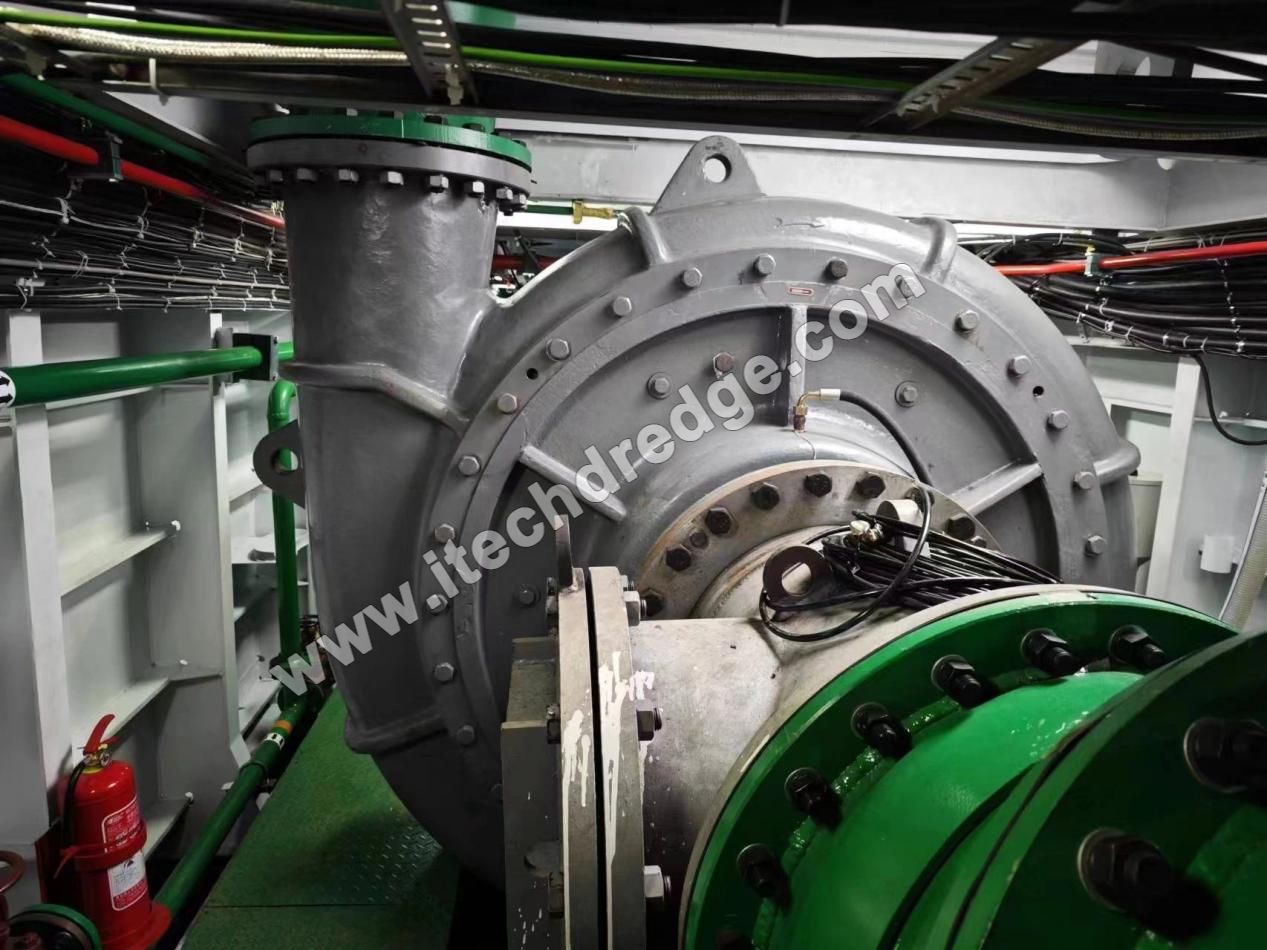

1. Pump Capacity: The pump on a cutter suction dredger is responsible for moving the sediment - laden slurry. The capacity of the pump is typically measured in cubic meters per hour (m³/h). For example, a medium - sized cutter suction dredger might have a pump capacity of 2000 - 5000 m³/h. A larger, more powerful dredger could have a capacity exceeding 10,000 m³/h. The pump capacity is determined by its design, power output, and the diameter of the suction and discharge pipes.
2. Slurry Concentration: The proportion of sediment in the slurry, known as slurry concentration, is a critical factor. It is usually expressed as a percentage. In soft sediment like fine sand or silt, the slurry concentration can be relatively high, perhaps around 20 - 30% by volume. Harder and coarser materials like gravel or rock fragments will result in a lower slurry concentration, maybe 5 - 15%. The formula for calculating the volume of sediment discharged per hour (Vs) is Vs=Vp×C, where Vp is the pump capacity in m³/h and C is the slurry concentration as a decimal. For instance, if a dredger has a pump capacity of 3000 m³/h and a slurry concentration of 20% (or 0.2), the volume of sediment discharged per hour is 3000×0.2=600 m³/h.
3. Dredging Depth and Width: The depth and width of the dredging area also influence the discharge speed. A deeper and wider dredging operation allows the cutter head to access more sediment at once. If a dredger is designed to dredge to a depth of 10 - 20 meters and has a cutter head width of 3 - 5 meters, it can remove a significant amount of sediment in each pass. The relationship between dredging depth (D), width (W), and the cross - sectional area of the dredged section (A) is A=D×W. The larger the cross - sectional area, the more sediment can be loosened and potentially discharged per unit of time.

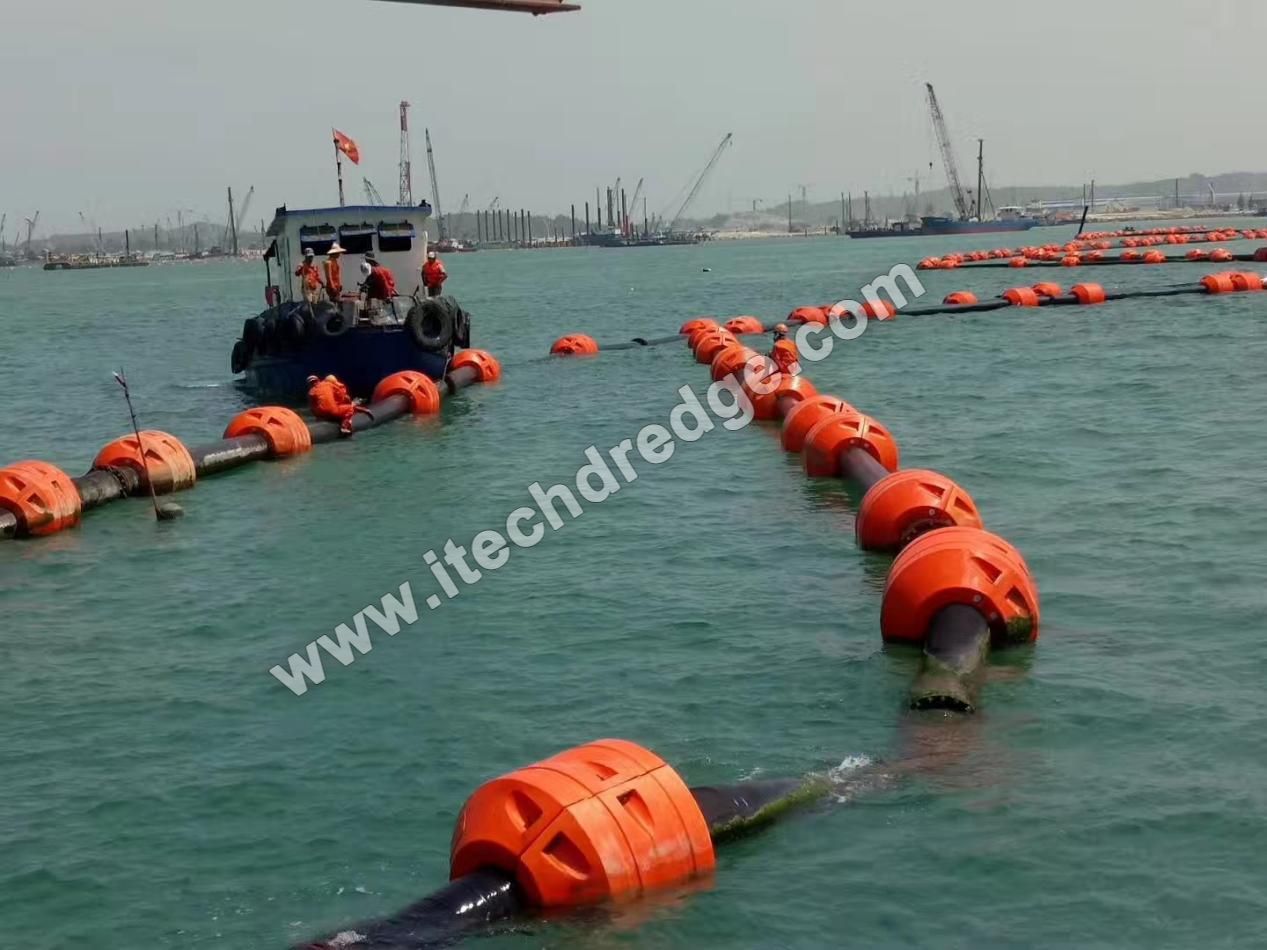

1. Length and Diameter: The length of the pipeline through which the slurry is transported affects the discharge speed. Longer pipelines create more friction, reducing the flow rate of the slurry. For example, a pipeline that is 1000 meters long will have a greater impact on the discharge speed compared to a 200 - meter pipeline. The diameter of the pipeline also matters. A larger diameter pipeline allows for a higher flow rate. A 600 - millimeter diameter pipeline can transport more slurry than a 300 - millimeter diameter pipeline, all other factors being equal. The relationship between pipeline length (L), diameter (d), and flow rate (Q) is complex and can be described by the Darcy - Weisbach equation for fluid flow in pipes, which takes into account factors such as friction factor, fluid density, and viscosity. In the context of slurry flow, as the pipeline length increases, the pump has to work harder to overcome the friction, which may reduce the effective pump capacity and thus the sediment discharge speed.

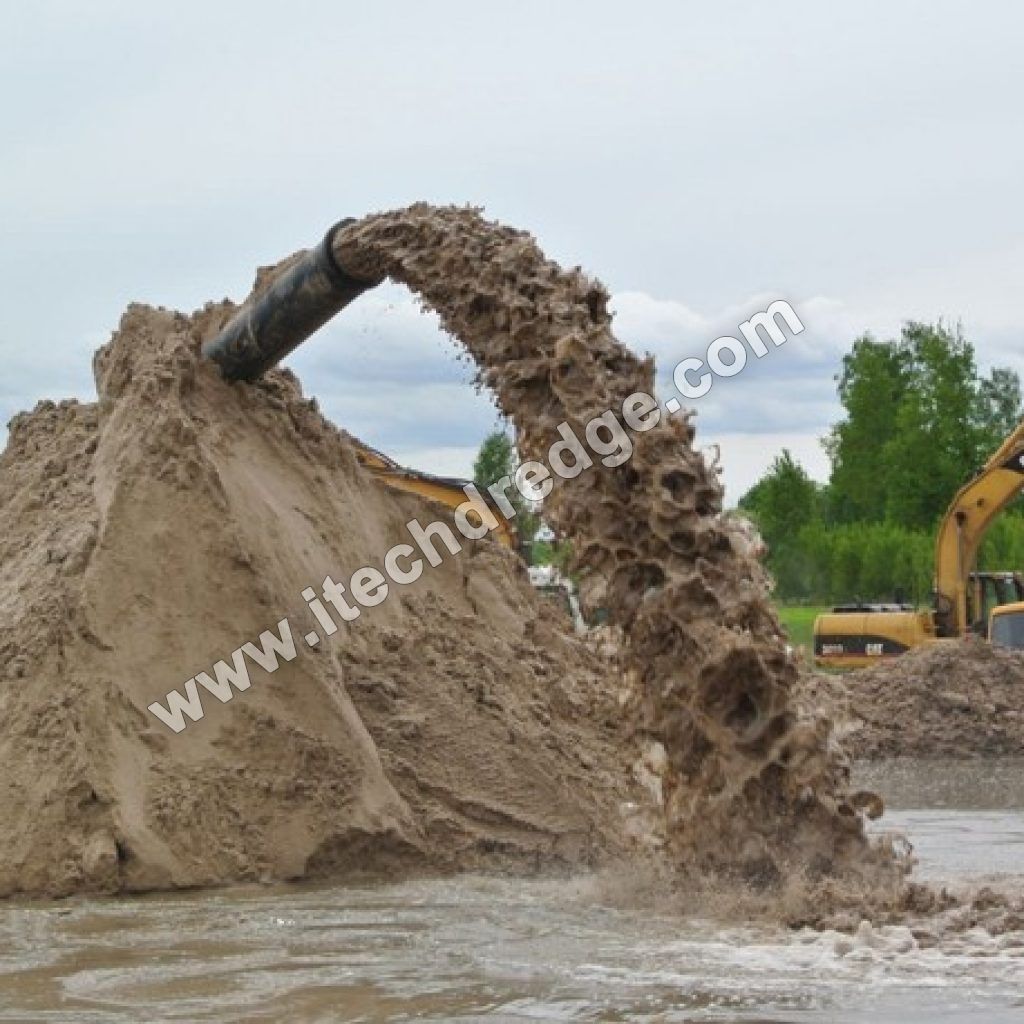

1. Soft Sediments: If you are dealing with soft sediments such as silt, clay, or fine sand, you can opt for a cutter suction dredger with a relatively smaller cutter head power. These types of sediments are easier to break up, and the dredger can achieve a higher slurry concentration. A dredger with a cutter head power of 500 - 1000 kW might be sufficient for soft sediment dredging in many cases. The pump on such a dredger should be optimized for handling the higher - concentration slurry, which can lead to a higher sediment discharge speed.
2. Hard and Coarse Sediments: When dredging hard materials like gravel, cobblestones, or even rock, you need a cutter suction dredger with a more powerful cutter head. Dredgers with cutter head powers of 2000 - 4000 kW or more are suitable for such applications. These powerful cutter heads can break up the hard sediment into smaller pieces, allowing for efficient pumping. However, due to the nature of the material, the slurry concentration will be lower, and the pump needs to be able to handle a larger volume of water - to - sediment mixture.
1. Small - Scale Projects: For small - scale dredging projects, such as cleaning a small pond or a narrow canal, a compact cutter suction dredger with a lower pump capacity, say 500 - 1500 m³/h, might be sufficient. These smaller dredgers are more maneuverable and cost - effective for projects with limited dredging volumes. They can still achieve a reasonable sediment discharge speed within the context of the small - scale operation.
2. Large - Scale Projects: In large - scale projects like port expansion or major land reclamation, large - capacity cutter suction dredgers are essential. These dredgers can have pump capacities of 5000 m³/h or higher and powerful cutter heads. They are designed to work continuously for long periods, discharging a large volume of sediment quickly. For example, in a large - scale land reclamation project, a dredger with a pump capacity of 8000 m³/h and a high - efficiency cutter head can significantly speed up the process by discharging a substantial amount of sediment per hour.

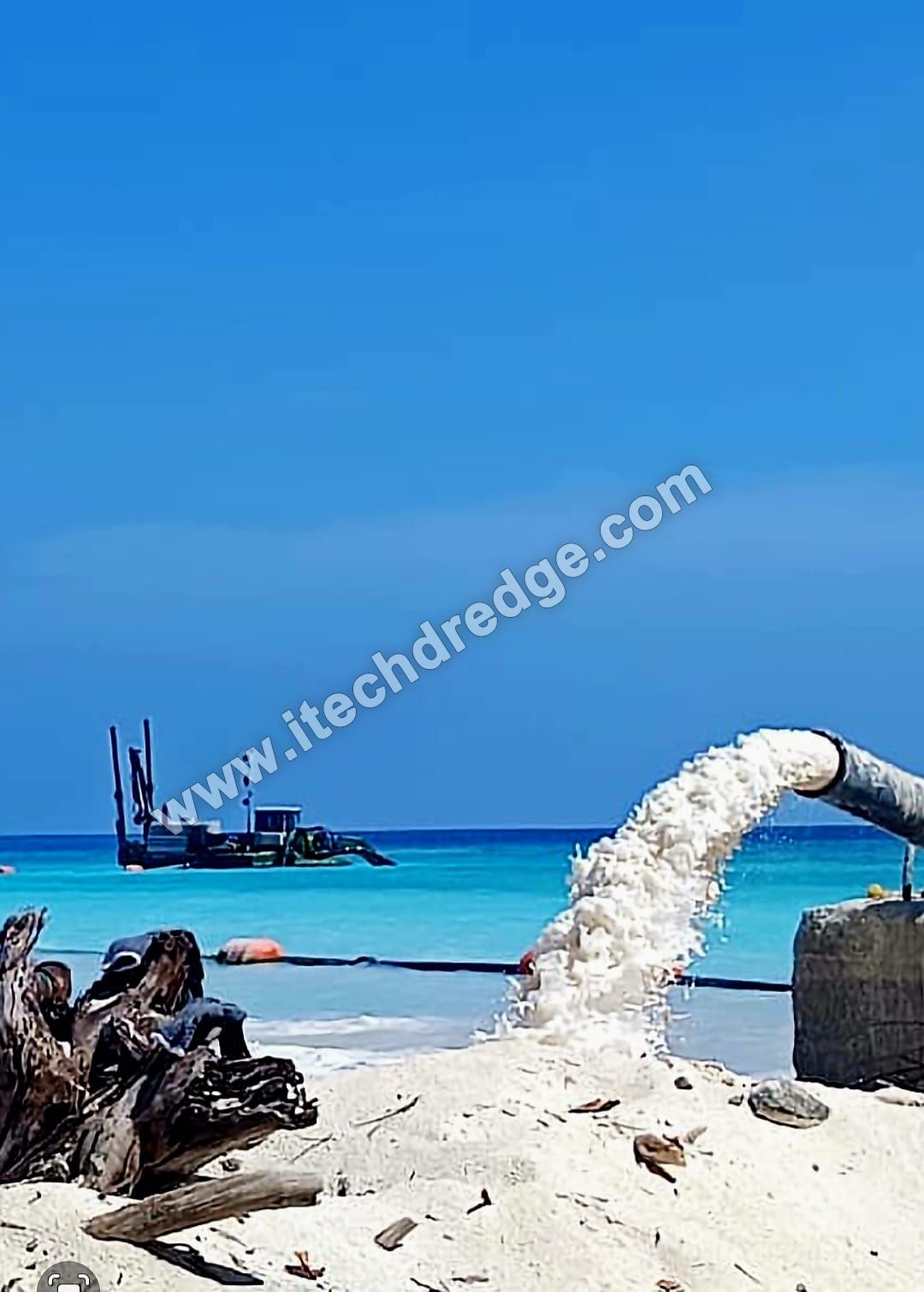

1. Water Depth and Turbulence: If the dredging is taking place in deep water or in an area with strong water currents and turbulence, the dredger needs to be designed to operate under such conditions. A dredger with a stable hull design and advanced positioning systems will be able to maintain its position and effectively dredge. In deep - water operations, the pipeline may need to be longer, which can impact the discharge speed. However, modern dredgers are equipped with high - power pumps to compensate for the increased pipeline resistance.
2. Environmental Constraints: In environmentally sensitive areas, the dredger should be designed to minimize the impact on the ecosystem. This may involve using specialized equipment to reduce sediment spillage during transportation and discharge. Some dredgers are equipped with sediment - control systems that can help maintain a consistent slurry concentration and ensure that the sediment is discharged in a controlled manner, without negatively affecting the surrounding environment.
By carefully considering the factors above and selecting the right cutter suction dredger for your project, you can achieve high sediment discharge speeds. For example, in a well - planned project with soft sediment, a properly selected cutter suction dredger with a pump capacity of 4000 m³/h and a slurry concentration of 25% can discharge 1000 m³ of sediment per hour. In a large - scale port - dredging project with hard sediment, a powerful dredger with a 6000 m³/h pump capacity and a 15% slurry concentration can still discharge 900 m³ of sediment per hour.
At iTECH Dredge, we understand the importance of sediment discharge speed in your dredging projects. Our team of experts can help you select the most suitable cutter suction dredger, taking into account all the relevant factors. With our high - quality dredging equipment and technical support, you can ensure efficient and successful dredging operations, meeting your project deadlines and budget requirements. Whether it's a small - scale local project or a large - scale international endeavor, iTECH Dredge has the solutions to optimize your sediment discharge process.
Reference
iTECH Technical Manual (2025). "How Fast Can a Cutter Suction Dredger Discharge Sediment?”
Central Dredging Association (2005). “Chapter 3: Cutter Suction Dredger”
Royal IHC (2025). "Hopper suction dredger | Immediate availability | IHC Dredgers"
International Association of Dredging Companies (2016). "Facts about: Cutter Suction Dredgerr"
Science Direct (2024). “Impact of operational parameters on turbidity generation in cutter suction dredging: Insights from a numerical model and sensitivity analysis”
