A Cutter Suction Dredger (CSD), like the CSD600, stands as a titan in maritime and hydraulic engineering. Here’s what defines it:
Core Purpose: It’s a precision - engineered solution for underwater excavation. Capable of plunging into diverse water bodies (ports, rivers, lakes) to extract sediment, soil, or rock.
Key Component: Features a rotating cutter head at the suction pipe’s front. This head, with specially designed blades, shatters substrates into a “slurry” (water + excavated material).
Transport Mechanism: The slurry is moved via pipelines to onshore sites or loaded onto barges for disposal/reuse.
Versatility: Serves critical roles in port expansion, environmental restoration, and more—adapting to aquatic landscapes from calm lakes to bustling ports.
The CSD600’s operation blends mechanical and hydraulic processes in a step - by - step sequence:
Stabilization: Anchors itself using spuds (vertical seabed poles) or a mix of anchors/winches to stay fixed during dredging.
Cutting Phase: The motorized cutter head spins, chipping seabed material. Rotation speed/torque adjusts to material type (gentler for soft silt, forceful for hard rock).
Suction & Transport: A powerful pump creates vacuum pressure, pulling slurry through the durable, abrasion - resistant suction pipe. Slurry is then discharged to barges or pipelines.
Repositioning: Uses spud - lifting or anchor - adjusting winches to reposition, ensuring continuous, precise dredging across the work area.
The CSD600’s versatility makes it indispensable across industries:
Port Development: Maintains channel/berth depth for large vessels, removing sediment to ensure smooth maritime traffic.
Land Reclamation: Excavates seabed material to create new land for infrastructure (industrial zones, residential areas).
River/Canal Maintenance: Clears silt/debris, restoring natural water flow and reducing flood risks.
Environmental Projects: Removes contaminated sediment from lakes/estuaries, rejuvenating aquatic ecosystems via careful extraction/disposal.
The CSD600’s principle combines mechanical disruption and hydraulic transportation:
Mechanical Disruption: The cutter head’s blades (custom - engineered for material type) shatter seabed substrates. Blade design varies—robust geometries for hard clay vs. simpler shapes for sand.
Hydraulic Transportation: A centrifugal pump generates pressure differentials, pulling slurry into the suction pipe. Pump power/capacity dictates slurry thickness and pipeline distance it can handle.
The CSD600 delivers competitive advantages for dredging projects:
High Productivity: Processes large material volumes quickly, ideal for time - sensitive tasks (e.g., pre - peak - season port dredging).
Precision Control: Advanced systems and stable anchoring enable exact depth/shape dredging—critical for complex underwater structures.
Material Versatility: Tackles diverse substrates (mud to rock), reducing the need for multiple specialized vessels.
Cost - Effectiveness: Pipeline discharge cuts transport vessel reliance. Fuel - efficient engines lower long - term operational costs.

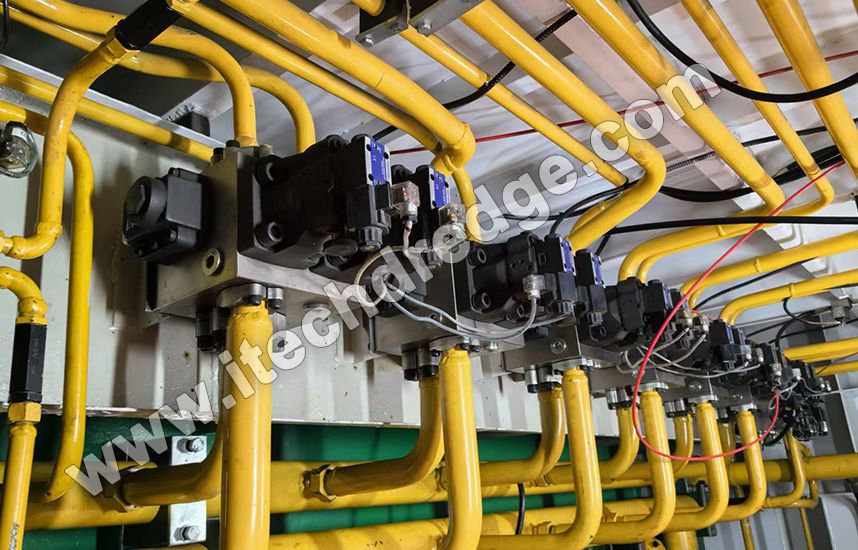

The CSD600 is equipped with an advanced hydraulic system that serves as the lifeblood of its operations, elevating its dredging capabilities to new heights:
Precision Power Delivery: The hydraulic system is responsible for transmitting power to critical components like the cutter head and the suction pump. It ensures that the cutter head rotates with the exact amount of torque needed for different seabed materials. For example, when facing hard, compacted clay, the hydraulic system can adjust to supply higher torque, enabling the cutter head to break through the tough substrate smoothly.
Adaptive Pressure Regulation: It features sophisticated pressure - regulating valves that maintain optimal pressure levels within the system. This is crucial for the suction pump's performance, as it needs to generate the right amount of vacuum pressure to draw in the slurry efficiently. During long - distance pipeline transport of the slurry, the hydraulic system can adjust the pump's pressure to compensate for friction losses in the pipe, ensuring a consistent flow.
Intelligent Power Management: The advanced hydraulic system incorporates smart control algorithms that match the power output to the actual workload. When the CSD600 is dredging in soft silt, which requires less power, the system reduces the hydraulic pressure and flow, resulting in significant energy savings. This not only cuts down on fuel consumption but also extends the operational hours of the vessel between refuels.
Regenerative Hydraulics: Some components of the hydraulic system are designed to capture and reuse energy. For instance, when the cutter head decelerates or the spuds are lowered, the hydraulic system can recover the kinetic energy and store it for later use. This regenerative feature further enhances the overall energy efficiency of the CSD600, making it a more sustainable choice for dredging projects.
Redundancy and Safety: To ensure continuous operation even in the face of component failures, the hydraulic system may have built - in redundancy. For example, there could be duplicate hydraulic pumps or valves that can take over in case of a malfunction. This redundancy not only improves the reliability of the CSD600 but also enhances safety during dredging operations, as it minimizes the risk of unexpected shutdowns.
Condition Monitoring: The hydraulic system is equipped with sensors that constantly monitor parameters such as pressure, temperature, and fluid quality. This real - time monitoring allows for predictive maintenance, as potential issues can be detected early. For example, if the hydraulic fluid temperature starts to rise abnormally, the system can alert the operators, who can then take corrective actions before a major breakdown occurs. This proactive approach to maintenance reduces downtime and extends the lifespan of the hydraulic components.
Every part of the CSD600 is engineered for performance:

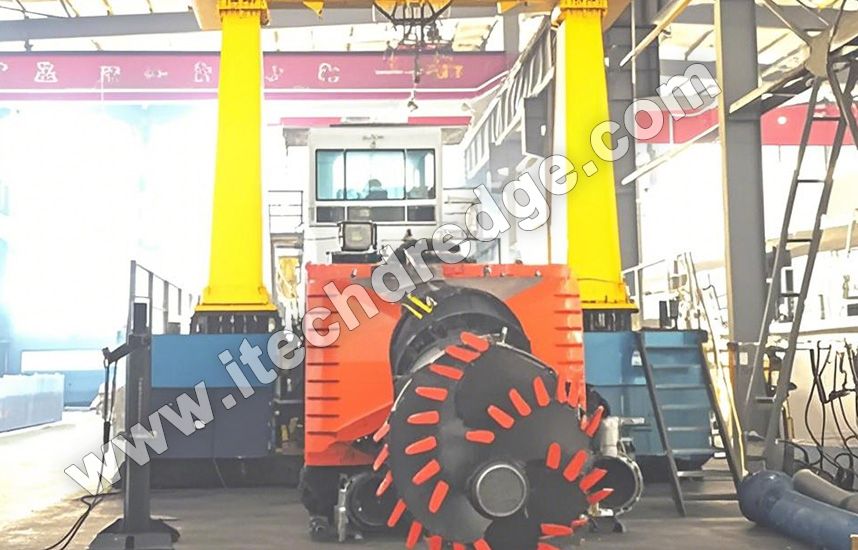

Cutter Head: A complex assembly of blades, motors, and housing. Blades are replaceable and customization (e.g., for coral - friendly dredging in restoration projects).
Suction Pipe & Ladder: The pipe (durable, abrasion - resistant) transports slurry; the ladder supports vertical movement to adjust dredging depth.
Dredge Pump: A high - capacity centrifugal pump powers slurry transport, handling dense mixtures and long pipelines.

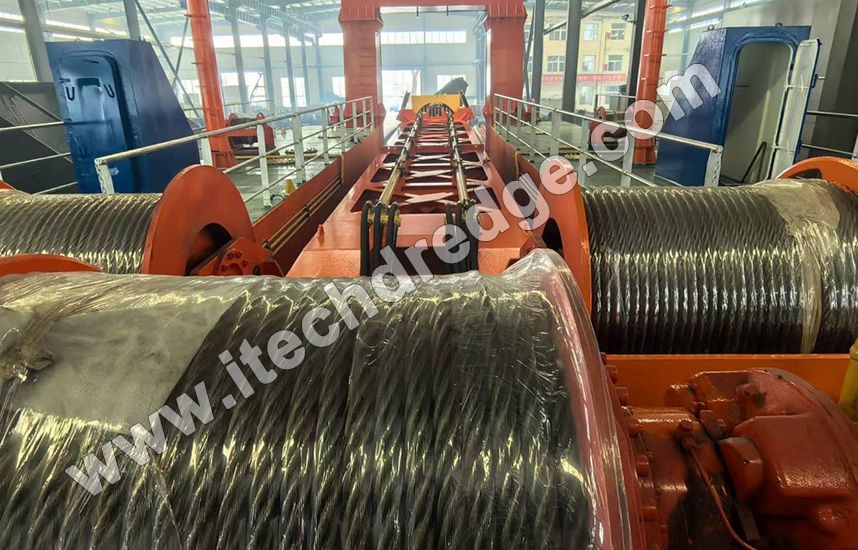

Spuds & Winches: Spuds provide vertical stability; winches/anchors control horizontal movement for precise maneuvering.
Control System: Monitors/controls cutter speed, pump pressure, and more. Some systems offer remote operation for safety/efficiency.
| Model | Dredging Capacity | Dredging Depth | Suction/Discharge Pipe Dia. | Engine(s) Power |
| CSD-200 | 500 m3 /hr | 1-5 m | 200/200 mm | 160-300 kw |
| CSD-250 | 800 m3 /hr | 1-8 m | 250/250 mm | 200-400 kw |
| CSD-300 | 1200 m3 /hr | 1-12 m | 300/300 mm | 400-600 kw |
| CSD-400 | 2200 m3 /hr | 1.5-14 m | 400/400 mm | 700-1200 kw |
| CSD-500 | 3500 m3 /hr | 1.5-15 m | 600/500 mm | 1100-1600 kw |
| CSD-650 | 5000 m3 /hr | 1.5-18 m | 650/650 mm | 2200-2500 kw |
| CSD-700 | 7000 m3 /hr | 1.5-20m | 750/700 mm | 2800-3500 kw |
The CSD600’s design includes industry - leading features:
Powerful Cutter Head Motor: Delivers high torque to cut tough materials (e.g., compacted clay, moderate rock).
High - Capacity Suction Pump: Enables large - volume slurry transport for deep - sea or high - output projects.
Deep - Dredging Capability: Reaches greater depths than many competitors, suited for offshore work.
Intelligent Automation: Adjusts parameters (cutter speed, pump pressure) in real - time based on material/conditions.
Robust Construction: A durable hull and long - lasting components reduce maintenance downtime and costs.
Choosing a CSD600 requires strategic evaluation:
Project Requirements: Define dredging depth, material type, discharge distance, and productivity goals. Prioritize deep - dredging power for offshore ports, for example.
Manufacturer Reputation: Research track records, client testimonials, and certifications. Opt for brands with a history of reliable, high - quality dredgers.
Customization Options: Seek manufacturers offering tailored solutions (e.g., specialized cutter heads, remote - control systems) to match project needs.
After - Sales Support: Ensure access to technical help, spare parts, and maintenance. Comprehensive support minimizes downtime.
Cost - Benefit Analysis: Balance upfront costs with long - term value. A durable, fuel - efficient model may offer better ROI despite higher initial pricing.
