Cutter Suction Dredger Operation Manual

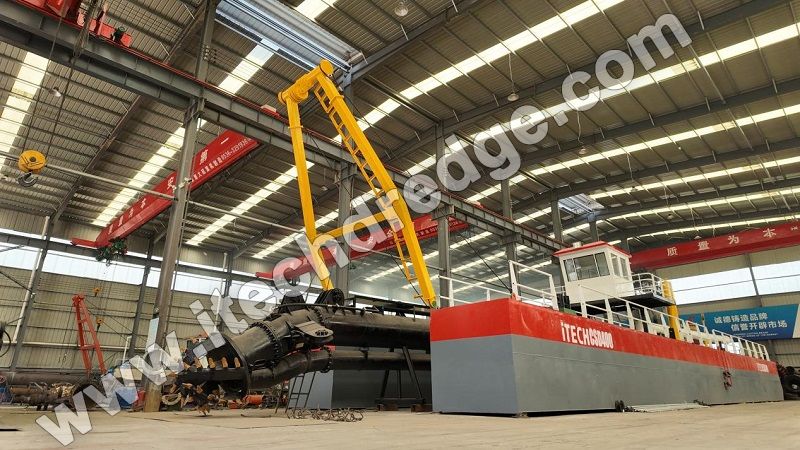

1. Introduction of Cutter Suction Dredger

A cutter suction dredger is a highly efficient and versatile piece of marine engineering equipment designed for the excavation and transportation of underwater materials. The cutter suction dredger represents the latest advancement in cutter suction dredger technology, combining powerful performance with user - friendly operation.

The basic working principle of a cutter suction dredger involves using a rotating cutter head at the end of a suction pipe to break up cohesive and non - cohesive sediments on the seabed or riverbed. Once the material is loosened, it is sucked up through the suction pipe and transported via a pipeline system, either to a disposal site or for further processing.

The cutter suction dredger is constructed with high - quality materials and state - of - the - art engineering techniques, ensuring its durability and reliability in various marine environments. It is equipped with advanced control systems that enhance its operational efficiency and safety.

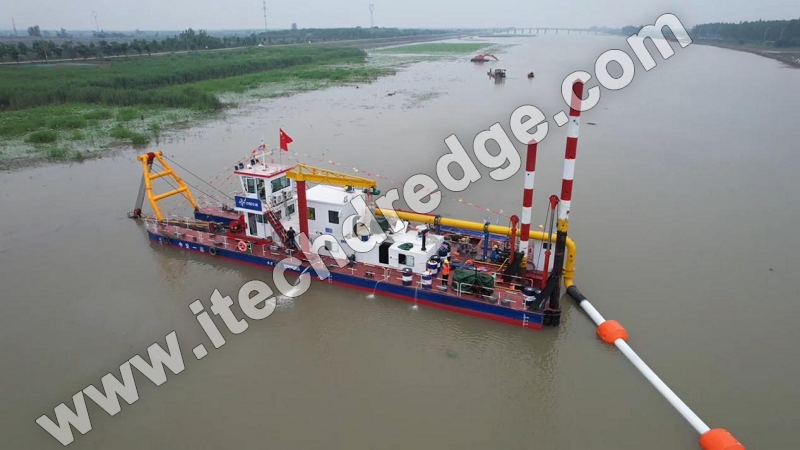

Application of Cutter Suction Dredger

2.1 Dredging of Ports and Harbors

The cutter suction dredger is ideal for maintaining the required depth in ports and harbors. It can efficiently remove accumulated sediment, ensuring that large vessels can safely enter and exit. By precisely controlling the depth of excavation, the dredger helps to improve navigation safety and increase the handling capacity of ports.

2.2 River and Canal Dredging

In rivers and canals, the cutter suction dredger plays a crucial role in preventing silting and maintaining water flow. It can clear channels, widen waterways, and remove debris, ensuring smooth water transportation. This is essential for both commercial and recreational navigation.

2.3 Land Reclamation

For land reclamation projects, the cutter suction dredger can excavate large amounts of sediment from the seabed and transport it to the reclamation site. It can create new land areas for various purposes, such as industrial development, residential construction, and environmental protection projects.

2.4 Dredging of Dredged Material Disposal Sites

The dredger can also be used to manage and maintain dredged material disposal sites. It can re - excavate and relocate materials within the disposal site to optimize space utilization and prevent environmental impacts.

Components of Cutter Suction Dredger in Detail

3.1 Cutter Head

Design

The cutter head of the cutter suction dredger is designed with a robust structure to withstand the high forces generated during excavation. It is typically made of high - strength alloy steel, which provides excellent wear resistance. The cutter head has a series of cutting teeth arranged in a specific pattern. These teeth are replaceable, allowing for easy maintenance and repair. The shape and size of the cutter head are optimized to match different types of sediment, ensuring maximum cutting efficiency.

Feature

One of the key features of the cutter head is its adjustable rotation speed. This allows operators to adapt to different soil conditions. For example, in soft sediments, a higher rotation speed can be used to increase the excavation rate, while in hard materials, a lower speed with more torque is more suitable. Additionally, the cutter head is equipped with a hydraulic system that provides precise control over the cutting force, reducing the risk of damage to the equipment.

Operation

Before starting the cutter head, ensure that all safety guards are in place. The operator can control the rotation speed and direction of the cutter head through the control panel in the operator's cabin. When excavating, start with a slow speed and gradually increase it as the cutter head penetrates the sediment. Continuously monitor the performance of the cutter head, such as the torque and vibration levels, to detect any potential problems early.

Maintenance

Regularly inspect the cutting teeth for wear and tear. Replace any worn - out teeth immediately to maintain cutting efficiency. Lubricate the moving parts of the cutter head, such as the bearings, according to the maintenance schedule. Check the hydraulic system for leaks and ensure that the hydraulic fluid is at the correct level and quality.

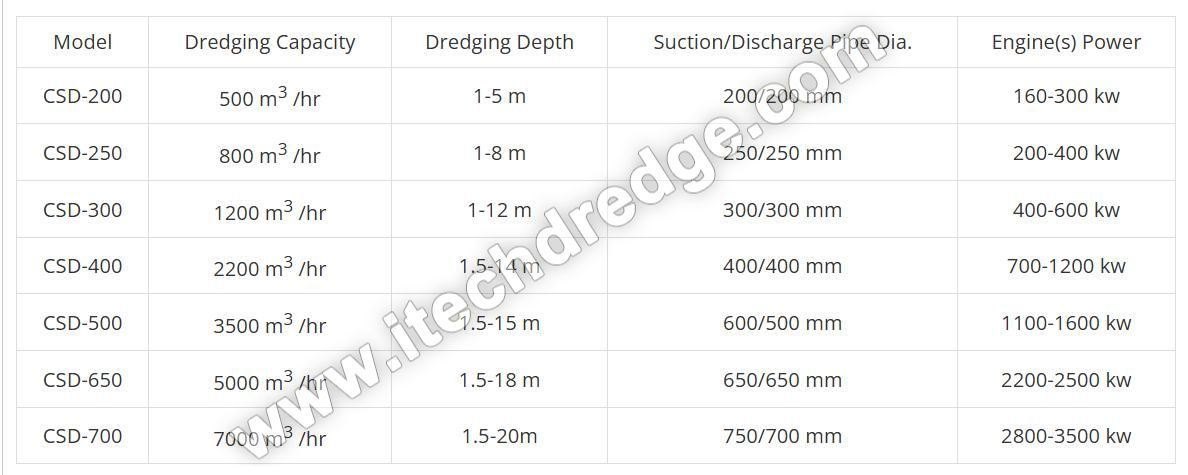

Quick Selection Chart

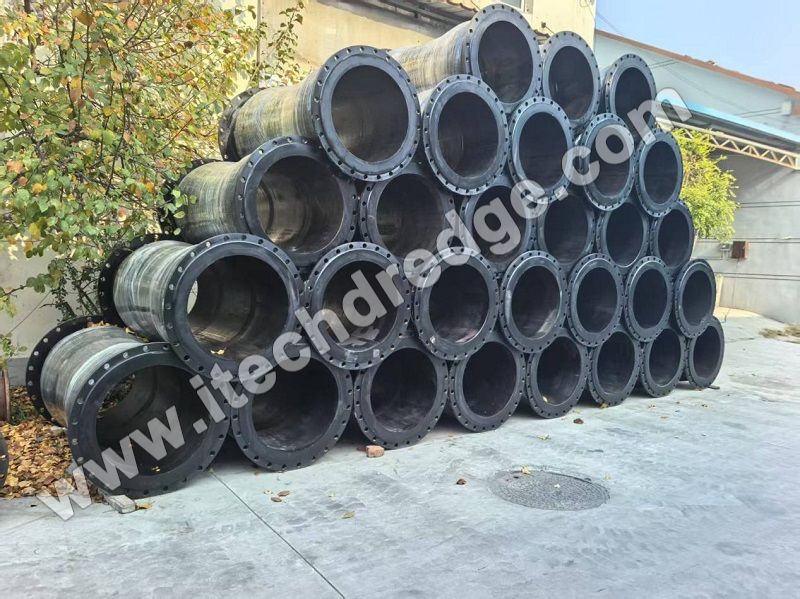

3.2 Suction Pipe

Design

The suction pipe of the cutter suction dredger is designed to be flexible yet strong. It is usually composed of multiple sections that can be easily assembled and disassembled. The inner surface of the pipe is lined with wear - resistant materials, such as rubber or special polymers, to reduce friction and prevent erosion caused by the transported sediment. The pipe diameter is carefully calculated to ensure an optimal flow rate of the dredged material.

Feature

The suction pipe has a telescopic design, which allows it to adjust to different water depths. This feature enables the dredger to operate in a wide range of environments. Additionally, it is equipped with sensors that can detect blockages within the pipe, providing early warnings to the operator.

Operation

When lowering the suction pipe into the water, do it slowly to avoid sudden impacts. During operation, monitor the pressure within the suction pipe. If the pressure suddenly increases, it may indicate a blockage. In such cases, stop the suction process and follow the unblocking procedures.

Maintenance

Regularly clean the inside of the suction pipe to remove any accumulated sediment. Check the pipe joints for leaks and ensure that the seals are in good condition. Inspect the wear - resistant lining for signs of damage and replace it when necessary.

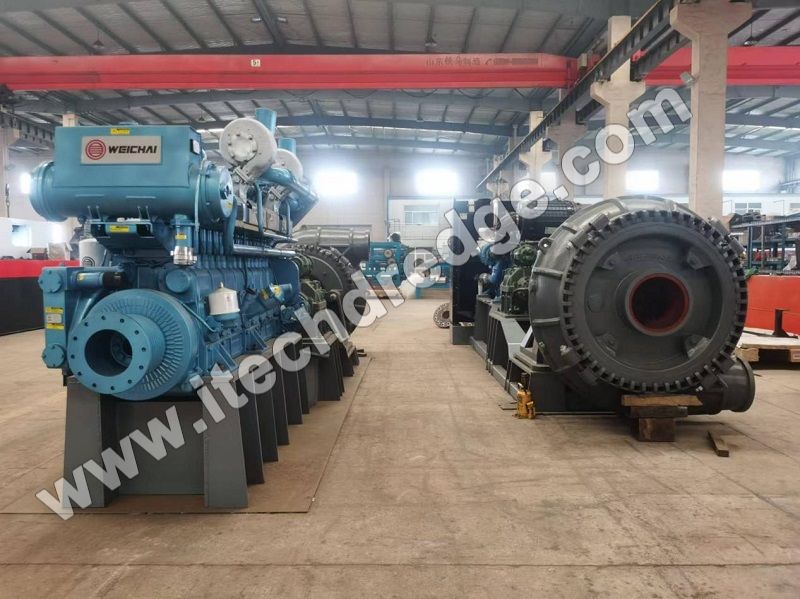

 3.3 Dredge Pump

Design

The dredge pump of the cutter suction dredger is a high - performance centrifugal pump. It is designed with a large - diameter impeller to handle high - volume flows of dredged material. The pump casing is made of heavy - duty cast iron or stainless steel, providing excellent durability. The pump is also designed with a self - priming function, which allows it to start pumping without the need for manual priming.

Feature

The dredge pump has a variable - speed drive system, which enables the operator to adjust the flow rate and pressure according to the requirements of the dredging operation. It is also equipped with a wear - resistant coating on the impeller and casing to extend its service life.

Operation

Before starting the dredge pump, check the oil level in the bearing housing and ensure that the pump is properly aligned. Start the pump at a low speed and gradually increase it to the required operating speed. Continuously monitor the pump's performance, including the flow rate, pressure, and temperature.

Maintenance

Regularly change the lubricating oil in the bearing housing. Inspect the impeller and casing for wear and damage. Clean the pump strainer to prevent blockages. Check the seals of the pump to ensure that there are no leaks.

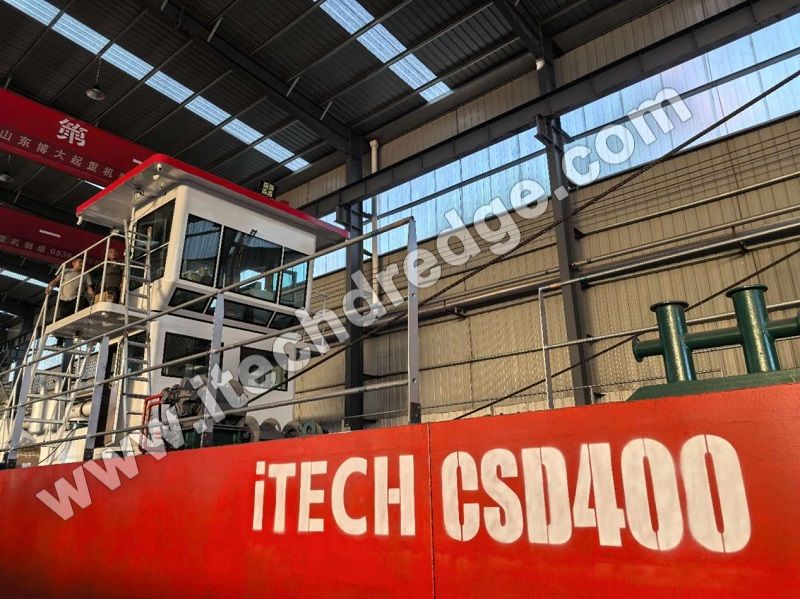

 3.4 Dredger Hull

Design

The hull of the cutter suction dredger is designed to provide stability and maneuverability in the water. It has a double - hull structure in some critical areas, which enhances its strength and durability. The hull shape is optimized for low - resistance movement through the water, reducing fuel consumption.

Feature

The dredger hull is equipped with a dynamic positioning system (DPS), which allows for precise positioning during dredging operations. This system uses multiple thrusters and sensors to maintain the dredger's position accurately, even in strong currents and winds.

Operation

Before setting sail, conduct a thorough inspection of the hull, including checking for any signs of damage or leaks. When maneuvering the dredger, use the control system to operate the thrusters and rudders. During dredging, rely on the DPS to maintain the correct position.

Maintenance

Regularly clean the hull to remove barnacles and other marine growth, which can increase drag. Inspect the hull structure for any signs of corrosion or damage. Repair any damages promptly to ensure the safety and performance of the dredger.

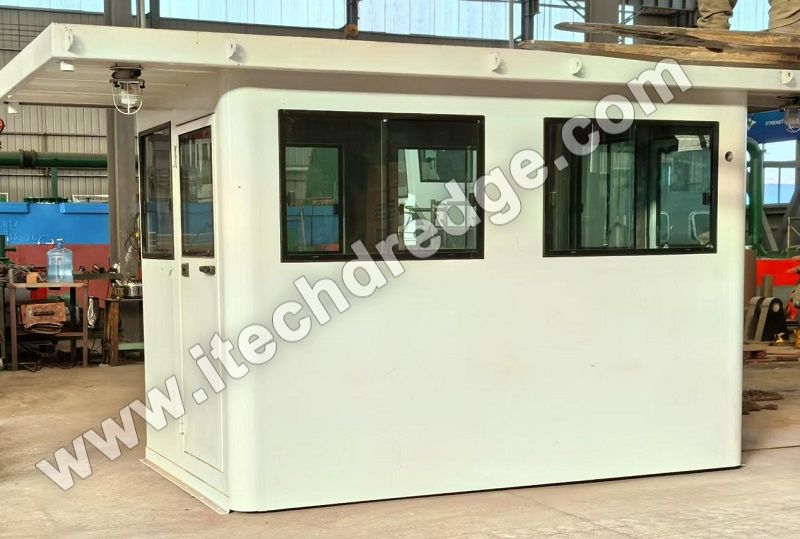

 3.5 Control System

Design

The control system of the cutter suction dredger is a highly advanced digital system. It consists of a central control unit, multiple sensors, and operator interfaces. The sensors are installed throughout the dredger to monitor various parameters, such as engine performance, cutter head position, and pipe pressure. The central control unit processes the data from the sensors and provides real - time information to the operator.

Feature

The control system has an intuitive graphical user interface (GUI) that makes it easy for operators to monitor and control the dredger. It also has an automated diagnostic function that can detect faults and provide troubleshooting suggestions. Additionally, the control system can be integrated with remote monitoring and control systems, allowing for off - site operation and management.

Operation

Operators should be trained on how to use the control system. Familiarize yourself with the different screens and functions of the GUI. Use the control system to start, stop, and adjust the various components of the dredger. Regularly check the status information provided by the control system to ensure normal operation.

Maintenance

Keep the control system clean and free from dust and moisture. Regularly update the software of the control system to ensure its optimal performance. Check the connections of the sensors and cables to ensure they are secure.

4. Problems of Cutter Suction Dredger and Solutions in Detail

4.1 Blockages in the Suction Pipe

Problem: The suction pipe may become blocked due to large pieces of debris or overly thick sediment. This can lead to a significant decrease in the flow rate and may even cause the dredge pump to stop working.

Solution: First, stop the suction process. Then, try to reverse the flow of the dredge pump to dislodge the blockage. If this does not work, disassemble the relevant sections of the suction pipe and manually remove the blockage. After removing the blockage, reassemble the pipe and conduct a test run to ensure normal operation.

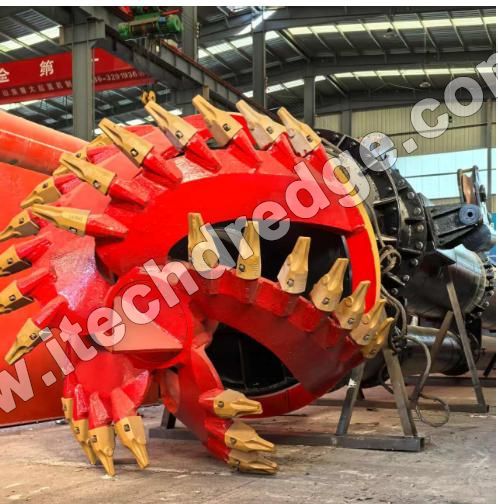

4.2 Excessive Wear of the Cutter Head Teeth

Problem: Continuous use of the cutter head in hard or abrasive sediments can cause the teeth to wear out quickly. This reduces the cutting efficiency of the cutter head and may lead to increased fuel consumption.

Solution: Regularly inspect the cutter head teeth. Replace the worn - out teeth with new ones according to the manufacturer's specifications. Adjust the operation parameters of the cutter head, such as the rotation speed and cutting force, to better suit the sediment conditions and reduce wear.

 4.3 Dredge Pump Leaks

Problem: Leaks in the dredge pump can occur due to damaged seals or worn - out pump components. This can lead to a loss of hydraulic fluid or pumped material, reducing the pump's performance and potentially causing environmental pollution.

Solution: Identify the source of the leak. If it is due to a damaged seal, replace the seal with a new one. For worn - out components, such as the impeller or casing, assess the extent of the damage. If the damage is minor, it may be possible to repair the component. Otherwise, replace the damaged component with a new one.

4.4 Loss of Positioning (for Dredgers with DPS)

Problem: The dynamic positioning system may malfunction, causing the dredger to deviate from its intended position. This can disrupt the dredging operation and pose a safety risk.

Solution: Check the sensors and communication systems of the DPS. If there are any sensor failures, replace the faulty sensors. Ensure that the thrusters are working properly. If necessary, switch to manual positioning and contact the technical support team for further assistance in diagnosing and repairing the DPS.
